FANUC A06B-0828-B290 Retrofit-Compatible Spindle Motor for Legacy Systems

FANUC A06B-0828-B290 Retrofit-Compatible Spindle Motor for Legacy Systems

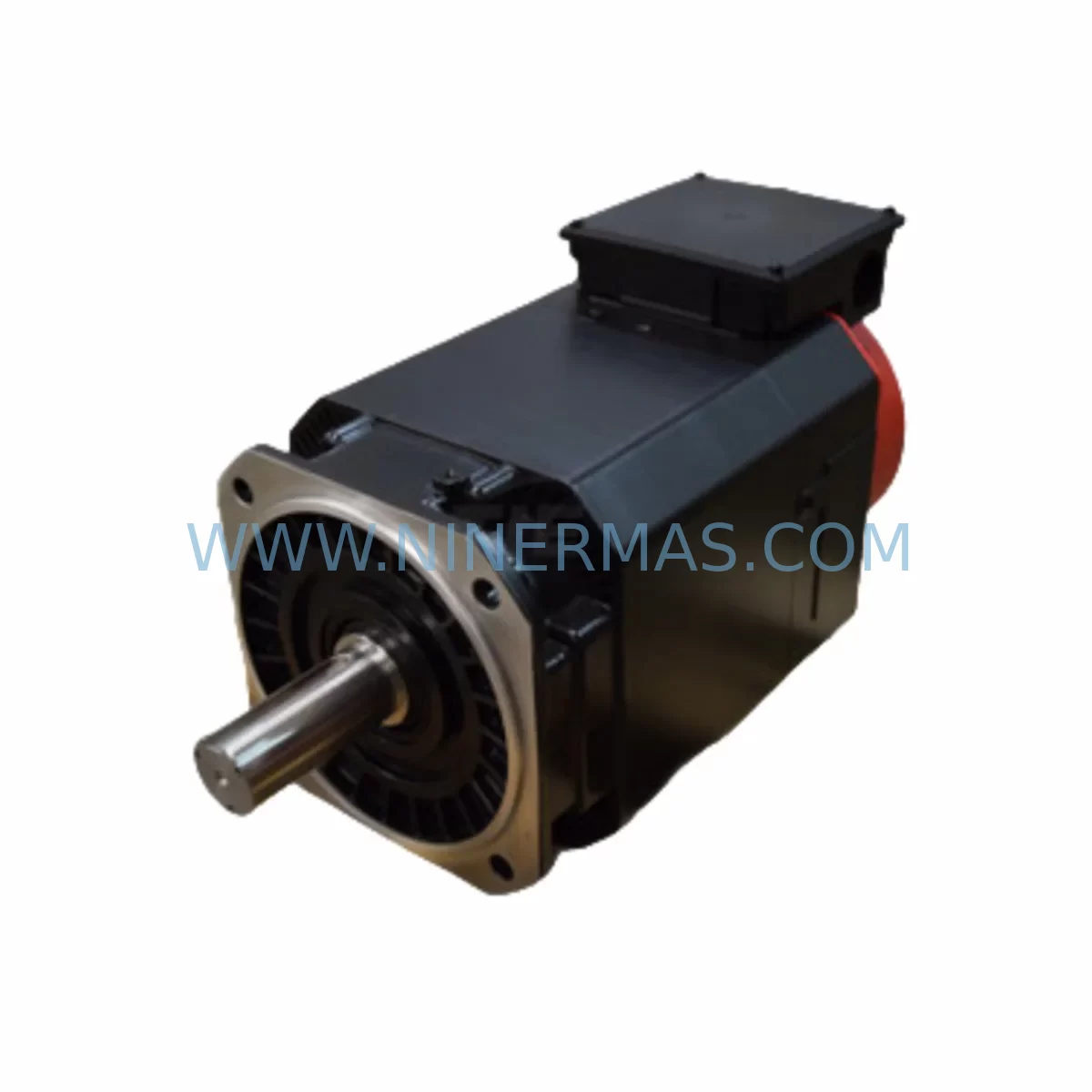

The FANUC A06B-0828-B290 is an Alpha Series AC spindle motor designed for high-torque, high-speed CNC spindle drive applications. As legacy FANUC 0-Series, 10/11/12-Series, 15-Series, and 16/18/21-Series CNC systems approach end-of-life, the A06B-0828-B290 remains one of the most sought-after retrofit-compatible spindle motors for production lines that cannot afford full platform migration. This unit supports smooth integration into existing control cabinets where the original spindle amplifier — typically an SPM (Spindle Power Module) such as the A06B-6102 series — remains in service or is being concurrently upgraded.

Each unit supplied by NINERMAS undergoes pre-shipment functional testing to verify encoder feedback integrity, winding insulation resistance, and shaft runout tolerance. A 12-month warranty is included from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a spindle motor retrofit around the A06B-0828-B290, engineers must account for the full drive chain — not just the motor itself. The spindle amplifier module (SPM), typically an A06B-6102-H002 or A06B-6102-H006, must be confirmed compatible with the motor’s kW rating and encoder type. If the existing SPM is also degraded, concurrent replacement is strongly recommended to avoid repeat downtime.

The power supply module — often a PSM such as the A06B-6087 or A06B-6110 series — must have sufficient DC bus capacity to support the spindle motor’s peak current demand during acceleration. Undersized PSM units are a common cause of OVC (overcurrent) alarms during high-load spindle operations after a motor swap.

On the CNC controller side, the FANUC 16i-MB or 18i-MB (and their non-i predecessors) store spindle motor parameters in a dedicated parameter block. After replacing the A06B-0828-B290, technicians must reload or re-enter spindle-specific parameters — including motor code, gear ratio, maximum speed, and orientation stop position — to restore correct spindle behavior. Failure to do so will result in spindle alarm 9001 or 9002 on most FANUC platforms.

The encoder feedback cable — typically a FANUC A66L-0001-0284 or equivalent shielded cable — must be inspected for continuity and shield integrity. A degraded encoder cable is frequently misdiagnosed as motor failure; replacing the motor without checking the cable can result in persistent SPN alarms even after a successful motor swap.

For systems using a FANUC A02B-series operator panel or MDI unit, the HMI spindle status screen should be verified post-commissioning to confirm that actual spindle speed feedback matches commanded speed. Discrepancies greater than 5% at steady state indicate a parameter or encoder issue requiring further investigation.

In control cabinets where space is constrained — particularly older Yamazaki Mazak, Mori Seiki, or Okuma machines retrofitted with FANUC drives — confirm the motor frame size and cable exit direction before ordering. The A06B-0828-B290 uses a specific flange configuration; mismatched mounting holes or shaft key dimensions will require adapter plates or machining, adding lead time to the retrofit.

For lines undergoing broader I/O expansion alongside the spindle upgrade, the FANUC I/O Link module (A20B-2002-series or A03B-0819-series distributed I/O) may need address reassignment if the spindle amplifier occupies a shared I/O slot. Coordinate I/O map changes with the PLC ladder program to avoid M-code conflicts during spindle start/stop sequences.

Where communication protocol migration is also in scope — for example, transitioning from RS-232C DNC to FANUC FOCAS2 Ethernet — the spindle motor retrofit can be scheduled in the same maintenance window to minimize total downtime. The FANUC Data Server (A87L-0001-0015 or embedded in newer CNCs) supports concurrent program transfer while spindle commissioning proceeds, reducing overall line stoppage.

Downtime Control During System Migration

Minimizing unplanned downtime during a spindle motor replacement requires a structured pre-swap checklist. Before the maintenance window opens, the original CNC program files should be backed up via FANUC SRAM backup (using a FANUC Program Transfer Tool or compatible CF card reader), and all current spindle parameters should be recorded manually or exported. This ensures that if parameter corruption occurs during power cycling, recovery is immediate rather than requiring a full re-commissioning from scratch.

The replacement A06B-0828-B290 should be staged in the control cabinet area with all associated hardware — encoder cable, terminal block adapters, and mounting hardware — pre-assembled and verified before the machine is taken offline. A cold swap on a pre-staged unit typically takes 2–4 hours for an experienced field engineer, compared to 8–12 hours when parts are sourced reactively during an unplanned failure.

After mechanical installation, the spindle amplifier should be powered up in a no-load test mode (spindle unclamped, no workpiece) to verify encoder signal quality and direction of rotation before returning the machine to production. FANUC’s built-in spindle tuning function (accessible via the servo tuning screen on 16i/18i platforms) can be used to optimize current loop response for the replacement motor, particularly if the new unit has slightly different winding characteristics from the original.

For facilities operating multiple identical machines, a spare A06B-0828-B290 held in bonded inventory eliminates the lead time variable entirely. NINERMAS maintains stock of this model and can confirm availability and lead time prior to order placement, supporting planned maintenance schedules and emergency breakdown response equally.

Retrofit Support FAQ

Q1: Is the A06B-0828-B290 a direct drop-in replacement for my existing spindle motor?
In most cases, yes — provided the existing spindle amplifier (SPM) is compatible with the Alpha Series encoder type and the motor frame size matches the machine’s mounting configuration. Confirm the SPM model number and motor mounting dimensions before ordering. Our technical team can assist with compatibility verification based on your machine model and existing drive configuration.

Q2: What commissioning steps are required after installation?
After mechanical and electrical installation, re-enter spindle motor parameters in the CNC parameter screen (typically parameters 4000–4999 on FANUC 16i/18i/21i platforms). Perform a no-load spindle run to verify encoder feedback, then conduct orientation and rigid tapping calibration if applicable. Full commissioning documentation is available upon request.

Q3: Has this unit been tested before shipment?
Yes. Every A06B-0828-B290 unit supplied by NINERMAS undergoes pre-shipment testing covering winding insulation resistance (Megger test), encoder signal output verification, and shaft runout measurement. Test records are available upon request and accompany each shipment.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, parameter misconfiguration, overvoltage events, or mechanical impact. Warranty claims are processed directly through NINERMAS with a target response time of 2 business days.
