FANUC A05B-2490-0171 Retrofit Teach Pendant for Legacy Systems

FANUC A05B-2490-0171 Retrofit Teach Pendant for Legacy Systems

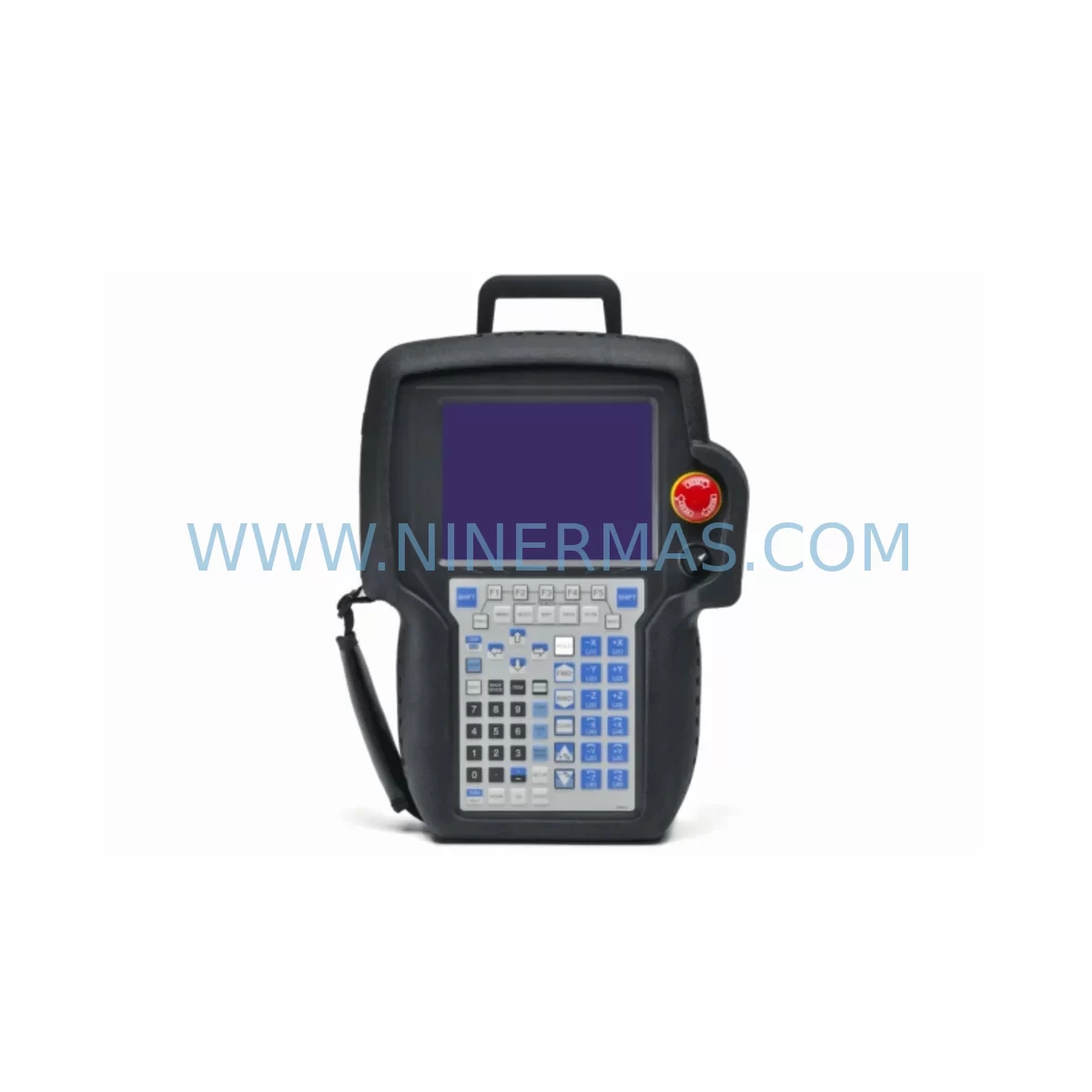

The FANUC A05B-2490-0171 is a ruggedized teach pendant engineered for compatibility with legacy FANUC robot controller platforms, including the R-30iB and earlier R-J3iB series. As production lines age and original equipment manufacturers discontinue support for older pendant models, the A05B-2490-0171 provides a verified, drop-in retrofit solution that preserves existing program logic, operator interface familiarity, and communication link integrity. This unit is pre-shipment tested, supplied with a 12-month warranty, and maintained in reserved inventory to support urgent replacement requirements across automotive, petrochemical, energy, and general manufacturing environments.

Facilities managing multi-robot cells or mixed-generation controller cabinets frequently encounter the challenge of sourcing compatible teach pendants when the original A05B-2490-0171 reaches end-of-life. Procurement delays for discontinued FANUC peripherals can extend planned maintenance windows into unplanned downtime events. NINERMAS maintains dedicated stock of the A05B-2490-0171 to eliminate lead-time risk and support same-week dispatch for critical replacement orders.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the A05B-2490-0171 into an existing robot cell requires a structured pre-installation review covering power capacity, terminal wiring, backplane interface, module addressing, program compatibility, HMI screen configuration, communication links, installation space, and on-site commissioning sequence. The following planning framework addresses each of these areas in the context of real-world retrofit projects.

Power Capacity Verification: Before installing the A05B-2490-0171, confirm that the R-30iB controller cabinet’s 24 VDC auxiliary supply can sustain the pendant’s operating current draw. Cabinets running additional I/O expansion modules such as the A05B-2255-C102 distributed I/O unit or supplementary A16B-3200-0491 main CPU boards may be operating near their power budget. A power audit of the cabinet’s A06B-6114-H105 servo amplifier and associated DC bus loading should be completed before adding the pendant to the circuit.

Terminal Wiring and Connector Inspection: The A05B-2490-0171 uses a standard 50-pin D-sub pendant connector. Inspect the mating connector on the R-30iB controller for pin damage, corrosion, or loose retention hardware. In installations where the original pendant cable has been routed through cable trays shared with high-voltage servo drive wiring from units such as the A06B-6079-H106 spindle amplifier, check for insulation wear and EMI shielding continuity before reconnecting.

Backplane Interface and Module Addressing: In multi-axis robot cells using FANUC’s A16B-2203-0370 I/O link master board, confirm that the teach pendant’s logical address assignment does not conflict with existing I/O modules on the backplane. Address conflicts can cause controller fault codes that interrupt production without triggering a hardware alarm, making them difficult to diagnose during commissioning.

Program Compatibility and Logic Preservation: The A05B-2490-0171 does not alter stored robot programs on the R-30iB controller. However, if the legacy installation used a FANUC A02B-0319-B502 programming console for offline program editing, verify that the program file format is compatible with the current controller firmware version before switching to pendant-based editing. Back up all TP programs and system variables to a USB memory device or the FANUC ROBOGUIDE simulation environment before beginning the swap.

HMI Screen and Communication Link Configuration: Facilities that have customised the teach pendant’s HMI screens using FANUC’s iHMI editor should export all custom screen definitions before removing the legacy pendant. The A05B-2490-0171 supports the same iHMI framework, allowing screen definitions to be re-imported after installation. For cells communicating over PROFIBUS-DP using the A05B-2518-0202 PROFIBUS master module, verify that the GSD file and station address configuration remain intact after the pendant swap, as some controller firmware versions reset communication parameters during a cold start following a peripheral change.

Installation Space and Cable Management: The A05B-2490-0171 is dimensionally equivalent to the standard FANUC R-30iB pendant and mounts on the same cabinet hook bracket. In compact control cabinet installations where the A05B-2600-0070 operator panel is co-located with the robot controller, confirm that the pendant cable has sufficient slack for full operator reach without straining the connector housing. A minimum bend radius of 100 mm should be maintained throughout the cable run.

On-Site Commissioning: After physical installation, perform a controlled power-up sequence: enable the controller in T1 mode, verify E-stop circuit continuity, confirm axis enable signals, and execute a single-step jog test across all robot axes before returning to automatic mode. If the installation includes a FANUC A05B-2490-0172 dual-arm pendant configuration or a shared pendant switching unit, verify that the pendant selection logic correctly identifies the A05B-2490-0171 as the active device before releasing the cell to production.

Downtime Control During System Migration

Minimising unplanned downtime during a teach pendant replacement requires pre-staging the replacement unit, completing all compatibility checks during a scheduled maintenance window, and having a tested rollback procedure in place. The A05B-2490-0171 is supplied pre-tested and ready for immediate installation, eliminating the commissioning delay associated with untested spare parts.

To protect original program logic, back up all TP files, system variables, and mastering data to an external storage device before disconnecting the legacy pendant. This ensures that a full system restore can be completed within 30 minutes if an unexpected fault occurs during the swap. Maintain field control continuity by keeping the robot in E-stop state throughout the pendant exchange and verifying safety circuit integrity before releasing the axis enable signal.

For facilities operating multiple robots on a single production line, stagger pendant replacements across shifts to avoid simultaneous downtime on adjacent cells. Coordinate with the PLC or DCS operator to confirm that the line control system correctly handles the robot’s temporary offline status during the swap, particularly in installations where the robot’s I/O status is monitored by a Siemens S7-300 or Allen-Bradley ControlLogix PLC via a hardwired interface. Retrofit risk is further reduced by confirming that the replacement pendant’s firmware version matches the controller’s expected peripheral firmware level before installation.

Retrofit Support FAQ

Q1: Is the A05B-2490-0171 a direct replacement for the A05B-2490-0170?
The A05B-2490-0171 is the successor model to the A05B-2490-0170 and is functionally compatible with R-30iB controller cabinets. For R-J3iB installations originally equipped with the A05B-2490-0170, a pendant adapter cable is required to match the connector pinout. Contact NINERMAS for adapter cable availability before placing your order.

Q2: What commissioning steps are required after installation?
After connecting the A05B-2490-0171, power up the controller in T1 mode, verify E-stop circuit continuity using the controller’s diagnostic screen, confirm axis enable signals, and perform a single-step jog test on all axes. Re-import any custom HMI screen definitions and verify communication link status on the PROFIBUS or Ethernet/IP network before returning the robot to automatic mode.

Q3: How is the unit tested before shipment?
Every A05B-2490-0171 unit supplied by NINERMAS undergoes a full functional test prior to dispatch. The test covers display operation, keypad response, E-stop circuit continuity, communication interface verification, and cable connector integrity. A test report is available on request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains reserved inventory of the A05B-2490-0171 to support urgent replacement requirements. Standard orders are dispatched within 3–5 business days. For critical production environments requiring same-week delivery, contact our sales team directly to confirm current stock levels and expedited shipping options. Long-term supply commitments and reserved stock programs are available for facilities managing multi-robot fleets or planned maintenance schedules.
