FACTS F4-16AD-2 Safety-Reliable Analog Input for Critical Control Sites

FACTS F4-16AD-2 Safety-Reliable Analog Input for Critical Control Sites

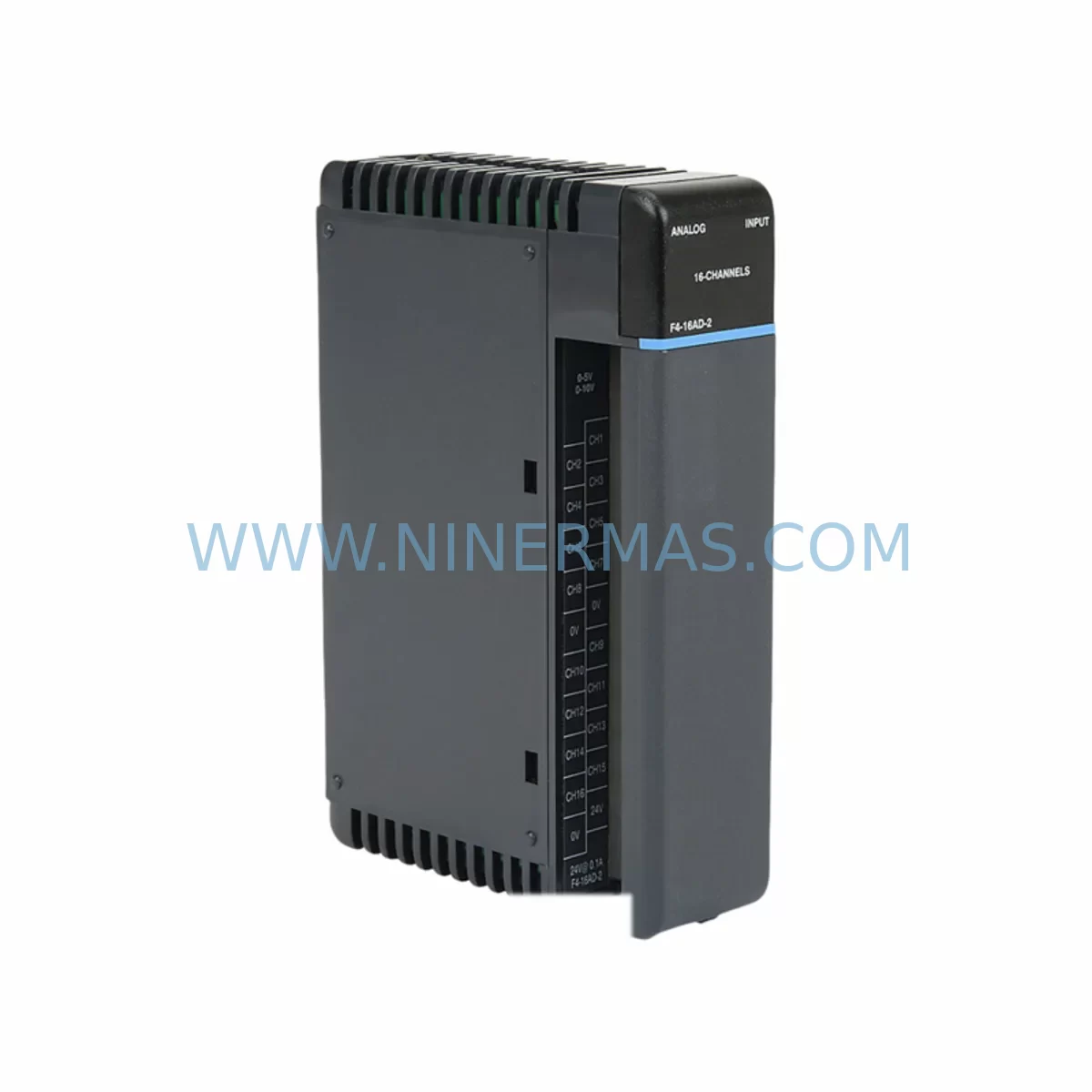

The FACTS F4-16AD-2 is a high-integrity 16-channel analog input module engineered for the FACTS F4 Series programmable controller platform. Designed to deliver stable, accurate signal acquisition in demanding industrial environments, the F4-16AD-2 is a cornerstone component for control engineers who cannot afford signal drift, input channel failure, or unplanned downtime in critical production loops. Whether deployed in continuous chemical processing, power generation switchgear rooms, or heavy-duty mining control cabinets, this module provides the signal fidelity and operational resilience that safety-critical automation demands.

In high-stakes industrial facilities — including petrochemical plants, metallurgical furnaces, water treatment stations, and port logistics automation — analog signal integrity is non-negotiable. The F4-16AD-2 addresses the most common failure modes in field instrumentation loops: signal drift under thermal stress, channel cross-talk in high-EMI environments, input saturation from surge events, and communication anomalies caused by ground loops or cable degradation. Its robust input conditioning circuitry ensures that 4–20 mA and voltage signals from field transmitters, pressure sensors, flow meters, and temperature transducers are accurately digitized and delivered to the F4 Series CPU without distortion or latency.

For control cabinet integrators managing complex safety interlock architectures, the F4-16AD-2 slots directly into the F4 Series backplane alongside companion modules such as the F4-16DA-2 analog output module, F4-32DI digital input module, and F4-32DO digital output module, enabling a fully coordinated I/O strategy within a single rack. When paired with the F4-CPU power supply module and a dedicated 24VDC DIN-rail power supply, the system maintains stable bus voltage even during load transients — a critical requirement in heavy motor-start environments where voltage sag can corrupt analog readings and trigger spurious alarms.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A well-engineered control cabinet for continuous industrial operations is only as reliable as its weakest signal path. The FACTS F4-16AD-2 eliminates one of the most common sources of control loop instability: degraded or failed analog input channels. In legacy automation systems where the F4 Series PLC remains the backbone of process control, a failed analog input module can cascade into loss of PID loop control, erroneous safety interlock activation, or complete process shutdown.

To build a resilient control architecture around the F4-16AD-2, engineers typically deploy it alongside a FACTS F4-16DA-2 analog output module for closed-loop control of control valves and variable-speed drives. Digital I/O is handled by the F4-32DI and F4-32DO modules, which manage discrete safety interlock signals, motor starter feedback, and emergency stop circuits. For communication redundancy, the F4-EBC Ethernet Base Controller or a compatible FACTS F4 Series communication module ensures that process data reaches the SCADA layer without interruption, even during network disturbances.

Power integrity is equally critical. A dedicated 24VDC industrial DIN-rail power supply with active power factor correction and output short-circuit protection ensures that the F4 backplane receives clean, regulated voltage. In environments with significant harmonic distortion — common near large VFD installations — supplementing with a line filter or surge protection device (SPD) on the incoming AC feed prevents transient energy from reaching sensitive analog input circuitry. Additionally, proper cable shielding and grounding bars within the control cabinet are essential companions to the F4-16AD-2 to suppress common-mode noise on long field cable runs from remote transmitters.

For safety interlock systems operating under IEC 61511 or NFPA 72 frameworks, the F4-16AD-2 provides the analog signal acquisition layer that feeds safety instrumented function (SIF) logic. When combined with safety relays, dual-channel input modules, and watchdog timer modules, the F4 Series platform can support a layered protection architecture that minimizes the probability of dangerous undetected failures in critical process loops.

Critical Industrial Safety Applications

The FACTS F4-16AD-2 has established a proven track record across the most demanding industrial sectors where control system reliability directly impacts personnel safety, environmental compliance, and production continuity:

Petrochemical & Refining: In distillation column control and reactor temperature monitoring, the F4-16AD-2 acquires signals from thermocouple transmitters, pressure transducers, and level sensors. Its channel isolation prevents a single-point ground fault from corrupting adjacent measurement channels — a critical safeguard in explosive atmosphere zones where false readings can trigger unsafe process conditions.

Electric Power Generation & Substation Automation: Turbine control systems and generator excitation loops rely on precise analog feedback. The F4-16AD-2’s high-resolution input conditioning supports accurate monitoring of generator output voltage, current, and frequency signals, enabling fast governor response and preventing over-excitation trips.

Mining & Mineral Processing: In conveyor belt tension monitoring, crusher load control, and flotation cell level management, the F4-16AD-2 operates reliably in high-dust, high-vibration environments. Its robust backplane connection and conformal-coating-compatible design ensure long service life in harsh underground or open-pit control rooms.

Water & Wastewater Treatment: Flow control, pH monitoring, and dosing pump regulation in water treatment plants demand continuous, drift-free analog signal acquisition. The F4-16AD-2 supports multi-channel monitoring of field instruments across large treatment facilities, reducing the risk of dosing errors that could compromise water quality compliance.

Metallurgy & Steel Production: In electric arc furnace control and rolling mill automation, the F4-16AD-2 handles high-channel-count analog acquisition from pyrometers, load cells, and hydraulic pressure sensors. Its tolerance for high-EMI environments — generated by large induction furnaces and high-current bus bars — ensures signal integrity without additional filtering hardware.

Port & Marine Logistics: Crane load monitoring, ship-to-shore conveyor control, and ballast water management systems benefit from the F4-16AD-2’s multi-channel capacity and reliable operation in humid, salt-air environments typical of coastal industrial facilities.

Safety and Quality FAQ

Q1: What warranty does the FACTS F4-16AD-2 carry when purchased from NINERMAS?
All FACTS F4-16AD-2 modules supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis, replacement dispatch, and application guidance to minimize your downtime.

Q2: Is the F4-16AD-2 tested before shipment?
Yes. Every unit undergoes pre-shipment functional verification at our facility. We confirm channel operability, backplane interface integrity, and input signal response before dispatch. This ensures that the module arrives ready for immediate installation and commissioning without on-site debugging delays.

Q3: Is the F4-16AD-2 compatible with all FACTS F4 Series racks and CPUs?
The F4-16AD-2 is designed for the FACTS F4 Series PLC platform and is compatible with standard F4 Series backplanes and CPU modules. For specific firmware version compatibility or mixed-generation rack configurations, our technical team can advise on slot placement and configuration requirements prior to your order.

Q4: Can NINERMAS support long-term supply of the F4-16AD-2 as a spare part?
Yes. NINERMAS specializes in long-lifecycle spare parts supply for industrial automation systems, including legacy FACTS F4 Series components. We maintain stock commitments for critical SKUs and can support planned maintenance programs, emergency replacement orders, and multi-unit procurement for spare parts inventory programs across your global facilities.
