ESTIC ENRZ-AU40-20 Retrofit-Compatible Controller for Legacy Automation Systems

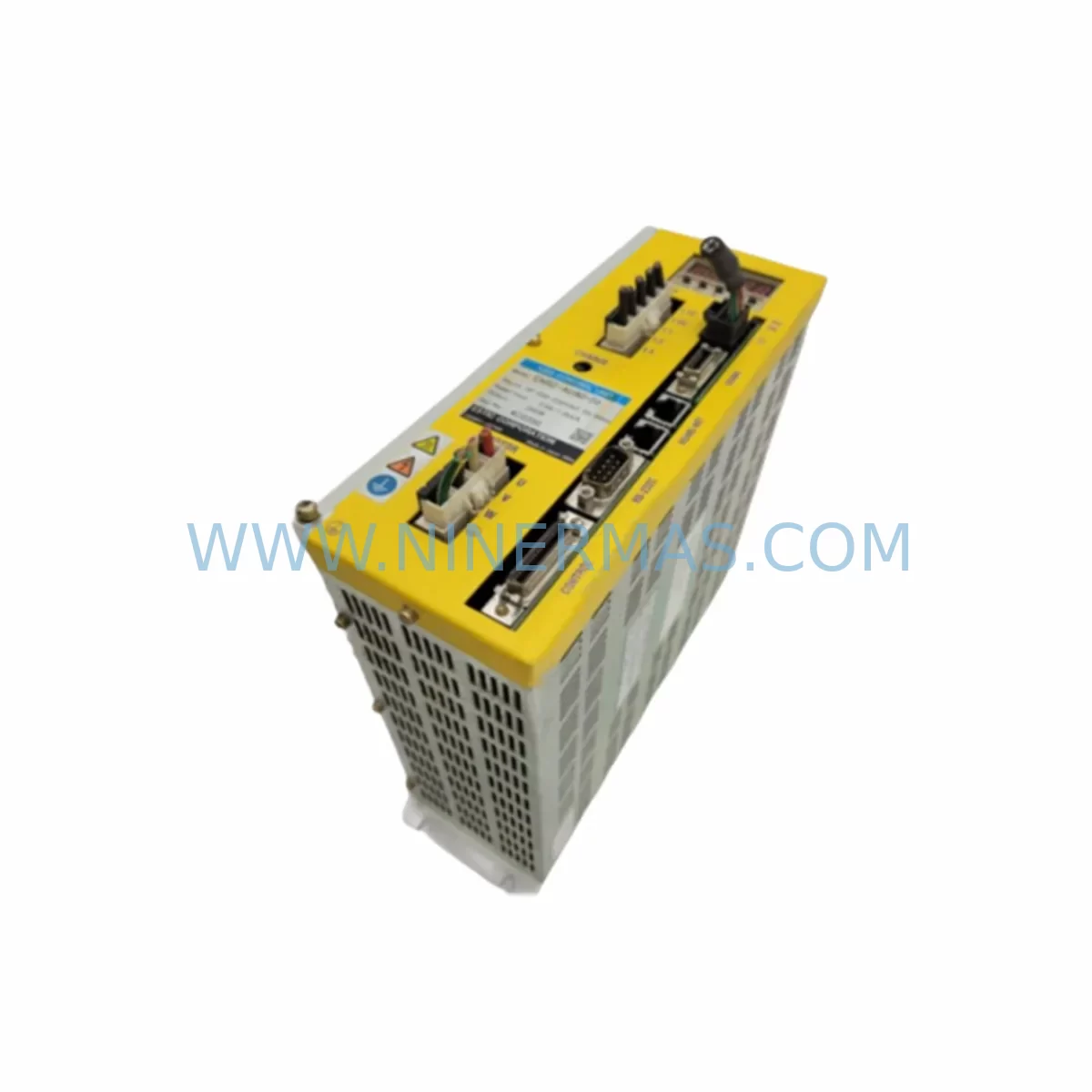

The ESTIC ENRZ-AU40-20 is a servo controller unit from ESTIC’s ENRZ series, engineered for precision torque and angle control in industrial fastening and assembly automation. As production lines age and original ENRZ-series controllers reach end-of-life, the ENRZ-AU40-20 serves as a direct retrofit-compatible replacement, enabling facilities to restore full system functionality without redesigning their control architecture. NINERMAS maintains verified stock of the ENRZ-AU40-20 to support urgent spare-parts procurement, planned maintenance windows, and long-term lifecycle programs for customers operating legacy ESTIC fastening systems.

Whether you are replacing a failed unit on an active assembly line, upgrading a control cabinet as part of a broader modernization initiative, or building a strategic spare-parts inventory to protect against future downtime, the ENRZ-AU40-20 provides a reliable, tested solution backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ENRZ-AU40-20 retrofit begins well before the replacement unit arrives on site. Maintenance engineers should start by retrieving the full parameter backup from the existing controller using the ESTIC programming cable or teach pendant interface. This file contains all torque targets, angle windows, fastening sequences, and error thresholds that define the line’s quality standards — losing it means rebuilding the program from scratch, which can extend downtime significantly.

Next, verify the power supply feeding the control cabinet. The ENRZ-AU40-20 draws from the cabinet’s AC bus, and if the existing power supply module — such as an ESTIC PSU unit or a third-party 24 VDC rail supply — is already running near capacity due to added I/O modules or signal conditioners, the new controller may trigger nuisance tripping. Confirm the breaker rating and available headroom before proceeding.

Terminal wiring is another critical checkpoint. The ENRZ series uses a screw-terminal I/O connector block for digital inputs, digital outputs, and analog feedback signals. Before disconnecting the old unit, photograph or transcribe the full wiring layout. Pay particular attention to the enable signal, the tool-select inputs, and the OK/NG output lines that feed the line’s quality management system or upstream PLC — often a Mitsubishi MELSEC Q-series or Omron CJ-series controller managing the broader assembly cell.

If the fastening cell communicates over a fieldbus network — such as DeviceNet, PROFIBUS-DP, or CC-Link — confirm that the ENRZ-AU40-20’s communication module matches the network protocol and node address of the unit being replaced. A mismatch here will prevent the host controller from recognizing the new unit, and the line will not restart until the address is corrected and the network re-scanned. In cells where the ESTIC controller reports fastening results to a Keyence or Cognex vision system for traceability, also verify that the handshake signal timing is preserved after replacement.

For facilities running mixed-brand control cabinets, the ENRZ-AU40-20 typically coexists with components such as Schneider Electric Zelio safety relays, Phoenix Contact terminal blocks, IDEC selector switches, and Pilz PNOZ safety modules. None of these require modification during an ENRZ controller swap, but their wiring must be re-terminated correctly to the new unit’s I/O block. If the cabinet also houses an ESTIC ENRZ-BU series base unit or expansion I/O rack, confirm that the backplane connector and slot addressing are compatible with the AU40-20 variant before installation.

Finally, confirm physical installation space. The ENRZ-AU40-20 requires adequate vertical clearance above and below for airflow. If the cabinet has been retrofitted with additional components since original installation, measure the available panel space carefully. In tight enclosures, a short DIN rail extension or panel reorganization may be necessary before the new controller can be mounted safely.

Downtime Control During System Migration

Minimizing production downtime during an ENRZ-AU40-20 replacement requires a structured pre-outage preparation plan. The most effective approach is to stage the replacement during a scheduled maintenance window rather than responding reactively to a failure — which is why maintaining a spare ENRZ-AU40-20 in your on-site inventory is strongly recommended for high-volume fastening lines.

Before the outage begins, prepare the replacement unit by confirming it powers up correctly on a bench supply and that its firmware version is compatible with your parameter backup file. Load the parameter file in advance if the controller supports offline configuration, so that on-site commissioning is reduced to verification rather than full programming. This alone can cut commissioning time from several hours to under thirty minutes.

During the swap, follow a strict lockout/tagout procedure on the cabinet’s main isolator. Disconnect the I/O connector block as a single assembly where possible — do not remove individual wires one at a time under time pressure, as this increases the risk of mis-termination. Once the new ENRZ-AU40-20 is mounted and wired, restore power and confirm that the controller initializes without fault codes before reconnecting the fieldbus network.

Run a full fastening test cycle on a sacrificial joint or torque audit fixture before releasing the line to production. Verify that the OK/NG output signals are functioning correctly and that fastening results are being logged to the traceability system. Only after a clean test cycle should the line be returned to normal operation. This disciplined commissioning sequence protects both the equipment and the quality record of the parts produced immediately after restart.

NINERMAS ships verified, pre-tested ENRZ-AU40-20 units with full outgoing inspection documentation, reducing the risk of receiving a unit with latent defects that would only surface during commissioning. All units are covered by a 12-month warranty from the date of shipment.
