Erhardt+Leimer DC5501 Retrofit-Compatible Web Guide Controller

Erhardt+Leimer DC5501 Retrofit-Compatible Web Guide Controller for Legacy Systems

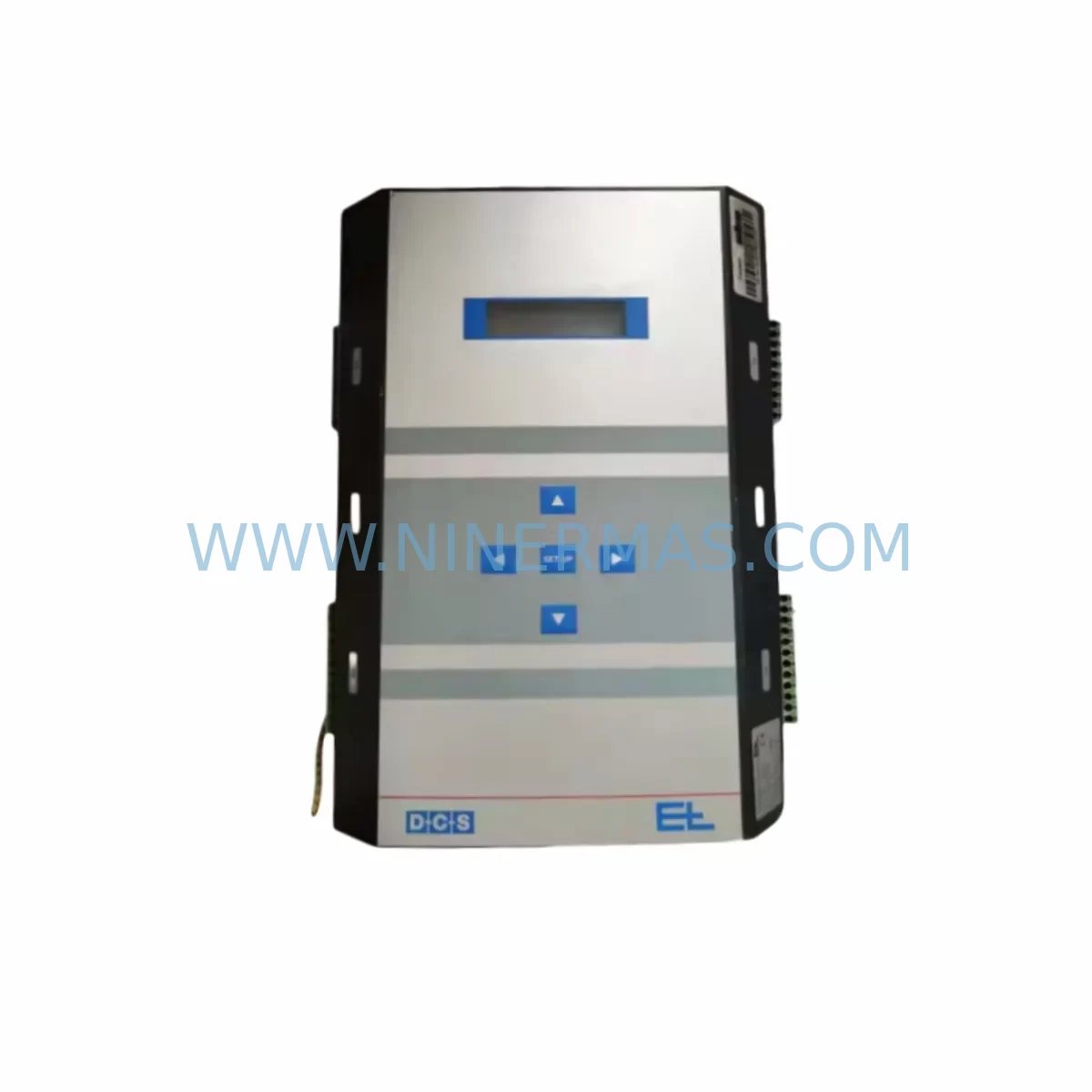

The Erhardt+Leimer DC5501 is a retrofit-ready web guide controller designed to replace discontinued or end-of-life units within the EL web guiding platform. Whether you are modernizing an aging converting line, upgrading a legacy printing press, or restoring a slitting machine that has lost its original controller, the DC5501 provides a reliable, drop-in compatible solution that minimizes engineering rework and reduces unplanned downtime. Each unit supplied by NINERMAS is pre-shipment tested and backed by a 12-month warranty, ensuring confidence from the moment it arrives on site.

The DC5501 integrates directly into existing Erhardt+Leimer web guiding architectures, maintaining compatibility with the sensor bus, actuator feedback loops, and operator interface panels commonly found in EL-series installations. Engineers replacing a failed or obsolete controller will find that the DC5501 preserves the original control logic structure, reducing the need for full program rewrites. This is particularly valuable in facilities where the original PLC program or HMI screen layouts are no longer actively maintained and where any deviation from the original control philosophy would require extensive revalidation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DC5501 retrofit begins well before the unit arrives on site. The first step is a thorough audit of the existing control cabinet, including the power distribution rail, terminal block layout, and the routing of sensor cables from the web edge sensors or ultrasonic sensors back to the controller slot. In many legacy installations, the original Erhardt+Leimer SE 12 or SE 32 edge sensors remain serviceable and can be reused directly with the DC5501, avoiding the cost and lead time of a full sensor replacement.

The 24 VDC power supply feeding the controller should be load-tested before the new unit is installed. Aging power supply modules in legacy cabinets often operate at reduced output capacity, and connecting a replacement controller to an undersized supply can cause intermittent faults or premature failure. If the existing PSU is marginal, replacing it with a current-generation unit rated for the full cabinet load is strongly recommended as part of the retrofit scope.

Terminal block wiring should be documented photographically and with a written record before any disconnection takes place. In older installations, wire labels may have faded or been applied inconsistently, and the original wiring diagrams may no longer be available. Taking the time to verify each terminal against the DC5501 connection diagram prevents miswiring errors that could damage the new controller or the connected actuator. The EL servo actuator connected to the guiding frame — whether a linear actuator or a pivot-frame drive — must be confirmed compatible with the DC5501 output stage before power-up.

For lines that include a programmable logic controller coordinating the web guiding function with broader machine sequencing, the interface between the PLC and the DC5501 should be reviewed carefully. In many converting lines, the main PLC — which may be a Siemens S7-300, S7-400, or equivalent platform — communicates with the web guide controller via discrete I/O signals for auto/manual mode selection, web break detection, and guide position feedback. These signal assignments should be verified against the DC5501 I/O map before commissioning. If the existing PLC program references specific input or output addresses tied to the old controller, those address assignments must be confirmed or updated in the PLC program before the line is restarted.

Where the installation includes an EL operator terminal or a third-party HMI panel displaying web guide status, the existing screen layouts and data link configurations should be reviewed. In most cases, the DC5501 retains the same data structure as its predecessor, allowing existing HMI screens to function without modification. However, if the HMI communicates via a serial protocol such as RS-232 or RS-485, the baud rate, parity, and station address settings on the DC5501 must be matched to the existing HMI configuration. Signal isolators or protocol converters already present in the cabinet should be left in place and their settings documented before the swap.

Installations that include I/O expansion modules for additional sensor inputs, dancer roll position feedback, or tension control integration should confirm that the DC5501 supports the required I/O count. Where additional discrete or analog I/O is needed beyond the base unit capacity, supplementary I/O modules compatible with the EL platform can be added to the existing backplane or DIN rail assembly without requiring a full cabinet redesign. Programming cables and EL service software should be available on site during commissioning to allow parameter upload, sensor calibration, and actuator tuning to be completed in a single maintenance window.

Downtime Control During System Migration

Minimizing production downtime during a DC5501 replacement requires a structured changeover plan that separates preparation work from the actual controller swap. The majority of the retrofit preparation — parameter backup, wiring documentation, spare parts staging, and HMI configuration review — can be completed while the line is still running, leaving only the physical swap and commissioning steps for the planned maintenance window.

Before the maintenance window opens, the replacement DC5501 should be bench-tested with a known-good power supply and a representative sensor input to confirm that the unit powers up correctly and responds to sensor signals as expected. NINERMAS performs pre-shipment functional testing on every DC5501 unit, and the test record is available upon request. This pre-shipment verification reduces the risk of discovering a unit fault during the maintenance window, when time pressure is highest.

During the swap itself, the sequence should follow a remove-verify-install-test pattern: remove the old controller, verify terminal wiring against the documented record, install the DC5501, restore parameters from the backup, and perform a slow-speed web threading test before returning the line to full production speed. If the line includes a safety relay or emergency stop circuit that monitors the web guide controller status, that circuit should be tested after the swap to confirm that the safety function is intact. Keeping the original controller on site — even if it is faulty — provides a reference for wiring verification and can be returned to the supplier for repair or exchange if required.

For facilities operating multiple converting lines with the same EL web guiding platform, maintaining a DC5501 spare unit in the local stores reduces the mean time to repair for future failures and eliminates the lead time risk associated with sourcing a replacement under emergency conditions. NINERMAS maintains stock of the DC5501 and can confirm availability and lead time at the time of inquiry.

Retrofit Support FAQ

Q: Is the DC5501 a direct drop-in replacement for my existing EL web guide controller?
A: In most EL web guiding installations, the DC5501 is mechanically and electrically compatible with the existing controller slot, sensor wiring, and actuator connections. Compatibility should be confirmed against the existing cabinet wiring diagram and the DC5501 datasheet before ordering. NINERMAS can assist with compatibility verification based on the existing unit model number and installation details.

Q: What commissioning steps are required after installing the DC5501?
A: After physical installation and wiring verification, the DC5501 requires parameter upload from the backup taken before removal of the old unit, followed by sensor calibration and actuator tuning at slow web speed. If no parameter backup is available, the unit can be commissioned from factory defaults with guidance from the EL service documentation. A programming cable and EL service software are required for parameter upload and calibration.

Q: Does the DC5501 come with a warranty, and has it been tested before shipment?
A: Yes. Every DC5501 supplied by NINERMAS is covered by a 12-month warranty against manufacturing defects and is pre-shipment tested to confirm correct power-up and basic functional operation. Test records are available upon request. The warranty covers the controller unit and does not extend to damage caused by incorrect installation, miswiring, or operation outside the specified supply voltage range.

Q: Can NINERMAS supply the DC5501 from stock, and what is the typical lead time?
A: NINERMAS maintains inventory of the DC5501 and can confirm current stock availability and lead time at the time of inquiry. For urgent requirements, expedited dispatch options are available. Contact the NINERMAS sales team with your required quantity and delivery location for a confirmed lead time and quotation.
