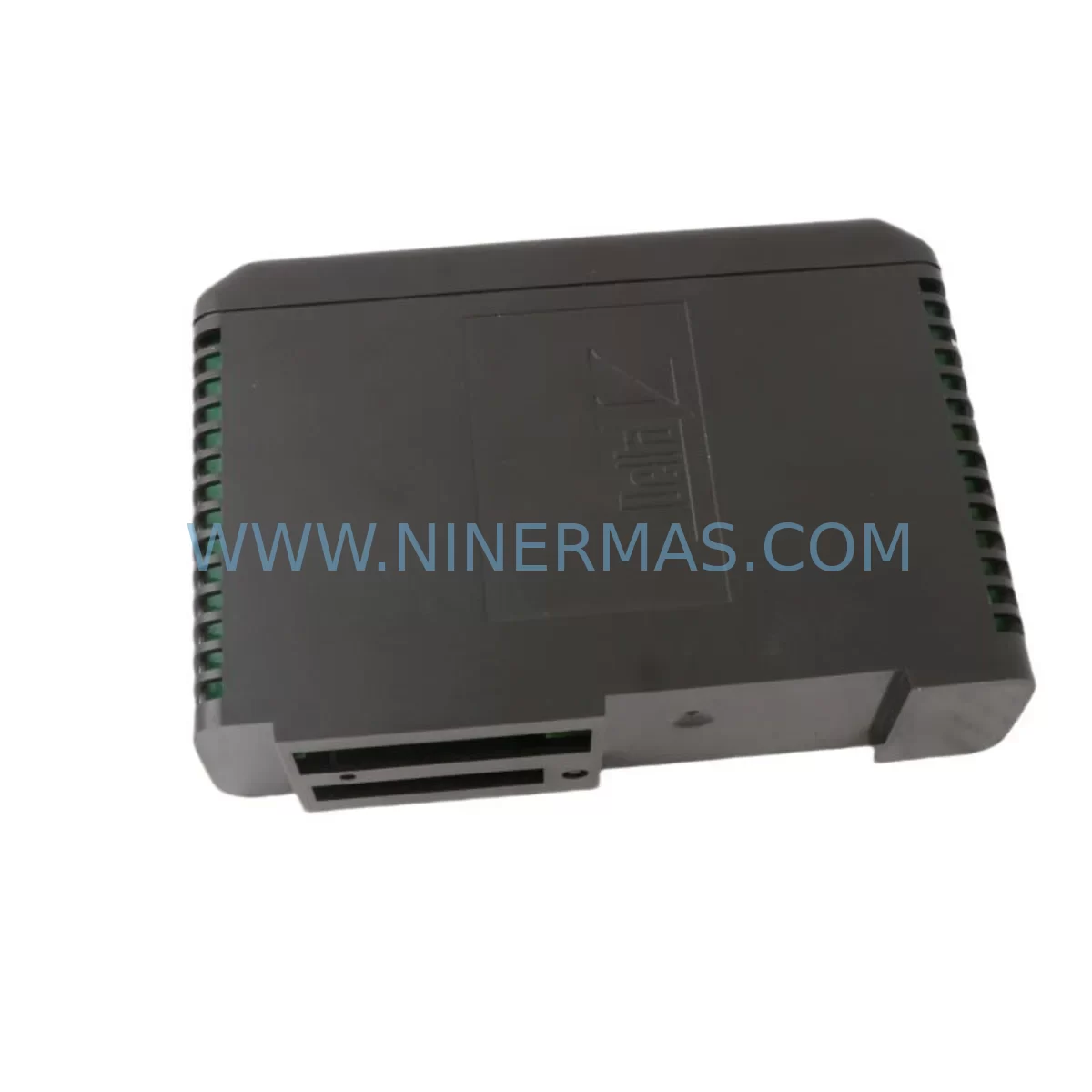

The Emerson VE3008 KJ2005X1-MQ1 12P6383X022 is a critical controller module within the DeltaV M-Series MQ platform, widely deployed across process automation, oil & gas, chemical, power generation, and pharmaceutical manufacturing environments. As a service-ready spare part, this unit is pre-tested, inspection-verified, and ready for immediate field deployment — minimizing unplanned downtime and supporting continuous production recovery.

Maintenance engineers and procurement specialists managing DeltaV M-Series control systems understand that the MQ controller is the operational backbone of the control cabinet. When this module fails or degrades, the entire control loop is at risk. Stocking a verified replacement of the KJ2005X1-MQ1 with part reference 12P6383X022 is not optional — it is a fundamental element of any responsible spare parts strategy for mission-critical automation infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a VE3008 KJ2005X1-MQ1 controller module is flagged for replacement during a scheduled outage or emergency fault isolation, experienced maintenance engineers know that the controller itself is rarely the only component requiring attention. A thorough control cabinet inspection should accompany every MQ controller swap to prevent repeat failures and ensure full system restoration.

Begin with the DeltaV M-Series power supply module — typically a redundant 24 VDC unit feeding the carrier. Verify output voltage stability and check for capacitor aging or thermal stress indicators. A degraded power supply is one of the most common root causes of intermittent controller faults and should always be evaluated alongside the KJ2005X1-MQ1 replacement.

Next, inspect the DeltaV M-Series backplane and carrier assembly. Connector pins on the carrier can oxidize or sustain mechanical damage over years of thermal cycling. A controller module replacement performed on a compromised carrier will result in recurring communication errors and diagnostic alarms. Confirm backplane integrity before inserting the new VE3008 module.

The DeltaV M-Series I/O modules — including analog input (AI), analog output (AO), digital input (DI), and digital output (DO) cards — should be inspected for channel faults, wiring integrity, and terminal block condition. Loose field wiring at the terminal blocks is a frequent source of spurious I/O signals that can be misdiagnosed as controller failures. Tighten all field terminations and verify signal continuity before commissioning the replacement controller.

For systems utilizing HART or FOUNDATION Fieldbus communication, check the associated DeltaV CHARM I/O modules or Series 2 I/O cards for firmware version compatibility with the replacement MQ controller. Firmware mismatches can prevent proper device recognition and loop commissioning after a controller swap.

Inspect all 24 VDC fuse holders and circuit protection devices within the control cabinet. A blown fuse or tripped breaker protecting the controller power rail is often overlooked during emergency fault response. Replacing the controller without restoring proper circuit protection will expose the new module to the same fault conditions that damaged the original unit.

If the control system includes DeltaV SIS (Safety Instrumented System) modules or relay output modules in the same cabinet, verify their operational status independently. A safety relay or interlock module fault can mask or mimic MQ controller alarms, leading to misdiagnosis and unnecessary controller replacement.

For facilities running DeltaV Operator Workstations or DeltaV HMI nodes, confirm that the replacement controller is recognized by the DeltaV Explorer configuration tool and that all control module downloads complete without errors. An incomplete download or version mismatch between the controller firmware and the DeltaV system database is a common post-replacement commissioning issue.

Finally, review the signal isolators and surge protection devices installed on field signal cables entering the control cabinet. In environments with high electromagnetic interference — common in heavy industry and motor control centers — signal isolators protect I/O modules and controller communication ports from transient damage. Verify that all isolators are functional and that surge arrestors on analog and digital signal lines are intact.

A comprehensive spare parts inventory for a DeltaV M-Series control system should include the VE3008 KJ2005X1-MQ1 12P6383X022 controller, at least one redundant power supply module, a set of critical I/O cards, spare terminal blocks, fuse kits, and communication cables — ensuring that any single-point failure can be resolved within one maintenance shift without waiting for emergency procurement.

Site Replacement Workflow

Replacing the Emerson VE3008 KJ2005X1-MQ1 12P6383X022 in a live DeltaV M-Series system requires a structured approach to minimize control loop disruption and ensure safe, verified restoration of automation functions.

Step 1 — Pre-Replacement Verification: Confirm the replacement module part number matches the installed unit exactly. Cross-reference the VE3008, KJ2005X1-MQ1, and 12P6383X022 references against the system’s spare parts register and the physical label on the installed module. Verify that the replacement unit has been tested and carries a valid warranty certification.

Step 2 — System State Documentation: Before removing the faulty controller, document all active control module assignments, I/O channel configurations, and communication network status using DeltaV Diagnostics. Export the current controller configuration from DeltaV Explorer as a backup. This step is critical for systems where the controller holds local configuration data.

Step 3 — Safe Isolation: Place all affected control loops in manual mode at the DeltaV Operator Workstation. Coordinate with process operations to confirm that field devices are in a safe state before de-energizing the controller slot. For redundant controller configurations, initiate a controlled switchover to the secondary controller before removing the primary.

Step 4 — Module Swap: Remove the faulty KJ2005X1-MQ1 module from the carrier slot. Inspect the carrier connector for damage or contamination. Insert the replacement VE3008 12P6383X022 module firmly into the carrier slot and verify the module latch is fully engaged.

Step 5 — Commissioning and Verification: Power up the controller slot and monitor the DeltaV Diagnostics display for module recognition and firmware boot status. Download the control module configuration from the DeltaV system database to the replacement controller. Verify all I/O channels are communicating correctly and that all control loops return to automatic mode without alarms. Document the replacement in the site maintenance log with the new module serial number and warranty expiry date.

This structured workflow reduces average controller replacement time, eliminates common post-swap commissioning errors, and ensures full system compatibility is maintained — protecting both production continuity and long-term system reliability.
