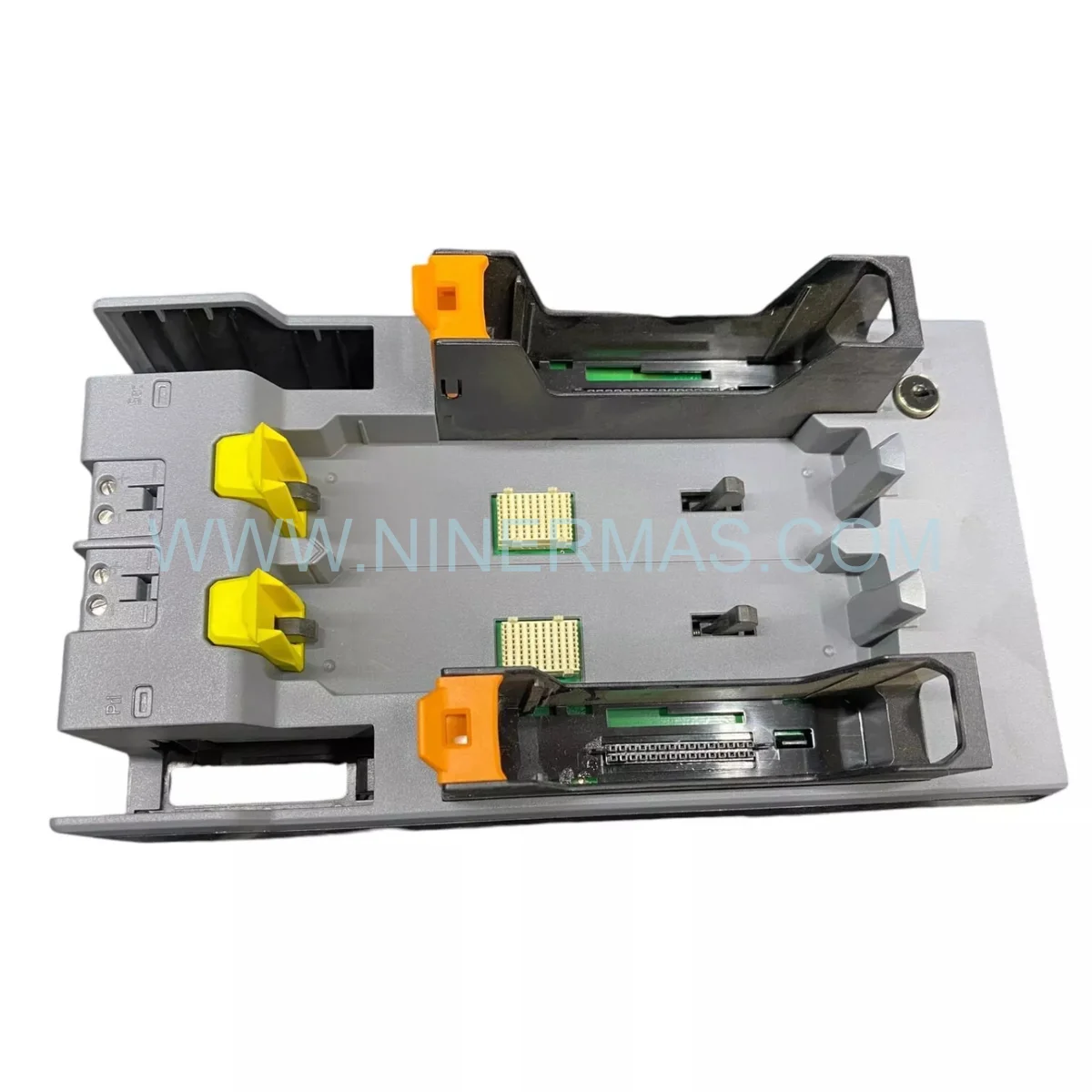

Emerson KL4103X1-BA1 SS3001 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing safety instrumented system upgrades across global process facilities, the Emerson KL4103X1-BA1 SS3001 stands as a cornerstone technology for modernizing aging SIS infrastructure. This Compact Safety Logic Solver (CSLS) CHARM directly addresses the performance bottlenecks inherent in centralized legacy safety architectures edistributing intelligence to the field marshalling cabinet level, slashing response latency, and dramatically extending the operational lifespan of existing DeltaV SIS installations. For plants running DeltaV SIS v11.3.1 and above, integrating the Emerson KL4103X1-BA1 SS3001 into a retrofit program delivers measurable gains in system availability and diagnostic coverage without requiring a full platform replacement.

One of the most compelling advantages of this module in a migration context is its backward compatibility with established DeltaV SIS electronic marshalling infrastructure. Legacy hardwired cross-wiring schemes otorious for their complexity and maintenance burden re eliminated entirely. The KL4103X1-BA1 mounts directly onto SE4608T01 IS CHARM Baseplate Assemblies, preserving existing cabinet footprints while enabling a phased, low-disruption upgrade path. This makes it an ideal retrofit solution for facilities that cannot afford extended shutdowns, allowing incremental modernization zone by zone.

From a migration risk and cost perspective, the KL4103X1-BA1 SS3001 delivers a compelling ROI. By removing the need for external barriers and isolators hanks to built-in galvanic isolation rated at 375 V DC peak per EN 60079-11 nstallation costs are reduced by up to 30% versus conventional SIS retrofits. Reduced wiring complexity translates directly into lower commissioning time, fewer potential failure points, and a more auditable safety architecture. For organizations managing multi-site upgrade programs, this consistency of design is invaluable.

Upgrade Highlights & Compatibility

• ✅ Drop-in IS CHARM Compatibility: Integrates with existing DeltaV SIS electronic marshalling baseplates o new cabinet infrastructure required, preserving capital investment
• SIL 3 Performance Retention: Maintains full SIL 3 certification post-retrofit, ensuring functional safety compliance without re-validation of the entire system
• ✅ Multi-Standard Certification: FM/CSA, ATEX, IECEx, and DNV Marine approvals enable seamless integration across global facility standards nshore, offshore, and subsea
• Future-Proof Architecture: Achilles CIOC Level 1 & Level 2 cybersecurity certification ensures the upgraded system meets evolving ICS security mandates
• ✅ Hot-Serviceable Design: Partial ejection to locked position supports field maintenance during live operations in non-hazardous areas, minimizing retrofit-phase downtime
• Efficiency Gain: Electronic marshalling integration reduces field wiring installation time by approximately 40%, accelerating retrofit project timelines

Modernization Use Cases & Success Stories

DCS-Integrated ESD Modernization — Refinery Upgrade: A major refinery operating legacy centralized SIS controllers faced unacceptable response times for high-integrity pressure protection (HIPPS) and compressor anti-surge systems. By deploying the KL4103X1-BA1 SS3001 CHARMs at field marshalling cabinets, the retrofit team achieved sub-100ms trip logic execution independent of network load ransforming a vulnerability into a performance benchmark. The distributed CHARM architecture eliminated the single-point-of-failure risk of the legacy centralized controller, achieving a step-change in system availability.

TSI System Retrofit — Offshore Platform: An offshore FPSO operator required a turbine supervisory instrumentation (TSI) upgrade to meet updated DNV Marine standards without replacing the entire DeltaV SIS backbone. The SS3001’s DNV Type Approval and conformal-coated design for corrosive environments made it the definitive retrofit choice. The phased migration eplacing legacy I/O modules with KL4103X1-BA1 CHARMs over three planned maintenance windows elivered full compliance with zero unplanned production interruptions.

Fire & Gas System Performance Upgrade — Petrochemical Facility: A petrochemical plant’s aging fire and gas detection system relied on centralized voting logic, creating latency risks for 2oo3 and 1oo2 configurations. Retrofitting with SS3001 CHARMs moved voting logic execution to the field edge, reducing alarm-to-action time by over 60% and enabling direct integration with new flame and toxic gas detectors without additional barriers textbook Hardware Upgrade delivering both Performance Enhancement and Seamless Integration.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Emerson KL4103X1-BA1 SS3001 unit is sourced as genuine OEM hardware, factory sealed and traceable to Emerson’s manufacturing documentation. Counterfeit components represent a critical risk in safety system retrofits ur supply chain integrity eliminates that risk entirely.

Expedited Global Logistics: Retrofit projects operate on compressed timelines. We maintain strategic inventory of the KL4103X1-BA1 SS3001 to support urgent deployment requirements, with expedited shipping to refineries, offshore platforms, chemical plants, and power generation facilities worldwide. DDP and DAP Incoterms available for seamless customs clearance.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in Legacy Compatibility assessment valuating your existing DeltaV SIS architecture to confirm integration pathways, identify potential conflicts, and develop a phased migration plan. Whether you are maintaining aging systems or executing a full Performance Upgrade program, we provide the technical documentation and application support to de-risk your retrofit.

Retrofit FAQ — Upgrade Guide

Q1: Can the KL4103X1-BA1 SS3001 be installed in existing cabinets without physical modification?
In most cases, yes. The SS3001 CHARM mounts on the SE4608T01 IS CHARM Baseplate Assembly, which is designed for standard DIN rail installation. If your existing marshalling cabinets already house DeltaV SIS electronic marshalling baseplates, the KL4103X1-BA1 can be inserted directly o cabinet re-engineering required. For legacy cabinets with conventional terminal blocks, a baseplate retrofit kit is the only addition needed, preserving the original cabinet envelope.

Q2: How does the KL4103X1-BA1 SS3001 communicate with older DeltaV SIS controllers during a phased migration?
The SS3001 communicates via the DeltaV SIS backplane protocol, which is consistent across DeltaV SIS v11.3.1 and later versions. During a phased retrofit, new CHARMs operate in parallel with legacy I/O modules on the same backplane, allowing incremental cutover of field loops without interrupting the safety function. The DeltaV SIS engineering station manages configuration of both legacy and new CHARM-based points simultaneously, ensuring a Seamless Integration experience throughout the migration window.

Q3: What are the approved substitute or alternative modules if the KL4103X1-BA1 SS3001 is unavailable?
The KL4103X1-BA1 SS3001 is a specific CSLS CHARM variant within the Emerson DeltaV SIS CHARM family. Functional substitution requires confirmation of matching safety function type, SIL rating, and IS certification class. Our technical team can perform a Legacy Compatibility assessment to identify approved alternatives within the DeltaV SIS CHARM portfolio and advise on any firmware or configuration adjustments required for a validated replacement.

Q4: Does retrofitting with the SS3001 require re-validation of the entire SIS?
Not necessarily. Because the KL4103X1-BA1 SS3001 is a certified SIL 3 component within the DeltaV SIS architecture, its introduction into an existing system can often be managed as a modification rather than a full re-design. The scope of re-validation depends on the safety requirements specification (SRS) and the extent of the retrofit. Our team can provide the technical documentation ncluding Emerson’s functional safety data o support your SIL verification and HAZOP review processes, minimizing re-validation scope and cost.

Q5: Is the KL4103X1-BA1 SS3001 suitable for subsea or marine retrofit applications?
Yes. The SS3001 holds DNV Type Approval and IACS E10 certification, making it fully qualified for FPSO, subsea manifold, and offshore platform retrofit programs. Its conformal-coated design provides ISA-S71.04 Class G3 protection against corrosive marine atmospheres. For subsea control system modernization, the combination of IS field-distributed logic execution and marine certification makes the KL4103X1-BA1 SS3001 a technically superior choice over legacy centralized SIS architectures.

Q6: What support documentation is available for retrofit project engineering?
Emerson provides comprehensive documentation for the KL4103X1-BA1 SS3001, including the CHARM Installation Instructions, ATEX/IECEx Supplementary Instructions (12P6523), Control Drawing (12P6123), and Functional Safety Data Sheet. Our team can assist in sourcing and interpreting this documentation to support your retrofit engineering package, PSSR (Pre-Startup Safety Review), and regulatory submissions.
