Emerson KJ3241X1-BA1 12P2506X072 Retrofit-Compatible Interface Card for Legacy Systems

Emerson KJ3241X1-BA1 12P2506X072 Retrofit-Compatible Interface Card for Legacy DeltaV Systems

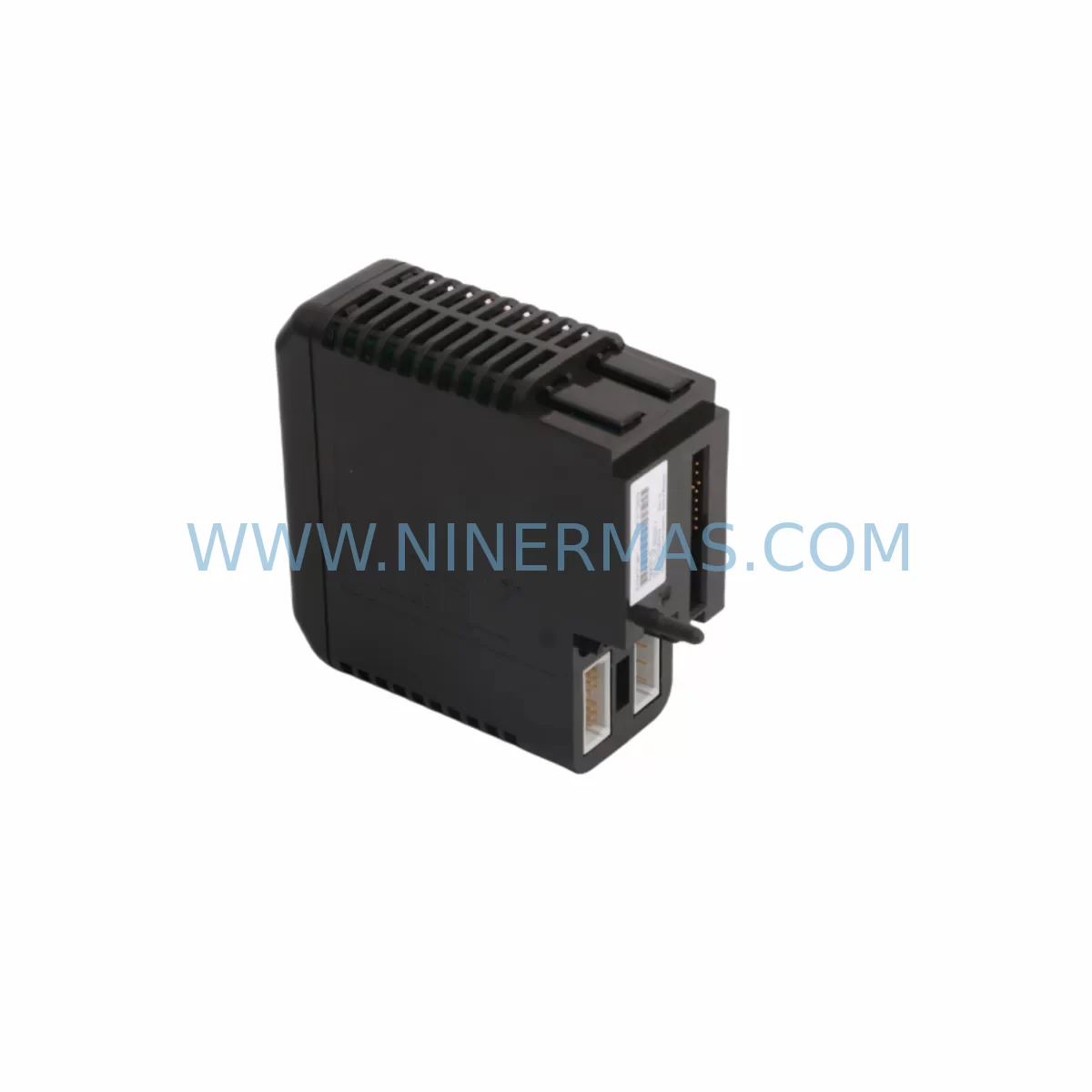

The Emerson KJ3241X1-BA1 (part reference 12P2506X072) is a field-proven interface card designed for use within the Emerson DeltaV distributed control system platform. As legacy DeltaV installations continue to operate across refining, chemical processing, power generation, and pharmaceutical manufacturing facilities, the demand for reliable, tested replacement modules has grown significantly. This interface card serves as a direct retrofit-compatible replacement for aging or failed units within existing KJ-series I/O subsystems, enabling engineers to restore system integrity without requiring a full platform migration or extended shutdown.

NINERMAS maintains verified stock of the KJ3241X1-BA1 12P2506X072, sourced from decommissioned systems and authorized surplus channels. Every unit undergoes pre-shipment functional testing to confirm signal integrity, backplane communication, and module addressing before dispatch. A 12-month warranty is included as standard, covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the KJ3241X1-BA1 12P2506X072 within an active DeltaV installation requires careful pre-planning to avoid unintended process interruptions. Before removing the failed module, engineers should document the current module configuration using DeltaV Explorer, including the node address, I/O channel assignments, and any associated control module references. The replacement card must be inserted into the same carrier slot to preserve the hardware address mapping recognized by the DeltaV controller.

The KJ-series carrier backplane — typically a KJ3001X1-BA1 or KJ3002X1-BA1 eight-slot carrier — must be inspected for backplane connector integrity before the new module is seated. Damaged backplane pins are a common cause of repeated module failures in aging installations and should be addressed during the same maintenance window. The carrier’s power distribution rail, fed by a dedicated KJ3204X1-BA1 power supply module, should be verified to confirm adequate capacity for the restored I/O load.

For installations where the KJ3241X1-BA1 interfaces with FOUNDATION Fieldbus segments, the H1 fieldbus coupler — often a KJ3221X1-BA1 or equivalent — must remain powered and communicating throughout the swap to avoid field device dropouts. Fieldbus segment health should be confirmed using the DeltaV Fieldbus Diagnostics tool before and after module replacement. If the installation uses HART-enabled I/O alongside the interface card, the KJ3222X1-BA1 HART multiplexer configuration should also be reviewed to ensure HART pass-through remains active post-replacement.

In control cabinets where space is constrained, the physical removal of the KJ3241X1-BA1 may require temporary disconnection of adjacent wiring harnesses. Terminal block layouts — particularly those associated with KJ3242X1-BA1 or similar marshalling panels — should be photographed and labeled before any disconnection. Signal isolators installed between field instruments and the I/O carrier should be checked for correct loop power settings after the module is restored to service.

Where the DeltaV system communicates upstream to a Honeywell or Yokogawa DCS via OPC or Modbus gateway, the gateway configuration should be verified after the interface card replacement to confirm that data exchange resumes correctly. In multi-controller DeltaV architectures, the DeltaV controller — such as an MD or MD Plus controller — may require a module re-commission sequence via DeltaV Explorer to re-establish communication with the restored interface card. Programming cable access (typically via the DeltaV workstation Ethernet connection) should be confirmed available before the maintenance window begins.

HMI graphics linked to I/O points served by the KJ3241X1-BA1 should be monitored during the restoration sequence. DeltaV Operate faceplates associated with the affected I/O channels will display bad quality indicators during the module swap; operators should be briefed in advance to avoid spurious alarm responses. Once the replacement module is online and the DeltaV controller has re-commissioned the I/O, all associated control modules should be verified in AUTO mode before the maintenance window is closed.

Downtime Control During System Migration

Minimizing downtime during a KJ3241X1-BA1 replacement begins with advance preparation. The replacement module should be on-site and verified functional before the maintenance window is opened. NINERMAS pre-shipment testing ensures that each unit is confirmed operational before dispatch, reducing the risk of receiving a non-functional replacement that extends the outage.

Where the process permits, a hot-standby or redundant I/O configuration should be leveraged to maintain control continuity during the swap. In non-redundant installations, the affected control loops should be placed in manual mode at the DeltaV controller level before the module is removed. This preserves the last known output state at the field actuators and prevents uncontrolled process excursions during the module exchange.

The DeltaV system’s module replacement procedure — available in the DeltaV Books Online documentation — should be followed precisely to ensure the replacement card is correctly commissioned without requiring a full controller restart. In most KJ-series installations, the interface card can be replaced and re-commissioned without interrupting other I/O modules on the same carrier, provided the carrier backplane remains powered. This card-level isolation significantly reduces the scope of the maintenance impact compared to a full carrier or controller replacement.

After the replacement module is commissioned and I/O quality returns to GOOD in DeltaV Operate, all affected control loops should be returned to AUTO mode in a controlled sequence, starting with the lowest-risk loops and progressing to critical process control points. A post-maintenance functional check — including signal verification at the field terminal and confirmation of correct engineering unit scaling — should be completed and documented before the maintenance record is closed.

Retrofit Support FAQ

Q1: Is the KJ3241X1-BA1 12P2506X072 a direct drop-in replacement for the original Emerson module?
Yes. The KJ3241X1-BA1 12P2506X072 is designed to seat directly into the same KJ-series carrier slot as the original module. No mechanical modification is required. After installation, a DeltaV module re-commission sequence via DeltaV Explorer is recommended to confirm the replacement card is correctly recognized by the controller.

Q2: What pre-shipment testing is performed on each unit?
Each KJ3241X1-BA1 12P2506X072 supplied by NINERMAS undergoes functional testing prior to dispatch, including backplane communication verification and signal integrity checks. A test report is available on request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be used in both DeltaV S-series and M-series controller architectures?
The KJ3241X1-BA1 is compatible with DeltaV KJ-series I/O subsystems used across multiple DeltaV controller generations. Compatibility with your specific controller revision and DeltaV software version should be confirmed against the Emerson DeltaV hardware compatibility matrix before installation. NINERMAS technical support can assist with compatibility verification based on your system configuration details.

Q4: What is the lead time and inventory availability?
NINERMAS maintains ready stock of the KJ3241X1-BA1 12P2506X072 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For long-term spare parts programs or bulk procurement commitments, NINERMAS offers inventory reservation agreements to ensure supply continuity for extended lifecycle support.
