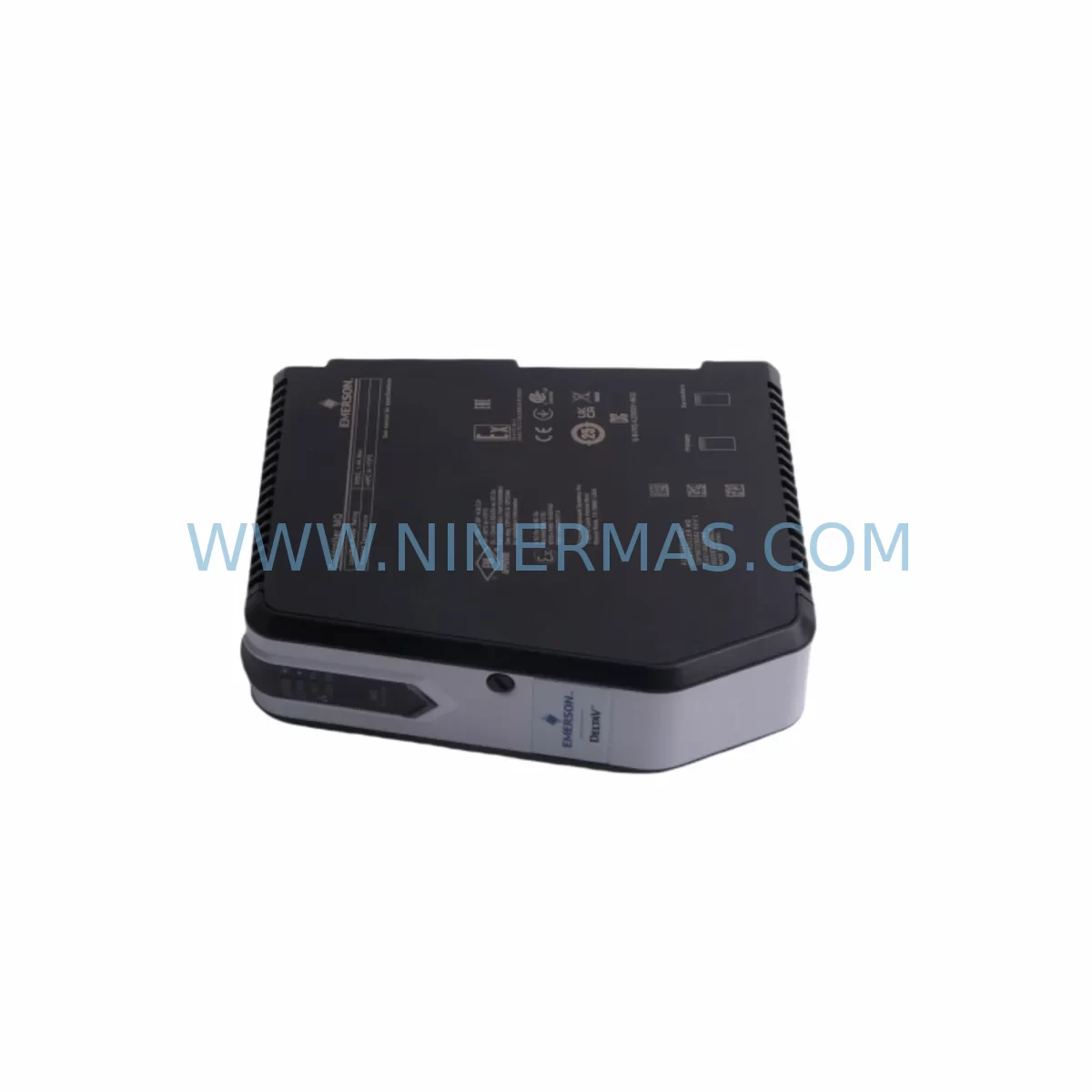

Emerson KJ2005X1-MQ2 13P0072X092 Service-Ready Spare Part

Emerson KJ2005X1-MQ2 13P0072X092 Service-Ready Spare Part for Industrial Maintenance

The Emerson KJ2005X1-MQ2 (13P0072X092) is a critical controller module within the Emerson DeltaV distributed control system (DCS) platform — one of the most widely deployed process automation architectures in oil & gas, chemical processing, power generation, and pharmaceutical manufacturing. When this module fails or degrades, the consequences extend far beyond a single I/O point: the entire control loop it governs may go offline, triggering unplanned shutdowns, process upsets, and costly production losses. Maintaining a service-ready spare of the KJ2005X1-MQ2 in your on-site inventory is not optional — it is a fundamental element of any credible maintenance strategy for DeltaV-based control systems.

At NINERMAS, we supply the KJ2005X1-MQ2 13P0072X092 as a fully tested, original-grade industrial spare part, backed by a 12-month warranty and pre-shipment functional verification. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building out your spare parts buffer for a multi-year maintenance contract, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KJ2005X1-MQ2 in isolation is rarely sufficient for a thorough maintenance intervention. Experienced maintenance engineers understand that a controller module fault is often symptomatic of broader stress within the control cabinet — and that a disciplined replacement workflow must account for the surrounding electrical and communication infrastructure.

When servicing the KJ2005X1-MQ2, your team should simultaneously inspect and, where appropriate, stock spares for the following associated components:

Power Supply Modules: The DeltaV controller subsystem depends on stable, regulated DC power. Emerson DeltaV power supply modules (such as the KJ1501X1-BA2 or equivalent series PSU) should be checked for output voltage stability, ripple, and thermal performance. A marginal power supply is a leading cause of intermittent controller faults that are often misdiagnosed as module failures.

I/O Modules and Carrier Assemblies: The KJ2005X1-MQ2 interfaces with a range of DeltaV I/O modules — including analog input modules (AI), analog output modules (AO), discrete input/output modules (DI/DO), and HART-enabled I/O cards. During a controller replacement, verify that all connected I/O carriers are seated correctly, that terminal block connections are torqued to specification, and that no I/O channel faults are masked by the controller error.

Communication Modules: DeltaV systems rely on redundant control network infrastructure. Inspect the associated DeltaV communication interface modules and network switches for port errors, cable integrity, and firmware currency. A degraded network module can cause the replacement controller to exhibit erratic behavior post-installation.

Backplane and Carrier Boards: The module carrier or backplane that houses the KJ2005X1-MQ2 should be inspected for oxidized contacts, mechanical damage, and secure rail mounting. Backplane faults are a common source of recurring module failures and are frequently overlooked during emergency replacements.

Signal Isolators and Barriers: In hazardous area installations, Zener barriers or galvanic isolators protecting field signals connected to this controller should be tested for leakage and isolation integrity. Degraded isolators can introduce noise or ground loops that stress the controller module.

Relay Output Modules and Terminal Strips: Where the DeltaV system drives relay outputs or hardwired interlocks, inspect associated relay modules, fuse terminals, and wiring harnesses for contact wear, thermal discoloration, or insulation breakdown.

HMI and Operator Workstation Connectivity: After replacing the KJ2005X1-MQ2, validate that the DeltaV operator workstation and engineering station re-establish full communication with the restored controller. HMI display anomalies post-replacement often indicate a configuration download is required or that a redundant controller pair needs re-synchronization.

Fuses and Protection Devices: Check all associated fuse holders and circuit protection devices within the control cabinet. A blown fuse upstream of the controller power rail is a simple fault that can be missed during a high-pressure emergency response.

Building a structured spare parts kit around the KJ2005X1-MQ2 — covering power, I/O, communication, and protection components — reduces mean time to repair (MTTR) and ensures that a single module replacement does not cascade into a multi-day troubleshooting exercise.

Site Replacement Workflow

The KJ2005X1-MQ2 13P0072X092 is designed as a direct replacement for aging or failed units within the DeltaV controller platform. The following workflow reflects best practices for minimizing downtime during a live site replacement:

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the KJ2005X1-MQ2 by reviewing DeltaV diagnostic alarms, module status LEDs, and engineering station fault logs. Document the current controller configuration and download a backup of the module parameters before removal.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected controller segment. Notify the control room operator and confirm that affected loops are in manual or safe state before proceeding.

Step 3 — Physical Replacement: Remove the faulty KJ2005X1-MQ2 from its carrier slot. Inspect the carrier contacts and backplane connector for damage. Insert the service-ready replacement module and confirm secure seating.

Step 4 — Configuration Restore: Using the DeltaV engineering workstation, download the saved controller configuration to the new module. Verify that all I/O assignments, control strategies, and alarm setpoints are correctly restored.

Step 5 — Functional Test: Bring the controller online in a controlled manner. Verify loop response, I/O channel status, and communication health from the operator workstation. Confirm no residual fault codes remain active.

Step 6 — Documentation: Record the replacement in your maintenance management system (CMMS), including the removed module’s serial number, fault symptoms, replacement date, and post-installation test results. Update your spare parts inventory accordingly.

This structured approach ensures that the KJ2005X1-MQ2 replacement is completed safely, efficiently, and with full traceability — reducing the risk of repeat failures and supporting long-term system reliability.

Spare Parts Support FAQ

Q1: Is the KJ2005X1-MQ2 13P0072X092 a direct drop-in replacement for the existing unit in my DeltaV system?
Yes. The KJ2005X1-MQ2 with reference number 13P0072X092 is an original Emerson DeltaV controller module supplied as a service-ready spare. It is compatible with the DeltaV S-Series and M-Series controller platforms and installs directly into the existing carrier without hardware modification. A configuration download from the DeltaV engineering workstation is required after installation to restore the control strategy.

Q2: How do you verify the module before shipment, and what does the 12-month warranty cover?
Every KJ2005X1-MQ2 unit supplied by NINERMAS undergoes functional verification prior to dispatch, including power-on testing and communication interface checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost, subject to inspection confirming the failure is not due to installation error, overvoltage, or physical damage.

Q3: Can you support long-term or blanket purchase orders for ongoing DeltaV maintenance programs?
Yes. NINERMAS supports long-term supply agreements for maintenance contractors, EPC firms, and plant operators managing multi-site DeltaV installations. We can reserve stock, provide scheduled delivery, and issue certificates of conformance for procurement compliance. Contact our sales team to discuss volume pricing and supply continuity arrangements for the KJ2005X1-MQ2 and related DeltaV spare parts.

Q4: What should I do if my DeltaV system shows recurring faults even after replacing the KJ2005X1-MQ2?
Recurring faults after a module replacement typically indicate an upstream or systemic issue — most commonly a degraded power supply, backplane contact fault, network communication error, or a misconfigured control strategy download. We recommend a full cabinet inspection covering the power supply module, I/O carriers, communication interfaces, and wiring integrity. Our technical support team can assist with fault diagnosis guidance based on your DeltaV system configuration and alarm history.
