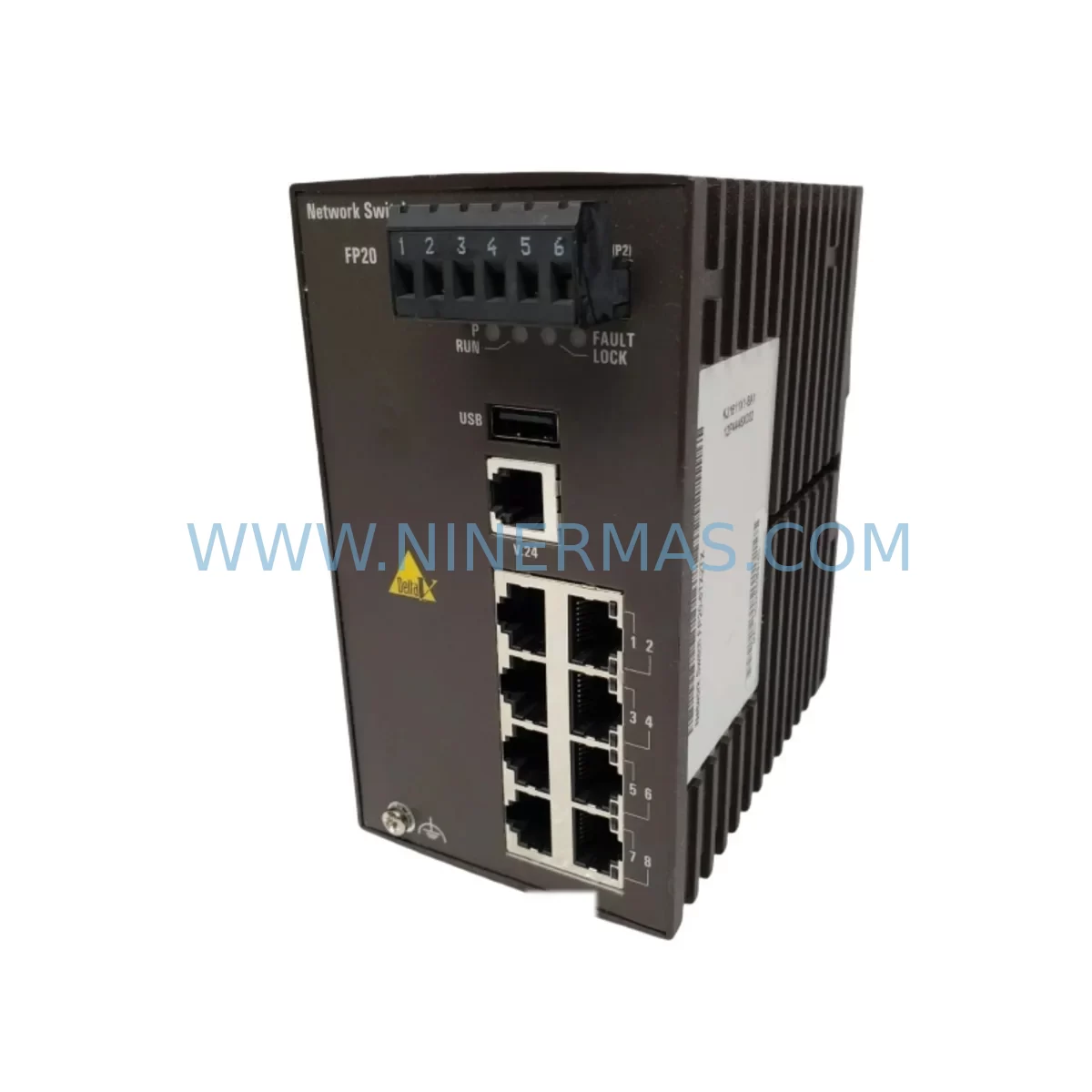

Emerson FP20-6TX2TX KJ1611X1-BA1 Safety-Reliable Network Switch

Emerson FP20-6TX2TX KJ1611X1-BA1 Safety-Reliable Network Switch for Critical Control Sites

The Emerson FP20-6TX2TX (Part No. KJ1611X1-BA1 / 12P4448X032) is a ruggedized industrial Ethernet network switch module engineered for deployment in the most demanding process control and safety-critical environments. Designed as an integral component of the Emerson DeltaV distributed control system (DCS) architecture, this module delivers deterministic, low-latency network communication across control cabinets, marshalling panels, and field junction boxes where uninterrupted data integrity is non-negotiable.

In continuous production facilities — including petrochemical refineries, power generation plants, offshore platforms, and metallurgical processing lines — network communication failures can cascade into unplanned shutdowns, safety interlock failures, and costly production losses. The FP20-6TX2TX addresses these risks by providing a hardened switching backbone that maintains signal integrity even under severe electromagnetic interference (EMI), high-frequency vibration, wide thermal cycling, and high-humidity or dusty atmospheric conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered DeltaV control cabinet, the FP20-6TX2TX network switch module serves as the communication hub that ties together the entire I/O subsystem. Its role in reducing control interruption risk becomes especially evident when paired with complementary DeltaV FP20 Series components. For instance, the Emerson KJ2201X1-BA1 FP20 Series Power Supply Module provides stable, conditioned DC power to the backplane, ensuring that voltage fluctuations and surge events on the plant power bus do not propagate into the network switch or connected I/O modules. Alongside it, the Emerson KJ1501X1-BA1 FP20 Controller Module relies on the FP20-6TX2TX to maintain deterministic scan-cycle communication with field devices — any packet loss or latency spike at the switch level directly impacts controller response time and, in worst cases, can trigger spurious safety shutdowns.

To further protect the communication infrastructure from surge and transient events — particularly in outdoor substations, motor control centers (MCCs), and high-voltage switchgear rooms — the FP20-6TX2TX is commonly installed alongside Emerson DeltaV SQ Series surge protection modules and Ethernet transient voltage suppressors (TVS) rated for industrial Ethernet lines. These components absorb lightning-induced surges and switching transients before they can damage the switch’s internal circuitry or corrupt active Ethernet frames.

In safety instrumented system (SIS) architectures, the FP20-6TX2TX supports network segmentation between the basic process control network (BPCN) and the safety network, working in conjunction with Emerson DeltaV SIS Logic Solver modules and KJ3001X1-BA1 Series CHARM I/O modules to maintain the independence and integrity of each safety loop. This segmentation is critical in facilities operating under IEC 61511 functional safety requirements, where cross-contamination of control and safety traffic can invalidate SIL certification.

For high-EMI environments such as arc furnace control rooms, variable frequency drive (VFD) panels, and high-power motor starter cabinets, the switch is typically deployed with shielded industrial Ethernet cables (Cat5e/Cat6 STP) and ferrite core EMI filters on all cable entries. When combined with Emerson DeltaV PROVOX Series I/O interface modules and redundant fiber-optic uplink converters, the FP20-6TX2TX forms a fully EMI-hardened communication backbone capable of sustaining reliable operation even in the presence of strong radiated and conducted interference sources.

Preventive maintenance strategies for critical control cabinets also benefit from having the FP20-6TX2TX as a stocked spare. Alongside spare Emerson KJ1611X1-BA1 switch modules, maintenance teams typically maintain inventory of FP20 Series backplane carriers, DeltaV power conditioners, and redundant controller modules to enable rapid mean-time-to-repair (MTTR) during unplanned outages. NINERMAS maintains ready stock of the FP20-6TX2TX and associated DeltaV FP20 Series components, with pre-shipment functional testing and a 12-month warranty on every unit.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units, hydrocracker control rooms, and compressor train automation panels, the FP20-6TX2TX provides the network backbone for real-time communication between DeltaV controllers and field transmitters. Its resistance to hydrogen sulfide (H₂S) atmospheres and high-temperature ambient conditions makes it suitable for Zone 2 classified control room installations where standard commercial switches would fail prematurely.

Power Generation & Electrical Utilities: Thermal power plants, combined-cycle gas turbine (CCGT) facilities, and hydroelectric stations rely on DeltaV-based turbine control and boiler management systems. The FP20-6TX2TX ensures that critical SCADA polling cycles and interlock signals between the DCS and the plant’s protection relay panels are never interrupted by network congestion or hardware failure.

Mining & Mineral Processing: Underground mining operations and surface ore processing plants expose control equipment to extreme vibration, coal dust, and high humidity. The ruggedized construction of the FP20-6TX2TX, combined with its sealed panel-mount installation, allows it to maintain reliable Ethernet switching in conveyor control systems, crusher automation panels, and ventilation safety interlock circuits.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent plants operate 24/7 with zero tolerance for control system downtime. The FP20-6TX2TX supports continuous communication between DeltaV controllers managing dosing pumps, aeration blowers, and UV disinfection systems, ensuring that process upsets are detected and responded to within the required control scan cycle.

Metallurgy & Steel Manufacturing: Electric arc furnace (EAF) control systems, continuous casting lines, and rolling mill automation panels generate some of the most severe EMI environments in industry. The FP20-6TX2TX’s industrial-grade EMC design allows it to maintain stable Ethernet communication in these environments, supporting real-time temperature control, hydraulic press sequencing, and safety interlock monitoring.

Port Automation & Marine Applications: Ship-to-shore crane control systems, automated stacking cranes, and vessel engine room automation panels require network switches that can withstand salt-laden air, mechanical shock, and wide temperature swings. The FP20-6TX2TX’s ruggedized design makes it a reliable choice for these demanding maritime and port logistics automation environments.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide on the Emerson FP20-6TX2TX KJ1611X1-BA1?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify Ethernet switching performance, port integrity, and backplane interface compatibility before dispatch.

Q2: How is the FP20-6TX2TX tested before shipment?
Every FP20-6TX2TX module is subjected to a pre-shipment inspection protocol that includes power-on functional verification, port-by-port Ethernet link testing, and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not shipped. Test records are available upon request for critical safety applications.

Q3: Is the FP20-6TX2TX compatible with all DeltaV FP20 Series backplane configurations?
Yes. The FP20-6TX2TX (KJ1611X1-BA1 / 12P4448X032) is designed for direct installation into standard Emerson DeltaV FP20 Series I/O carriers and backplane assemblies. It is compatible with DeltaV system versions that support the FP20 I/O subsystem. For specific firmware or system version compatibility questions, please contact NINERMAS technical support before ordering.

Q4: Can NINERMAS support long-term or repeat supply of the FP20-6TX2TX for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of the Emerson FP20-6TX2TX and associated DeltaV FP20 Series components to support planned maintenance schedules, emergency spare requirements, and multi-site procurement programs. Long-term supply agreements and priority stock reservation are available for customers with critical infrastructure maintenance needs. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
