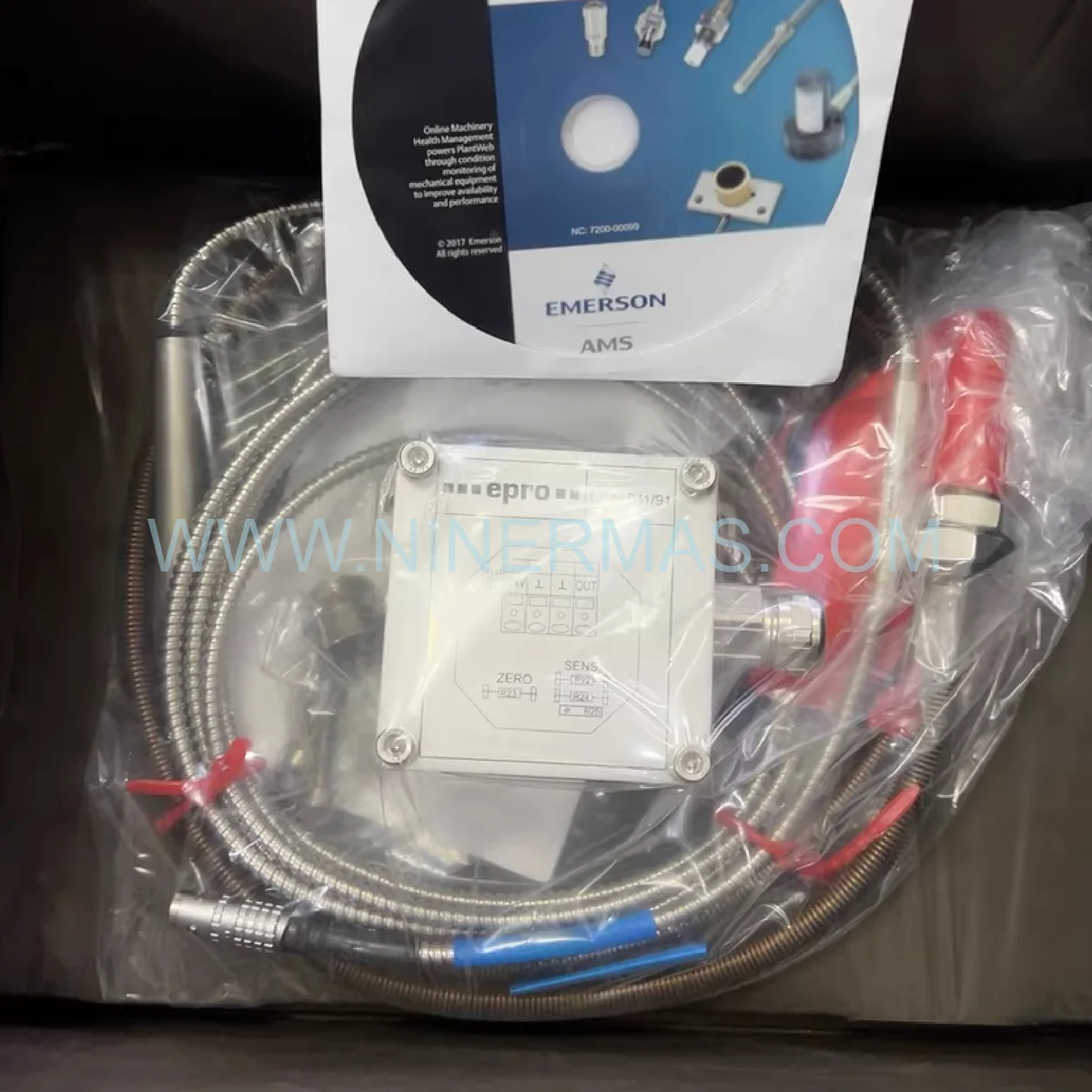

Emerson EPRO PR6425/010-100 | High-Temp Eddy Current Retrofit Sensor

Emerson EPRO PR6425/010-100 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing turbomachinery and DCS modernization programs, the Emerson EPRO PR6425/010-100 consistently emerges as a cornerstone component in high-temperature system upgrade initiatives. Its ability to sustain precision eddy current measurement at continuous operating temperatures up to 380°C (716°F) — with short-duration excursions to 400°C — makes it indispensable when migrating aging vibration monitoring infrastructure in power plants, petrochemical facilities, and high-temperature manufacturing environments. Where legacy sensors have degraded or become obsolete, the Emerson EPRO PR6425/010-100 delivers a direct performance upgrade without requiring structural modifications to existing bearing housings or monitoring racks.

A critical advantage in any retrofit scenario is backward compatibility. The PR6425/010-100 retains the M18-1.5 threaded interface and 4 V/mm (101.6 mV/mil) output sensitivity standard across the EPRO eddy current platform, enabling seamless integration with existing CON021, CON031, and CON041 signal converters already deployed in legacy systems. This means retrofit teams can replace failed or end-of-life sensors without recalibrating downstream monitoring hardware — dramatically reducing migration risk and project downtime.

From a total cost of ownership perspective, deploying the PR6425/010-100 as part of a phased modernization strategy eliminates the need for full system replacement. By preserving the existing signal chain while upgrading the sensing element to a thermally superior component, facilities achieve measurable reductions in migration cost, commissioning time, and operational disruption — a decisive advantage in continuous-process industries where unplanned downtime carries significant financial consequences.

Upgrade Highlights & Compatibility

• ✅ Extreme Thermal Resilience: Continuous operation 0°C 380°C; 400°C excursion rating for 4 hours — replaces sensors that fail under sustained heat load
• Drop-In Legacy Compatibility: M18-1.5 thread and EPRO-standard 4 V/mm output ensure direct replacement of PR6423 and PR6424 series sensors in existing housings
• ✅ API 670 5th Edition Compliant: Meets machinery protection specifications for SIL-rated safety instrumented systems — future-proofs your monitoring architecture
• Graduated Cable Thermal Rating: First meter rated to 380°C; remaining cable to 175°C — engineered for real-world retrofit cable routing constraints
• ✅ Long-Term Calibration Stability: <0.3% drift across thousands of thermal cycles — reduces recalibration frequency and maintenance overhead in upgraded systems
• Pressure-Rated Sensor Head: 2,000 hPa (29 psi) rated — compatible with pressurized turbine casings and sealed bearing housings in legacy plant designs

Modernization Use Cases & Success Stories

DCS Migration in Coal-Fired Power Plants: During distributed control system (DCS) upgrades at aging thermal power stations, the PR6425/010-100 is the preferred sensor for high-pressure turbine bearing positions. Legacy proximity probes installed in the 1990s routinely fail due to insulation breakdown at sustained temperatures above 200°C. Replacing them with the PR6425/010-100 — while retaining existing CON031 converters and Bently Nevada 3500 rack infrastructure — delivers a performance leap without a full system overhaul. Operators report elimination of nuisance trips caused by sensor drift and a measurable improvement in shaft position data quality during load transients.

TSI Modernization in Gas Turbine Facilities: Turbine Supervisory Instrumentation (TSI) retrofit projects in combined-cycle gas turbine (CCGT) plants frequently encounter the challenge of monitoring compressor and turbine bearing positions in zones where exhaust gas recirculation creates sustained ambient temperatures exceeding 320°C. The PR6425/010-100’s 400°C excursion rating provides the thermal margin required to survive emergency shutdown thermal spikes — a failure mode that has caused catastrophic sensor loss in legacy installations. Retrofit teams integrating this sensor into upgraded TSI panels achieve continuous, reliable shaft eccentricity and vibration data throughout the full operating envelope.

Petrochemical Reactor Train Upgrades: In catalytic cracker and reformer unit modernization projects, the PR6425/010-100 replaces obsolete high-temperature probes on compressor and pump trains operating in hydrocarbon-rich, high-temperature environments. Its PTFE-insulated, armored cable construction withstands chemical exposure while the stainless steel sensor sleeve resists oxidation and scaling — enabling hardware upgrade without process isolation in many configurations.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Emerson EPRO PR6425/010-100 unit is sourced as genuine OEM hardware, factory-calibrated and sealed. Authenticity documentation and calibration certificates are available upon request — critical for SIL-rated system validation and insurance compliance in retrofit projects.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain ready stock and offer expedited international shipping to minimize plant downtime. Priority dispatch is available for urgent maintenance windows and unplanned outage scenarios.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in legacy system compatibility assessment. Whether you are migrating from discontinued EPRO sensor variants, integrating with aging Bently Nevada or Vibro-Meter monitoring racks, or navigating mixed-generation instrumentation environments, we provide application-specific guidance to ensure seamless integration and commissioning success.

Retrofit FAQ (Upgrade Guide)

Q1: Can the PR6425/010-100 physically replace older EPRO sensors in existing bearing housings without machining?
In the majority of retrofit scenarios, yes. The PR6425/010-100 uses the standard M18-1.5 threaded sleeve shared across the EPRO 16mm sensor family, including the PR6423 and PR6424 series. Provided the existing housing was machined to EPRO standard dimensions, the PR6425/010-100 installs as a direct mechanical replacement. Verify the housing bore depth accommodates the 69mm sensor length before installation.

Q2: Will the PR6425/010-100 communicate correctly with our existing legacy signal converters and monitoring racks?
Yes. The sensor’s 4 V/mm output sensitivity is fully compatible with CON021, CON031, and CON041 EPRO converters, as well as third-party eddy current signal conditioners calibrated to the EPRO standard. No recalibration of the converter or monitoring rack is required when replacing a same-sensitivity legacy sensor — a key advantage that accelerates retrofit commissioning and reduces validation effort.

Q3: What are the recommended backup or alternative part numbers if the PR6425/010-100 is unavailable during an emergency?
For applications where ambient temperatures do not exceed 180°C, the PR6424/010-110 or PR6424/010-100 series sensors serve as functional alternatives with the same mechanical interface and output sensitivity. For sustained temperatures above 250°C, the PR6425/010-100 has no direct EPRO equivalent — in such cases, contact our technical team for application-specific retrofit guidance and lead time options.

Q4: How should cable routing be managed during retrofit to protect the sensor cable in high-temperature zones?
The PR6425/010-100 features a graduated cable thermal rating: the first meter is rated to 380°C, while the remaining cable length is rated to 175°C. During retrofit installation, route the first meter through the high-temperature zone and transition to a cooler cable path as quickly as possible. Use thermal barriers, ceramic fiber insulation sleeves, or dedicated cable trays routed away from heat sources to protect the downstream cable run. This graduated design accommodates most real-world retrofit routing constraints without requiring custom cable assemblies.

Q5: Is the PR6425/010-100 suitable for integration into SIL-rated Safety Instrumented Systems (SIS) during a control system modernization?
The PR6425/010-100 meets API 670 5th Edition performance specifications, including temperature error limits and long-term stability requirements that are prerequisites for SIL-rated machinery protection applications. When paired with SIL-certified signal converters and trip logic solvers, the sensor can be incorporated into SIS architectures. Consult your functional safety engineer for full SIL validation documentation requirements specific to your facility’s safety case.

Q6: What performance improvements can we expect after upgrading from a standard eddy current sensor to the PR6425/010-100?
Facilities migrating from standard sensors (typically rated to 150-180°C) to the PR6425/010-100 in high-temperature applications consistently report elimination of thermally induced measurement drift, reduction in nuisance trips caused by sensor degradation, and extended mean time between replacements. The <0.3% long-term drift specification ensures calibration stability across thousands of thermal cycles — translating directly to reduced maintenance frequency and improved machinery protection reliability in upgraded systems.
