Bently Nevada 330103-00-08-50-02-CN Retrofit Proximity Transducer

Bently Nevada 330103-00-08-50-02-CN Retrofit-Compatible Proximity Transducer for Legacy Systems

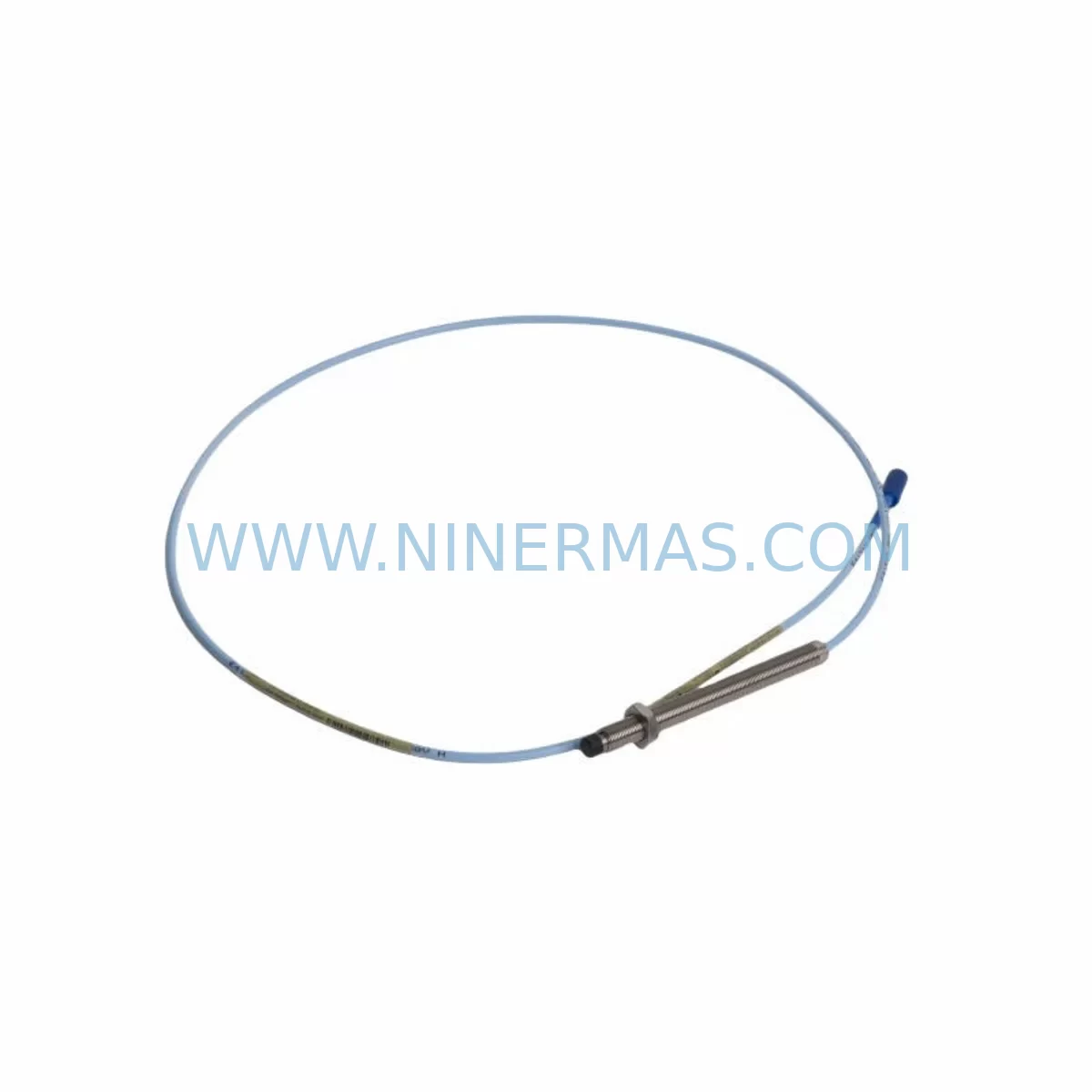

The Bently Nevada 330103-00-08-50-02-CN is an 8mm proximity transducer designed for vibration and position monitoring in rotating machinery applications. As part of the widely deployed 3300 Series platform, this transducer has served as a critical sensing element in turbines, compressors, pumps, and gearboxes across power generation, oil & gas, and heavy industrial facilities for decades. With the 3300 Series now approaching end-of-life and many original components discontinued, the 330103-00-08-50-02-CN has become one of the most sought-after retrofit and replacement components for engineers tasked with extending the operational life of legacy monitoring systems.

NINERMAS maintains verified inventory of the 330103-00-08-50-02-CN and provides full retrofit support, including pre-shipment functional testing, compatibility verification, and a 12-month warranty on every unit shipped.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 330103-00-08-50-02-CN, engineers must evaluate the complete signal chain from the probe tip to the monitoring rack. The transducer works in conjunction with the 330180-51-05 extension cable and the 330130-080-00-00 proximitor/driver to form a complete measurement loop. Any one of these three components — probe, extension cable, or driver — can degrade independently, so it is standard practice to replace all three as a matched set during a planned outage, particularly when the original installation dates back more than ten years.

At the rack level, the 330103-00-08-50-02-CN interfaces with Bently Nevada 3500 Series monitor modules. The 3500/40M proximitor monitor and the 3500/42M Proximitor/Seismic monitor are the most common receiving modules in legacy installations. Before swapping the transducer, technicians should verify that the monitor’s gap voltage setpoints, alert thresholds, and danger thresholds are documented and backed up. The 3500 Rack Configuration Software (RCS) should be used to export the current rack configuration file prior to any hardware change, ensuring that program logic and alarm settings can be restored without manual re-entry.

For facilities running older 3300 Series racks rather than the 3500 platform, the migration path typically involves replacing the entire monitoring rack with a 3500 Series chassis, repopulating it with the appropriate I/O modules, and then reconnecting field wiring at the terminal blocks. In this scenario, the 330103-00-08-50-02-CN probe itself remains reusable, but the extension cable routing and driver module must be re-evaluated for compatibility with the new rack’s input impedance and bias voltage specifications.

Wiring adaptation is another critical step. The field junction box terminations must be inspected for correct polarity, shield grounding, and cable insulation integrity. In many legacy installations, the original cable trays contain mixed signal types — proximity probe cables running alongside thermocouple leads or 4–20 mA transmitter wiring — which can introduce noise if shielding has degraded. Replacing the 330180 extension cable at the same time as the 330103-00-08-50-02-CN probe eliminates this variable and simplifies post-installation gap calibration.

HMI screens connected to the 3500 rack via Modbus RTU or the System 1 condition monitoring platform should be reviewed to confirm that tag names, engineering unit scaling, and alarm display logic remain consistent after the hardware swap. If the facility uses a DCS integration — for example, connecting the 3500 rack to a Honeywell Experion or Emerson DeltaV system via hardwired 4–20 mA outputs — the analog output scaling must be verified against the DCS input card range before the machine is returned to service.

For installations where the 330103-00-08-50-02-CN is used in an axial position monitoring application alongside a thrust monitor module such as the 3500/46M, the gap setting procedure is especially important. The probe must be positioned at the mechanical midpoint of the thrust collar travel range, and the gap voltage must be set to the nominal –10 VDC ± 0.5 VDC before the alert and danger setpoints are re-entered. This procedure should be performed with the shaft stationary and the machine at operating temperature if thermal growth is a known factor in the original design.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team undertaking a proximity transducer replacement on a running production asset. The recommended approach is to complete all preparatory work — documentation backup, spare parts staging, wiring diagram review, and gap calibration tool preparation — during the period before the planned outage window begins.

When the machine is taken offline, the replacement sequence should follow a defined checklist: isolate the monitor channel, remove the existing probe and extension cable as a unit, install the 330103-00-08-50-02-CN with its matched extension cable, perform gap setting, restore monitor channel configuration from the saved RCS file, verify gap voltage at the monitor front panel, and confirm that the System 1 or DCS trend display is receiving a valid signal before releasing the machine for restart.

If the facility cannot afford a full outage, some 3500 Series monitor configurations support hot-swap of individual I/O modules while adjacent channels remain in service. However, the field-side probe replacement itself always requires the monitored machine to be shut down and locked out. Planning the probe swap to coincide with a scheduled lube oil service or coupling inspection is the most cost-effective approach to downtime control.

NINERMAS ships the 330103-00-08-50-02-CN with a pre-shipment functional test report, confirming that the probe’s output sensitivity, gap voltage linearity, and frequency response meet the original Bently Nevada factory specification. This documentation supports the site acceptance test and provides a baseline record for future condition monitoring trend analysis.

Retrofit Support FAQ

Q1: Is the 330103-00-08-50-02-CN a direct drop-in replacement for the original Bently Nevada part?
Yes. The 330103-00-08-50-02-CN is a genuine Bently Nevada part number. Units supplied by NINERMAS are sourced from authorized channels and are functionally identical to the original factory specification. No wiring modification or bracket adaptation is required for a direct replacement in an existing 3300 Series probe holder.

Q2: What extension cable and driver should be used with this probe?
The 330103-00-08-50-02-CN is designed to operate with the 330180-51-05 extension cable (5-meter) and the 330130-080-00-00 proximitor driver. The complete three-component system must be calibrated as a matched set. Mixing components from different calibration sets can introduce measurement error and should be avoided.

Q3: How is the gap voltage verified after installation?
After mechanical installation, connect the driver output to the monitor input and apply –24 VDC bias power. Position the probe at the nominal gap distance (typically 1.0 mm for 8mm probes) and confirm that the driver output reads –10 VDC ± 0.5 VDC. Use the 3500 RCS software to verify that the monitor channel is reading within the calibrated range before re-enabling alarms.

Q4: What warranty and testing documentation is provided?
Every 330103-00-08-50-02-CN shipped by NINERMAS includes a 12-month warranty and a pre-shipment functional test report. In-stock units are available for same-week dispatch. For urgent requirements, contact our team directly to confirm lead time and arrange expedited shipping.
