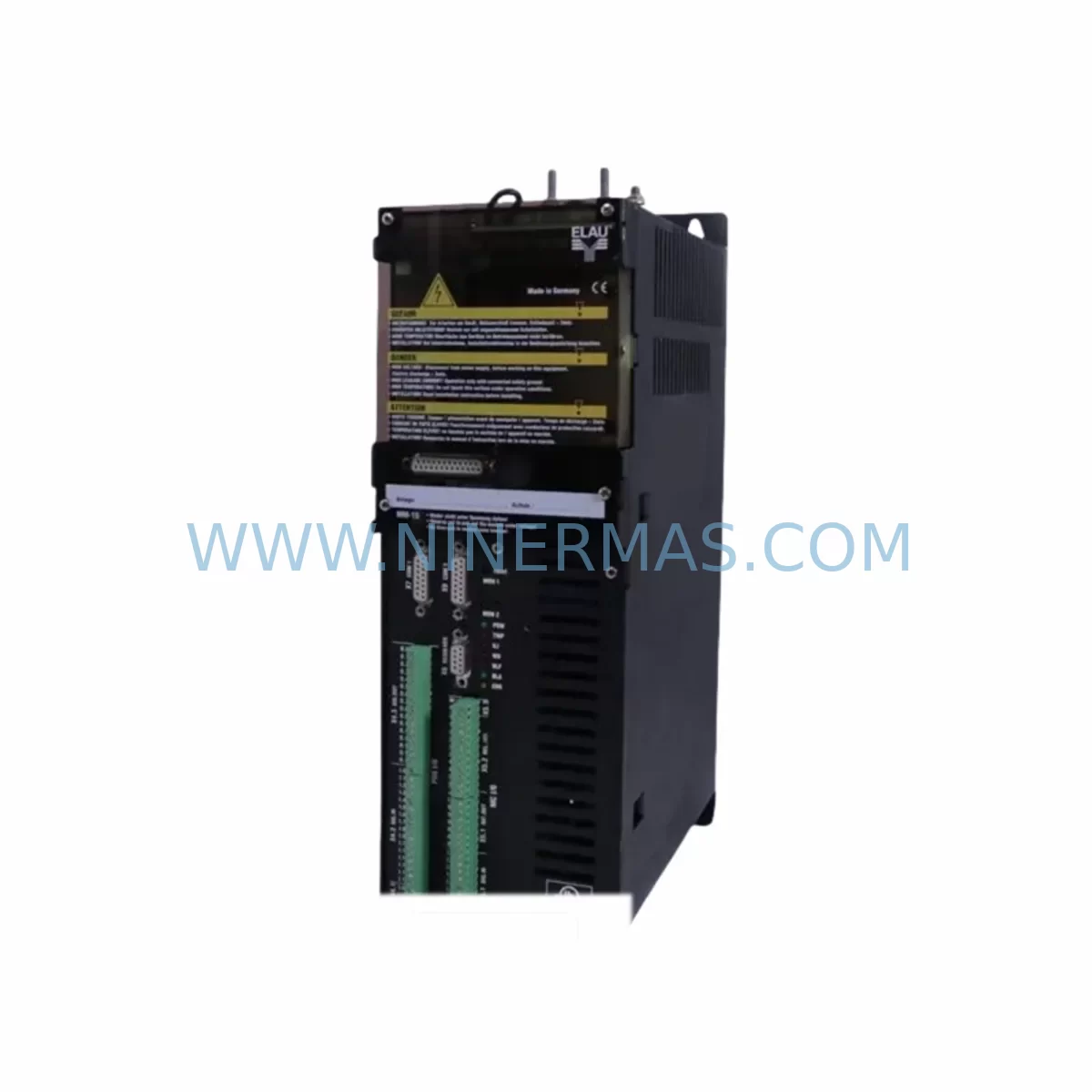

ELAU PMC-2/11/05/000/00/00/00/00/2K Service-Ready Spare Part

ELAU PMC-2/11/05/000/00/00/00/00/2K Service-Ready Spare Part for Industrial Maintenance

The ELAU PMC-2/11/05/000/00/00/00/00/2K is a high-performance motion controller module engineered for demanding industrial automation environments. As a service-ready original spare part, it is designed to deliver immediate drop-in replacement capability for ELAU PMC series servo drive systems — minimizing unplanned downtime and restoring production continuity with confidence. Whether you are managing a scheduled annual overhaul, responding to an emergency line stoppage, or building a strategic spare parts inventory for aging ELAU-controlled machinery, this module provides the compatibility, reliability, and long-term supply assurance that maintenance and procurement engineers require.

ELAU’s PMC (Programmable Motion Controller) platform has been widely deployed across packaging machinery, printing lines, textile equipment, and high-speed pick-and-place systems. The PMC-2/11/05/000/00/00/00/00/2K variant is configured for multi-axis coordination with integrated safety logic, making it a critical node in any ELAU-based motion network. Sourcing a verified original replacement — rather than an untested substitute — is essential to maintaining system integrity, especially in safety-rated or CE-marked machine installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault or degradation in the PMC-2/11/05/000/00/00/00/00/2K, the replacement workflow should never be limited to swapping the controller module alone. The PMC module sits at the heart of a tightly integrated motion control architecture, and adjacent components are frequently stressed by the same root-cause events — power surges, thermal cycling, vibration, or communication bus faults — that triggered the original failure.

During any PMC module replacement, it is strongly recommended to inspect and, where appropriate, proactively replace the ELAU SH series servo motors connected to the affected axes, as encoder feedback degradation is a common co-failure mode. The ELAU MC-4 power supply module and associated 24 VDC buffer capacitor units should be load-tested, since an under-performing power supply is a leading cause of premature PMC module failure. If the system uses a PacDrive C400 or C600 controller as the master, verify firmware compatibility between the replacement PMC module and the master controller before commissioning.

On the I/O and signal side, inspect the ELAU I/O expansion modules (digital and analog) mounted in the same control cabinet segment. Signal isolation barriers and Phoenix Contact or Weidmüller signal conditioners in the 24 VDC I/O loops should be checked for drift, particularly in high-cycle packaging applications. Terminal blocks and DIN rail connectors adjacent to the PMC module are prone to micro-arcing in vibration-heavy environments — a full torque check of all field wiring terminations is a low-cost, high-value step during any PMC replacement event.

For systems using SERCOS or CANopen communication rings, verify fiber optic cable integrity and connector cleanliness before restarting the motion network. A degraded fiber link can cause intermittent axis faults that mimic PMC hardware failure, leading to unnecessary module replacements. Additionally, if the machine includes an ELAU HMI panel or third-party Schneider Electric Magelis HMI, confirm that the operator interface firmware and PacDrive project files are backed up and version-matched to the replacement module.

Procurement engineers building a strategic spare parts kit for ELAU PMC-based lines should consider stocking at minimum: one PMC controller module, one MC-4 power supply, one set of I/O expansion modules, a reel of SERCOS fiber patch cables, and a supply of terminal block connectors. This kit approach reduces mean-time-to-repair (MTTR) from days to hours and is particularly valuable for facilities operating legacy ELAU systems where OEM support has been discontinued.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the control cabinet following LOTO (Lockout/Tagout) procedures. Confirm 0 VDC on all bus rails before touching the PMC module. For CE-marked machines, verify that the safety relay chain (e.g., Pilz PNOZ or Schneider Electric Preventa safety relays) is in a safe state before opening the cabinet.

Step 2 — Documentation: Photograph all cable connections, axis assignments, and DIP switch or rotary address settings on the existing PMC module. Download and archive the current PacDrive project from the master controller before removal. This backup is critical — it contains axis parameters, cam profiles, and motion sequences that must be restored to the replacement unit.

Step 3 — Module Removal: Disconnect the SERCOS fiber ring, CANopen bus connectors, 24 VDC control power, and all I/O connectors in sequence. Release the DIN rail locking tab and slide the PMC-2/11/05/000/00/00/00/00/2K free from the backplane. Inspect the backplane connector for bent pins or corrosion before installing the replacement.

Step 4 — Replacement Installation: Set the node address on the replacement module to match the original (rotary switch or software-configured, depending on firmware version). Reconnect all cables in reverse order of removal. Restore the PacDrive project file via the master controller’s commissioning tool (PacDrive Designer or equivalent).

Step 5 — Commissioning & Verification: Power up in stages — control voltage first, then bus power. Confirm all axes appear on the SERCOS ring and that no fault codes are active. Run a slow-speed jog test on each axis before returning the machine to automatic mode. Log the replacement in the site maintenance record with the new module’s serial number and the date of installation.

This structured approach eliminates the most common causes of repeat failures after PMC module replacement and ensures full system compatibility is verified before production resumes.

Spare Parts Support FAQ

Q1: Is the PMC-2/11/05/000/00/00/00/00/2K a new original part or a refurbished unit?
All units supplied by NINERMAS are sourced as original ELAU spare parts. Each unit undergoes pre-shipment functional testing. Where new-old-stock (NOS) units are available, these are prioritized. Refurbished units, when supplied, are clearly identified and carry the same 12-month warranty. Please contact our sales team to confirm current stock status for your specific requirement.

Q2: How do I verify compatibility between this PMC module and my existing PacDrive system?
Compatibility depends on the PacDrive master controller firmware version and the project file configuration. Provide your machine’s PacDrive controller model (e.g., C400, C600) and the existing PMC firmware version to our technical team before ordering. We will cross-reference the hardware revision and firmware compatibility matrix to confirm a direct replacement match.

Q3: What is included in the 12-month warranty and what does the pre-shipment test cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Pre-shipment testing includes power-on verification, communication interface check, and axis initialization confirmation where test equipment permits. Warranty claims are processed via our RMA procedure — contact sale@ninermas.com with your order reference and fault description.

Q4: Can NINERMAS support long-term supply of PMC series modules for multi-site maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for legacy industrial automation platforms, including discontinued ELAU PMC series components. We offer blanket order agreements, reserved stock programs, and multi-site procurement coordination for facilities management teams and OEM service organizations. Contact our team to discuss volume pricing, lead-time commitments, and consignment stock options tailored to your maintenance schedule.
