Siemens 6SE7038-6EK84-1JC1 Retrofit-Compatible AC Drive for Legacy SIMOVERT MASTERDRIVES Systems

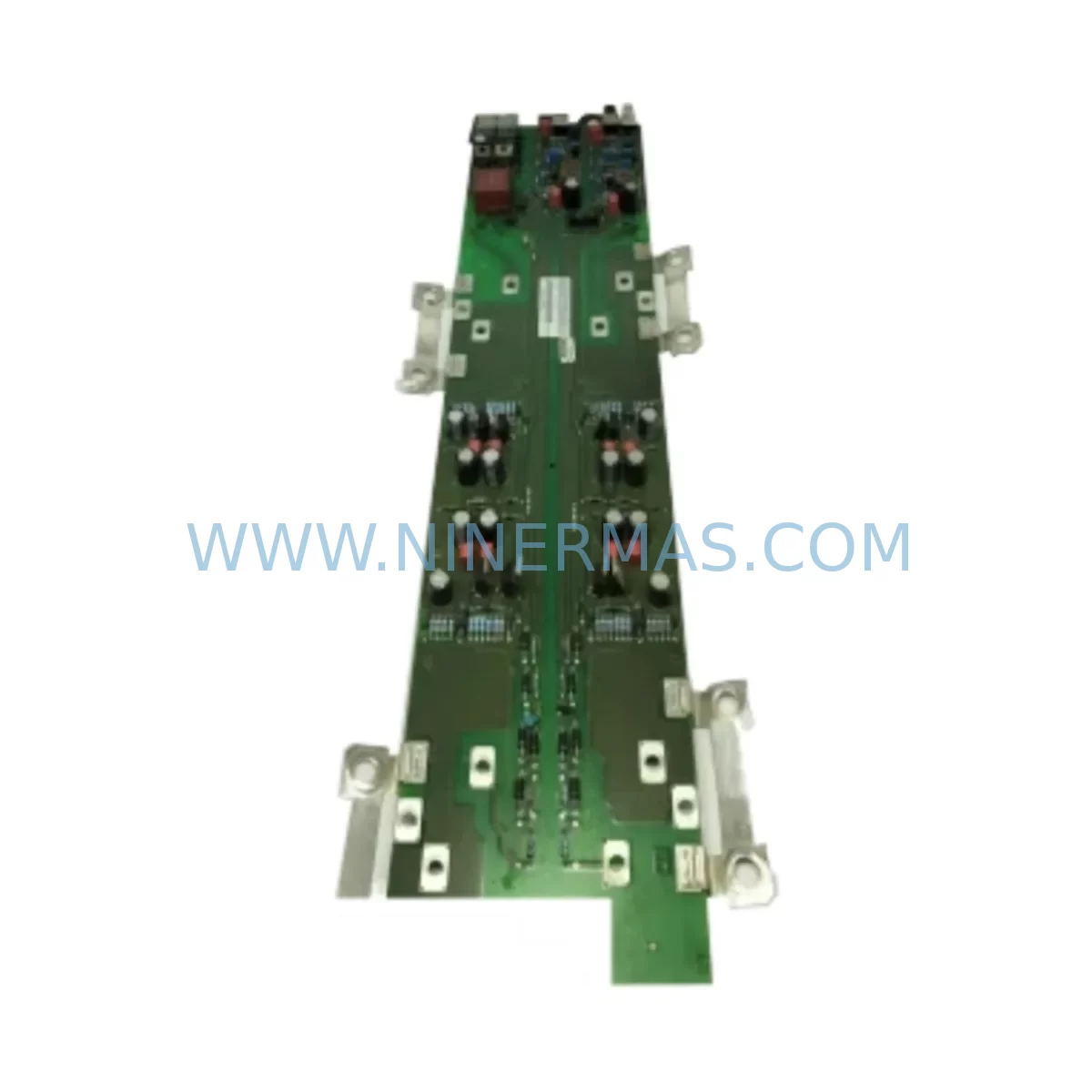

The Siemens 6SE7038-6EK84-1JC1 is a high-power AC variable frequency drive from the SIMOVERT MASTERDRIVES series, engineered for demanding industrial applications including heavy-duty motor control, crane systems, extruders, compressors, and rolling mills. As legacy SIMOVERT MASTERDRIVES installations approach end-of-life, plant engineers and maintenance teams face the critical challenge of sourcing compatible replacement units that can be integrated without extensive reprogramming, rewiring, or mechanical modification. NINERMAS maintains verified stock of the 6SE7038-6EK84-1JC1 to support exactly these retrofit and emergency replacement scenarios, with each unit subject to full functional testing and shipped with a 12-month warranty.

When planning a retrofit or emergency swap involving the 6SE7038-6EK84-1JC1, engineers must carefully evaluate several interdependent system parameters before committing to installation. Power supply compatibility is the first checkpoint: confirm that the incoming three-phase supply voltage, frequency tolerance, and available fault current capacity match the drive’s rated input specifications. Terminal wiring must be verified against the existing cabinet layout — the 6SE7038-6EK84-1JC1 uses specific DC bus, motor output, and control terminal assignments that may differ subtly from adjacent units in the same SIMOVERT MASTERDRIVES family, such as the 6SE7036-5EK84-1JC1 or 6SE7041-8EK84-1JC1, which share the same chassis form factor but carry different power ratings.

Backplane and rack interface compatibility is another critical area. The SIMOVERT MASTERDRIVES platform uses a modular rack architecture where the drive communicates with technology boards and option modules via a defined backplane bus. Before removal of the failed unit, technicians should document the slot assignments of any installed option boards — such as the CBP2 PROFIBUS communication board, the SBP encoder feedback module, or the T400 technology board — since these boards will typically be transferred to the replacement drive. Confirm that the firmware version on the replacement 6SE7038-6EK84-1JC1 is compatible with the installed option boards to avoid initialization faults on first power-up.

Program and parameter compatibility deserves particular attention. SIMOVERT MASTERDRIVES drives store their operating parameters in internal memory, and a replacement unit will arrive with factory default settings. Before decommissioning the failed drive, use the OP1S operator panel or a PC connection via the USS protocol interface to upload and save the complete parameter set. This parameter file can then be downloaded into the replacement unit, dramatically reducing commissioning time and the risk of process deviation. If the original parameter backup is unavailable, the drive must be recommissioned from scratch using the original engineering documentation, motor nameplate data, and application-specific ramp, torque, and speed limit settings.

HMI and SCADA integration should be verified as part of the replacement process. Many SIMOVERT MASTERDRIVES installations are integrated into Siemens WinCC or SIMATIC S7 control architectures via PROFIBUS DP, with the drive appearing as a defined node address on the fieldbus. After installing the replacement 6SE7038-6EK84-1JC1, confirm that the PROFIBUS node address is correctly set — typically via DIP switches or parameter assignment — and that the GSD file used in the SIMATIC S7-300 or S7-400 PLC configuration matches the drive’s firmware generation. A mismatch here will prevent the PLC from establishing communication with the drive, resulting in a fault state that can be mistaken for a hardware defect.

Physical installation space must also be confirmed. The 6SE7038-6EK84-1JC1 is a large-frame drive unit, and the control cabinet must provide adequate clearance for airflow, cable routing, and safe access to the DC bus terminals. Verify that the mounting rail, cabinet depth, and ventilation provisions match the unit’s dimensional and thermal dissipation requirements. In some retrofit scenarios, the existing cabinet may require minor modification to accommodate the replacement unit, particularly if the original installation predates current safety clearance standards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 6SE7038-6EK84-1JC1 requires a structured approach that accounts for the full scope of the drive’s integration within the existing automation architecture. In most legacy SIMOVERT MASTERDRIVES installations, the drive does not operate in isolation — it is part of a coordinated control system that may include a Siemens SIMATIC S7-400 or S7-300 PLC as the master controller, a SIMATIC HMI panel such as the TP270 or MP370 for operator interface, and a PROFIBUS DP network linking the drive, PLC, and other field devices.

The DC bus architecture of the SIMOVERT MASTERDRIVES platform is a key consideration in multi-drive installations. In common DC bus configurations, multiple drives share a single rectifier unit, and the 6SE7038-6EK84-1JC1 may be operating as an inverter-only unit fed from a central 6SE7038-series rectifier or active front end. In this case, the replacement drive must be configured for inverter-only operation, and the DC bus voltage and current capacity of the shared bus must be verified to support the load profile of all connected drives simultaneously.

I/O wiring and signal isolation are frequent sources of commissioning delays in retrofit projects. The 6SE7038-6EK84-1JC1 accepts analog speed reference signals, digital run/stop commands, and fault reset inputs via its control terminal strip. In older installations, these signals may be routed through signal isolators or terminal multipliers — components such as the Phoenix Contact MINI MCR signal conditioner or equivalent DIN-rail-mounted isolators — that may need to be rechecked for signal range and impedance compatibility with the replacement drive’s input specifications. Encoder feedback wiring, if present via the SBP module, must be verified for cable shielding integrity and termination resistance to prevent speed feedback errors during commissioning.

Power cabling to the motor must be inspected as part of the retrofit. Long cable runs between the drive and motor can cause capacitive charging currents that stress the drive’s output stage, and the 6SE7038-6EK84-1JC1 may require output reactors or dV/dt filters if cable lengths exceed recommended limits. Confirm that any existing output reactors are rated for the drive’s output current and that their inductance values are within the acceptable range for the application.

For sites where the SIMOVERT MASTERDRIVES system interfaces with a Siemens SIMATIC ET 200 distributed I/O system or a remote I/O rack via PROFIBUS, the retrofit plan should include a communication link verification step after the drive is powered up but before the process is restarted. Use the SIMATIC S7 diagnostic tools or a PROFIBUS analyzer to confirm that the replacement drive is visible on the network, that its GSD configuration matches the PLC’s hardware configuration, and that all process data words are being exchanged correctly before enabling the drive’s run command.

Downtime Control During System Migration

Minimizing production downtime during a 6SE7038-6EK84-1JC1 replacement requires advance preparation that begins well before the maintenance window opens. The most effective approach is to pre-stage the replacement drive in the workshop, configure its parameters from the saved parameter file, and perform a bench test with a test motor to verify basic functionality before the unit is transported to the installation site. This pre-commissioning step can reduce on-site installation time from several hours to under one hour in straightforward swap scenarios.

Protecting the original program logic is a non-negotiable requirement. Before any work begins on the live system, ensure that the PLC program in the SIMATIC S7 controller is backed up to a memory card and to an offline programming station running SIMATIC STEP 7 or TIA Portal. Similarly, the HMI project on the operator panel should be backed up using WinCC flexible or TIA Portal HMI engineering tools. These backups protect against accidental data loss during the maintenance window and provide a recovery path if the retrofit encounters unexpected complications.

Maintaining field control continuity during the transition is particularly important in processes where a brief loss of drive control could cause product damage or safety hazards. In such cases, consider implementing a manual bypass arrangement — using a motor starter or contactor bypass circuit — that allows the motor to run at a fixed speed while the drive is being replaced. This approach is especially valuable in cooling, ventilation, and pump applications where continuous operation is required even during drive maintenance.

After the replacement 6SE7038-6EK84-1JC1 is installed and powered up, follow a structured commissioning sequence: verify DC bus voltage, check for fault codes, confirm communication link status, perform a no-load motor run at low speed, and then gradually increase speed to full operating point while monitoring motor current, drive temperature, and process feedback signals. Document all commissioning steps and final parameter settings for inclusion in the site’s maintenance records.

Retrofit Support FAQ

Q: Is the 6SE7038-6EK84-1JC1 a direct drop-in replacement for other units in the SIMOVERT MASTERDRIVES range?
A: The 6SE7038-6EK84-1JC1 is dimensionally compatible with other large-frame SIMOVERT MASTERDRIVES units sharing the same chassis, such as the 6SE7036-5EK84-1JC1. However, power ratings differ between models, and a direct substitution requires confirmation that the replacement unit’s power rating is appropriate for the connected motor and application. Parameter reconfiguration is always required after a unit swap.

Q: What commissioning and wiring checks are required after installation?
A: After mechanical installation, verify DC bus voltage, control terminal wiring against the original schematic, PROFIBUS node address assignment, option board seating and firmware compatibility, and encoder feedback wiring if applicable. Perform a no-load test run before connecting the process load, and confirm all fault and warning indicators are clear before enabling full-speed operation.

Q: How do you verify that the replacement unit has been tested before shipment?
A: All 6SE7038-6EK84-1JC1 units supplied by NINERMAS undergo functional testing prior to dispatch, including power-up verification, fault code check, and basic drive operation confirmation. A test report is available upon request. Each unit is shipped with a 12-month warranty covering functional defects under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the 6SE7038-6EK84-1JC1 to support urgent replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time. Emergency dispatch arrangements can be made for critical production downtime situations.
