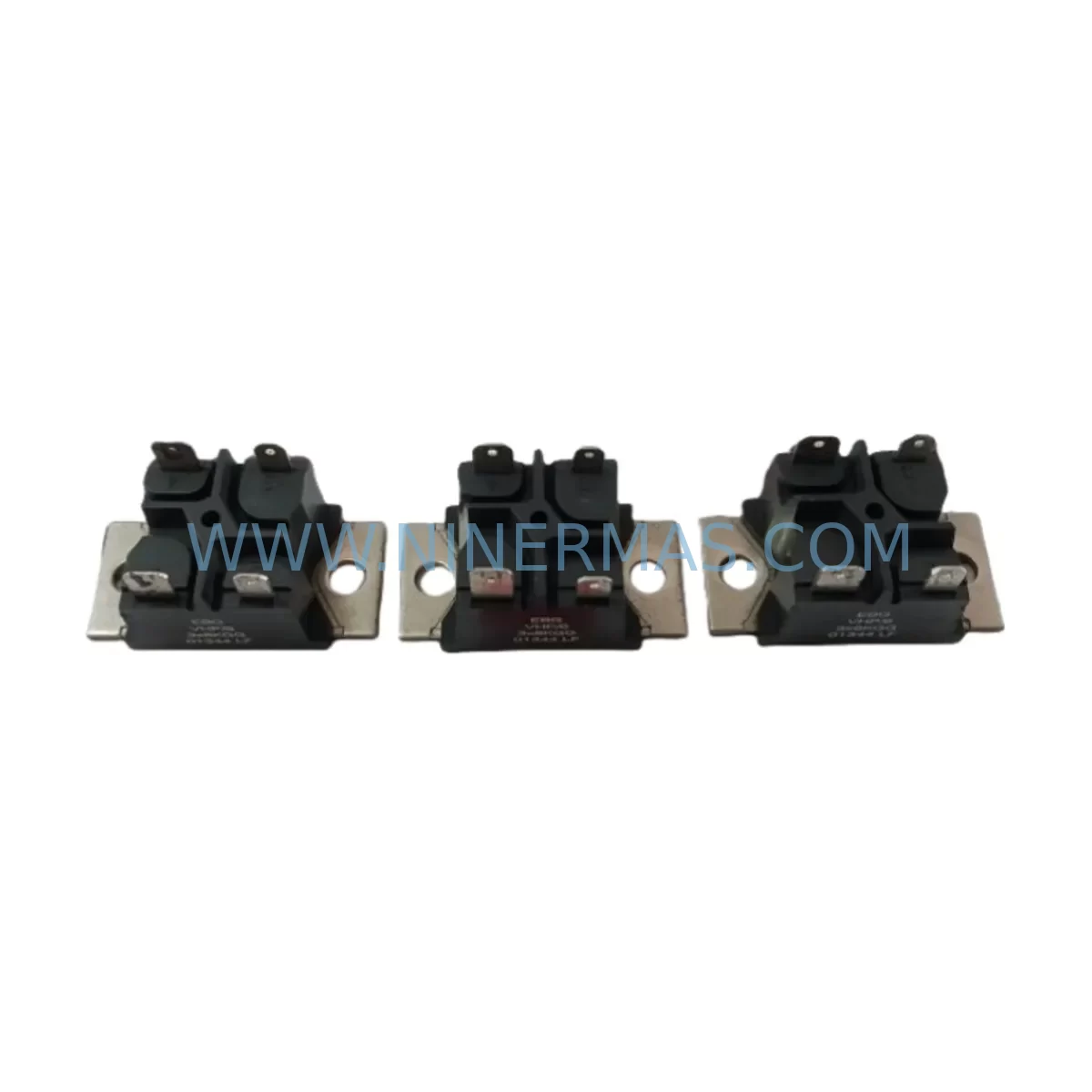

EBG VHP/2 15R G120L Service-Ready Spare Part

EBG VHP/2 15R G120L Service-Ready Spare Part: Harmonic Suppression & Downtime Risk Control

The EBG VHP/2 15R G120L is a ruggedized voltage harmonic filter engineered for demanding industrial environments where power quality directly impacts drive reliability and process continuity. Designed for use with variable frequency drives (VFDs) and motor control systems operating in the G120L series ecosystem, this filter suppresses voltage harmonics at the drive input, protecting sensitive control electronics from grid-borne disturbances, voltage spikes, and THD-induced degradation.

For maintenance engineers managing aging control infrastructure, the VHP/2 15R G120L represents a critical line-of-defense component. Its ruggedized construction — built to withstand vibration, thermal cycling, and industrial EMI — makes it a preferred choice for continuous-duty applications in process plants, compressor stations, pump drives, and conveyor systems. When this filter fails or degrades, the downstream VFD is exposed to unfiltered harmonic content, accelerating insulation breakdown, triggering nuisance trips, and ultimately causing unplanned downtime.

Procurement engineers sourcing this part should confirm availability before scheduled shutdowns. The EBG VHP/2 15R G120L is a long-lead item in many regions; maintaining at least one unit in your critical spares inventory is strongly recommended for facilities running 24/7 operations or operating under strict SLA commitments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the EBG VHP/2 15R G120L, experienced maintenance engineers treat this as a trigger point for a broader control cabinet inspection. The harmonic filter sits at the interface between the incoming power supply and the drive input — any degradation here places stress on adjacent components throughout the same electrical circuit.

Begin by verifying the input power supply module feeding the drive enclosure. Unstable or out-of-tolerance supply voltage accelerates filter wear and can mask the root cause of repeated filter failures. Check the line reactor or input choke installed upstream of the filter — on G120L-series installations, the line reactor and harmonic filter work in tandem, and replacing one without inspecting the other is a common maintenance oversight.

Inspect the drive input terminals and power wiring for signs of thermal stress, loose connections, or insulation degradation. Harmonic currents generate heat in conductors, and aged wiring in the same conduit run should be evaluated. Check fuse holders and semiconductor fuses protecting the drive input — these are often overlooked during filter replacement but are equally subject to harmonic-induced stress.

On the control side, verify the 24VDC SMPS (switched-mode power supply) powering the drive control board and any associated I/O expansion modules. Harmonic disturbances that bypass a degraded filter can couple into the control power rail, causing intermittent faults in digital input/output cards and fieldbus communication modules (PROFIBUS DP, PROFINET, or Modbus RTU adapters depending on your system configuration).

For G120L-series drives, also inspect the operator panel (BOP-2 or IOP-2) and its connection cable — these HMI components are sensitive to power quality issues and may display spurious fault codes when the upstream filter is compromised. Review the motor thermistor input circuit and any PTC/NTC signal conditioning modules in the same cabinet, as signal integrity can be affected by elevated harmonic content.

Finally, check terminal blocks and DIN rail grounding continuity throughout the enclosure. Proper PE (protective earth) bonding is essential for harmonic filter effectiveness — a loose ground connection can render even a new filter ineffective and introduce EMC compliance issues.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the drive enclosure following your site LOTO procedure. Confirm zero energy state with a calibrated voltage tester before opening the cabinet.

Step 2 — Document Existing Wiring: Photograph or sketch the existing filter wiring before disconnection. Note terminal designations, cable routing, and any ferrite cores or cable ties that must be reinstated.

Step 3 — Remove Degraded Filter: Disconnect input and output terminals. Remove mounting hardware. Inspect the mounting surface for heat discoloration — if present, investigate the upstream power supply before installing the replacement.

Step 4 — Install EBG VHP/2 15R G120L: Mount the replacement filter in the same orientation. Reconnect terminals per original wiring documentation. Torque all connections to specification — loose terminals are a leading cause of premature filter failure in high-vibration environments.

Step 5 — Verify Grounding: Confirm PE bonding between the filter chassis, drive enclosure, and site earth. Measure ground continuity with a low-resistance ohmmeter.

Step 6 — Energize & Commission: Restore power in stages. Monitor drive input current and check for fault codes on the operator panel. Run the drive at low speed initially to confirm stable operation before returning to full production load.

Step 7 — Update Maintenance Records: Log the replacement date, part number, and any observations. Schedule the next inspection interval (recommended: 12 months or per your site PM schedule).

Spare Parts Support FAQ

Q1: Is the EBG VHP/2 15R G120L compatible with drives other than the Siemens G120L series?
The VHP/2 15R G120L is optimized for the G120L drive platform based on its impedance rating and physical form factor. However, the 15R resistance value may be compatible with other VFD brands operating at equivalent power ratings and input voltage levels. Always verify the drive manufacturer’s harmonic filter specification before cross-application. Our technical team can assist with compatibility confirmation prior to order.

Q2: What is included in the 12-month warranty, and does it cover field installation failures?
All EBG VHP/2 15R G120L units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and component failure under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical damage during handling. Pre-shipment functional testing is performed on all units before dispatch.

Q3: How should I manage long-term spare parts inventory for the VHP/2 15R G120L?
For facilities with multiple G120L-series drives, we recommend maintaining a minimum of one spare filter per five installed drives, with a review cycle aligned to your annual shutdown schedule. Given that EBG harmonic filters are not universally stocked by local distributors, forward procurement — ordering 6–12 months ahead of anticipated need — significantly reduces the risk of extended downtime during emergency replacements. NINERMAS supports long-term supply agreements for critical spare parts programs.

Q4: Can NINERMAS provide documentation or test reports for this part?
Yes. Upon request, NINERMAS can provide available product datasheets, test certificates, and shipment inspection records for the EBG VHP/2 15R G120L. For regulated industries or ISO-certified maintenance programs requiring full traceability documentation, please specify your requirements at the time of inquiry so we can prepare the appropriate paperwork package.
