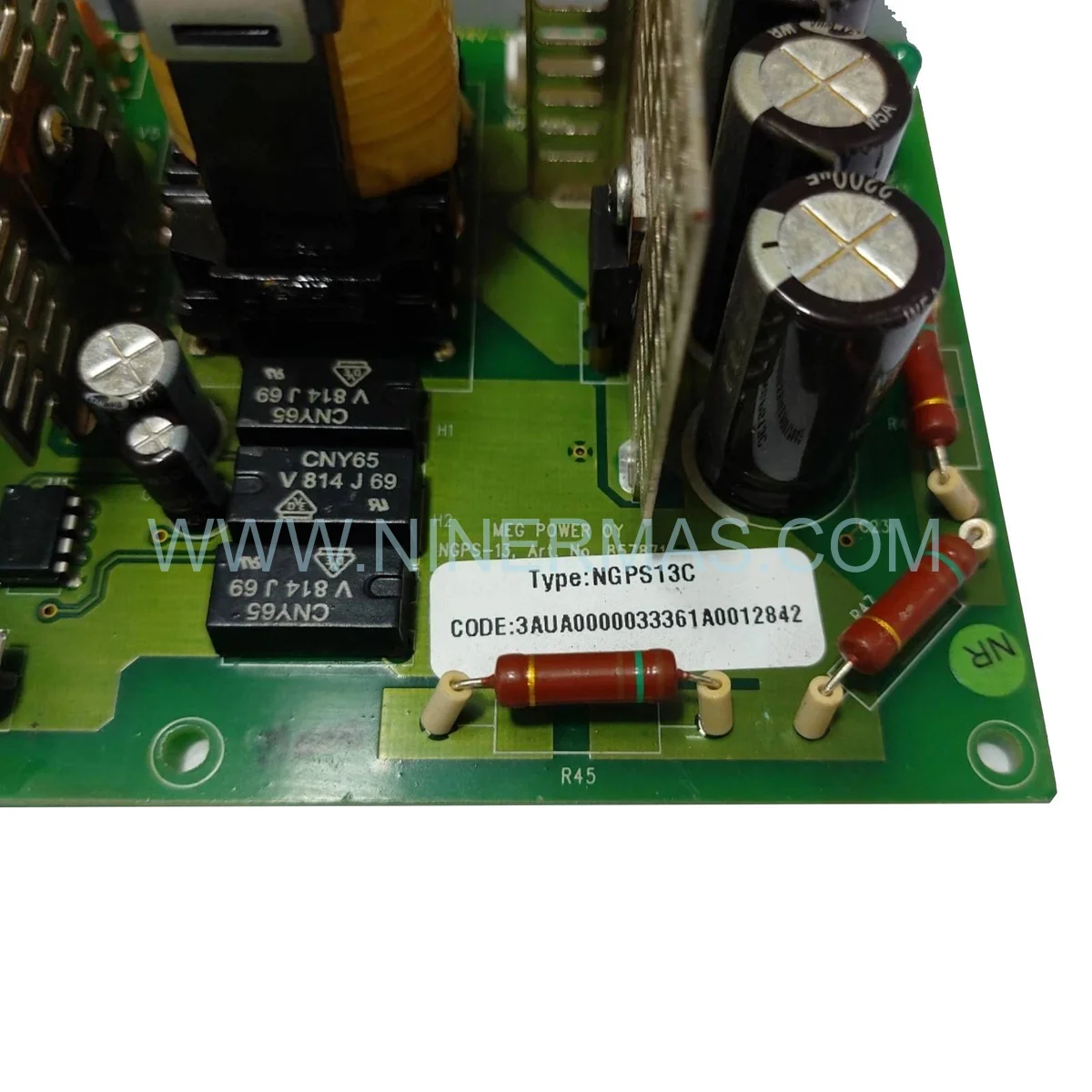

ABB NGPS-13C Gate Driver Power Supply | ACS600 Series — New & Original

ABB Gate Driver Power Supply NGPS-13C | Reliable Automation Component for ACS600 Drives

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the ABB NGPS-13C is far more than a passive power supply board — it is the voltage backbone that determines whether your ACS600 variable frequency drive remains online or triggers an unplanned shutdown. The NGPS-13C delivers precisely regulated ±15V and -8V DC rails to the IGBT gate driver circuitry, enabling clean, low-jitter switching transitions that directly govern motor torque stability, electromagnetic compatibility, and overall system availability. In high-uptime environments such as continuous process lines, compressor stations, and automated conveyor networks, this component’s integrity is non-negotiable for Operational Excellence.

Engineered for durability in demanding industrial environments, the NGPS-13C features a fully conformal-coated PCB assembly that resists humidity ingress, airborne particulates, and corrosive vapors — conditions routinely encountered in chemical plants, mining operations, and coastal facilities. During installation, engineers should verify that the board connector seats fully onto the ACS600 backplane without lateral stress, and confirm LED indicator status post-power-up to validate output rail presence before enabling the drive. Torque specifications for mounting hardware must be observed to prevent PCB flex-induced solder joint fatigue over thermal cycling.

As a strategic spare part, the NGPS-13C belongs in every maintenance stockroom supporting ACS600 drive fleets. Gate driver power supply failures account for a disproportionate share of unplanned drive downtime, and lead times for legacy automation components can extend weeks when sourced through standard channels. Holding a verified original unit on-site compresses mean-time-to-repair (MTTR) from days to hours — a decisive advantage when production continuity is at stake.

Key Operational Features

Dual-Polarity Isolated Output: +15V / -8V DC rails provide optimal IGBT turn-on and turn-off bias, minimizing switching losses and reducing thermal stress on power semiconductors.
High Availability Design: Integrated overcurrent and short-circuit protection prevents cascading failures across gate driver boards during fault events, supporting system redundancy architectures.
Seamless Integration: Direct backplane connector interface with ACS600 frame sizes R13i and above — no external wiring required, reducing commissioning time and connection error risk.
Conformal Coating Protection: Factory-applied coating shields PCB traces and components against moisture, dust, and chemical exposure, extending service intervals in harsh environments.
Precision Voltage Regulation: Tight output tolerance maintains stable gate drive power across load transients and input voltage fluctuations, ensuring consistent motor control performance.
Process Optimization Ready: Diagnostic LED indicators deliver real-time output status visibility, enabling predictive maintenance workflows and reducing reactive repair cycles.

Maintenance & Performance Benchmarks

The NGPS-13C is architected to support industrial network architectures ranging from standalone single-drive installations to large-scale multi-drive systems coordinating dozens of ACS600 units across distributed process lines. Its regulated power architecture maintains output stability regardless of the number of NGDR gate driver boards installed, making it equally suited for compact R13i frame configurations and high-current R9 frame assemblies operating at up to 2500A.

For System Integration into plant-wide SCADA or DCS environments, the NGPS-13C’s fault output signal interfaces directly with the ACS600 control board, enabling automated alarm generation and drive status reporting to supervisory systems. This closed-loop diagnostic capability supports I/O Modules and process control platforms that depend on real-time drive health data for production scheduling and predictive maintenance algorithms.

Benchmark service life under standard industrial duty cycles exceeds 10 years, supported by 105°C-rated electrolytic capacitors and conservative thermal derating. Maintenance best practice recommends proactive replacement during scheduled major overhauls at 8-10 year intervals, or immediately upon detection of output voltage deviation beyond ±3% of nominal — a threshold easily verified with a calibrated multimeter during routine preventive maintenance rounds.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every NGPS-13C unit dispatched from our inventory is supplied in Original Factory Packaging, complete with manufacturer documentation, quality inspection records, and full component traceability. We maintain dedicated stock of ABB ACS600 drive components — including end-of-life (EOL) and legacy modules — to serve customers whose installed base predates current product generations.

Same-Day Dispatch: Orders confirmed before cut-off time qualify for same-day shipment from our warehouse, minimizing downtime exposure for urgent breakdown scenarios.
Global Supply Network: Worldwide express logistics partnerships ensure delivery to major industrial regions across Asia, Europe, the Americas, and the Middle East — typically within 3-7 business days.
EOL & Legacy Module Sourcing: Specializing in discontinued ABB automation components, we provide verified original parts for aging ACS600 fleets where standard supply chains have been discontinued.
Export Documentation: Full commercial invoice, packing list, and certificate of origin provided for international customs clearance.

Engineering Support & FAQ

Q1: What ACS600 frame sizes are compatible with the NGPS-13C?
The NGPS-13C is designed for ACS600 drives from frame size R13i through R9, covering current ratings from 13A up to 2500A. Always cross-reference the drive nameplate and ABB documentation to confirm compatibility before installation.

Q2: What firmware version is required on the ACS600 for NGPS-13C compatibility?
The NGPS-13C is a hardware power supply board and operates independently of firmware version. However, ABB recommends verifying that the drive control board firmware is current to ensure accurate fault reporting from the power supply’s diagnostic output signal.

Q3: What are the step-by-step installation precautions?
Isolate and lock out the drive from all power sources before handling. Allow capacitors to discharge fully (minimum 5 minutes after power removal). Align the NGPS-13C connector with the backplane interface, apply even pressure until fully seated, and secure mounting hardware to specified torque. Restore power and verify LED indicators show correct output rail status before enabling the drive.

Q4: How do I initiate a warranty claim?
Contact our technical support team at sale@ninermas.com with your order number, unit serial number, and a description of the observed fault. We will coordinate return authorization and replacement dispatch, targeting resolution within 5 business days for standard warranty cases.

Q5: Can the NGPS-13C be used in multi-drive redundant configurations?
Yes. In redundant drive architectures where parallel ACS600 units share load, each drive requires its own NGPS-13C. The board’s fault signal output integrates with the drive’s control logic to enable automatic switchover to the standby unit upon detection of a power supply fault, supporting High Availability system designs.

Q6: What are the indicators of NGPS-13C degradation before complete failure?
Early warning signs include intermittent drive fault codes related to gate driver undervoltage, increased motor acoustic noise during acceleration, and LED indicators showing marginal or flickering output status. Proactive replacement upon observing these symptoms prevents unplanned production stoppages.
