Dunkermotoren PLG52-E40R24-GR42x40 Retrofit DC Servo Drive

Dunkermotoren PLG52-E40R24-GR42x40 Retrofit DC Servo Drive: Legacy-Compatible Upgrade for Industrial Motion Control Systems

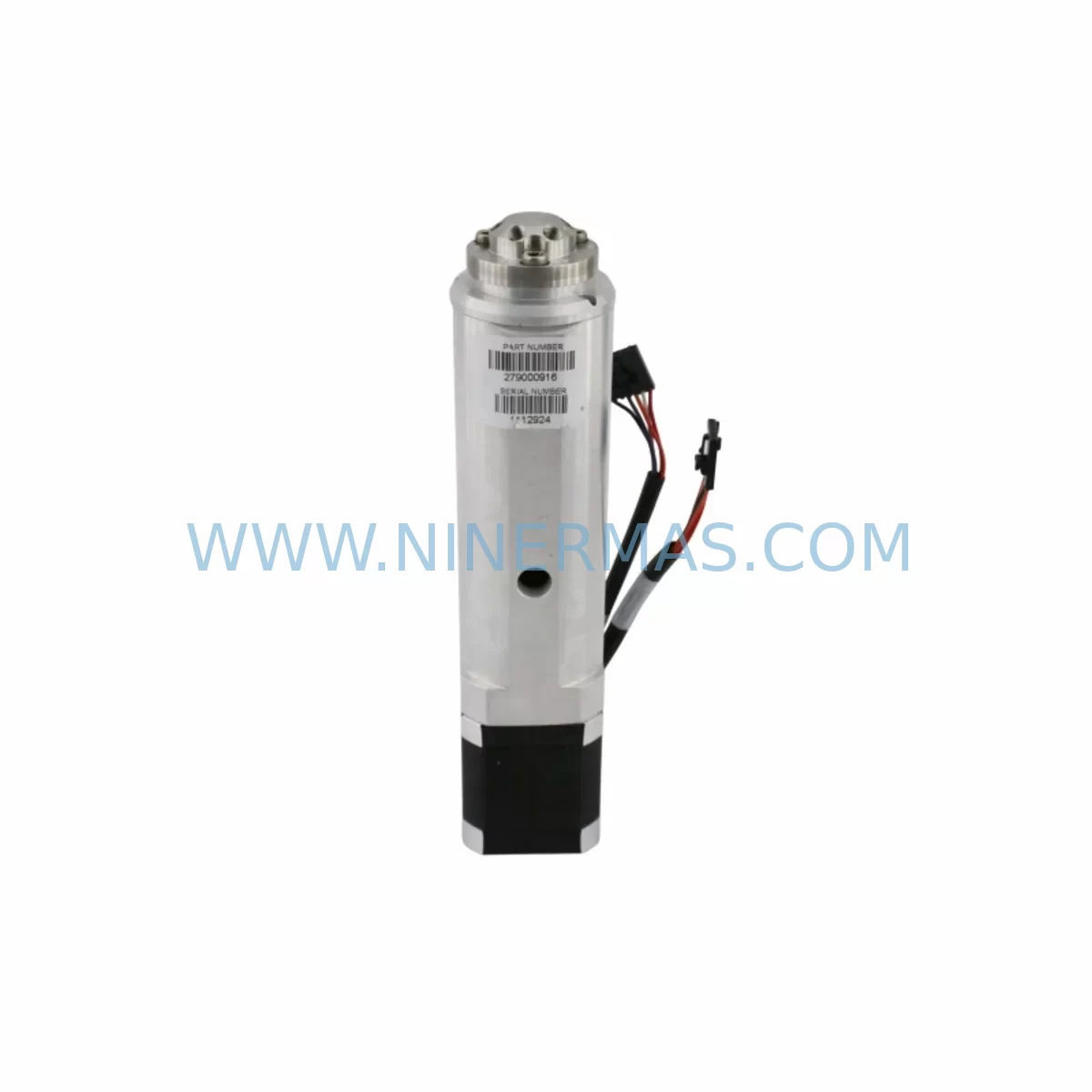

The Dunkermotoren PLG52-E40R24-GR42x40 is a compact, high-precision DC servo motor and planetary gearbox assembly engineered for demanding industrial automation environments. Combining the GR42x40 brushed DC servo motor with the PLG52 52mm planetary gearbox and an integrated E40R24 40-line incremental encoder operating at 24 VDC, this assembly delivers reliable torque transmission, accurate position feedback, and smooth speed regulation across a wide range of legacy and retrofit automation applications. With part references including 482-14811-00, M1819-0002, and 263958-001, this unit is a direct retrofit candidate for discontinued motion control platforms in medical equipment, semiconductor handling, laboratory automation, and precision manufacturing lines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a discontinued Dunkermotoren servo assembly in a live production environment requires careful pre-migration planning to avoid extended downtime and program logic disruption. The PLG52-E40R24-GR42x40 is commonly encountered in legacy semiconductor wafer handling stages, medical imaging positioning arms, laboratory liquid dispensing robots, and precision conveyor indexing systems — all of which demand high repeatability and minimal backlash.

Before removing the original unit, engineers should document the existing wiring harness pinout for the encoder connector, motor power leads, and any brake or thermistor wires. The E40R24 encoder outputs A, B, and Z index channels at 24 VDC logic levels; confirm that the replacement servo drive or motion controller — such as a Dunkermotoren BGE3515 servo amplifier or a compatible third-party pulse-direction drive — accepts these signal levels without additional level-shifting circuitry.

On the mechanical side, the PLG52 gearbox uses a 52mm square flange with a standard 4-bolt mounting pattern. If the legacy system used an earlier PLG42 or PLG32 gearbox variant, a transition bracket will be required. Shaft coupling selection is equally critical: measure the existing coupling bore and keyway before ordering, as the GR42x40 motor shaft dimensions may differ from older GR42x25 or GR42x55 variants in the same family. An incorrect coupling fit is one of the most common causes of vibration and premature bearing wear after retrofit.

Power supply capacity must be verified before commissioning. The GR42x40 motor draws peak current during acceleration; ensure the 24 VDC rail — whether sourced from a dedicated DIN-rail power supply module or a shared cabinet bus — can sustain peak demand without voltage sag. If the control cabinet also powers a Dunkermotoren BG45 brushless motor or additional I/O modules such as a Siemens ET 200SP distributed I/O station, calculate total load carefully and consider adding a buffer capacitor module or upgrading the PSU to the next current tier.

For systems using a PLC-based motion controller — such as a Siemens S7-300 with FM 353 positioning module or an Allen-Bradley Kinetix compact servo drive — verify that the encoder resolution of 40 lines per revolution (160 quadrature counts) is compatible with the controller’s minimum resolution requirements. Some legacy FM 353 configurations were tuned for higher-resolution encoders; re-scaling the position loop gain and velocity feedforward parameters will be necessary after installation. Similarly, if the HMI screen displays position in engineering units derived from encoder counts, the display scaling formula must be updated to reflect the new encoder line count.

Communication link integrity should be verified end-to-end after wiring. If the motion axis communicates over PROFIBUS DP or PROFINET IO, confirm that the servo drive’s station address and GSD/GSDML file are correctly configured in the PLC hardware catalog. For standalone pulse-direction systems, verify step frequency limits and direction signal polarity before enabling the drive output.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo motor retrofit is a primary concern for maintenance engineers in continuous-process industries. A structured hot-swap protocol for the PLG52-E40R24-GR42x40 replacement can reduce total machine downtime to under four hours when spare parts are pre-staged and the replacement procedure is rehearsed offline.

Begin by backing up the existing PLC program, including all motion task parameters, cam tables, and axis configuration data, to a secure offline storage location. If the controller uses a Siemens S7 memory card or an Allen-Bradley CompactFlash module, create a verified copy before any hardware is disturbed. This backup protects against accidental parameter loss during power cycling and provides a rollback point if the new assembly requires extended tuning.

During the physical swap, use a torque-controlled screwdriver to remove and reinstall the gearbox mounting bolts to the manufacturer’s specified torque value. Over-torquing the PLG52 flange bolts is a common field error that can distort the gearbox housing and introduce backlash. After mechanical installation, perform a manual rotation check by hand before applying power to confirm that the drivetrain moves freely without binding.

On first power-up, enable the drive in open-loop mode and verify encoder signal integrity using an oscilloscope or the drive’s built-in diagnostic display. Confirm that A, B, and Z channels are present and that the Z index pulse occurs once per revolution. Only after signal verification should the position loop be closed and auto-tuning initiated. Document the final PID parameters and save them to both the drive’s non-volatile memory and the project backup file.

For multi-axis systems where the PLG52-E40R24-GR42x40 operates in coordinated motion with adjacent axes — for example, alongside a Dunkermotoren BG65 brushless servo or a stepper-driven Z-axis — perform a coordinated motion test at reduced speed (10–20% of nominal) before returning the machine to full production speed. This step catches any phase relationship errors or coupling misalignment that may not be apparent during single-axis testing.

Retrofit Support FAQ

Q1: Is the PLG52-E40R24-GR42x40 a direct drop-in replacement for the original Dunkermotoren assembly with part number 482-14811-00?
A: Yes. The PLG52-E40R24-GR42x40 assembly with reference 482-14811-00 (also cross-referenced as M1819-0002 and 263958-001) is supplied as a complete motor-gearbox-encoder unit. Mechanical dimensions, flange pattern, shaft diameter, and encoder signal specifications match the original production configuration. Minor wiring harness differences may exist between production batches; verify connector pinout against your existing cable before installation.

Q2: What pre-shipment testing is performed on each unit?
A: Every PLG52-E40R24-GR42x40 unit undergoes a full functional test prior to shipment. Testing includes no-load run-in at rated voltage, encoder signal verification (A/B/Z channel integrity and line count confirmation), gearbox backlash measurement, and visual inspection of the motor commutator and brush assembly. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can you supply multiple units for a fleet-wide retrofit program, and what lead times apply?
A: Yes. NINERMAS maintains reserved inventory for the PLG52-E40R24-GR42x40 to support multi-unit retrofit projects and long-term spare parts programs. For orders of five units or more, a reserved stock agreement can be arranged to guarantee availability over a 12–24 month horizon. Standard lead time for in-stock units is 3–7 business days. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss volume pricing and supply commitments.

Q4: What should I verify regarding installation space before ordering?
A: Confirm the following dimensions against your existing machine envelope: (1) axial length from mounting flange face to output shaft end — the GR42x40 motor body adds approximately 40mm behind the PLG52 gearbox flange; (2) gearbox outer diameter of 52mm and the 4-bolt flange bolt-circle diameter; (3) output shaft diameter and length for coupling selection; (4) minimum bend radius for the encoder cable harness routing within the control cabinet. If the original unit used a different gearbox ratio, recalculate the load-side speed and torque requirements before finalizing the replacement specification.
