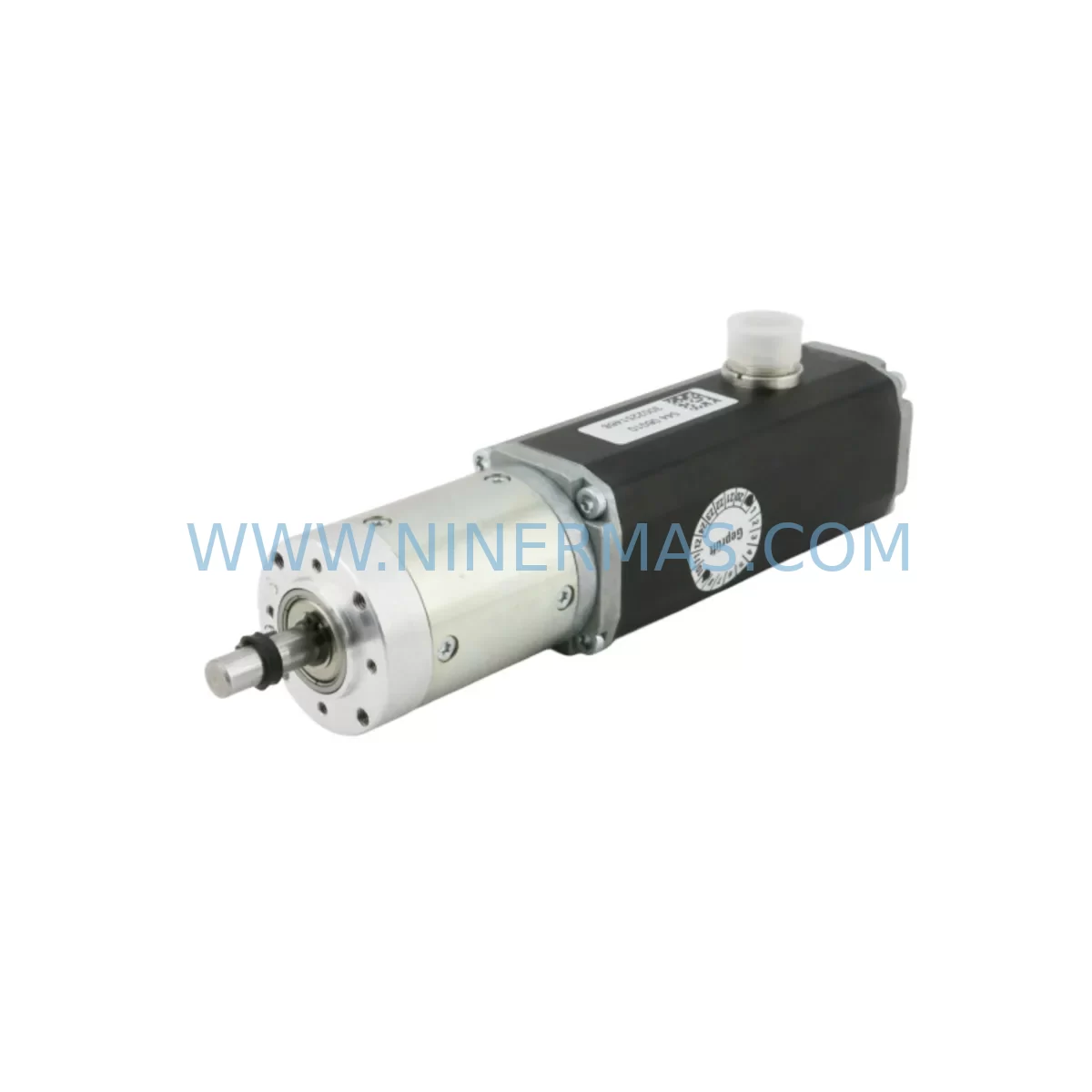

The Dunkermotoren BG 44×50 SI SD1024D-2-S Ver.4.13 SM3410D-APPMAT1 is a precision brushless DC motor engineered for seamless integration into legacy automation systems where the original BG 44 series components have reached end-of-life or are no longer available through standard supply channels. As industrial facilities face increasing pressure to extend the operational lifespan of existing control architectures, this retrofit-compatible motor provides a direct upgrade path that preserves mechanical mounting geometry, encoder signal compatibility, and controller interface requirements — minimising engineering rework and reducing total migration cost.

Sourced from verified inventory and pre-shipment tested at NINERMAS, this unit is supplied with a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes electrical verification of winding resistance, encoder output integrity, and shaft runout before dispatch, ensuring that field engineers receive a ready-to-install component with documented test results.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the BG 44×50 SI into a running production line requires a structured pre-migration assessment. Begin by auditing the existing power distribution: the BGE 3515 power supply module must be confirmed capable of sustaining peak current demand during motor acceleration, particularly when multiple axes share a common DC bus. If the original installation used an older BGE 3510 variant, a capacity upgrade may be necessary before the new motor is commissioned.

Terminal wiring adaptation is the next critical checkpoint. The BG 44×50 SI uses a standardised JST connector layout, but legacy harnesses routed to earlier BG 44 variants may carry non-standard pin assignments introduced during previous field modifications. Cross-reference the original wiring diagram against the current motor pinout before energising the circuit. Where the existing shielded encoder cable shows signs of insulation degradation or exceeds the recommended cable run length for the SD1024D encoder, replacement with a new screened cable is strongly advised to prevent signal noise from corrupting position feedback.

Backplane interface and module addressing must be verified if the motor is controlled through a distributed I/O architecture. In systems where the SM3410D servo controller is mounted on a shared DIN rail alongside Siemens ET 200 I/O modules or Beckhoff EtherCAT terminals, confirm that the node address and communication protocol settings are correctly mapped in the PLC program before the replacement unit is powered. Failure to validate module addressing is a common source of commissioning delays in multi-axis retrofit projects.

Program compatibility review should cover both the motion profile parameters stored in the SM3410D application memory and any HMI screen bindings that reference motor status tags. If the facility uses a Siemens TP700 or similar panel for operator control, verify that the HMI project’s tag database reflects the correct drive address and that alarm thresholds are calibrated to the BG 44×50 SI’s rated current and temperature limits. For systems running older DUNKERMOTOREN BG 65 SI or BG 75 SI motors on adjacent axes, confirm that the shared controller firmware version supports mixed motor configurations without requiring a full project recompile.

Where a KD/BG 44 inline planetary gearbox is part of the drivetrain, inspect the gearbox input shaft coupling for wear before fitting the replacement motor. The output torque characteristics of the BG 44×50 SI are consistent with the BG 44 series specification, but any backlash introduced by a worn gearbox will affect positioning accuracy and may trigger following-error faults in the SM3410D controller. A DIN rail mounting bracket compatible with the BG 44 frame is available as an accessory for installations where the motor is panel-mounted rather than flange-mounted to a machine structure.

Finally, confirm installation space in the control cabinet or machine enclosure. The 44 mm diameter and 50 mm body length of this motor are identical to the original BG 44×50 specification, but cable routing for the new JST connector may require additional bend radius allowance compared to older screw-terminal designs. A signal isolator inserted between the encoder output and the controller input is recommended in environments with high electromagnetic interference from variable frequency drives or welding equipment operating in close proximity.

Downtime Control During System Migration

Minimising production downtime during a motor replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to complete all pre-commissioning steps — wiring verification, address configuration, and firmware confirmation — on a bench test rig using the BG 44×50 SI and a spare SM3410D controller before the scheduled outage. This allows the field team to identify and resolve compatibility issues without consuming production time.

Backup the original program logic from the SM3410D controller to a laptop or USB drive before disconnecting the existing motor. DUNKERMOTOREN’s commissioning software supports full parameter export, including motion profiles, current limits, and encoder resolution settings. Retaining this backup ensures that the original control behaviour can be restored immediately if an unexpected issue arises during the replacement procedure.

A staged replacement strategy — where the new motor is installed and verified at low speed before full production load is applied — reduces the risk of mechanical or electrical faults causing secondary damage to the driven load or the controller. Once the motor passes low-speed verification, incrementally increase the speed setpoint while monitoring motor temperature, current draw, and position error through the SM3410D diagnostic interface. This approach typically allows a controlled return to full production within two to four hours of the maintenance window opening, even for complex multi-axis systems.

Field control continuity is maintained throughout the migration by keeping adjacent axes operational and isolating only the axis undergoing replacement. In systems where the BG 44×50 SI drives a conveyor, indexing table, or robotic joint, coordinate with the production scheduler to sequence the replacement during a planned low-throughput period, further reducing the operational impact of the downtime event.

Retrofit Support FAQ

Q1: Is the BG 44×50 SI a direct mechanical replacement for my existing BG 44 series motor?
Yes. The BG 44×50 SI shares the same 44 mm frame diameter and standard BG 44 flange pattern as other motors in the BG 44 family, including the BG 44×25 and BG 44×35 variants. Shaft dimensions and mounting hole positions are consistent across the series. If a KD/BG 44 gearbox is installed, verify the input coupling bore before fitting the replacement unit.

Q2: What commissioning steps are required after installation?
After mechanical installation and wiring, connect the SM3410D controller to a laptop running DUNKERMOTOREN’s commissioning software. Restore the backed-up parameter set, confirm encoder resolution is set to 1024 PPR for the SD1024D, and run the auto-tuning routine at reduced load. Verify communication link integrity via RS-485 and confirm that the HMI displays correct motor status before returning the axis to automatic mode.

Q3: Is the unit tested before shipment?
Yes. Every BG 44×50 SI SD1024D-2-S unit supplied by NINERMAS undergoes pre-shipment electrical testing covering winding resistance, insulation integrity, encoder signal output, and no-load run verification. A test report is available on request. Units are packaged in anti-static foam with moisture-barrier wrapping to protect the encoder electronics during transit.

Q4: What warranty coverage is provided, and what does it include?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional performance failures under normal operating conditions. The warranty covers repair or replacement of the defective unit. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical overload. For warranty claims or technical support, contact sale@ninermas.com or call +0086 187 5021 5667.
