DSE DSE8660 MKII Safety-Reliable Generator Controller

DSE DSE8660 MKII Safety-Reliable Generator Controller: Critical Industrial Control Reliability

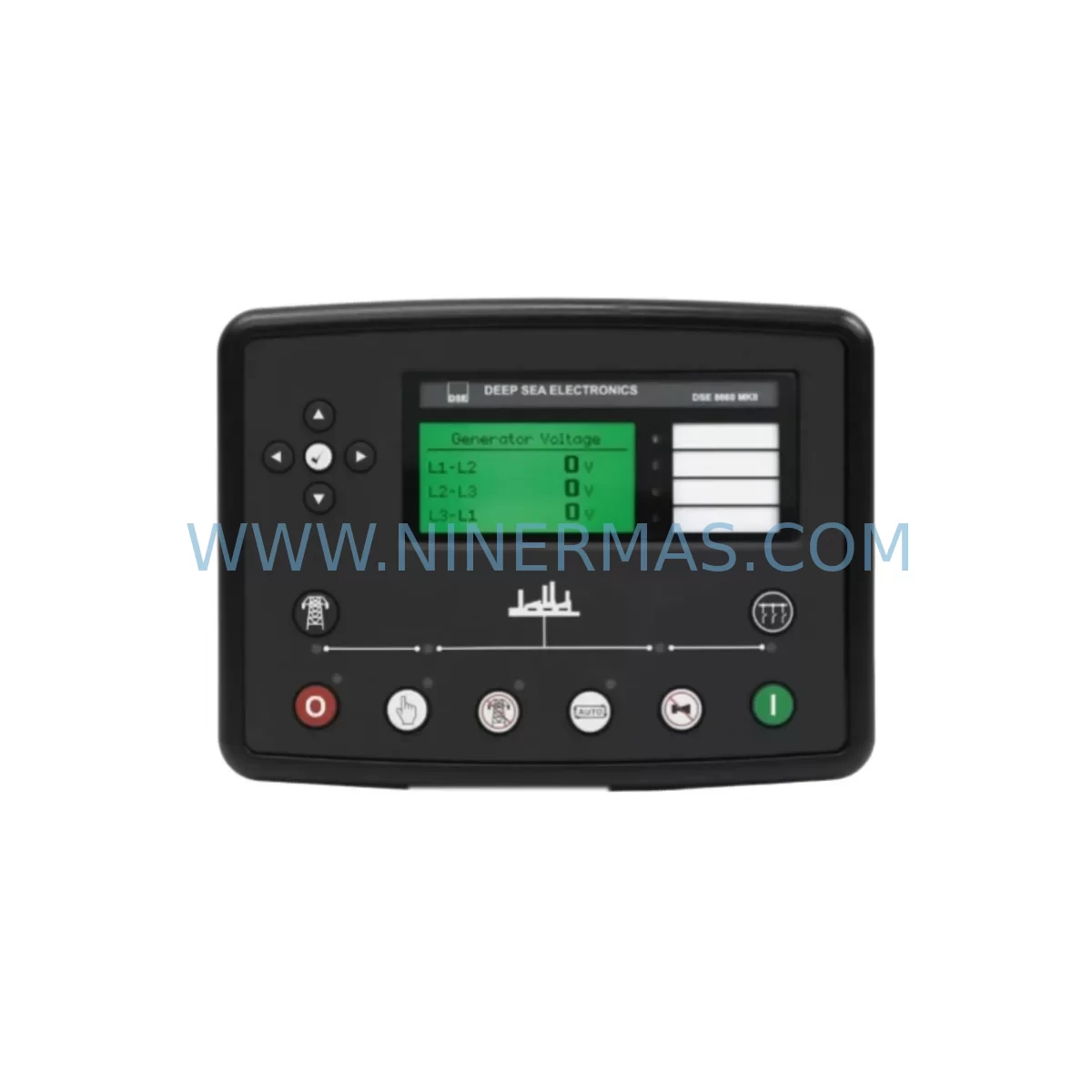

The DSE8660 MKII by Deep Sea Electronics (DSE) is a high-performance Automatic Mains Failure (AMF) and generator control module engineered for mission-critical industrial environments. Designed to meet the demanding requirements of continuous production facilities, critical interlock systems, and heavy-duty control cabinets, the DSE8660 MKII delivers uncompromising safety and reliability where unplanned downtime is simply not an option.

In industries where power continuity directly impacts personnel safety, environmental compliance, and production integrity — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical works, port infrastructure, marine vessels, and continuous manufacturing lines — the DSE8660 MKII serves as the authoritative control intelligence for standby generator systems. Its robust architecture addresses the full spectrum of field-level risks: control interruptions, spurious trips, signal drift, power supply fluctuations, communication anomalies, surge impacts, and unscheduled shutdowns.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the DSE8660 MKII within a critical control cabinet demands a holistic approach to risk reduction. The module itself provides the intelligent core, but its full safety potential is realized when integrated with a carefully selected suite of protective and auxiliary components.

On the power supply side, a DSE9480 battery charger ensures the generator’s starting battery remains at optimal charge, eliminating the most common cause of AMF failure — a flat battery at the moment of mains loss. Pairing this with a DSE9255 DC UPS module provides uninterrupted control power to the DSE8660 MKII itself during the transition window, preventing any loss of controller logic during switchover events.

For communication integrity in high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace facilities, the RS-485 Modbus RTU port of the DSE8660 MKII should be wired using shielded twisted-pair cable and terminated with a DSE855 PC software interface or a dedicated SCADA gateway to maintain signal fidelity. Where CAN bus engine ECU integration is required — common with Cummins, Perkins, Volvo Penta, or MTU engines — the DSE8660 MKII’s native CAN interface eliminates the need for additional signal converters, reducing potential failure points in the communication chain.

Surge and transient protection at the cabinet level is further reinforced by installing Type 2 SPD (Surge Protective Devices) on the incoming AC supply feeding the Automatic Transfer Switch (ATS) contactor circuit. The ATS itself — whether a DSE-compatible open-transition or closed-transition transfer switch — should be rated for the full prospective short-circuit current of the site, with the DSE8660 MKII’s configurable transfer timers set to match the ATS mechanical operating time precisely.

In dusty, humid, or chemically aggressive environments such as cement plants, wastewater treatment facilities, or offshore platforms, the IP65-rated front panel of the DSE8660 MKII provides a critical first line of defense. Supplementing this with anti-condensation heaters inside the control cabinet and IP-rated cable glands on all field wiring entries ensures the entire enclosure meets the environmental protection standard demanded by the site.

For sites requiring remote monitoring and alarm notification, the DSE8660 MKII integrates seamlessly with DSE SureSite remote monitoring software and DSE855 configuration tools, enabling engineering teams to review event logs, adjust protection thresholds, and acknowledge alarms without dispatching field personnel — a critical capability for unmanned substations, remote pump stations, and offshore installations.

Finally, maintaining a DSE8660 MKII replacement unit as a critical spare — alongside compatible DSE wiring harnesses and DSE panel mounting bezels — in the site’s spare parts inventory ensures that mean time to repair (MTTR) is minimized in the event of a controller fault, keeping the standby power system available at all times.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where a loss of power to safety instrumented systems (SIS) or emergency shutdown (ESD) panels can trigger catastrophic consequences, the DSE8660 MKII provides the reliable AMF logic that ensures standby generators assume load within the site’s maximum allowable transfer time. Its configurable interlock inputs allow integration with fire and gas detection systems, ensuring the generator does not start or transfer load under conditions that would endanger personnel.

Power Generation & Substation Facilities: At grid-connected substations and embedded generation sites, the DSE8660 MKII manages the complex sequencing of generator start, synchronization readiness signaling, and load transfer with the precision required to protect sensitive protection relay panels and SCADA systems from power quality disturbances during transition.

Mining Operations: Underground and surface mining operations depend on standby power for ventilation fans, hoisting equipment, and dewatering pumps — all of which are safety-critical loads. The DSE8660 MKII’s wide operating temperature range, vibration tolerance, and IP65 front panel make it well-suited to the harsh conditions of mining control rooms and surface switchrooms.

Water & Wastewater Treatment: Pump stations and treatment works require uninterrupted power for dosing pumps, aeration blowers, and SCADA telemetry. The DSE8660 MKII’s event logging and remote communication capabilities support the regulatory reporting requirements of water utility operators while ensuring the standby generator responds automatically to any mains supply interruption.

Metallurgical & Steel Works: High-current arc furnaces and induction heating systems generate severe harmonic distortion and voltage transients on the local network. The DSE8660 MKII’s robust EMI design and transient-tolerant supply input ensure reliable operation even in the electrically hostile environment of a steel melt shop or rolling mill.

Port & Marine Infrastructure: Shore power systems, port cranes, and marine vessel auxiliary power systems demand generator controllers that can withstand salt-laden air, vibration, and wide ambient temperature swings. The DSE8660 MKII’s environmental ratings and marine-grade design heritage make it a trusted choice for port authority electrical engineers and ship electrical superintendents.

Continuous Manufacturing: Food processing, pharmaceutical manufacturing, and semiconductor fabrication facilities operate under strict hygiene and contamination control regimes. The DSE8660 MKII’s sealed front panel and configurable alarm outputs allow it to be integrated into the facility’s building management system (BMS), providing automatic notification to maintenance teams the moment a generator fault or mains anomaly is detected — before it becomes a production-impacting event.

Safety and Quality FAQ

Q1: What warranty does the DSE8660 MKII carry when purchased from NINERMAS?
All DSE8660 MKII units supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Our warranty support includes technical diagnosis, replacement unit dispatch, and full documentation to support your site’s maintenance records.

Q2: What pre-shipment testing is performed on the DSE8660 MKII?
Every DSE8660 MKII unit undergoes outgoing quality inspection prior to dispatch, including power-on functional verification, display and communication port checks, and visual inspection for physical integrity. Units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: Is the DSE8660 MKII compatible with my existing DSE8000 series installation?
The DSE8660 MKII is designed as a direct upgrade and replacement within the DSE8000 series platform, sharing compatible wiring harness pinouts and panel cutout dimensions with predecessor models in the series. For sites with existing DSE configuration files, the DSE8660 MKII is compatible with DSE Configuration Suite software, allowing rapid re-commissioning with minimal engineering effort.

Q4: Can NINERMAS guarantee long-term supply of the DSE8660 MKII for multi-site or multi-year maintenance contracts?
Yes. NINERMAS maintains stock inventory of DSE8660 MKII and related Deep Sea Electronics products to support ongoing maintenance, planned replacement programs, and emergency spare requirements. We work with industrial clients on framework supply agreements to ensure price stability and guaranteed availability across multi-year maintenance contracts. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your project requirements.
