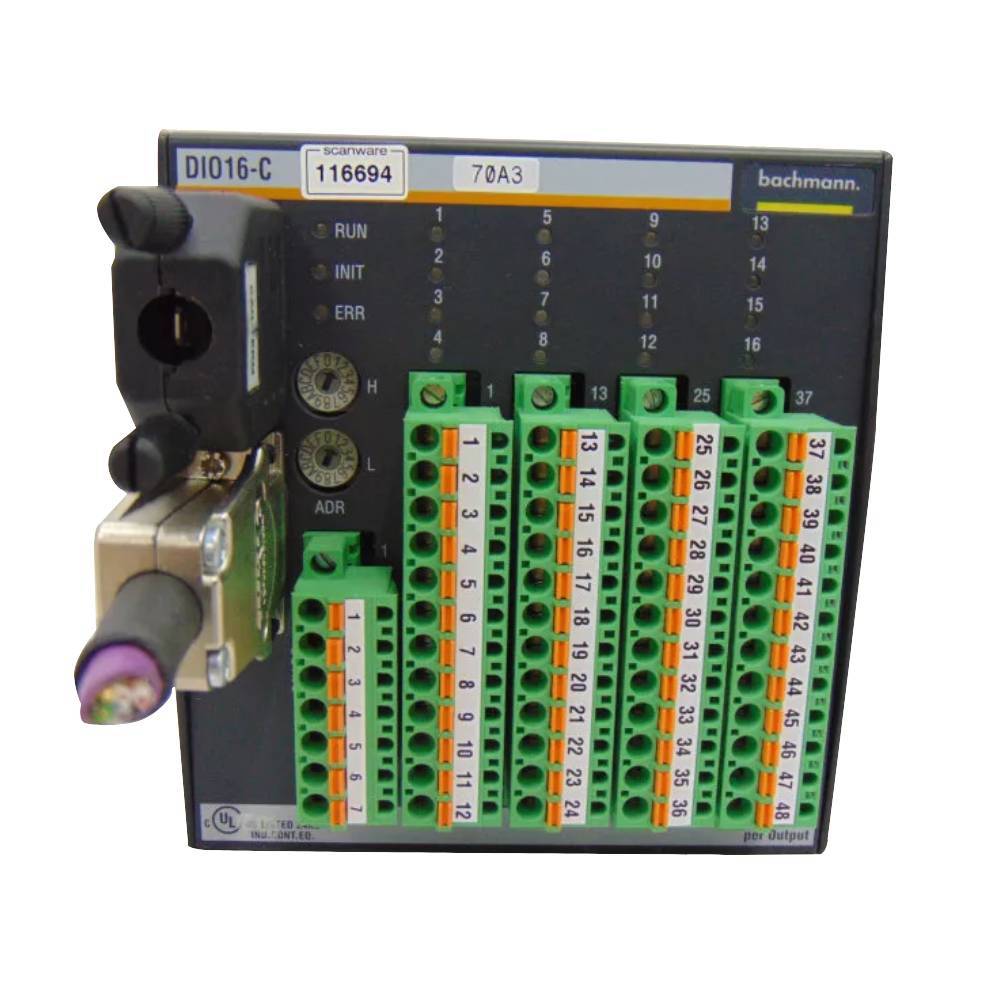

DI016-C❄ Bachmann Cold Climate Digital Input Module | 16-Ch 24VDC CANopen

General Information

• Manufacturer: BACHMANN
• Model/Part Number: DI016-C❄ 00017453-00
• Description: Digital input/output modules

The DIO16-C, DIO32-C, DIO48-C, and DIO64-C are stand-alone CAN slave modules offering 16, 32, 48, or 64 digital input/output channels. These modules provide high flexibility, allowing 16 or 32 channels to be freely configured as inputs or outputs.

Key Features

• Stand-alone, compact CAN slave module
• 16 / 32 channels configurable as input or output
• Digital outputs support 1 A continuous current
• Two internally connected CAN interfaces for cable loop-through
• Galvanic isolation between CAN interfaces and control electronics
• Baud rate & Node ID adjustable via rotary switch
• Supply voltage: 18 – 34 V DC
• Operating range: 0 – +60 °C without additional cooling
• Full wiring without additional backplanes
• Snappable on EN 50022 backplanes

Inputs

• Quantity: Max. 16
• Input Delay: < 3.5 ms
• Internal Resistance: 6 kΩ
• Status Display: Green LED

Outputs

CAN Interface

• Transfer Rate: 10 Kbaud – 1 Mbaud
• Connection: 2x 9-pin D-Sub
• Module ID: 1 – 254
• Galvanic Isolation: 500 V
• Terminating Resistance: 123 Ω (External)

External Power Supply

• Voltage Range: 18 – 34 V DC
• Current Consumption (Without I/O): Typically 100 mA at 24 V DC
• Reverse Polarity Protection: Yes

CAN Protocols

• Supported Protocols:
  • CAL / CANopen DS 301 (Communication Profile)
  • CANopen DS 401 (Device Profile)

Status LEDs

• Indicators: RUN (Guarding), INIT, ERROR

CANopen Features

Environmental Conditions

• Operating Temperature: -30°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity (Operation): 5% – 95% (without condensation) / 5% – 95% (with condensation)
• Humidity (Storage): 5% – 95% (with condensation)

Model Variant

• like DIO16-C; ColdClimate (❄)
