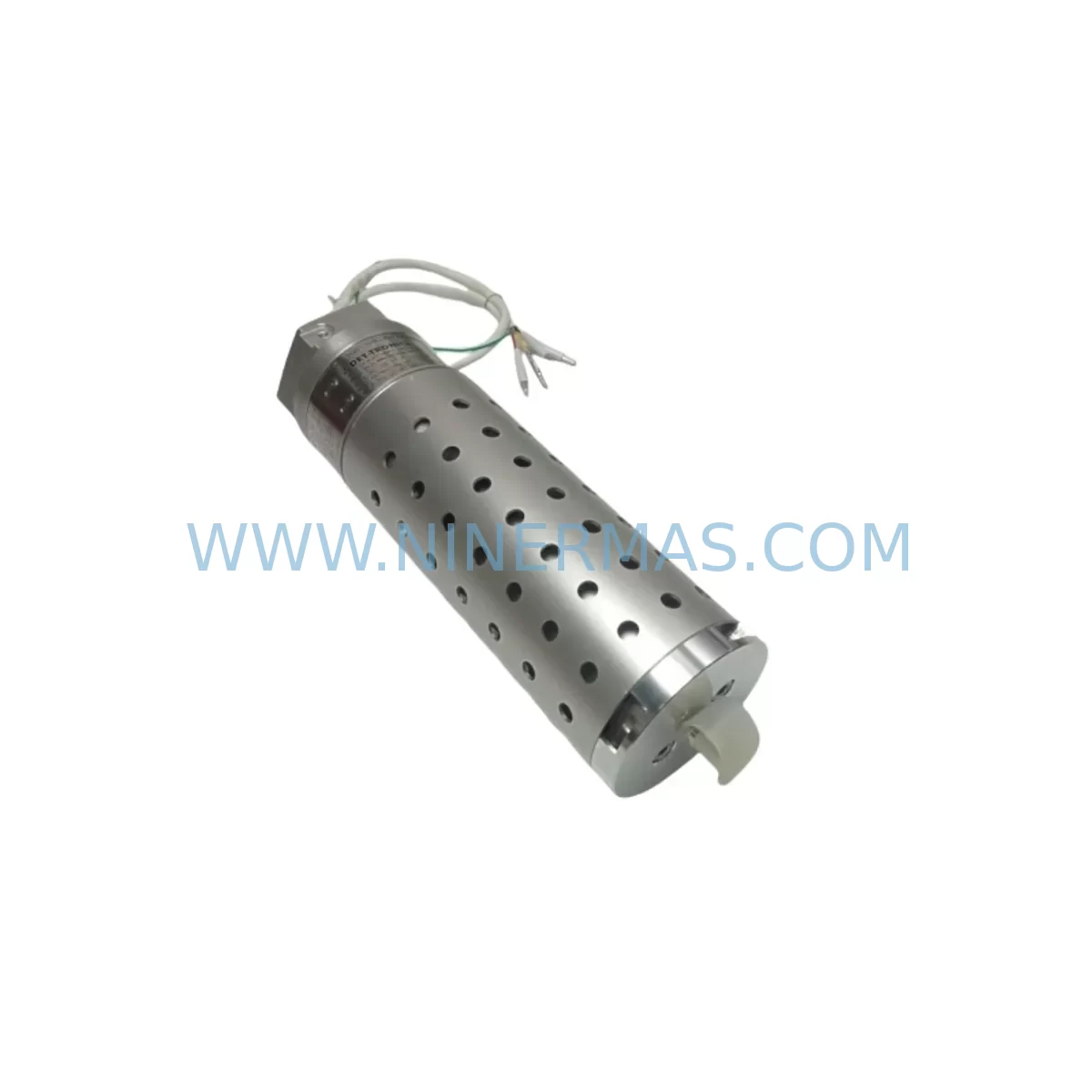

Det-Tronics PIR9400A3A1AW Retrofit-Compatible IR Gas Detector

Det-Tronics PIR9400A3A1AW Retrofit-Compatible IR Gas Detector for Legacy PointWatch Systems

The Det-Tronics PIR9400A3A1AW is a retrofit-compatible infrared gas detector engineered for direct integration into existing PointWatch PIR9400 series installations. Designed for industrial facilities operating legacy gas detection infrastructure, this unit addresses the growing challenge of sourcing discontinued components while maintaining the safety integrity and operational continuity of established control architectures. Whether your facility runs a petrochemical processing line, an offshore platform, or a large-scale manufacturing environment, the PIR9400A3A1AW provides a verified upgrade path that preserves original system logic and minimizes field reconfiguration time.

As the PIR9400 series approaches end-of-life support cycles, procurement and maintenance teams face increasing pressure to identify compatible replacements that do not require full system redesigns. The PIR9400A3A1AW is stocked specifically to address this need, with reserved inventory maintained to support long-term spare parts programs and reduce exposure to extended lead times. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty, providing documented assurance for safety-critical applications where unverified substitutions are not acceptable.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the PIR9400A3A1AW into a legacy gas detection network begins with a systematic review of the existing field architecture. Maintenance engineers should first confirm that the installed power supply — typically a 24 VDC distributed rail — can sustain the detector’s steady-state current draw alongside other loop-powered devices. In installations where the Eagle Quantum Premier (EQP) controller manages multiple detection zones, the controller’s channel configuration should be reviewed to confirm that the 4–20 mA input range is mapped correctly to the replacement unit’s output curve.

Terminal wiring is the most common source of commissioning delays during a PIR9400 series swap. The PIR9400A3A1AW uses the same three-wire loop configuration as its predecessor, but field technicians should verify conductor labeling against the original as-built drawings before energizing the circuit. Where junction boxes have been in service for extended periods, the 007500-305 junction box should be inspected for corrosion on the terminal block and cable gland integrity before the new detector is seated.

For facilities that have integrated the PointWatch PIR9400 series into a broader safety instrumented system (SIS), the replacement process must account for the FlexVu UD10 Universal Display, which is commonly used as a local readout and alarm annunciator in the same control cabinet. The UD10’s configuration should be backed up before any field work begins, as power cycling during detector replacement can occasionally reset display parameters in older firmware versions. Similarly, if the installation includes a PIR7000 point IR detector in adjacent zones, technicians should confirm that the zone controller’s polling sequence is not disrupted during the swap window.

I/O expansion modules connected to the EQP controller — particularly those handling discrete alarm outputs to the facility’s distributed control system (DCS) — should be placed in bypass mode during the physical replacement to prevent spurious trip signals from propagating to downstream safety logic. Where the control system uses Modbus RTU or HART communication overlays for diagnostics, the communication link should be re-established and verified after the new detector is powered and stabilized. Signal isolators installed between the detector loop and the DCS input card should also be checked for correct scaling, as some legacy isolators were configured specifically for the output characteristics of the original PIR9400 hardware.

Facilities maintaining a CGS catalytic gas sensor in parallel with the IR detector for cross-validation should note that the PIR9400A3A1AW’s response time and alarm threshold settings may differ slightly from the original unit. A coordinated calibration session using the 008870-100 calibration kit is recommended to align both sensor types before returning the zone to active monitoring. Programming cables used to access the EQP controller’s configuration interface should be confirmed compatible with the site’s laptop or handheld programmer before the maintenance window begins, as connector types vary across controller generations.

Downtime Control During System Migration

Minimizing unplanned downtime during a PIR9400A3A1AW installation requires a structured pre-work package that addresses every interface point before the maintenance window opens. The recommended approach is to complete all documentation review, spare parts staging, and tool preparation during a scheduled pre-outage period, so that the physical swap can be executed within a two-to-four-hour window without dependency on off-site support.

Original program logic stored in the Eagle Quantum Premier controller should be exported and archived before any field work begins. This backup protects against configuration loss in the event of an unexpected controller reset and provides a reference baseline for post-installation verification. HMI screens connected to the gas detection system should be reviewed to confirm that tag names and alarm setpoints associated with the PIR9400 zone will map correctly to the replacement unit’s output, avoiding the need for HMI reprogramming during the outage.

Where the facility’s safety management system requires a formal management of change (MOC) process for detector replacements, the PIR9400A3A1AW’s pre-shipment test report and 12-month warranty documentation can be submitted as supporting evidence for the MOC package, reducing the administrative burden on the maintenance team. Post-installation, a functional proof test — including a gas challenge using the appropriate calibration gas concentration — should be completed and recorded before the zone is returned to service. This test confirms that the replacement unit’s alarm thresholds, response time, and output signal are within the system’s acceptance criteria, and provides a documented record for regulatory compliance purposes.

Retrofit Support FAQ

Q: Is the PIR9400A3A1AW a direct drop-in replacement for the original PIR9400 series detectors?
A: Yes. The PIR9400A3A1AW is designed as a retrofit-compatible replacement for the PointWatch PIR9400 series, sharing the same mounting footprint, terminal wiring configuration, and 4–20 mA output signal. No modifications to the existing junction box, conduit, or controller input channel are required for a standard like-for-like swap.

Q: What commissioning steps are required after installation?
A: After physical installation and wiring verification, the unit should be powered and allowed to complete its warm-up cycle before a functional gas challenge is performed using the appropriate calibration gas. The Eagle Quantum Premier controller’s zone configuration should be confirmed, and the FlexVu UD10 display — if installed — should be checked to ensure alarm setpoints and tag assignments are displaying correctly. A full proof test record should be completed before returning the zone to active service.

Q: Does NINERMAS maintain stock of the PIR9400A3A1AW for immediate dispatch?
A: Yes. NINERMAS maintains reserved inventory of the PIR9400A3A1AW to support urgent spare parts requirements and long-term supply programs. Units are available for immediate dispatch following pre-shipment functional testing. Contact our team to discuss reserved stock arrangements and lead time commitments for ongoing maintenance programs.

Q: What warranty coverage applies to the PIR9400A3A1AW?
A: Each PIR9400A3A1AW supplied by NINERMAS carries a 12-month warranty covering parts and functional performance from the date of shipment. Pre-shipment test documentation is provided with each unit, supporting traceability requirements for safety-critical installations and MOC submissions.
