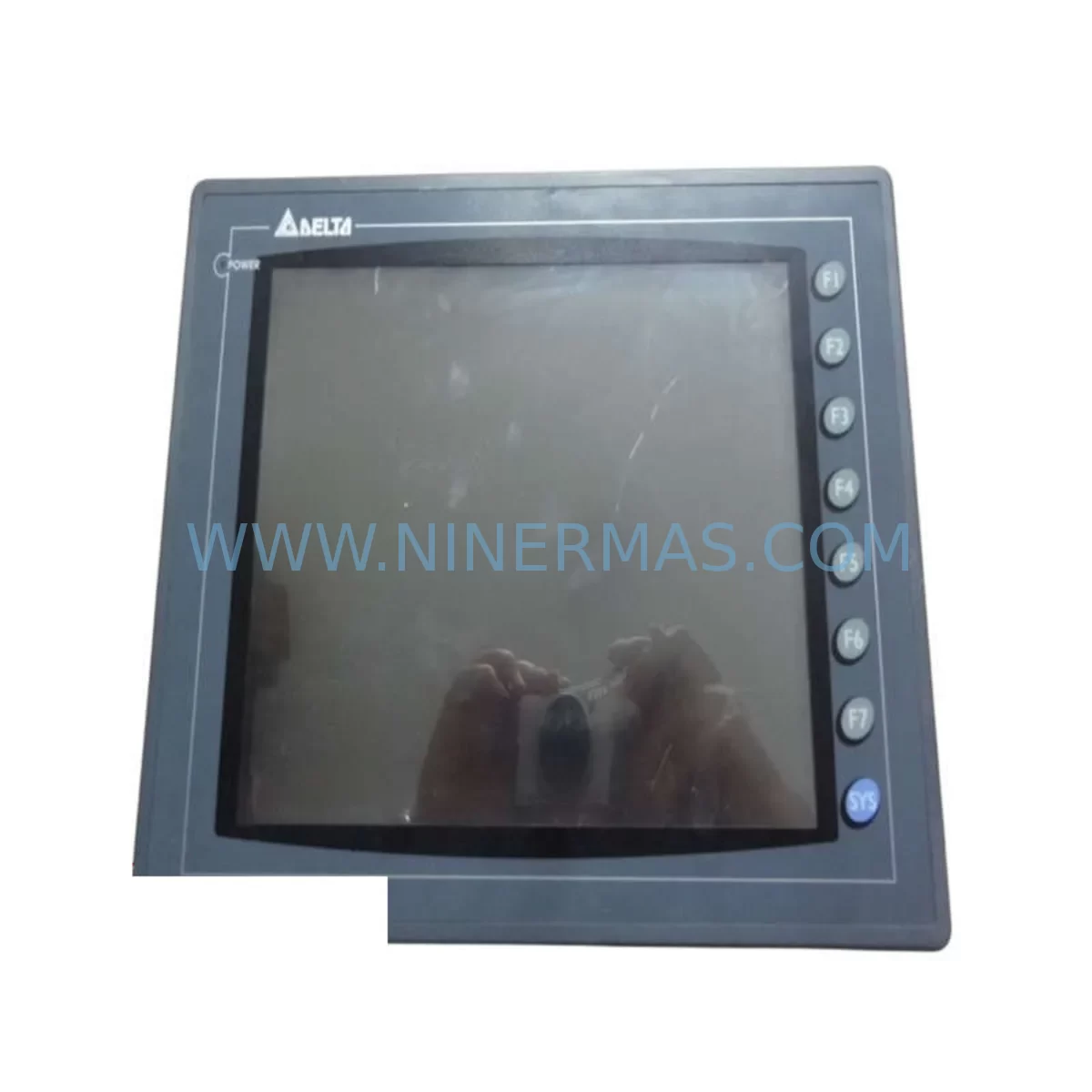

The Delta DOP-A10TCTD is a 10-inch TFT color touchscreen HMI (Human Machine Interface) panel from Delta Electronics’ DOP-A series, widely deployed across discrete manufacturing, process control, packaging lines, and utility automation systems. When a DOP-A10TCTD fails or reaches end-of-service life, unplanned downtime can cascade across an entire production cell. NINERMAS maintains verified stock of the DOP-A10TCTD as a service-ready spare part, pre-shipment tested and backed by a 12-month warranty, ensuring your maintenance team can restore operations with confidence and minimal delay.

Maintenance engineers and procurement specialists managing aging DOP-A series installations rely on the DOP-A10TCTD as a direct drop-in replacement. The panel retains full compatibility with existing Delta DVP-series PLC communication protocols, supports RS-232, RS-485, and USB interfaces, and accepts the same project files created in Delta’s Screen Editor software — eliminating the need for reprogramming during emergency replacements. This compatibility is critical for facilities running long-lifecycle automation systems where revalidation time is costly.

At NINERMAS, every DOP-A10TCTD unit undergoes functional verification prior to dispatch. Display brightness, touch calibration, communication port integrity, and power-on self-test results are documented. Units are shipped in anti-static protective packaging with full traceability. Our 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions, giving procurement teams a reliable basis for spare parts budgeting and lifecycle planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a DOP-A10TCTD in the field is rarely an isolated task. A thorough site replacement should include inspection of the surrounding electrical and control infrastructure to prevent repeat failures and ensure system stability. Maintenance engineers should verify the 24 VDC panel power supply — a dedicated DIN-rail power supply unit such as a Delta PMC-24V series or equivalent industrial SMPS — is within voltage tolerance before connecting the new HMI. Voltage spikes or ripple from an aging power supply are a common cause of premature HMI failure.

The RS-485 communication cable connecting the DOP-A10TCTD to the Delta DVP-series PLC (such as the DVP32ES2, DVP40ES2, or DVP-EH3 series) should be inspected for insulation damage, loose terminal connections, and correct shielding grounding. A faulty communication cable can cause intermittent screen freezes or communication timeout errors that are often misdiagnosed as HMI hardware failure. Terminal blocks on the PLC I/O module side — particularly the DVP-16SP or DVP-32SM digital I/O expansion modules — should also be checked for oxidation or loose wiring during the same maintenance window.

If the control cabinet houses a Delta AS300 or AS200 series PLC alongside the DOP-A HMI, the Ethernet switch or communication hub connecting both devices should be verified for port integrity and firmware currency. For systems using RS-232 to RS-485 converters or signal isolators between the HMI and PLC, these components — often overlooked during routine maintenance — should be tested for signal integrity. A faulty signal isolator can corrupt Modbus RTU communication and cause erratic HMI behavior even with a new panel installed.

Procurement engineers building a comprehensive spare parts kit for DOP-A series HMI installations should consider stocking the following alongside the DOP-A10TCTD: a replacement 24 VDC industrial power supply, a set of pre-terminated RS-485 communication cables, spare terminal block connectors, a USB programming cable for Screen Editor project backup and restore, and at minimum one spare DVP-series digital I/O module. For facilities with multiple DOP-A panels, maintaining one cold-standby DOP-A10TCTD unit per production zone is a recognized best practice for minimizing mean time to repair (MTTR).

For older installations where the DOP-A10TCTD interfaces with third-party equipment — such as Schneider Electric Modicon M340 PLCs, Siemens S7-200 via PPI protocol, or OMRON CP1H via Hostlink — compatibility of the communication driver library version should be confirmed before deployment. NINERMAS can provide pre-sales technical consultation to verify driver compatibility and assist with project file migration where required.

Site Replacement Workflow

A structured on-site replacement of the DOP-A10TCTD minimizes downtime and reduces the risk of configuration loss. Begin by backing up the existing HMI project file via USB or Ethernet using Delta Screen Editor before powering down the panel — this step is critical and is often skipped under emergency conditions, leading to extended recovery time. If the existing panel is non-responsive, check whether a project backup exists on the plant’s engineering workstation or SCADA server.

Power down the control cabinet and lock out / tag out (LOTO) per site safety procedures. Disconnect the 24 VDC power wiring, communication cables (RS-232/RS-485/Ethernet), and USB connections from the rear of the DOP-A10TCTD. Note the terminal assignments before disconnection — photograph the wiring if labels are absent. Remove the panel from the cabinet cutout by releasing the mounting clamps.

Install the replacement DOP-A10TCTD into the same cutout — the DOP-A series uses a standardized panel cutout dimension, ensuring direct mechanical compatibility. Reconnect all wiring per the original terminal assignments. Restore power and verify the 24 VDC supply is within tolerance. Upload the backed-up project file via USB. Perform a full communication test with the connected PLC to confirm Modbus RTU or Delta protocol data exchange is functioning correctly. Calibrate the touchscreen if required using the built-in calibration utility.

Document the replacement in the plant’s maintenance management system (CMMS), including the serial number of the replaced unit, date of replacement, and the new unit’s NINERMAS order reference for warranty tracking. This documentation supports future lifecycle planning and warranty claims within the 12-month coverage period.
