CTC 2207 Service-Ready Spare Part for Industrial Maintenance

CTC 2207 Service-Ready Spare Part for Industrial Maintenance

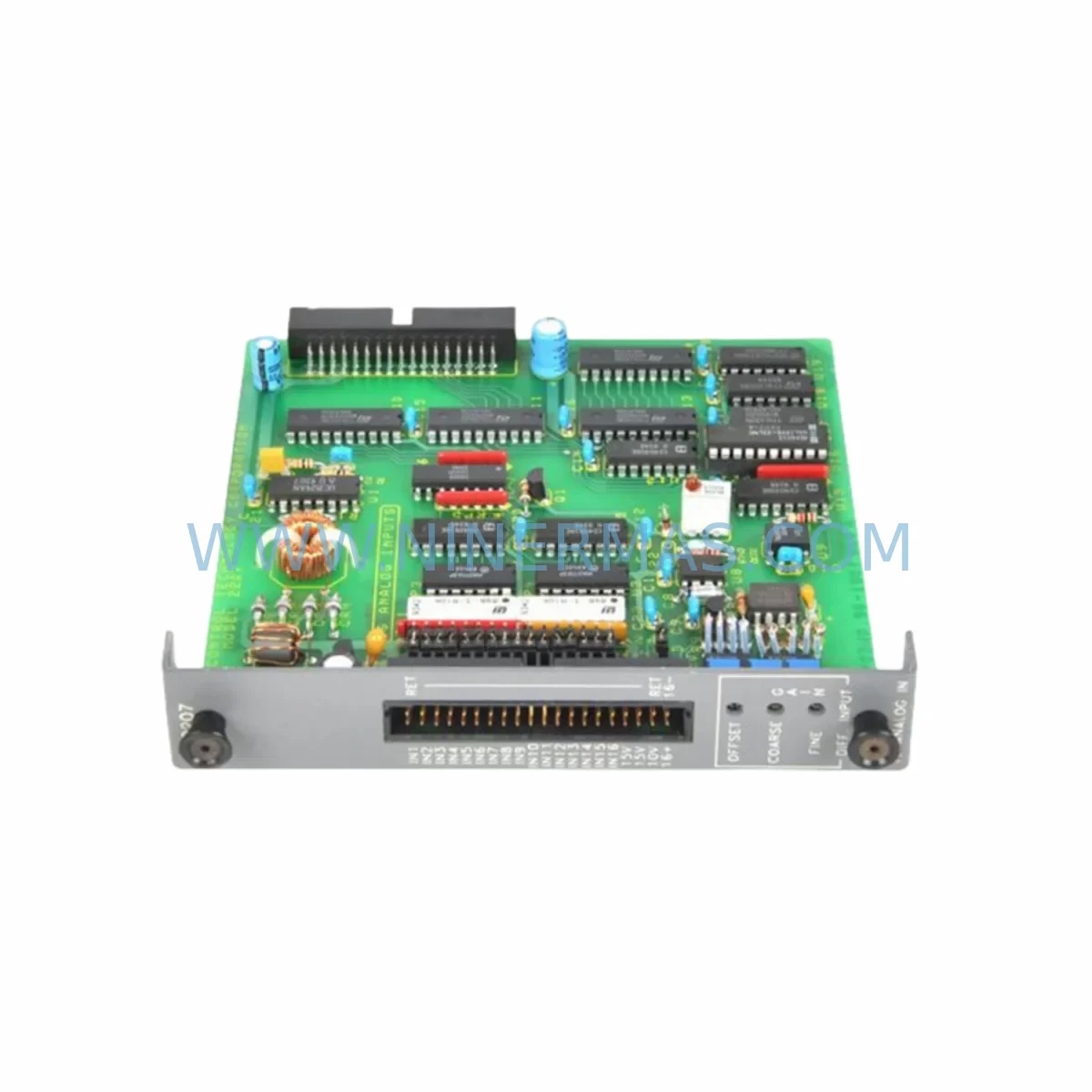

The CTC 2207 Analog Input Module is a critical spare component for industrial control systems built on the CTC Parker platform. Designed for facilities that depend on continuous process monitoring, the 2207 module delivers reliable analog signal acquisition across demanding production environments. Whether you are managing a scheduled annual overhaul, responding to an unplanned fault, or building a proactive spare parts inventory, sourcing a verified replacement CTC 2207 is essential to minimising downtime and protecting process continuity.

At NINERMAS, every CTC 2207 unit undergoes pre-shipment functional testing before dispatch. Each module is supplied with a 12-month warranty, giving maintenance engineers and procurement teams confidence in both quality and long-term supply availability. Our stock is maintained specifically to support legacy and retrofit-ready CTC Parker control architectures that remain in active service across manufacturing, utilities, and process industries worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CTC 2207 analog input module is flagged during routine control cabinet inspection or fault isolation, experienced maintenance engineers know that the module rarely fails in isolation. A thorough site assessment should extend to the adjacent components sharing the same backplane and electrical circuit. The CTC 2200 CPU module and CTC 2201 power supply module are the first candidates for cross-check, as voltage irregularities at the power rail are a common upstream cause of analog input faults. Similarly, the CTC 2208 analog output module installed in the same rack should be verified for signal integrity, particularly in closed-loop control applications where input and output channels interact.

Beyond the rack itself, the field wiring connected to the 2207 deserves careful attention. Shielded signal cables, terminal blocks, and cable glands should be inspected for corrosion, loose terminations, or moisture ingress — all of which can introduce noise or offset errors that mimic module failure. If the system includes a CTC 2210 digital input module or CTC 2211 digital output module in the same cabinet, these should be included in the inspection cycle, as shared ground references can affect analog measurement accuracy.

For facilities running SCADA or DCS integration, the CTC 2230 communications module (or equivalent serial/Ethernet gateway) should be confirmed operational after any analog module replacement, since configuration data and channel mapping may need to be re-verified at the supervisory level. Where signal isolation is required between field instruments and the control backplane, inline signal isolators or signal conditioners (such as DIN-rail mounted 4–20 mA isolators) should be part of the annual spare parts checklist alongside the 2207 itself.

Procurement engineers building a resilient spare parts inventory for CTC Parker-based systems are advised to maintain at minimum one spare CTC 2207, one spare power supply module, and one spare CPU module per installed rack. Fuse holders, terminal block connectors, and backplane bus connectors are low-cost consumables that should also be stocked, as their failure can cause symptoms identical to module-level faults and delay accurate diagnosis during emergency callouts.

Site Replacement Workflow

Replacing a CTC 2207 analog input module on-site is a structured process that, when followed correctly, minimises system downtime and eliminates the risk of configuration loss or wiring errors.

Step 1 — Isolate and document: Before removing the faulty module, record all channel assignments, signal ranges, and engineering unit scaling from the existing configuration. Photograph the wiring terminations on the module’s field connector.

Step 2 — Power down safely: De-energise the rack following your site’s lockout/tagout procedure. Confirm that the backplane bus is de-powered before extraction.

Step 3 — Module extraction: Release the module retention latch, disconnect the field wiring connector, and slide the 2207 from the backplane slot. Note the slot address for re-installation.

Step 4 — Install the replacement: Seat the new CTC 2207 firmly into the same backplane slot. Reconnect the field wiring connector, verifying each terminal against your documented wiring photograph.

Step 5 — Configuration restore: Power up the rack and use the CTC programming environment to confirm that channel configuration, scaling, and alarm limits are correctly loaded. Verify live readings against known field instrument values before returning the system to automatic control.

Step 6 — System validation: Run a short operational check across all analog input channels. Log the replacement in your maintenance management system (CMMS) and update the spare parts inventory record.

This workflow is compatible with both direct like-for-like replacement of an existing CTC 2207 and with retrofit scenarios where the 2207 is being introduced to replace an older or discontinued analog input card from a previous generation of the CTC Parker platform.

Spare Parts Support FAQ

Q1: Is the CTC 2207 still available for long-term supply?
Yes. NINERMAS maintains dedicated stock of the CTC 2207 to support legacy CTC Parker control systems that remain in active service. We provide long-term supply commitments for maintenance teams that require ongoing availability beyond standard OEM end-of-life timelines.

Q2: How is compatibility with my existing CTC system verified before shipment?
Each CTC 2207 unit is cross-referenced against the CTC Parker 2000 Series hardware compatibility matrix prior to dispatch. If you provide your system configuration or rack layout, our technical team can confirm slot compatibility and firmware alignment before the order is processed.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional defects arising under normal operating conditions from the date of shipment. Every unit is pre-shipment tested to confirm analog input channel operation, signal accuracy, and backplane communication before leaving our facility. Warranty claims are supported with direct technical assistance and priority replacement dispatch.

Q4: Can the CTC 2207 be used as a drop-in replacement for older CTC analog input modules?
In most CTC Parker 2000 Series installations, the 2207 is a direct slot-compatible replacement for earlier analog input module variants within the same series. For cross-generation or cross-series retrofit applications, we recommend providing your existing module part number so our team can confirm mechanical, electrical, and firmware compatibility before shipment.
