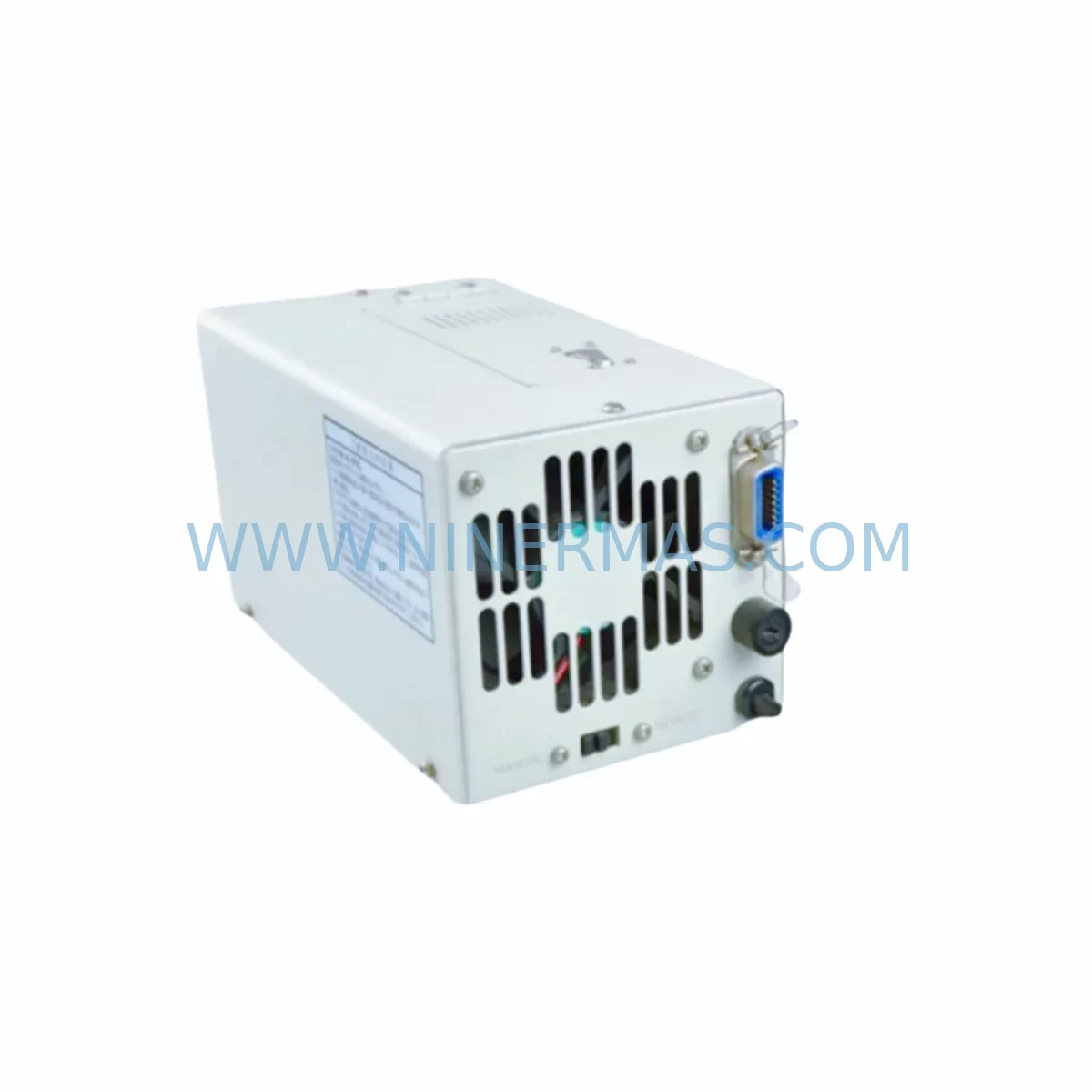

CORRECT FA-100EN Retrofit-Compatible Fiber Illuminator

CORRECT FA-100EN Retrofit-Compatible Fiber Illuminator for Legacy System Modernization

The CORRECT FA-100EN is a retrofit-compatible fiber optic illuminator engineered to serve as a direct replacement for discontinued and end-of-life fiber illuminator modules in legacy industrial automation systems. Whether your facility is managing a planned control cabinet upgrade, an unplanned spare parts shortage, or a phased migration away from obsolete sensing platforms, the FA-100EN delivers the optical output stability, mounting compatibility, and signal integrity required to maintain production continuity without redesigning your existing fiber sensing layout.

Industrial maintenance engineers and automation integrators frequently encounter the FA-100EN requirement when servicing legacy photoelectric sensing systems, fiber amplifier arrays, and machine vision inspection lines where the original illuminator has been discontinued by the OEM. The FA-100EN is stocked by NINERMAS COMPANY LIMITED to support long-term spare parts programs, ensuring that procurement teams can secure verified replacement units with a confirmed 12-month warranty and traceable quality documentation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the CORRECT FA-100EN into a legacy automation environment requires a structured pre-installation assessment. Before removing the failed or end-of-life illuminator, maintenance teams should document the existing wiring terminations, fiber routing paths, and amplifier sensitivity settings. In many installations, the FA-100EN is paired with a CORRECT FA-series fiber amplifier — such as the FA-3 or FA-5 — which handles the signal conditioning and threshold comparison. Verifying that the amplifier’s light-receiving sensitivity range is compatible with the FA-100EN’s output intensity is a critical first step.

On the power distribution side, the FA-100EN draws from the 24 VDC rail commonly shared with other sensing devices in the control cabinet. Engineers should confirm that the existing CORRECT PS-series power supply or equivalent DIN-rail PSU has sufficient residual capacity to support the replacement unit without triggering overcurrent protection. In cabinets where multiple fiber sensors, safety light curtains, and I/O modules share a single power bus, a load audit is recommended prior to commissioning.

For systems that include a CORRECT FA-series junction block or fiber distribution manifold, the FA-100EN’s output port must be aligned with the correct fiber channel assignment. Mislabeled or undocumented fiber harnesses are a common source of commissioning delays in legacy retrofits — a fiber tracer or optical power meter can accelerate channel identification significantly.

In machine vision and inspection line applications, the FA-100EN often works alongside CORRECT FS-series fiber sensors and dedicated fiber cables with polished end tips. When replacing the illuminator, inspect the fiber tips for contamination, micro-fractures, or bending radius violations that may have contributed to the original failure. Replacing degraded fiber cables — such as CORRECT FD-series fiber units — at the same time as the illuminator reduces the risk of repeat service calls.

Control cabinet integrators managing broader system upgrades may also be replacing adjacent components such as CORRECT E3Z-series photoelectric sensors, terminal blocks, cable ducts, and DIN-rail mounting hardware. Coordinating these replacements within a single planned maintenance window minimizes cumulative downtime and reduces the number of separate commissioning events required.

For facilities operating under IEC 61508 or ISO 13849 functional safety frameworks, any modification to the sensing layer — including illuminator replacement — should be documented in the machine’s safety validation record. Ensure that the FA-100EN’s performance parameters are reviewed against the original safety function specification before returning the system to production.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a fiber illuminator in an active production environment. The CORRECT FA-100EN is designed for rapid swap-out: the mechanical form factor, fiber port geometry, and electrical interface are consistent with legacy FA-series illuminators, allowing experienced technicians to complete the physical replacement within a single shift window in most installations.

Before powering down the affected sensing zone, capture the current amplifier sensitivity settings, output polarity configuration, and any timer or delay parameters programmed into the associated CORRECT FA-series amplifier. These values should be recorded on the maintenance worksheet and re-entered after the FA-100EN is installed and the fiber connection is verified. In automated lines where the PLC — such as a CORRECT or third-party Mitsubishi MELSEC, Omron CJ/CS, or Siemens S7-series controller — monitors the sensor output for fault detection, confirm that the I/O address mapping and input filter timing remain unchanged after the swap.

Where a hot-swap or parallel commissioning approach is feasible, technicians can pre-wire the FA-100EN on a temporary bracket, verify optical output with a reference fiber, and then transfer the fiber harness from the old unit to the new one with minimal interruption to the sensing function. This approach is particularly effective in multi-channel fiber arrays where only one channel requires replacement.

NINERMAS maintains in-stock inventory of the FA-100EN to support emergency replacement scenarios. Orders confirmed before the daily logistics cutoff are processed for same-day dispatch, reducing the total lead time from fault identification to unit installation. All units shipped under the NINERMAS spare parts program are subject to pre-shipment functional testing and are covered by a 12-month warranty from the date of delivery.

Retrofit Support FAQ

Q1: Is the CORRECT FA-100EN a direct drop-in replacement for my existing fiber illuminator?
In most legacy CORRECT FA-series installations, the FA-100EN is a direct mechanical and electrical replacement. Confirm the fiber port type, power supply voltage, and mounting configuration against your existing unit’s datasheet or nameplate before ordering. NINERMAS technical support can assist with cross-reference verification.

Q2: What commissioning steps are required after installing the FA-100EN?
After physical installation and fiber connection, power up the unit and re-adjust the sensitivity setting on the paired fiber amplifier to match the detection threshold documented before removal. Perform a full detection cycle test — including both light-on and dark-on output states — before returning the machine to production. Verify that the PLC input registers the correct signal state at each test point.

Q3: Can the FA-100EN be used with fiber cables from other manufacturers?
The FA-100EN is compatible with standard plastic optical fiber (POF) and glass optical fiber (GOF) cables within the specified diameter range. For best performance and warranty coverage, NINERMAS recommends using CORRECT FD-series or FS-series fiber cables. If third-party fiber is already installed, inspect the end-face finish and bending radius before connecting to the FA-100EN.

Q4: What warranty and supply terms does NINERMAS offer for the FA-100EN?
All FA-100EN units supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. NINERMAS supports long-term spare parts programs for critical SKUs, including the FA-100EN, with committed stock allocation available for high-volume or scheduled maintenance customers. Contact our sales team to discuss blanket order arrangements and lead-time guarantees.
