Bussmann 500NHG3B Service-Ready Spare for Industrial Maintenance

Bussmann 500NHG3B Service-Ready Spare for Industrial Maintenance

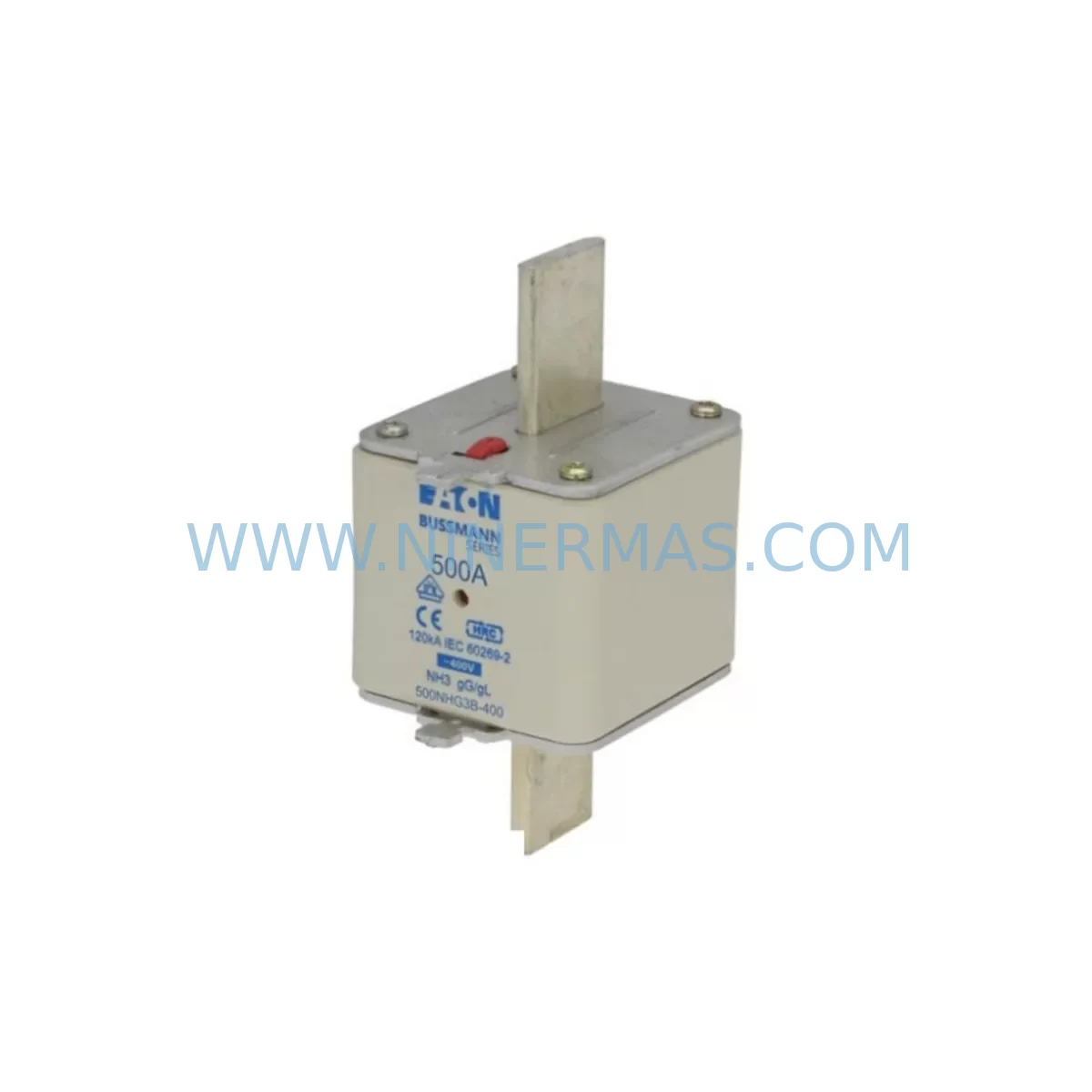

The Bussmann 500NHG3B is a 500A NH3-size gG/gL fuse link designed for overcurrent protection in industrial low-voltage power distribution systems. Rated at 690V AC with a breaking capacity of up to 120kA, this fuse is a critical protection component in main distribution boards, motor control centers, and switchgear cabinets across manufacturing, energy, petrochemical, and heavy industry facilities. When a fuse failure occurs on the production floor, every minute of unplanned downtime translates directly into lost output and recovery cost. Stocking the Bussmann 500NHG3B as a verified service-ready spare eliminates the procurement delay that extends outages and puts operations at risk.

NINERMAS supplies the 500NHG3B as an original spare part, pre-shipment tested and backed by a 12-month warranty. Each unit is verified for dimensional compliance with standard NH3 fuse bases before dispatch, ensuring drop-in replacement without modification to existing switchgear.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for power distribution systems requires more than replacing a blown fuse in isolation. When the Bussmann 500NHG3B is removed from service, maintenance engineers should treat the event as a trigger for a broader inspection of the associated electrical circuit and cabinet. A fuse failure at 500A often indicates upstream or downstream stress that, if left unaddressed, will cause repeat failures or damage to connected equipment.

Begin by inspecting the NH3 fuse base or fuse holder for contact erosion, discoloration, or mechanical deformation. Worn contacts increase contact resistance and generate heat that degrades both the fuse and the base over time. If the base shows signs of thermal stress, replacement with a compatible NH3 fuse holder should be scheduled during the same maintenance window. Alongside the fuse base, check the copper busbar connections and cable lugs for oxidation and torque compliance — loose connections at 500A circuits are a leading cause of localized overheating and premature fuse operation.

For facilities running adjacent current ratings in the same distribution board, it is good practice to maintain parallel stock of the Bussmann 400NHG3B and Bussmann 630NHG3B. These NH3-size fuses cover the immediate current steps below and above the 500NHG3B and allow maintenance teams to respond to rating changes during system upgrades without waiting for procurement. Similarly, if the distribution panel includes semiconductor protection circuits, the Bussmann 170M series semiconductor fuses should be inspected and stocked separately, as their failure modes and replacement intervals differ from general-purpose gG fuses.

During cabinet inspection, verify the condition of the isolation switch or disconnector upstream of the fuse base. A faulty disconnector that fails to fully isolate the circuit during fuse replacement creates a serious safety hazard. Check DIN rail terminal blocks within the same panel for secure wire termination — loose terminals in control circuits can cause intermittent faults that are difficult to trace after a fuse event. If the panel includes a fuse monitoring relay or blown-fuse indicator relay, confirm that the monitoring circuit is functional and that the striker pin on the replaced 500NHG3B has not damaged the relay actuator.

For panels with surge protection devices (SPDs) installed on the incoming supply, inspect the SPD status indicators after any fuse event on the main distribution circuit. A surge event that caused the fuse to operate may have also degraded the SPD modules, which require replacement to maintain protection continuity. Finally, review the cable insulation on the load side of the fuse for signs of thermal damage, particularly at the cable entry points to motor starters or transformer primaries.

Site Replacement Workflow

Replacing the Bussmann 500NHG3B on-site follows a structured sequence to minimize downtime and ensure system safety. Before beginning, confirm that the replacement fuse SKU matches the original: rated current (500A), voltage (690V AC), size (NH3), and utilization category (gG). Using an incorrect current rating or a fuse from a different size class will result in either nuisance tripping or inadequate protection.

Isolate the circuit using the upstream disconnector and verify absence of voltage with an approved voltage tester before opening the fuse base. Remove the blown 500NHG3B using an NH3 fuse puller to avoid contact with the fuse body, which may retain residual heat. Inspect the fuse base contacts and clean with a dry cloth if contamination is present. Insert the replacement 500NHG3B, ensuring the striker pin is correctly seated and the fuse is fully engaged in the base clips. Re-torque the bolted connections to the manufacturer’s specified value before restoring power.

After restoration, monitor the circuit for the first 15–30 minutes of operation to confirm stable current draw. Document the replacement in the maintenance log, including the date, circuit ID, reason for fuse failure if known, and the batch number of the replacement unit. This record supports warranty claims and provides data for future maintenance interval planning.

For aging systems where the original NH3 fuse base is no longer available from the OEM, the 500NHG3B is compatible with third-party NH3 bases that conform to IEC 60269 dimensional standards, allowing system life extension without full panel replacement. NINERMAS maintains reserved inventory of the 500NHG3B to support long-term supply commitments, reducing procurement lead times for facilities with annual maintenance contracts.

Spare Parts Support FAQ

Q1: What is the recommended stock quantity of the Bussmann 500NHG3B for a facility with multiple NH3 distribution panels?
A: For facilities with three or more NH3 fuse positions at 500A, a minimum stock of two to four units per panel is recommended. This covers an immediate replacement plus one backup during the procurement replenishment cycle. NINERMAS offers reserved inventory programs for customers requiring guaranteed stock availability with defined lead times.

Q2: How do I verify that a replacement 500NHG3B is compatible with my existing NH3 fuse base?
A: Compatibility is confirmed by matching three parameters: fuse size (NH3), rated voltage (≤690V AC), and physical dimensions per IEC 60269-2. The 500NHG3B fits all standard NH3 fuse bases conforming to this standard. If your base is from a specific manufacturer, cross-reference the base datasheet against the NH3 dimensional envelope. NINERMAS can provide dimensional confirmation on request.

Q3: What pre-shipment testing does NINERMAS perform on the 500NHG3B before dispatch?
A: Each unit undergoes visual inspection for physical integrity, dimensional check against NH3 tolerances, and continuity verification. Units are packaged individually to prevent mechanical damage during transit. The 12-month warranty covers manufacturing defects identified after installation under normal operating conditions.

Q4: Can NINERMAS support long-term supply of the 500NHG3B for multi-year maintenance contracts?
A: Yes. NINERMAS maintains reserved stock programs for industrial customers requiring predictable supply of critical spare parts. Long-term supply agreements can be structured to cover annual maintenance schedules, with agreed pricing and delivery lead times. Contact sale@ninermas.com to discuss supply commitment options for your facility.
