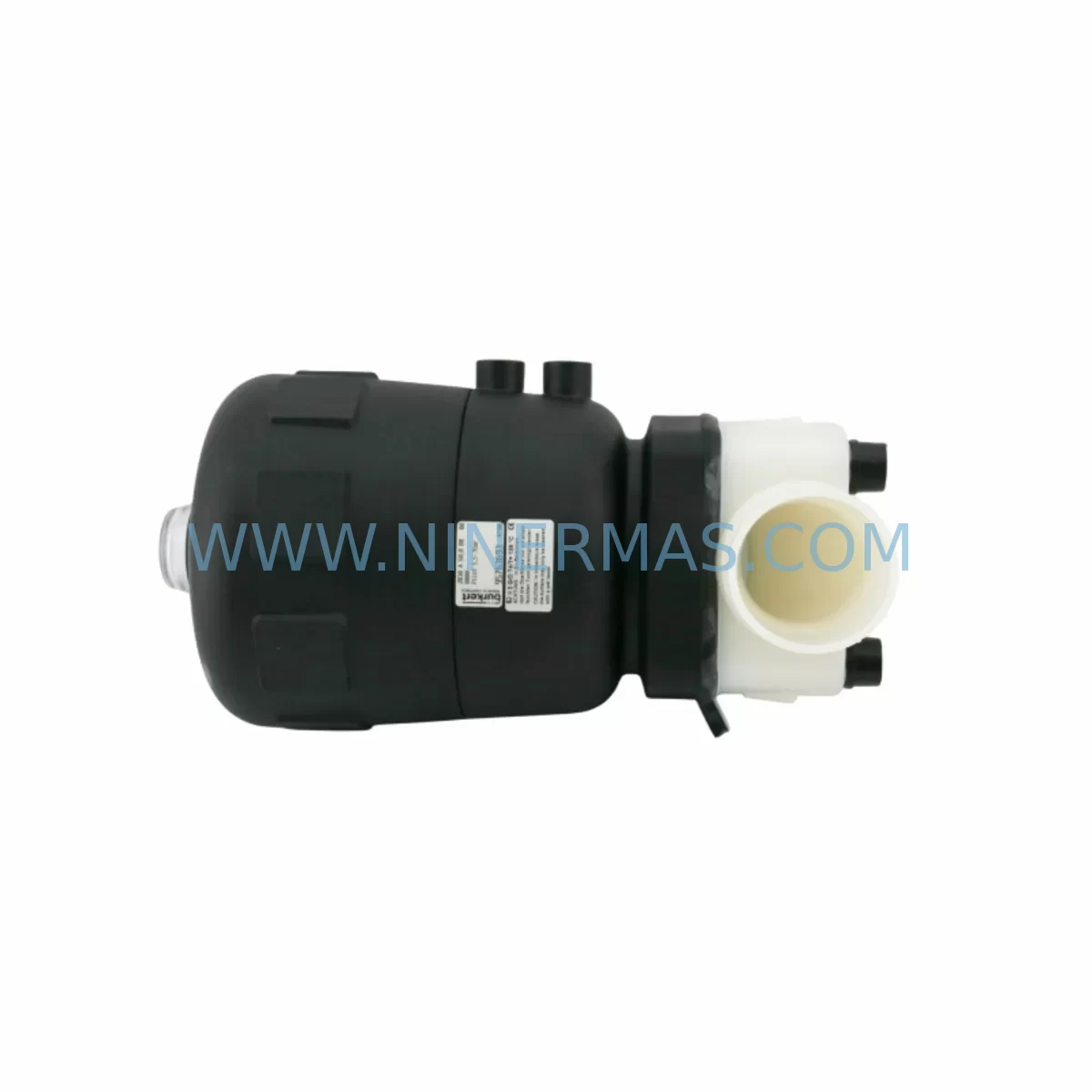

The Burkert 95763693 is a piston-operated diaphragm valve from the Type 2030 series, engineered for demanding process control environments where reliable fluid isolation and precise flow regulation are critical. Rated at 5.5–7 bar operating pressure and configured with the TTLA08-11-F actuator body and F-MFC_AI_4 diaphragm assembly, this valve is a direct service-ready replacement for aging or failed units in chemical dosing, water treatment, pharmaceutical processing, and general industrial automation systems. With part references 3808-020005-11 and 3881-020010-12 confirming full OEM compatibility, maintenance engineers can install this unit with confidence — no re-engineering, no system modification, no extended downtime.

At NINERMAS, every Burkert 95763693 unit is pre-shipment tested, verified against OEM specifications, and dispatched with a 12-month warranty. Our service-ready inventory model is designed to support emergency replacement, planned annual overhaul, and long-term spare parts stocking programs for facilities that cannot afford unplanned process interruptions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Burkert Type 2030 diaphragm valve such as the 95763693 is flagged for replacement during a scheduled shutdown or emergency fault isolation, experienced maintenance engineers know that the valve itself is rarely the only component requiring attention. A thorough control cabinet inspection and process loop audit should accompany every valve swap to prevent repeat failures and ensure the restored system meets its original design intent.

Begin by verifying the pneumatic supply circuit. The Type 2030 piston actuator relies on a stable compressed air feed — typically 5.5 to 7 bar — so inspect the upstream pressure regulator, filter-regulator unit, and any solenoid pilot valve (such as the Burkert Type 6213 or Type 5404 series) that controls actuation. A worn or contaminated solenoid pilot is a common root cause of intermittent valve response and should be replaced proactively when the main valve is serviced.

Next, audit the signal path from the process controller to the valve. If the system uses a Burkert Type 8611 or Type 8719 positioner for modulating control, verify the 4–20 mA input signal integrity and check for loop resistance drift. Signal isolators — particularly those protecting the analog output card of the PLC or DCS — should be inspected for thermal degradation, especially in high-cycle applications. Fuse holders and 24 VDC rail-mount power supplies feeding the I/O rack should also be checked; a marginal power supply can cause erratic valve positioning that mimics a mechanical fault.

On the electrical side, inspect the terminal blocks and DIN rail assemblies within the control cabinet. Loose or corroded terminals on the solenoid wiring circuit are a frequent source of intermittent actuation faults. If the system includes a Burkert Type 8098 or compatible flow transmitter in the same process loop, verify its zero and span calibration while the line is depressurized — this is a low-cost step that prevents future diagnostic confusion.

For facilities running legacy SCADA or PLC systems with older communication modules (Profibus DP, DeviceNet, or Modbus RTU), confirm that the valve’s feedback position switch — if fitted — is correctly mapped to the I/O address table. Mismatched I/O mapping after a valve replacement is a common commissioning error that delays restart. Keep a spare communication module and a set of I/O terminal connectors in your local spare parts kit alongside the 95763693 to eliminate this risk.

Finally, review the diaphragm material compatibility with the current process media. If the process fluid specification has changed since the original installation, the F-MFC_AI_4 diaphragm assembly should be re-evaluated. Burkert offers alternative diaphragm materials for the Type 2030 series; NINERMAS can advise on compatible sub-assemblies based on your media data sheet.

Site Replacement Workflow

Replacing the Burkert 95763693 on-site is a straightforward procedure when the correct spare is available and the process loop has been properly isolated. Follow this sequence to minimize downtime and ensure system compatibility:

Step 1 — Isolation and depressurization. Close upstream and downstream manual isolation valves. Vent the pneumatic actuator supply line and confirm zero pressure at the valve body using a calibrated gauge. Lock out the solenoid pilot valve control signal at the PLC output card.

Step 2 — Removal and inspection. Disconnect the pneumatic tubing from the actuator ports (note port orientation for reassembly). Remove the valve from the pipeline. Inspect the pipeline flanges or threaded connections for corrosion, gasket damage, or thread wear. Replace gaskets as a matter of course — do not reuse old sealing elements.

Step 3 — Installation of the 95763693 replacement unit. Confirm the replacement unit’s pressure rating, actuator reference (TTLA08-11-F), and diaphragm assembly code (F-MFC_AI_4) match the removed unit. Install with new gaskets, torque fasteners to the Type 2030 specification, and reconnect pneumatic tubing. Verify port orientation matches the original configuration.

Step 4 — Commissioning and functional test. Restore pneumatic supply gradually. Issue an open/close command from the control system and verify full stroke operation. Check for leakage at the body joints and diaphragm area. Confirm position feedback signal (if fitted) is correctly received at the PLC or SCADA system.

Step 5 — Documentation. Record the replacement in the maintenance log with the new unit’s serial number, installation date, and next scheduled inspection interval (12 months or per process cycle count). Update the spare parts inventory to trigger a reorder for the next 95763693 unit.
