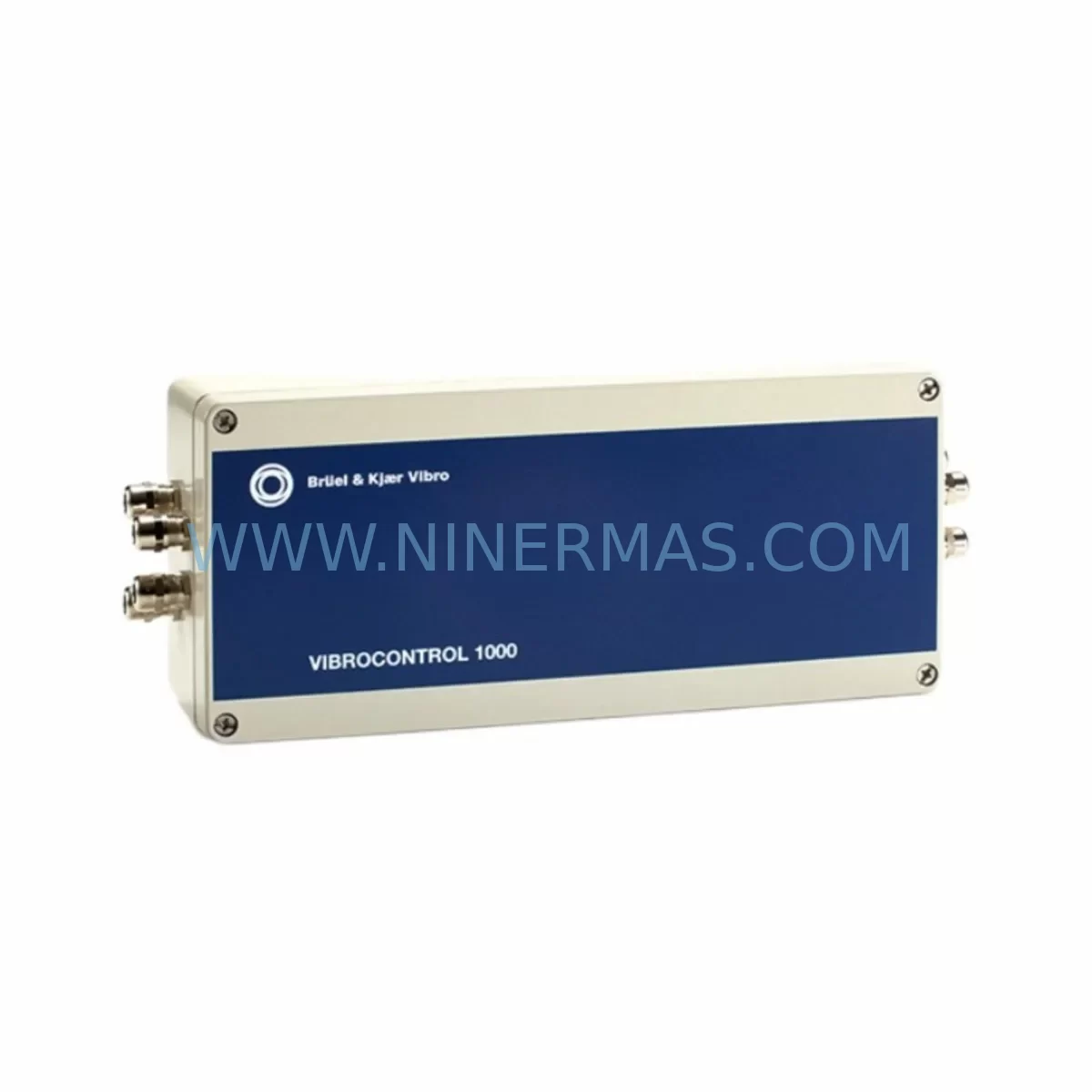

Brüel & Kjær VC-1000 CV-116 Service-Ready Spare Part

Brüel & Kjær VC-1000 CV-116 Service-Ready Spare Part for Industrial Maintenance

The Brüel & Kjær VC-1000 CV-116 is a precision vibration monitoring component engineered for continuous condition monitoring in demanding industrial environments. As a service-ready spare part sourced and tested by NINERMAS, this unit is prepared for immediate deployment to minimize unplanned downtime and restore production continuity. Whether you are managing a scheduled annual overhaul, responding to an emergency shutdown, or building a strategic spare parts inventory, the CV-116 module within the VC-1000 platform delivers the measurement accuracy and system compatibility that maintenance and procurement engineers depend on.

Brüel & Kjær’s VC-1000 vibration monitoring system is widely deployed across rotating machinery protection applications — including turbines, compressors, pumps, fans, and gearboxes — in power generation, oil & gas, petrochemical, and heavy manufacturing facilities. The CV-116 is a critical signal conditioning and processing card within this platform, responsible for converting raw vibration transducer signals into reliable measurement data for protection and diagnostic systems. When this component degrades or fails, the entire monitoring channel is compromised, creating both a safety risk and a compliance gap in facilities operating under ISO 10816 or API 670 standards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CV-116 card in a VC-1000 system is rarely an isolated task. Experienced maintenance engineers understand that a vibration monitoring channel failure often signals broader stress on the surrounding measurement and protection infrastructure. A thorough site inspection during CV-116 replacement should include a systematic review of all components sharing the same signal chain and power distribution network.

Begin with the VC-1000 backplane and rack chassis — inspect connector pins, card guides, and backplane bus integrity before seating the replacement CV-116. A damaged backplane can cause recurring card failures and should be addressed proactively. Next, verify the 24 VDC power supply module feeding the VC-1000 rack; voltage ripple or transient spikes are a common root cause of signal conditioning card degradation. If the facility uses a redundant power supply configuration, test both primary and backup units.

The vibration transducers connected to the CV-116 channel — typically ICP® accelerometers or velocity probes mounted on bearing housings — should be inspected for cable integrity, connector corrosion, and correct bias voltage. A faulty transducer or damaged coaxial cable can mask the true source of the monitoring fault and lead to premature failure of a newly installed CV-116. Check the signal cable routing from the transducer to the VC-1000 input terminal, ensuring shielding continuity and separation from high-voltage power conductors.

Within the control cabinet, review the terminal blocks and field wiring connections on the VC-1000 I/O interface. Loose or corroded terminals introduce measurement noise and can trigger false alarms or missed trips. If the VC-1000 system interfaces with a DCS or PLC via 4–20 mA analog output or relay contacts, verify that the output signal integrity is maintained after card replacement — a misconfigured relay output or open 4–20 mA loop can prevent the protection system from communicating alarm states to the control room.

For facilities running extended machinery protection programs, it is also advisable to inspect the VC-1000 communication module (if installed) for firmware version compatibility with the replacement CV-116. Some VC-1000 configurations include Modbus RTU or Profibus DP communication cards that relay vibration data to SCADA or historian systems — ensure these remain operational after the card swap. Finally, review the alarm relay output modules and trip relay cards within the same rack to confirm that protection setpoints and relay logic are intact and have not been inadvertently altered during the maintenance intervention.

A complete spare parts kit for a VC-1000 system supporting critical rotating machinery should include: at least one CV-116 signal conditioning card, a spare power supply module, a set of replacement ICP® accelerometers or velocity transducers for the monitored machine train, spare coaxial signal cables with BNC or M12 connectors, and a set of terminal block inserts for the field wiring interface. Maintaining this inventory on-site reduces mean time to repair (MTTR) and supports compliance with plant reliability KPIs.

Site Replacement Workflow

Step 1 — Isolation and Safety: Before removing the CV-116 card, follow your site’s lockout/tagout (LOTO) procedure for the VC-1000 rack. Notify the control room that the associated vibration monitoring channel will be temporarily offline. If the monitored machine is safety-critical, confirm with operations whether a temporary bypass or manual watch is required during the replacement window.

Step 2 — Documentation: Record the current alarm setpoints, relay configuration, and channel scaling parameters from the VC-1000 system display or configuration software before removing the card. This ensures that the replacement CV-116 can be configured identically to the original, preserving protection system integrity.

Step 3 — Card Removal: Using appropriate ESD precautions (wrist strap and ESD mat), carefully extract the faulty CV-116 from the VC-1000 backplane. Inspect the card edge connector and backplane socket for damage or contamination before inserting the replacement unit.

Step 4 — Installation and Configuration: Insert the new CV-116 card and restore power to the rack. Using the VC-1000 configuration interface, verify that the channel is recognized, apply the documented setpoints, and confirm that the transducer bias voltage is within specification. Perform a functional test by applying a known vibration signal or using the system’s built-in self-test function.

Step 5 — Verification and Handover: Confirm that the vibration channel is displaying correct readings, that alarm and trip relays are responding correctly, and that any DCS or SCADA integration is receiving valid data. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

This structured workflow minimizes the risk of configuration errors, reduces total downtime, and ensures that the VC-1000 system is returned to full protective function as quickly as possible — typically within a single maintenance shift when a pre-tested spare CV-116 is available on-site.

Spare Parts Support FAQ

Q1: Is the NINERMAS-supplied VC-1000 CV-116 an original Brüel & Kjær component?
Yes. NINERMAS supplies original Brüel & Kjær spare parts sourced through established industrial supply channels. Each CV-116 unit is inspected and function-tested prior to shipment to confirm it meets the original manufacturer’s specifications. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility between the CV-116 and my existing VC-1000 rack configuration?
Compatibility depends on your VC-1000 chassis revision and firmware version. Please provide your VC-1000 system serial number, rack configuration drawing, or existing card part number when contacting NINERMAS. Our technical team will verify compatibility before order confirmation. For sites with multiple VC-1000 racks, we recommend cross-referencing the card revision level against your system documentation to avoid mismatches.

Q3: Can NINERMAS support long-term supply of CV-116 cards for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-lifecycle spare parts programs for legacy industrial monitoring systems. We can support blanket purchase orders, consignment stock arrangements, and annual supply agreements for the CV-1000 CV-116 and associated VC-1000 system components. Contact our sales team to discuss volume pricing, lead time commitments, and inventory reservation options tailored to your plant’s maintenance schedule.
