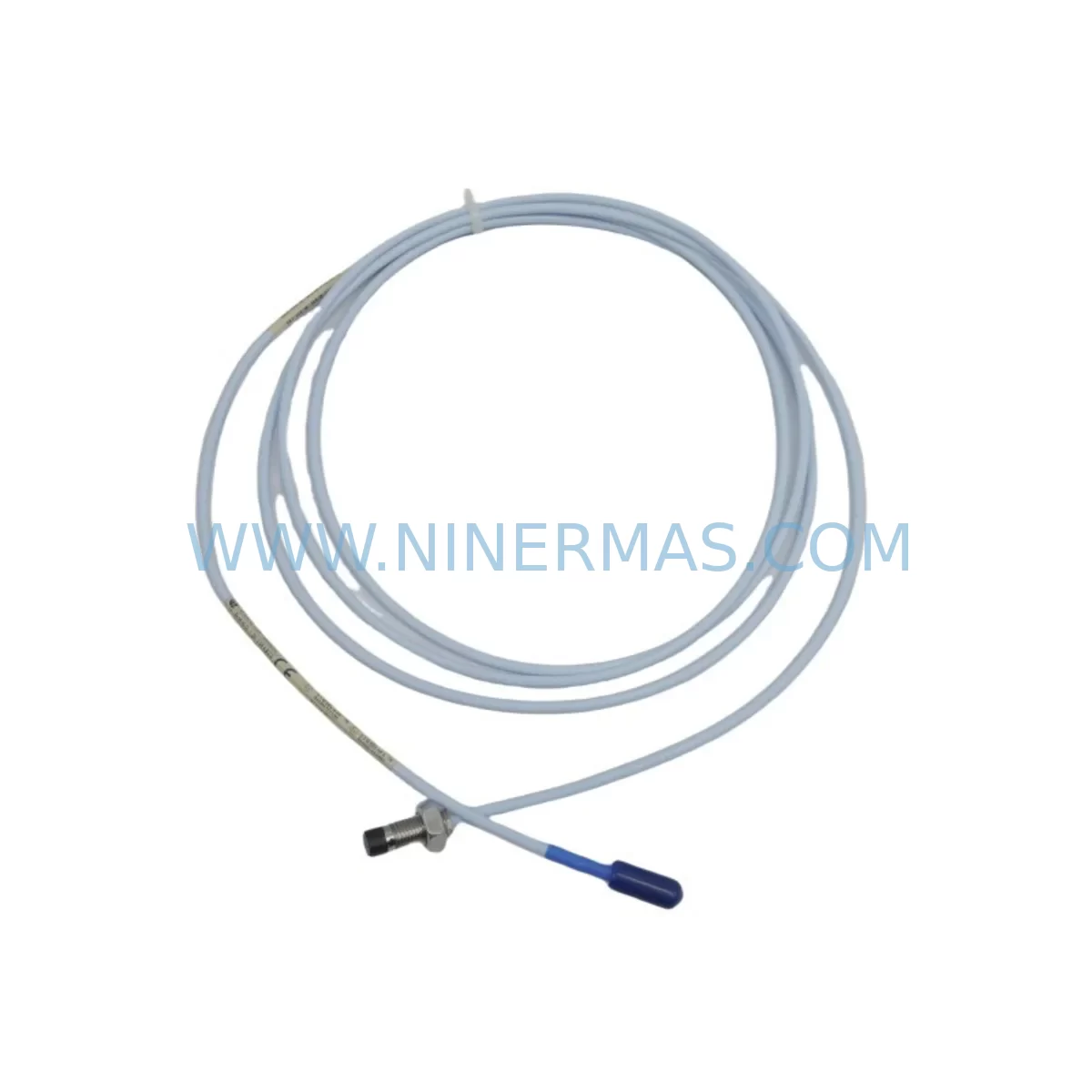

Bently Nevada 330101-00-08-20-02-05 Retrofit Extension Cable

Bently Nevada 330101-00-08-20-02-05 Retrofit-Compatible Extension Cable for Legacy Systems

The Bently Nevada 330101-00-08-20-02-05 is a precision-engineered extension cable designed for use within the 3300 Series proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. As original equipment reaches end-of-life and spare parts become increasingly difficult to source through OEM channels, this cable serves as a direct retrofit-compatible replacement that allows facilities to extend the operational life of their existing monitoring infrastructure without committing to a full system overhaul.

This extension cable connects the proximity probe to the Bently Nevada 3300 Series proximitor/oscillator, maintaining the critical signal path required for accurate shaft displacement, radial vibration, and axial position measurement. It is engineered to preserve the system’s calibrated scale factor — typically 200 mV/mil or 7.87 V/mm — ensuring that no recalibration of the proximitor or reconfiguration of the 3500 rack-based monitoring system is required when performing a like-for-like cable replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 330101-00-08-20-02-05 extension cable, engineers must account for the full signal chain from probe tip to monitoring rack. In a typical 3300 Series installation, the proximity probe — such as the Bently Nevada 330130-080-00-00 or 330180-X1-05 — is connected via this extension cable to a proximitor module like the 3300 XL proximitor. The proximitor outputs a conditioned DC voltage signal that feeds into a 3500 Series rack, where modules such as the 3500/42M position monitor or 3500/40M proximitor I/O module process the data for alarm and trip logic.

During retrofit planning, the following components and their interface requirements must be verified before the replacement cable is installed. The probe body thread size and tip diameter must match the existing installation hole — swapping from an 8mm to an 11mm probe family, for example, requires a different extension cable armour diameter and connector type. The proximitor supply voltage, typically –24 VDC provided by the 3500 rack power supply module, must be confirmed stable before reconnecting the signal chain. Any deviation in supply voltage will shift the output gap voltage and trigger false alarms or spurious trips in the 3500/20 rack interface module.

For installations where the 3300 Series is being migrated toward a newer monitoring architecture — such as integrating with a System 1 condition monitoring software platform or transitioning I/O to a 3500 Series rack — the extension cable’s physical routing path, conduit fill ratio, and bend radius must be re-evaluated. In many legacy control cabinets, the original cable routing was designed around fixed junction box positions; a replacement cable of the same length (330101-00-08-20-02-05 specifies 8 meters) will typically fit the same conduit path without modification, minimising installation time and avoiding the need to repull conduit.

Where the monitoring system interfaces with a DCS or safety instrumented system via a 3500/92 communication gateway or a Modbus/TCP interface card, no changes to the communication configuration are required when replacing only the extension cable. The signal presented to the rack remains electrically identical, and the tag addresses, scaling factors, and alarm setpoints configured in the DCS or SIS remain valid. This is a key advantage of a like-for-like cable replacement over a full transducer system upgrade, which would require re-engineering the I/O mapping and potentially updating the HMI graphics in the operator workstation.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern when replacing proximity transducer cables on operating rotating machinery. For critical assets such as compressors, turbines, and pumps monitored by the Bently Nevada 3500 Series, a cable replacement should be planned during a scheduled maintenance window. Before disconnecting the 330101-00-08-20-02-05 extension cable, the current gap voltage reading at the proximitor should be recorded — this serves as the baseline for post-installation verification and confirms that the new cable has been correctly seated and the probe gap has not shifted during the work.

Where a bypass or inhibit function is available in the 3500 rack — accessible through the rack configuration software or the front-panel keypad on the 3500/20 rack interface module — the affected channel should be inhibited before disconnection to prevent a spurious trip signal from propagating to the machine protection logic. The inhibit should be logged in the maintenance management system and cleared immediately after the replacement cable has been verified. If the installation involves a redundant monitoring channel, the redundant channel should remain active throughout the replacement to maintain continuous protection coverage.

After the new cable is connected, the gap voltage should be measured and compared against the recorded baseline. A reading within ±0.5 VDC of the original value confirms correct installation. The proximitor output should then be trended over the first 30 minutes of operation to confirm signal stability before the inhibit is cleared and the channel is returned to normal protection service. This procedure protects the original program logic in the 3500 rack, preserves the alarm and trip setpoints, and ensures that the HMI display in the control room continues to reflect accurate vibration data without requiring any software changes.

Retrofit Support FAQ

Q1: Is the 330101-00-08-20-02-05 a direct replacement for the original Bently Nevada cable, and will it work with my existing proximitor?
Yes. This cable is a retrofit-compatible replacement for the original 330101-00-08-20-02-05 and is designed to interface directly with all standard 3300 Series proximitor/oscillator modules. No modification to the proximitor, probe, or rack configuration is required. The connector type, cable impedance, and armour specification are matched to the original OEM design.

Q2: What should I verify during commissioning after installing the replacement cable?
After installation, measure the gap voltage at the proximitor output and confirm it falls within the expected operating range (typically –10 VDC ± 1 V for a correctly gapped probe). Check that the signal is stable with no noise or intermittent dropout. If the gap voltage has shifted significantly, re-check the probe tip-to-target gap and the cable connector seating at both the probe and proximitor ends.

Q3: Can this cable be used in a system that is being upgraded from 3300 Series to 3500 Series monitoring?
Yes. The 330101-00-08-20-02-05 extension cable is compatible with both 3300 Series and 3500 Series monitoring architectures. During a phased migration where the proximitor and rack are being upgraded but the probe and cable are retained, this cable can remain in service without replacement, reducing the scope and cost of the upgrade.

Q4: What are the stock availability and warranty terms?
This part is held in stock and is available for immediate shipment. All units are tested prior to dispatch to verify connector integrity and cable continuity. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions. For urgent requirements or large quantity orders, please contact our sales team directly.

—
