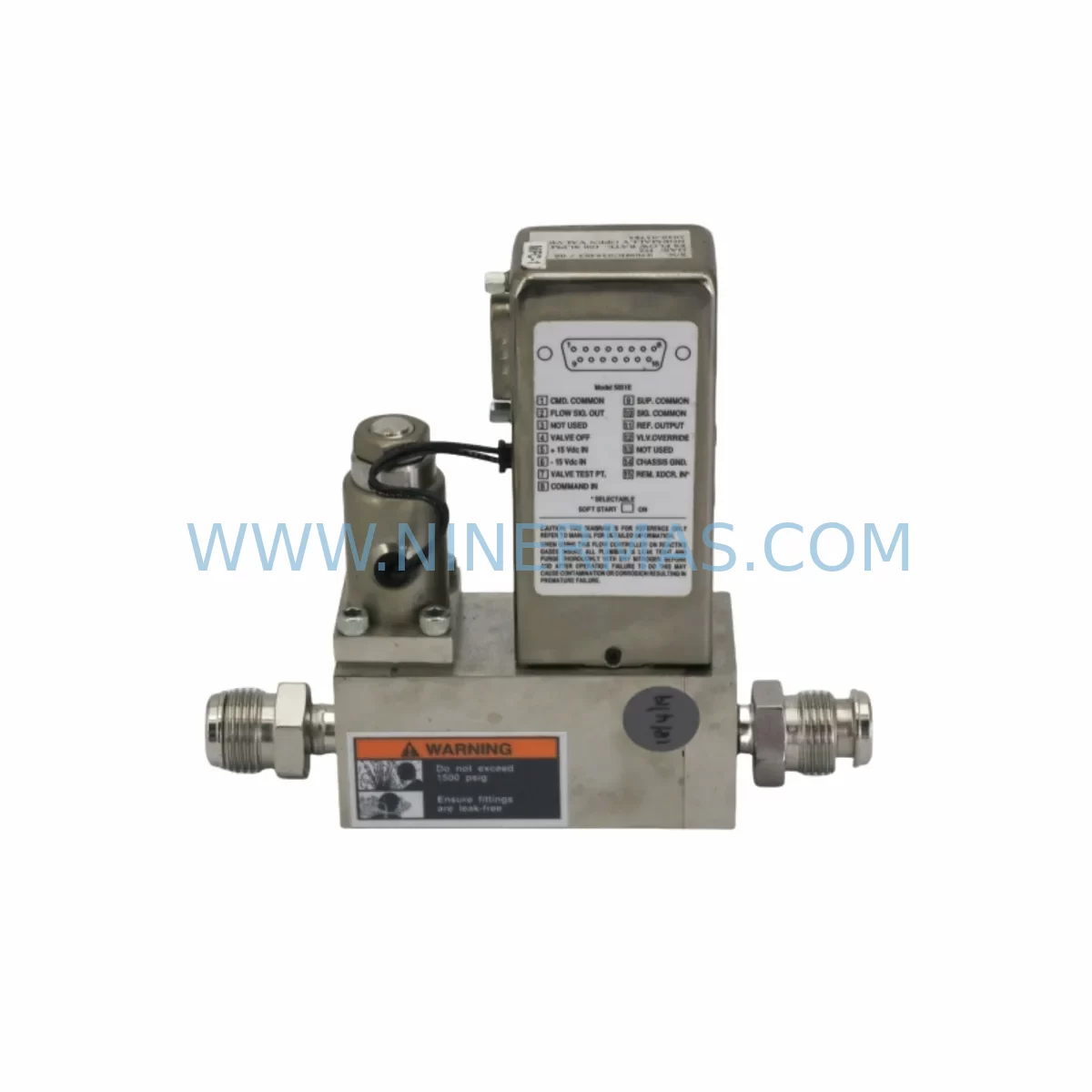

Brooks 5965A3VKNHDKD-16746C-01 Retrofit Flow Controller

Brooks 5965A3VKNHDKD-16746C-01 Retrofit Flow Controller: Legacy System Compatibility and Smooth Upgrade Path

The Brooks 5965A3VKNHDKD-16746C-01 is a retrofit-compatible flow controller module engineered for direct replacement in Brooks H2 Series legacy automation platforms. As semiconductor fabrication facilities, chemical processing plants, and specialty gas distribution systems continue to operate aging H2 Series infrastructure, the demand for verified drop-in replacements with documented compatibility has never been greater. This unit addresses that need with a pre-shipment tested assembly, confirmed interface compatibility, and a 12-month warranty covering both parts and workmanship.

Industrial facilities running legacy Brooks H2 Series flow control systems face increasing pressure to maintain uptime while managing the obsolescence of original equipment. The 5965A3VKNHDKD-16746C-01 module provides a validated retrofit path that preserves existing wiring harnesses, backplane connections, and process control logic without requiring a full system redesign. Engineers responsible for spare parts lifecycle management and production continuity will find this unit a reliable anchor for multi-year maintenance planning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Brooks 5965A3VKNHDKD-16746C-01 into a running production environment requires systematic pre-installation verification across several engineering disciplines. The following planning framework reflects the practical requirements encountered during H2 Series retrofit projects in semiconductor, petrochemical, and specialty gas applications.

Power Capacity Verification: Before removing the legacy module, confirm that the existing Brooks 0254 Secondary Electronics power supply or equivalent rack-mounted PSU can sustain the combined load of all installed modules plus the replacement unit. Undersized power supplies are a common root cause of intermittent faults following module swaps. Measure actual rail voltages under load and compare against the +15 VDC / −15 VDC / +24 VDC specifications for the 5965A3VKNHDKD-16746C-01.

Terminal and Backplane Interface: The H2 Series backplane uses a standardized edge connector that the 5965A3VKNHDKD-16746C-01 is designed to mate with directly. Inspect the backplane connector for oxidation, bent pins, or mechanical damage before seating the replacement module. If the system also includes Brooks SLA5800 Series mass flow controllers sharing the same backplane, verify that module address DIP switch settings do not conflict with the replacement unit’s factory default address configuration.

Module Address and PLC Integration: In systems where a Siemens S7-300 or Allen-Bradley ControlLogix PLC manages the H2 Series rack via a DeviceNet or Profibus communication card, confirm that the module address assigned to the 5965A3VKNHDKD-16746C-01 matches the address expected by the PLC program. Mismatched addresses will cause the controller to report a missing device fault and may trigger an emergency shutdown sequence. Update the PLC I/O configuration table if the replacement module requires a different node address than the original.

HMI Screen and Tag Mapping: Facilities using a Wonderware InTouch or Ignition SCADA HMI to display H2 Series flow data should verify that the tag names and data types mapped to the replaced module remain valid after the swap. In most like-for-like replacements, HMI tag mapping is preserved without modification. However, if the original module used a custom engineering unit scaling factor, re-enter that value in the replacement unit’s configuration utility before resuming production.

Communication Link Integrity: For systems using RS-485 multi-drop networks, confirm that the total cable length and termination resistor values remain within specification after the module replacement. If the H2 Series rack communicates through a Brooks DeviceNet gateway or a third-party RS-232 to Ethernet converter, verify that the gateway firmware supports the communication parameters of the 5965A3VKNHDKD-16746C-01. Signal isolators installed between the flow controller and the PLC analog input card should also be checked for correct input range configuration.

I/O Expansion and Signal Routing: In control cabinets where the H2 Series rack is integrated with additional I/O expansion modules — such as Wago 750 Series or Phoenix Contact Inline I/O — confirm that the analog output signal from the 5965A3VKNHDKD-16746C-01 is correctly routed to the intended PLC analog input channel. Mislabeled field wiring is a frequent source of commissioning delays during retrofit projects.

Installation Space Confirmation: Measure the available slot depth and width in the H2 Series rack before ordering. In densely populated control cabinets, adjacent modules such as Brooks 5850E Thermal Mass Flow Controllers or Brooks GF40 Digital Flow Controllers may restrict access to the module locking mechanism. Plan the installation sequence to minimize the need to disturb adjacent modules.

Downtime Control During System Migration

Minimizing production downtime during a flow controller replacement is a primary concern for facilities operating continuous processes. The following practices are recommended to protect original program logic, maintain field control continuity, and reduce retrofit risk when installing the Brooks 5965A3VKNHDKD-16746C-01.

Pre-Staging and Bench Verification: Configure and bench-test the replacement module before the scheduled maintenance window. Use a Brooks programming cable and the manufacturer’s configuration software to verify that the module’s range, engineering units, and communication parameters match the original unit’s settings. This eliminates configuration-related delays during the live replacement window.

Program Backup: Export a full backup of the PLC program, HMI project, and any recipe or parameter files associated with the H2 Series flow control loop before beginning the physical replacement. Store the backup on an isolated engineering workstation. If the replacement introduces unexpected behavior, the backup enables rapid restoration of the original control state.

Controlled Shutdown Sequence: Follow the process-specific shutdown procedure to bring the affected flow loop to a safe state before removing the legacy module. In gas distribution systems, this typically involves closing upstream isolation valves and purging the process line. Do not remove the module under live process conditions.

Post-Installation Verification: After seating the 5965A3VKNHDKD-16746C-01 and restoring power, perform a zero-point calibration check and confirm that the module’s output signal matches the expected value at a known reference flow rate. Verify that the PLC and HMI are receiving valid data from the replacement module before resuming normal production. Document the as-found and as-left calibration values for the maintenance record.

Reserved Inventory for Continuity: To further reduce future downtime exposure, consider establishing a reserved inventory agreement for additional 5965A3VKNHDKD-16746C-01 units. Long-term supply commitments allow facilities to lock in availability and pricing for critical spare parts, reducing lead time risk for future unplanned replacements.

Retrofit Support FAQ

Q1: Is the Brooks 5965A3VKNHDKD-16746C-01 a direct drop-in replacement for the original 16746C module?
Yes. The 5965A3VKNHDKD-16746C-01 is designed as a direct replacement for the Brooks H2 Series 16746C and 16746C-01 modules. It is backplane pin-compatible and uses the same terminal block pinout as the original, eliminating the need for wiring modifications in standard H2 Series installations. Verify the module address configuration matches your system’s requirements before installation.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, perform a zero-point and full-scale calibration verification using the Brooks configuration utility and a calibrated reference source. Confirm that the PLC is receiving valid process values and that the HMI displays the correct engineering units. For RS-485 multi-drop networks, verify communication integrity across all nodes on the network segment. Document all as-left calibration values in the site maintenance record.

Q3: Has the unit been tested before shipment, and what warranty coverage applies?
Yes. Every Brooks 5965A3VKNHDKD-16746C-01 unit supplied by NINERMAS undergoes a full functional test prior to dispatch. A test report is available on request. The unit is covered by a 12-month warranty from the date of shipment, covering parts and workmanship defects under normal operating conditions. Warranty claims are supported directly through NINERMAS.

Q4: Is long-term inventory supply available for this part number?
Yes. NINERMAS maintains reserved inventory for the Brooks 5965A3VKNHDKD-16746C-01 and can support long-term supply agreements for facilities requiring predictable spare parts availability. Contact our team to discuss reserved stock programs, lead time commitments, and volume pricing for multi-unit procurement.
