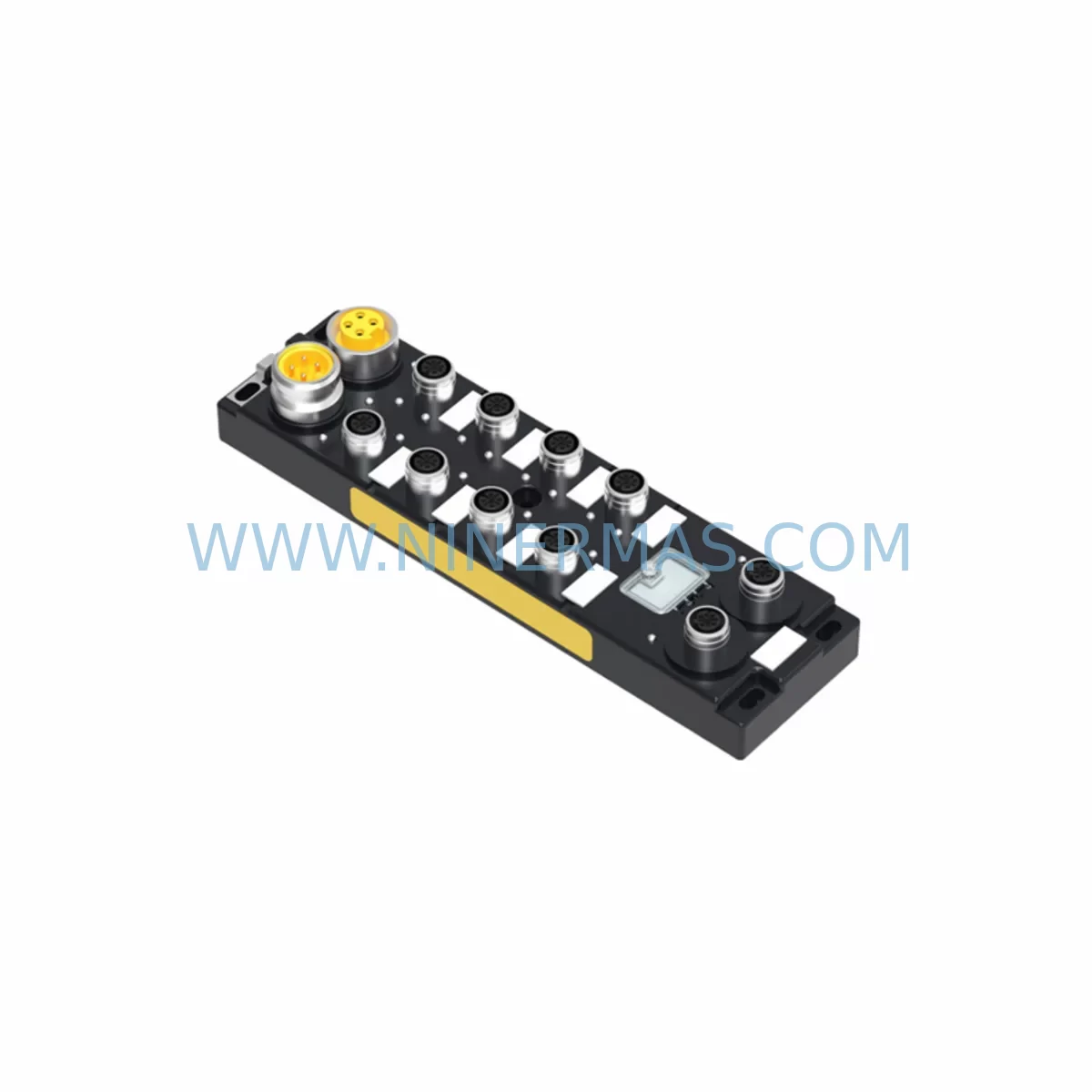

The BRAD TCDEI-8D0P-DYU-G02 is an original industrial digital I/O module from the BRAD TCDEI series, engineered for demanding process and discrete manufacturing environments. As a service-ready spare part, this module is pre-tested, documented, and available for immediate dispatch — enabling maintenance engineers to restore control system functionality with minimal unplanned downtime. Whether you are managing a scheduled annual overhaul, responding to an emergency fault isolation event, or building a strategic spare parts inventory for aging automation infrastructure, the TCDEI-8D0P-DYU-G02 delivers the compatibility, reliability, and long-term supply assurance that industrial operations require.

BRAD (a Molex brand) digital I/O modules in the TCDEI series are widely deployed in distributed control cabinets, remote I/O stations, and field junction boxes across automotive, food & beverage, oil & gas, and general manufacturing sectors. The TCDEI-8D0P-DYU-G02 specifically provides 8 digital output channels with DYU-type connectivity and G02 configuration, making it a direct replacement candidate for legacy installations where original module availability has become a procurement risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BRAD TCDEI-8D0P-DYU-G02 digital output module is flagged during a control cabinet inspection or fails during a production run, experienced maintenance engineers know that the fault rarely exists in isolation. A systematic replacement workflow should extend beyond the module itself to cover the full electrical circuit and communication path.

Begin by verifying the 24 VDC power supply rail feeding the I/O station — a degraded or undersized power supply is a common root cause of repeated module failures. Check the BRAD network trunk cable and drop cables (M12 A-coded or B-coded, depending on your network topology) for insulation damage, connector corrosion, or intermittent continuity, as field connector integrity directly affects digital signal reliability. Inspect the network termination resistors at both ends of the DeviceNet or AS-Interface segment; missing or failed terminators cause communication errors that are frequently misdiagnosed as module faults.

For the output circuit itself, verify the field-side load devices — solenoid valves, contactors, and indicator lamps — for short circuits or excessive inrush current that may have triggered the module’s internal protection. Review the fuse or circuit breaker protecting each output group; replace any blown fuses with correctly rated components rather than upsizing. If the installation uses BRAD passive distribution boxes or active splitter modules, inspect these for moisture ingress or terminal oxidation, as they share the same IP67-rated connector ecosystem as the TCDEI module.

At the PLC or DCS level, confirm that the network scanner or master module — such as a BRAD DeviceNet scanner card or a third-party master — has not logged persistent node timeout errors that predate the module failure. Cross-reference the I/O mapping table in your PLC program to ensure the replacement module’s node address and output byte assignments match the original configuration exactly before energizing the system. Where the control system includes signal isolators or surge protection devices on critical output channels, inspect these components for thermal stress or dielectric breakdown, particularly in installations subject to frequent switching loads or lightning exposure.

Finally, update your spare parts register to reflect the consumed module and trigger a replenishment order. For TCDEI series installations with more than four I/O nodes, maintaining a minimum of two spare digital output modules and one spare digital input module on-site is a practical buffer against unplanned downtime during peak production periods.

Site Replacement Workflow

Step 1 — Isolation: De-energize the I/O station by switching off the 24 VDC supply at the cabinet power distribution terminal. Confirm zero voltage at the module’s power connector using a calibrated multimeter before proceeding.

Step 2 — Node Address Recording: Before disconnecting the faulty TCDEI-8D0P-DYU-G02, photograph or record the rotary node address switch setting. The replacement module must be configured to the identical node address to avoid network conflicts and PLC I/O mapping errors.

Step 3 — Connector Removal: Disconnect all M12 DYU field connectors by rotating the locking ring counterclockwise. Inspect each connector’s O-ring and contact pins for corrosion or mechanical damage; replace any degraded connectors before installing the new module.

Step 4 — Module Swap: Mount the BRAD TCDEI-8D0P-DYU-G02 replacement module onto the DIN rail or panel bracket. Set the rotary node address switch to the recorded value. Reconnect all field connectors and verify that each locking ring is fully engaged (finger-tight plus one-quarter turn).

Step 5 — Power-Up and Verification: Restore 24 VDC supply and observe the module’s LED status indicators. A solid green network LED confirms successful communication with the master. Cycle each output channel from the PLC or DCS HMI and verify correct field device response. Log the replacement in the maintenance management system with the date, technician ID, and new module serial number.

This structured approach minimizes re-work risk, maintains system compatibility, and ensures that the replacement module’s 12-month warranty period is fully documented from the commissioning date.

Spare Parts Support FAQ

Q1: Is the BRAD TCDEI-8D0P-DYU-G02 a direct drop-in replacement for the original module in my installation?
Yes. The TCDEI-8D0P-DYU-G02 is an original BRAD (Molex) spare part that maintains full form, fit, and function compatibility with existing TCDEI series I/O stations. No firmware changes or hardware modifications are required for a like-for-like swap, provided the node address is set correctly before installation.

Q2: What pre-shipment testing is performed, and how is the warranty structured?
Every BRAD TCDEI-8D0P-DYU-G02 unit undergoes functional output verification prior to dispatch, confirming that all 8 digital output channels operate within specification. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement dispatch and technical documentation.

Q3: Can you support long-term or blanket purchase orders for TCDEI series modules?
Yes. NINERMAS supports long-term supply agreements and scheduled delivery programs for TCDEI series spare parts, including the TCDEI-8D0P-DYU-G02 and related digital input and output variants. This is particularly valuable for facilities managing lifecycle extension programs for aging BRAD distributed I/O installations where OEM supply has been discontinued or lead times are unpredictable.

Q4: How do I confirm compatibility if my existing module has a different suffix or revision code?
Contact our technical team with your existing module’s full part number, installation date, and network type (DeviceNet, AS-Interface, or other). We will cross-reference the BRAD product matrix and confirm whether the TCDEI-8D0P-DYU-G02 is a compatible replacement or whether an alternative TCDEI variant is more appropriate for your specific configuration.
