Bosch RACK-GG 500 Service-Ready Spare Part for Industrial Maintenance

Bosch RACK-GG 500 Service-Ready Spare Part for Industrial Maintenance

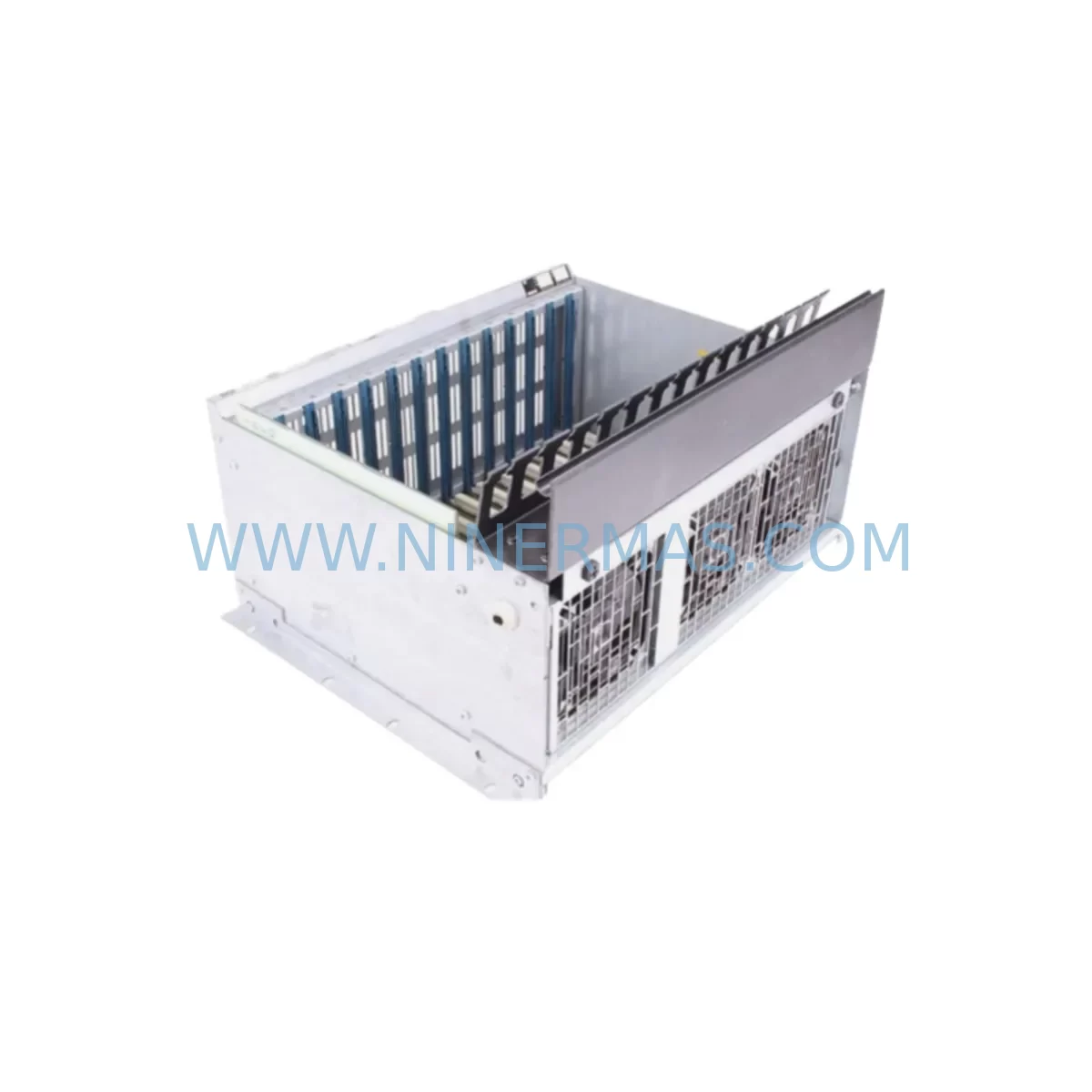

The Bosch RACK-GG 500 is a ruggedized 13-slot rack module engineered for deployment in demanding industrial automation environments where vibration, temperature extremes, and continuous duty cycles are standard operating conditions. As a critical structural and electrical backbone within Bosch modular control systems, the RACK-GG 500 provides the physical housing, backplane interconnect, and slot architecture required to mount and power a full suite of I/O, communication, and processing modules. When this rack reaches end-of-service or sustains physical or electrical damage, rapid replacement with a verified original spare is the only reliable path to restoring system uptime without compromising safety or compatibility.

For maintenance engineers managing aging Bosch automation infrastructure, the RACK-GG 500 represents a high-priority line item in any spare parts inventory strategy. Rack-level failures are among the most disruptive events in a control cabinet: a single damaged slot connector, a cracked backplane trace, or a failed rack power rail can take an entire PLC or DCS node offline. Stocking a verified replacement unit eliminates the multi-week lead time risk associated with sourcing obsolete or discontinued rack hardware through standard distribution channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A rack replacement event is rarely isolated. When a RACK-GG 500 is removed from service, the maintenance window should be used to systematically inspect and — where condition warrants — replace the full population of modules seated within it. This is the most cost-effective approach to preventing secondary failures that would otherwise force a second unplanned outage within weeks of the initial repair.

Begin with the power supply module installed in the rack’s dedicated power slot. Bosch GG 500 series power supplies are subject to capacitor aging and output ripple degradation over multi-year service lives; a rack replacement is the ideal trigger point for a power supply condition assessment. If the unit has been in service for more than five years or shows any sign of output instability, replace it concurrently with the rack.

Next, audit all I/O modules — both digital input and digital output cards — for connector wear, terminal corrosion, and channel-level fault history. In harsh environments, I/O module connectors are among the first components to show degradation. Bosch GG 500 series digital I/O modules share the same backplane interface as the RACK-GG 500 and should be re-seated or replaced as part of the rack swap procedure.

The CPU or processor module seated in the rack should be inspected for firmware currency and battery condition (where applicable). A rack-level maintenance event is the correct time to perform a firmware update and replace the real-time clock battery if the module uses one. Failure to address battery condition during a rack swap is a common cause of post-maintenance configuration loss.

Communication modules — including PROFIBUS DP, PROFINET, or serial interface cards — should be checked for connector integrity and cable termination quality. Loose or corroded communication connectors are a leading cause of intermittent network faults that are difficult to diagnose after reassembly. Replace any communication module showing physical connector damage or a history of CRC errors.

Inspect all signal cables and field wiring harnesses connected to the rack’s I/O modules. Wiring that has been routed through high-vibration or high-temperature zones may show insulation cracking or terminal loosening that is not visible during normal operation but becomes apparent during a rack pull. Re-terminate any suspect connections before reinstalling modules into the new rack.

If the control cabinet houses relay output modules or interposing relay assemblies, check contact wear and coil resistance. Relay contacts in high-cycle applications may be approaching end-of-life even if no fault has been logged. Replacing worn relay modules during a planned rack swap avoids a separate unplanned outage later in the maintenance cycle.

For systems using signal isolators or analog signal conditioners between field instruments and the rack’s analog I/O modules, verify isolation resistance and zero/span calibration. Signal isolators in humid or chemically aggressive environments are prone to insulation degradation that can introduce ground loops and measurement drift.

Finally, inspect the terminal blocks and DIN rail assemblies within the cabinet. Loose terminal screws, discolored insulation, and corroded bus bars are indicators of thermal stress or overload events that may have contributed to the rack failure. Address all terminal issues before energizing the replacement rack to prevent repeat failures.

Site Replacement Workflow

Replacing a Bosch RACK-GG 500 in a live production environment requires a structured approach to minimize downtime and ensure system compatibility is maintained throughout the transition.

Step 1 — Pre-replacement documentation: Before de-energizing the cabinet, photograph or document the slot assignment of every module in the existing rack. Record the firmware version of the CPU module and note the address settings of all communication and I/O modules. This documentation is essential for correct reassembly and prevents configuration errors that extend downtime.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure to isolate the cabinet from all energy sources. Verify isolation with a calibrated voltage tester before touching any internal components. Do not rely on software-controlled isolation alone for rack-level work.

Step 3 — Module extraction and labeling: Remove modules from the existing rack in reverse slot order, labeling each module with its slot number and any address or DIP switch settings. Store modules in anti-static bags during the rack swap to prevent ESD damage.

Step 4 — Rack installation: Mount the replacement RACK-GG 500 in the cabinet using the original mounting hardware. Verify that the rack is correctly grounded to the cabinet earth bus before installing any modules. Poor rack grounding is a common source of EMC problems and communication faults in industrial environments.

Step 5 — Module reinstallation and verification: Reinstall modules in their documented slot positions. Verify that all backplane connectors are fully seated — a partially inserted module is a common cause of post-maintenance faults. Reconnect all field wiring and communication cables, verifying termination quality at each connection point.

Step 6 — Commissioning and functional test: Re-energize the cabinet and verify that the CPU module boots correctly and all I/O modules report healthy status. Run a functional test of all I/O channels before returning the system to production. Document the replacement in the equipment maintenance log, including the serial number of the replacement rack and the date of installation.

Spare Parts Support FAQ

Q1: Is the RACK-GG 500 still available as a new original spare, or is it only available as a refurbished unit?
NINERMAS maintains stock of the Bosch RACK-GG 500 as a service-ready spare part. Units are sourced from authorized supply chains and undergo pre-shipment functional testing before dispatch. Where new original stock is available, it is offered as the primary option; service-ready tested units are offered where new stock is exhausted. All units — regardless of condition classification — are covered by a 12-month warranty from the date of shipment.

Q2: How do I confirm compatibility between the RACK-GG 500 and the modules currently installed in my system?
The RACK-GG 500 is designed for use with Bosch GG 500 series modules. Compatibility is determined by the backplane connector standard and the slot pitch of the rack. Before ordering, confirm that your existing modules carry GG 500 series part numbers. If you are unsure, provide your existing module part numbers to our technical team at sale@ninermas.com and we will verify compatibility before shipment.

Q3: What is your lead time and shipping process for the RACK-GG 500?
In-stock units are dispatched within 1–3 business days of order confirmation. All units are packed in anti-static and shock-resistant packaging suitable for international air freight. A pre-shipment test report is available on request. We ship to industrial customers globally, including the US, EU, UK, Japan, and Southeast Asia. Expedited shipping options are available for emergency breakdown situations — contact sale@ninermas.com or call +0086 187 5021 5667 to discuss urgent requirements.

Q4: Can NINERMAS support long-term supply agreements for the RACK-GG 500 and associated GG 500 series modules?
Yes. NINERMAS offers long-term spare parts supply agreements for customers managing aging Bosch automation infrastructure. These agreements include reserved stock allocation, priority dispatch, and fixed pricing over the agreement term — eliminating the procurement risk associated with sourcing discontinued or end-of-life industrial components on the open market. Contact our team to discuss a supply agreement tailored to your maintenance schedule and annual consumption requirements.
