Bonitron M3575R-H33BF Retrofit-Compatible Drive Filter for Legacy Systems

Bonitron M3575R-H33BF Retrofit-Compatible Drive Filter for Legacy Systems

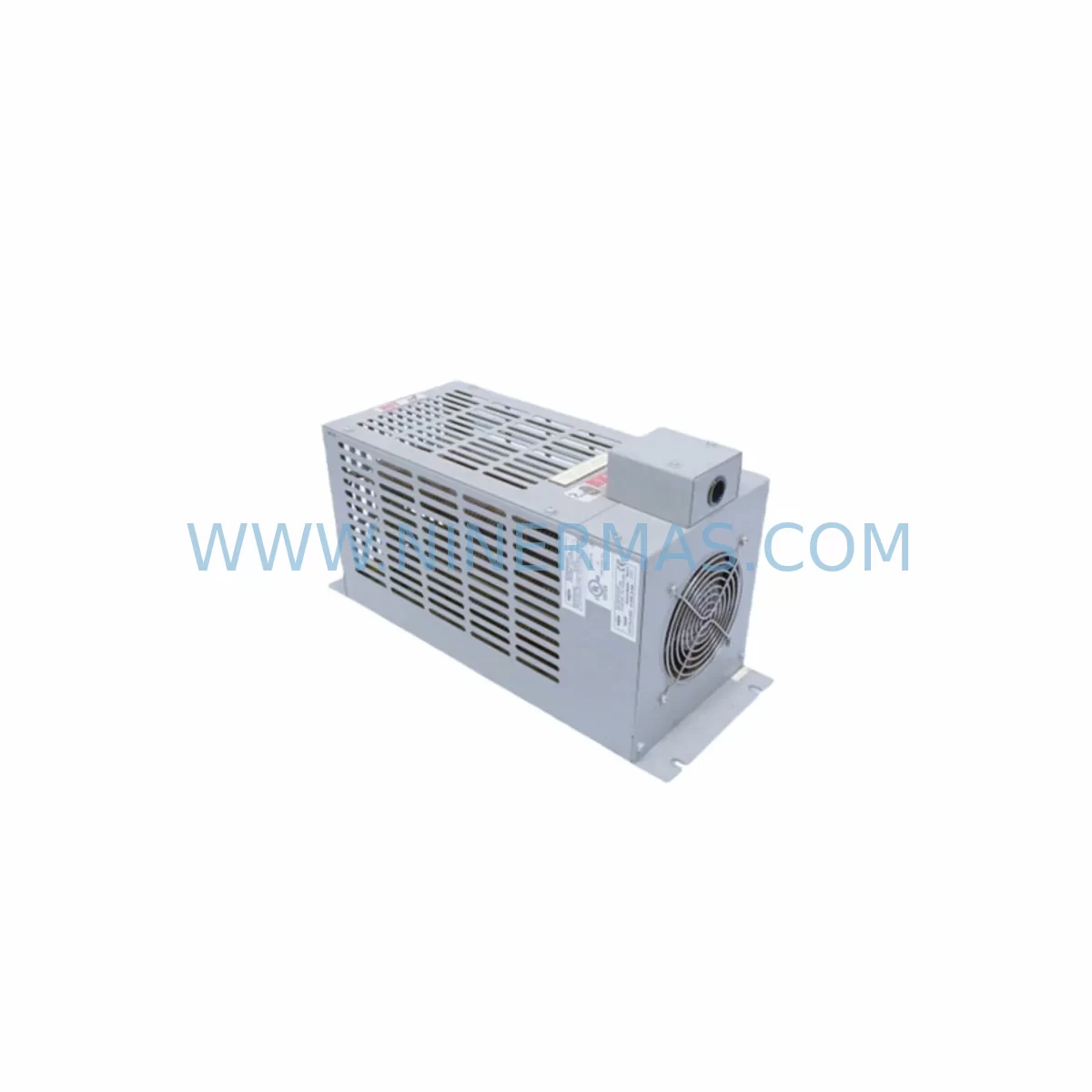

The Bonitron M3575R-H33BF is a retrofit-compatible AC drive line filter and harmonic suppression module engineered for seamless integration into existing M3575R series drive installations. Designed to support legacy system modernization without requiring full drive replacement, the M3575R-H33BF enables maintenance engineers and system integrators to extend the operational life of aging variable frequency drive (VFD) panels, reduce harmonic distortion on shared bus systems, and maintain compliance with IEEE 519 harmonic limits — all while minimizing planned downtime and capital expenditure.

Bonitron has long been recognized in the North American industrial automation market for producing high-reliability power conditioning and drive support components. The M3575R-H33BF continues this tradition, offering a direct-fit solution for facilities running legacy Bonitron M3575R series drive systems in pump stations, HVAC plants, compressor rooms, conveyor lines, and process manufacturing environments where unplanned outages carry significant operational cost.

When planning a retrofit or spare parts replacement involving the M3575R-H33BF, engineers should verify several key parameters before installation. Power supply capacity at the panel must be confirmed to support the filter’s rated input voltage and current draw. Terminal wiring compatibility — including conductor gauge, lug type, and torque specifications — should be cross-checked against the existing M3575R series wiring diagram. Backplane interface and DIN rail or chassis mounting dimensions must be measured to confirm the M3575R-H33BF fits within the available installation space in the control cabinet without requiring panel modification.

Module addressing is not applicable for passive filter components, but if the M3575R-H33BF is being installed alongside active drive components such as the Bonitron M3575R main drive module or a Bonitron M3425 regenerative drive unit, the drive’s parameter set should be reviewed to ensure harmonic filter presence is correctly configured in the drive’s input conditioning settings. Where the legacy system includes a Bonitron M3110 dynamic braking module or a Bonitron M3120 braking resistor assembly, the combined bus loading must be recalculated to confirm the filter’s rated capacity is not exceeded under peak regenerative braking conditions.

For facilities transitioning from older Bonitron drive generations to current-generation platforms, the M3575R-H33BF is frequently specified alongside Bonitron M3575R-H33 standard filter variants, Bonitron M3500 series power supply modules, and Bonitron M3460 series line reactors to form a complete input conditioning stack. This approach allows the retrofit to address harmonic compliance, voltage sag tolerance, and transient suppression in a single planned maintenance window rather than requiring multiple sequential outages.

HMI screen updates are typically not required when replacing a passive filter module, but if the control system includes a Rockwell Automation PanelView HMI or a Siemens SIMATIC HMI panel with drive status monitoring screens, the maintenance team should confirm that no drive fault codes related to input filter status are mapped to the HMI alarm display. Communication link integrity between the drive controller and any upstream Allen-Bradley ControlLogix or Siemens S7-300 PLC should be verified after installation to ensure the drive’s Modbus RTU or EtherNet/IP communication link remains stable following the filter swap.

All M3575R-H33BF units supplied by NINERMAS COMPANY LIMITED are pre-shipment tested under load conditions to verify insertion loss performance, leakage current within specification, and thermal stability at rated current. Each unit ships with a 12-month warranty covering manufacturing defects and component failure under normal operating conditions. Inventory is maintained in stock for immediate dispatch, supporting both emergency replacement and planned maintenance schedules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful M3575R-H33BF retrofit begins with a thorough audit of the existing drive panel. Engineers should document the current Bonitron M3575R main drive module nameplate data, confirm the Bonitron M3500 series power supply module output capacity, and identify whether a Bonitron M3460 line reactor is already installed upstream of the drive input terminals. In many legacy installations, the line reactor and input filter were installed as a matched pair; replacing only the filter without inspecting the reactor condition may leave residual harmonic issues unresolved.

Where the control cabinet also houses a Bonitron M3110 dynamic braking module or a Bonitron M3120 braking resistor assembly, the retrofit plan should include a bus voltage measurement under deceleration to confirm the braking circuit is absorbing regenerative energy correctly after the new filter is installed. If the system uses a shared DC bus topology with multiple drives, the harmonic filter sizing must account for the aggregate drive loading, not just the individual drive the M3575R-H33BF is directly associated with.

For installations where the legacy drive communicates with a Rockwell Automation ControlLogix L7x controller via EtherNet/IP, or with a Siemens S7-300 CPU via Profibus DP, the communication link should be tested under live conditions before and after the filter replacement to confirm no ground loop or shielding issue has been introduced by the new filter’s chassis bonding. A Fluke 435 power quality analyzer or equivalent instrument is recommended for post-installation harmonic measurement to document compliance with IEEE 519 limits and provide a baseline for future maintenance records.

I/O wiring associated with drive enable signals, fault relay outputs, and speed reference inputs should be inspected during the retrofit window. Terminal blocks adjacent to the filter mounting location should be checked for loose connections, insulation degradation, or corrosion — conditions commonly found in legacy panels that have been in service for ten or more years. Signal isolation between the drive’s analog speed reference circuit and the PLC analog output module should be verified, particularly if the installation uses a Bonitron M3425 regenerative drive unit on the same bus, as regenerative switching noise can couple into unshielded signal wiring.

Downtime Control During System Migration

Minimizing planned downtime during an M3575R-H33BF replacement requires advance preparation of all replacement components, tools, and documentation before the maintenance window begins. The replacement filter should be bench-inspected and continuity-tested prior to the outage to confirm it is free of shipping damage. A copy of the original M3575R series wiring diagram should be on hand to guide terminal reconnection, and the drive’s parameter file should be backed up to a laptop or programming device before power is removed from the panel.

The original program logic stored in the upstream PLC — whether a Rockwell Automation ControlLogix or a Siemens S7-300 — should not be modified during the filter replacement. The filter swap is a hardware-only change; no PLC program edits, HMI screen revisions, or drive parameter changes should be made during the same maintenance window unless they have been separately reviewed and approved. Combining multiple changes in a single outage increases the risk of introducing an unrelated fault that extends downtime beyond the planned window.

After the M3575R-H33BF is installed and all terminal connections are torqued to specification, the panel should be energized in stages: first confirm control power is stable, then enable the drive input contactor, and finally command the drive to run at low speed before returning to full production speed. Current measurements on all three input phases should be taken at low speed and at full load to confirm balanced current draw and verify the filter is performing within specification. If a Bonitron M3460 line reactor is installed upstream, input voltage distortion should also be measured to confirm the combined filter and reactor stack is achieving the expected harmonic attenuation.

Field commissioning records — including pre- and post-installation current measurements, harmonic distortion readings, and terminal torque confirmation — should be retained as part of the plant’s maintenance documentation. These records support warranty claims, future troubleshooting, and regulatory compliance audits.

Retrofit Support FAQ

Q1: Is the M3575R-H33BF a direct drop-in replacement for the M3575R-H33?
The M3575R-H33BF is designed as a direct replacement for M3575R series H33 frame filter variants. Mounting dimensions, terminal configuration, and electrical ratings are matched to the original M3575R-H33 specification. Confirm the existing installation uses the H33 current frame before ordering; H22 or H45 frame variants require a different filter model.

Q2: What commissioning steps are required after installation?
After installation, energize the panel in stages, measure three-phase input current balance at low speed and full load, and verify the drive runs without input fault codes. If a power quality analyzer is available, record THD-I at the drive input terminals to establish a post-retrofit baseline. No drive parameter changes are required for a passive filter replacement.

Q3: Can the M3575R-H33BF be used with drives from other manufacturers?
The M3575R-H33BF is rated for 480V AC, 3-phase, 33A applications and may be compatible with other drive brands operating within these electrical parameters. However, mechanical mounting compatibility must be independently verified. NINERMAS recommends confirming the filter’s physical dimensions and terminal configuration against the target drive panel layout before installation.

Q4: What does the 12-month warranty cover, and what is the lead time for in-stock units?
All M3575R-H33BF units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and component failure under normal operating conditions. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. In-stock units are available for immediate dispatch; lead time for standard orders is typically 1–3 business days depending on destination.
