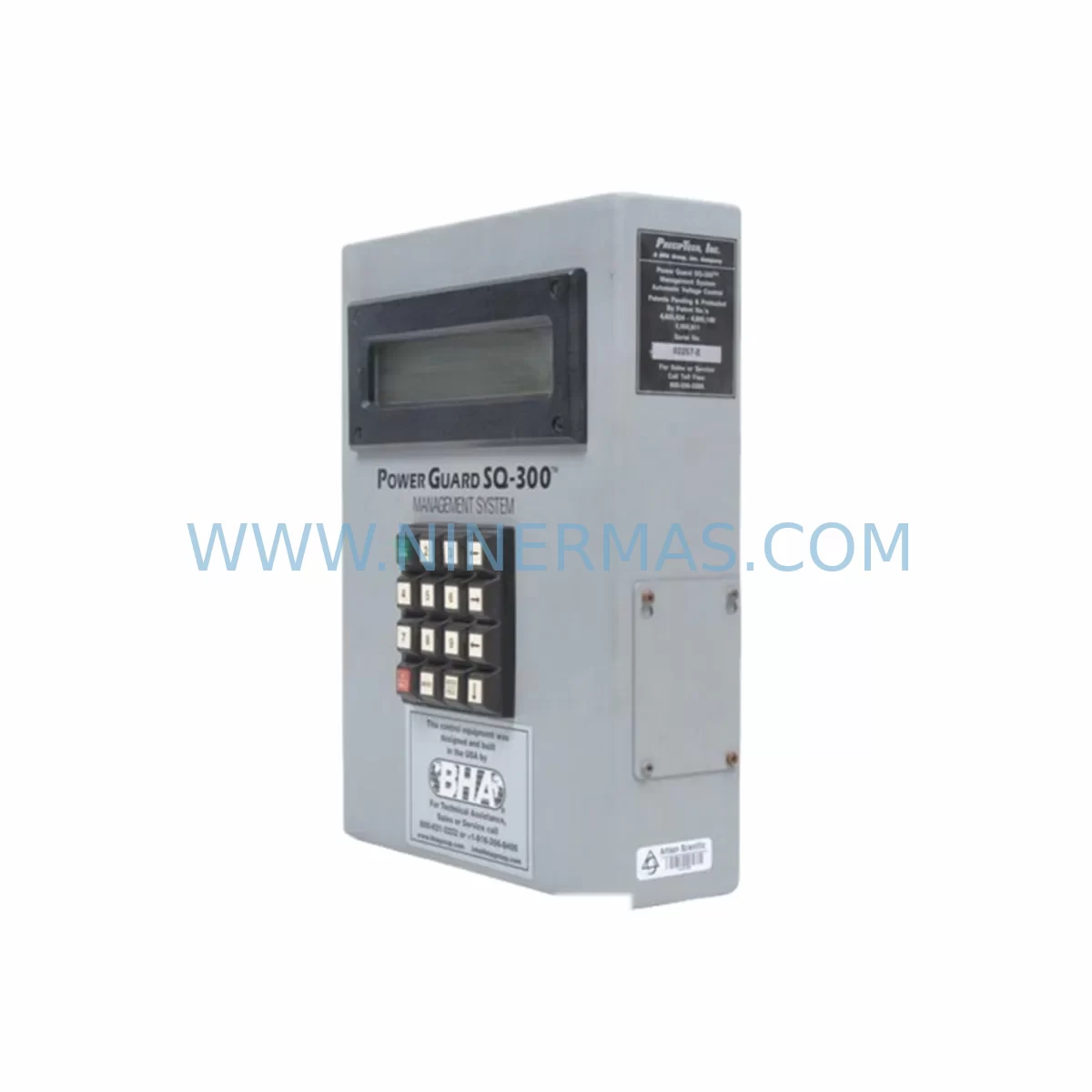

BHA POWER GUARD SQ-300 Service-Ready Spare Part

BHA POWER GUARD SQ-300 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

The BHA POWER GUARD SQ-300 is a service-ready spare part engineered for industrial maintenance teams managing SQ-Series voltage regulator systems. Designed to deliver immediate drop-in replacement capability, this unit supports rapid fault isolation, emergency substitution, and planned annual overhaul cycles across a wide range of legacy and active control cabinet configurations. Whether your facility operates continuous process lines, batch manufacturing cells, or discrete automation systems, maintaining a stocked POWER GUARD SQ-300 in your spare parts inventory is a proven strategy for reducing unplanned downtime and protecting production continuity.

Each unit supplied by NINERMAS undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring that procurement engineers and maintenance planners can source with confidence. Long-term supply availability is maintained to support facilities with extended equipment lifecycles and legacy system retention strategies.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BHA POWER GUARD SQ-300 is flagged during routine inspection or fault diagnosis, experienced maintenance engineers understand that the voltage regulator module rarely fails in isolation. A systematic cabinet-level review is essential to prevent repeat faults and ensure full system restoration.

Begin by verifying the upstream AC input power supply feeding the SQ-Series panel — unstable mains voltage or transient spikes are a leading cause of premature regulator wear. Check the input fuse block and circuit breaker for signs of thermal stress or intermittent contact. Inspect all terminal blocks and wiring harnesses connected to the POWER GUARD SQ-300 for loose crimps, oxidation, or insulation degradation, particularly in high-humidity or high-vibration environments.

On the output side, evaluate the DC power distribution bus and any downstream 24VDC or 48VDC rail-mounted power supplies that depend on regulated voltage from the SQ-300. If the system includes intermediate relay modules or solid-state relay (SSR) banks, these should be tested for coil resistance and contact integrity, as voltage irregularities often cause latent relay damage that only manifests after the regulator is replaced.

For systems with integrated PLC I/O modules — particularly analog input cards sensitive to supply noise — verify signal quality after the POWER GUARD SQ-300 is reinstalled. Noise-induced drift on 4–20 mA or 0–10V signal loops can cause false process readings that persist even after the root-cause regulator fault is resolved. Where signal integrity is critical, consider adding or inspecting existing signal isolators or galvanic isolation barriers on key measurement loops.

Communication infrastructure within the same cabinet should also be reviewed. RS-485 communication modules, PROFIBUS DP adapters, or Modbus RTU interface cards are susceptible to ground loop interference when power supply quality degrades. Confirm that communication cable shielding and grounding remain intact after any power module replacement. If the cabinet includes an HMI panel or operator terminal, verify that the display powers up correctly and that all process values are reading within expected ranges post-replacement.

Finally, inspect the backplane or bus connector if the SQ-Series system uses a modular rack architecture. Backplane connector oxidation or mechanical looseness can cause intermittent faults that mimic regulator failure. A complete spare parts kit for this system type should include the POWER GUARD SQ-300 alongside compatible power supply modules, I/O expansion cards, relay output modules, and communication interface units to support full cabinet restoration without secondary procurement delays.

Site Replacement Workflow

Replacing the BHA POWER GUARD SQ-300 on-site is designed to be straightforward for qualified maintenance personnel, minimizing mean time to repair (MTTR) and reducing the risk of extended production downtime.

Step 1 — Isolation & Lockout: De-energize the control cabinet following your facility’s lockout/tagout (LOTO) procedure. Confirm zero voltage at the SQ-Series panel input terminals using a calibrated multimeter.

Step 2 — Documentation: Photograph or record the existing wiring configuration, terminal labeling, and any DIP switch or jumper settings on the outgoing POWER GUARD SQ-300 before removal. This is especially important when replacing aged units where original documentation may be incomplete.

Step 3 — Removal: Disconnect all input and output wiring from the module terminals. Remove the unit from its mounting position — DIN-rail clip or panel fasteners as applicable. Inspect the mounting rail and surrounding components for heat damage or contamination.

Step 4 — Installation: Mount the new BHA POWER GUARD SQ-300 in the same position. Reconnect all wiring per the documented configuration. Verify terminal torque to OEM specification to prevent loose connections under vibration.

Step 5 — Commissioning: Re-energize the cabinet in stages. Measure output voltage at the POWER GUARD SQ-300 output terminals before connecting downstream loads. Confirm regulated output is within specification before restoring full system operation.

Step 6 — System Verification: Confirm that all dependent subsystems — PLC I/O, HMI, relay outputs, and communication modules — are operating normally. Log the replacement in your maintenance management system (CMMS) and update the spare parts inventory accordingly.

This workflow is compatible with both like-for-like replacement of the POWER GUARD SQ-300 and upgrade scenarios where an older BHA SQ-Series variant is being retired in favor of a current-production unit. Compatibility with existing wiring and panel layouts is maintained across the SQ-Series product family, reducing re-engineering effort and commissioning time.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the BHA POWER GUARD SQ-300 supplied by NINERMAS?
Every BHA POWER GUARD SQ-300 unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify electrical performance before dispatch. In the event of a warranty claim, NINERMAS provides replacement or repair support. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions.

Q2: Can the POWER GUARD SQ-300 replace older BHA SQ-Series voltage regulator variants?
The POWER GUARD SQ-300 is designed for compatibility within the BHA SQ-Series platform. In most cases, it serves as a direct replacement for earlier SQ-Series regulator modules with equivalent electrical ratings. Procurement engineers should confirm input voltage range, output regulation specification, and physical mounting format against the existing installation before ordering. NINERMAS technical support can assist with compatibility verification based on your existing part number or cabinet documentation.

Q3: How should facilities manage long-term spare parts inventory for the BHA POWER GUARD SQ-300?
For facilities operating multiple SQ-Series systems or running continuous production processes, maintaining a minimum stock of one to two POWER GUARD SQ-300 units on-site is recommended. This buffer supports immediate emergency replacement without waiting for procurement lead times. NINERMAS maintains long-term stocking of this part to support lifecycle extension programs and legacy system retention strategies. Bulk procurement options are available for facilities with high-volume maintenance requirements.

Q4: What documentation should be requested when procuring the BHA POWER GUARD SQ-300?
When placing an order, procurement engineers should request the pre-shipment test report, product datasheet, and warranty certificate. NINERMAS provides documentation to support incoming inspection, quality control sign-off, and CMMS record updates. For facilities subject to regulatory audit or ISO maintenance standards, full traceability documentation is available upon request.
