BERGHOF CCPU 8/8/4-CSC-1131 Service-Ready Spare Part

BERGHOF CCPU 8/8/4-CSC-1131 Service-Ready Spare Part for Industrial Maintenance

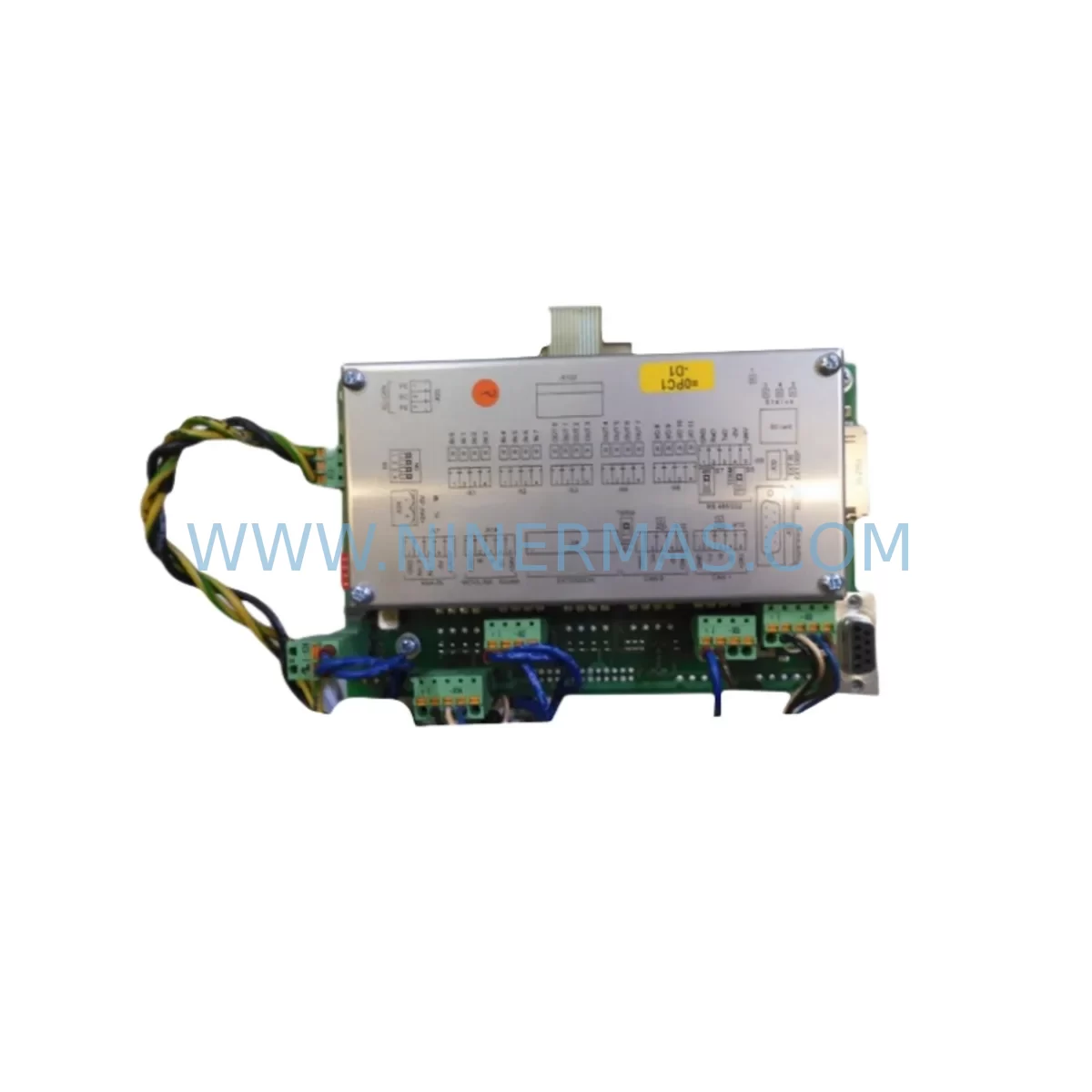

The BERGHOF CCPU 8/8/4-CSC-1131 is a compact, IEC 61131-3 compatible CPU module engineered for demanding industrial automation environments. Designed as a drop-in replacement for aging or failed controller units within BERGHOF CCPU-series control cabinets, this spare part enables maintenance engineers to restore production lines rapidly — minimising unplanned downtime and protecting critical process continuity. NINERMAS stocks this module as a service-ready spare, pre-inspected and dispatched with a 12-month warranty, supporting procurement teams that require reliable, long-term supply commitments for legacy automation infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BERGHOF CCPU 8/8/4-CSC-1131 fails or is flagged during a scheduled control cabinet inspection, the replacement procedure should extend beyond the CPU module itself. Experienced maintenance engineers treat a CPU fault as a trigger for a broader cabinet health audit — because associated components often share the same stress history and may be approaching end-of-life simultaneously.

Begin by verifying the 24 V DC power supply module feeding the CCPU backplane. Voltage sag or ripple is a leading cause of CPU watchdog faults and memory corruption; a replacement CPU installed on a degraded power rail will fail prematurely. Inspect the BERGHOF power supply unit (or equivalent 24 V DIN-rail PSU) for output stability, capacitor bulge, and thermal discolouration before commissioning the new module.

Next, audit the onboard I/O wiring. The CCPU 8/8/4-CSC-1131 integrates 8 digital inputs, 8 digital outputs, and 4 analog channels directly on the CPU board. Loose terminal connections, corroded ferrules, or over-range analog signals can damage the new module’s I/O front-end within hours of restart. Check all terminal blocks and cable ferrules on the I/O connector strip; replace any that show oxidation or mechanical wear.

For systems using CANopen or RS-485 communication, inspect the network termination resistors and cable shielding. A damaged communication cable or missing bus terminator will prevent the replacement CCPU from establishing network connectivity, causing the line to remain halted even after a successful hardware swap. If the system includes a BERGHOF CANopen expansion module or a third-party fieldbus gateway, verify node addressing and baud-rate settings match the original configuration before power-up.

Where the CCPU 8/8/4-CSC-1131 interfaces with remote I/O racks or distributed I/O modules, confirm that each remote node is responding correctly after the CPU replacement. Faults in remote I/O — such as a failed digital input module or a tripped output relay module — may be masked by the CPU fault and will surface only after the controller is restored. Proactive inspection of these nodes during the maintenance window avoids a second unplanned stoppage.

If the control system includes an HMI panel communicating with the CCPU via serial or Ethernet, re-validate the HMI communication parameters after replacement. HMI connection timeouts are a common post-replacement issue when the new CPU is loaded with a firmware version that differs from the original. Maintain a firmware archive for all BERGHOF CCPU variants in your installed base.

For facilities running annual shutdown maintenance, the CCPU 8/8/4-CSC-1131 should be included in a spare parts kit alongside the associated 24 V power supply, I/O expansion modules, communication cables, terminal blocks, and protective fuses. Holding a minimum of one cold-standby CPU module per production line eliminates the lead-time risk that typically extends emergency downtime from hours to days when sourcing obsolete or low-volume industrial controllers.

Signal integrity should also be verified at the analog I/O channels. If the system uses signal isolators or signal conditioners between field sensors and the CCPU analog inputs, inspect these devices for drift or failure — a faulty isolator can inject noise that mimics a CPU fault, leading to misdiagnosis. Replace any isolator that cannot be verified within calibration tolerance.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the failed CCPU 8/8/4-CSC-1131, photograph the wiring layout, record all DIP switch and jumper settings, and export or photograph the current PLC program from the engineering workstation if a backup is not already confirmed. This step is critical for legacy systems where the original project file may no longer be maintained.

Step 2 — Power down safely. De-energise the control cabinet following your site LOTO (Lockout/Tagout) procedure. Confirm that the 24 V DC rail is fully discharged before disconnecting the CPU module. Electrostatic discharge precautions (ESD wrist strap, anti-static mat) are mandatory when handling the CCPU board.

Step 3 — Remove and inspect. Extract the failed module and inspect the backplane connector for bent pins, corrosion, or debris. Clean the connector with isopropyl alcohol if contamination is present. A damaged backplane connector will prevent the replacement module from operating correctly and must be addressed before installation.

Step 4 — Install the replacement BERGHOF CCPU 8/8/4-CSC-1131. Seat the module firmly, reconnect all I/O and communication cables, and restore DIP switch / jumper settings to match the original configuration. Verify that the 24 V supply is within specification before energising.

Step 5 — Load program and verify. Download the PLC program from the engineering workstation, perform a cold start, and verify all I/O points, communication links, and HMI screens are operating correctly. Run the system in manual mode before returning to automatic production to confirm full functionality.

Step 6 — Update maintenance records. Log the replacement date, firmware version, and any configuration changes in your CMMS or maintenance logbook. Schedule the next inspection interval based on the operating environment and historical MTBF data for the CCPU series.

Spare Parts Support FAQ

Q1: Is the BERGHOF CCPU 8/8/4-CSC-1131 a direct replacement for older CCPU variants?
The CCPU 8/8/4-CSC-1131 is designed for direct form-fit-function replacement within the BERGHOF CCPU compact controller family. Compatibility with specific older variants depends on firmware version and I/O configuration. NINERMAS recommends providing your existing module’s full nameplate data — including hardware revision and firmware version — when placing an order, so our technical team can confirm compatibility before dispatch.

Q2: How does NINERMAS verify spare parts before shipment?
Every BERGHOF CCPU 8/8/4-CSC-1131 unit dispatched by NINERMAS undergoes a pre-shipment functional inspection covering power-up self-test, I/O channel verification, and communication port integrity. An inspection report accompanies each shipment. Units that do not pass inspection are not dispatched. This process supports our 12-month warranty commitment and reduces the risk of receiving a non-functional spare during an emergency maintenance event.

Q3: Can NINERMAS support long-term or blanket-order procurement for this module?
Yes. NINERMAS offers long-term supply agreements and blanket purchase orders for the BERGHOF CCPU 8/8/4-CSC-1131 and related CCPU-series components. This is particularly valuable for facilities managing large installed bases of BERGHOF controllers, where maintaining a consistent spare parts inventory is essential for lifecycle continuity. Contact our procurement team to discuss stock reservation, lead-time guarantees, and multi-year supply planning.

Q4: What is covered under the 12-month warranty?
The NINERMAS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the BERGHOF CCPU product documentation. It does not cover damage resulting from incorrect installation, over-voltage events, physical impact, or operation outside the rated environmental parameters. In the event of a warranty claim, NINERMAS will arrange replacement or repair with priority handling to minimise impact on your production schedule.
