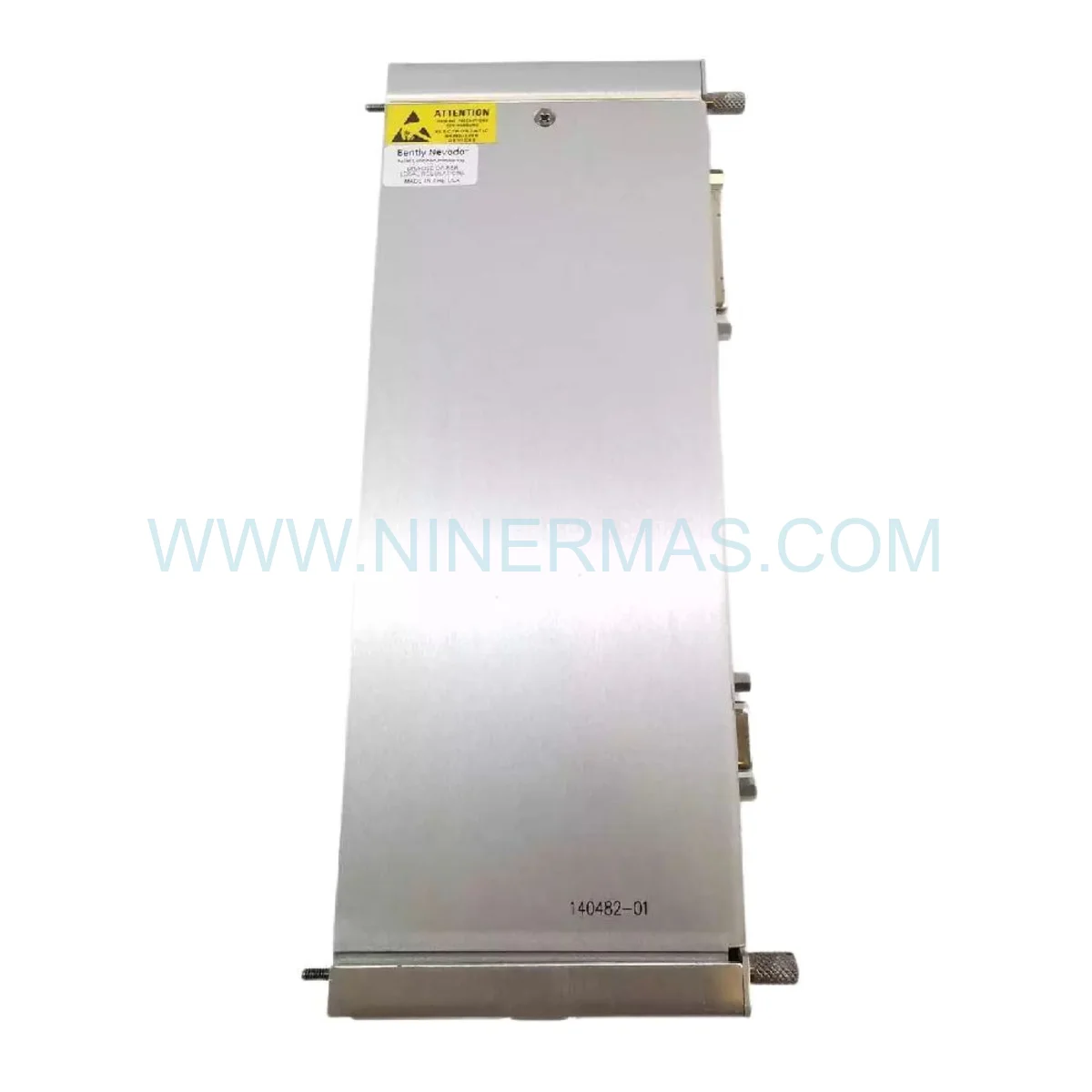

Bently Nevada 3500/72M 140482-01 I/O Module — New & Original

Bently Nevada 3500/72M 140482-01 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer operating in continuous-process industries, the Bently Nevada 3500/72M 140482-01 stands as a cornerstone of mission-critical machinery protection architecture. This reconfigurable I/O module bridges the 3500 monitoring platform with downstream control infrastructure — DCS, PLC, and SCADA systems — delivering real-time process data that directly supports operational excellence and system availability. The 3500/72M 140482-01 provides eight independently programmable output channels, each configurable as relay contact, 4-20 mA analog, or ±10V recorder output, enabling seamless integration across heterogeneous automation environments without hardware substitution.

Engineered to withstand the rigors of heavy industrial deployment, this module operates reliably across an ambient temperature range of 30°C to +65°C and tolerates humidity levels up to 95% non-condensing. Its external screw-terminal architecture (the defining characteristic of the 140482-01 variant) ensures field-wiring integrity even in high-vibration installations — a critical advantage when servicing rotating machinery such as gas turbines, centrifugal compressors, and boiler feed pumps. Proper grounding to the 3500/05 rack bus and use of twisted-pair shielded cable for analog loops are non-negotiable installation prerequisites for sustained signal fidelity.

For SRE teams managing aging or end-of-life control infrastructure, maintaining a verified stock of the 3500/72M 140482-01 as a strategic spare is not optional — it is a reliability imperative. With a published MTBF exceeding 200,000 hours and relay contacts rated for 100,000 operations, this module delivers long service life; however, unplanned failures in mission-critical applications demand immediate replacement capability. Sourcing genuine, factory-sealed units ensures configuration compatibility and eliminates the commissioning risk associated with counterfeit or refurbished automation components.

Key Operational Features

8 Independently Configurable Output Channels — Each channel assignable as relay (Form C SPDT), 4-20 mA (±0.25% accuracy, 500Ω max load), or ±10V recorder output (±0.5% accuracy) via software — no hardware jumpers required.
Hot-Swap / Live Replacement — Module extraction and insertion during rack operation without system shutdown; configuration auto-downloads from rack controller upon reinsertion, supporting high availability maintenance workflows.
External Terminal Block Architecture — Front-accessible screw terminals (14-22 AWG) allow field wiring to remain undisturbed during module swap, reducing mean time to repair (MTTR) by up to 40%.
Dynamic Variable Assignment — Map any monitored parameter (vibration, temperature, position, speed) from any 3500 monitor module to any output channel — a hallmark of Bently Nevada’s process optimization philosophy.
Redundancy-Ready Design — Compatible with 3500 redundant rack configurations; supports seamless integration into safety-instrumented systems (SIS) and emergency shutdown (ESD) logic solvers.
Continuous Background Diagnostics — Automatic power-on self-test plus runtime fault detection; faults reported to the Rack Interface Module for Modbus or proprietary protocol transmission to host systems.

Maintenance & Performance Benchmarks

The 3500/72M 140482-01 is designed to integrate into industrial network architectures of varying scale — from single-rack turbine protection systems to multi-rack, plant-wide condition monitoring networks spanning hundreds of measurement points.

In small-scale deployments (single 3500/05 rack, 4-8 monitor modules), the 72M typically occupies one slot and handles all DCS handoff and annunciator relay functions for a single machine train. In large-scale installations — such as combined-cycle power plants or LNG compression trains — multiple 72M modules may be deployed per rack, with output assignments managed centrally through the 3500 Rack Configuration Software’s variable database, enabling plant-wide system integration without additional hardware.

Recommended maintenance benchmarks for sustained performance:

• Annual: Inspect and re-torque terminal block screws to 0.5 Nm (4.4 lb-in); verify relay contact resistance (<100 mΩ).
• Biennial: Calibration verification of 4-20 mA outputs using a precision current meter (reference standard ±0.05% accuracy).
• Configuration Backup: Quarterly export of rack configuration files to version-controlled repository; validate against as-built documentation.
• Lifecycle Planning: Schedule proactive replacement after 10 years of continuous service or upon relay contact count approaching 80,000 operations.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Bently Nevada 3500/72M 140482-01 unit dispatched from our facility is sourced directly from authorized distribution channels and ships in original factory packaging with full traceability documentation. For facilities managing end-of-life (EOL) or legacy 3500 Series infrastructure, our global supply network provides access to genuine automation components that are no longer available through standard OEM channels — eliminating the risk of production downtime caused by obsolete part unavailability.

• Original Factory Packaging: ESD-protected, moisture-barrier sealed, with OEM labels and batch traceability intact.
• Same-Day Dispatch: In-stock units ship same business day upon order confirmation (subject to cut-off time and destination).
• Worldwide Express Logistics: DHL, FedEx, and UPS express services to over 150 countries; customs documentation and HS code support included.
• EOL & Legacy Module Supply: Specialized sourcing for discontinued Bently Nevada 3500 Series modules — verified authentic, not refurbished.
• 1-Year Warranty: All units covered by a 12-month warranty against manufacturing defects, with technical support throughout the warranty period.

Engineering Support & FAQ

Q1: Is the 3500/72M 140482-01 compatible with all 3500/05 rack configurations, including redundant setups?
A: Yes. The 3500/72M 140482-01 installs in any slot of the 3500/05 rack and is fully compatible with both standard and redundant rack configurations. In redundant setups, the module participates in the system’s high-availability architecture, with the rack controller managing failover logic transparently.

Q2: What firmware version is required on the 3500 Rack Interface Module to support the 3500/72M 140482-01?
A: The 3500/72M is supported by all production firmware versions of the 3500 Rack Interface Module (3500/20 and 3500/22). Bently Nevada recommends using the latest available firmware for the RIM to ensure access to all configuration features. Consult the 3500 Rack Configuration Software release notes for version-specific compatibility details.

Q3: Can output channel assignments be modified online without interrupting the monitoring system?
A: Yes. The 3500 Rack Configuration Software supports online configuration changes to output variable assignments and scaling parameters without halting the monitoring system. Relay state changes during reconfiguration should be evaluated against downstream interlock logic before applying changes in live production environments.

Q4: What are the installation steps for replacing a failed 3500/72M 140482-01 in a live rack?
A: (1) Verify replacement unit is the same part number (140482-01). (2) Note current relay output states to assess downstream impact. (3) Extract failed module — field wiring remains on external terminal block. (4) Insert replacement module into the same rack slot. (5) The rack controller automatically downloads the stored configuration within 30-60 seconds. (6) Verify output states and LED status indicators. (7) Confirm DCS/PLC signal reception at receiving end.

Q5: How is the warranty claim process handled for units purchased through your store?
A: Warranty claims are initiated by contacting our technical support team at sale@ninermas.com with the order reference, unit serial number, and a description of the observed fault. Our team will issue a Return Merchandise Authorization (RMA) within 24 business hours. Replacement units are dispatched upon receipt and inspection of the returned module. Shipping costs for warranty returns are covered for units confirmed defective within the warranty period.

Q6: Are 4-20 mA outputs suitable for driving inputs on third-party safety PLCs (e.g., Triconex, Hima)?
A: Yes, provided the receiving PLC analog input impedance does not exceed 500Ω. The 3500/72M 140482-01 analog outputs are galvanically isolated (250V AC channel-to-backplane) and comply with standard 4-20 mA current loop conventions. Verify loop power supply compatibility — the 72M outputs are active (self-powered); passive (externally powered) loop configurations require a loop isolator barrier.
