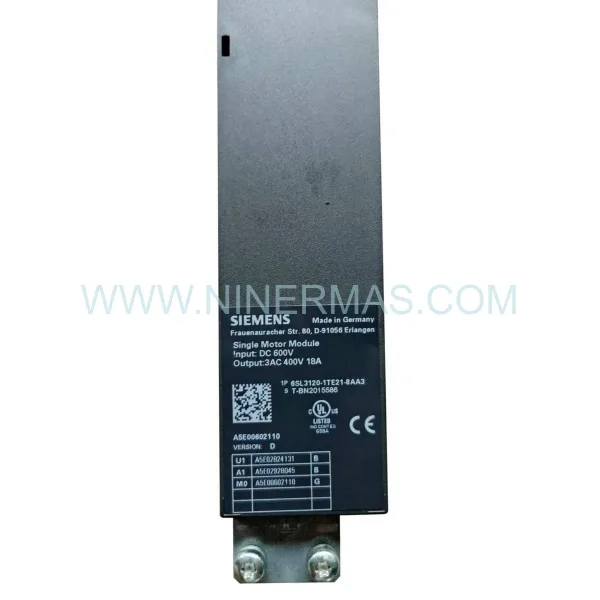

Siemens SINAMICS S120 6SL3120-1TE21-8AA3 Single Motor Module — New & Original

Siemens SINAMICS S120 6SL3120-1TE21-8AA3 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-availability production environments, the 6SL3120-1TE21-8AA3 is far more than a standard drive component — it is a cornerstone of system uptime assurance. Deployed within the SINAMICS S120 modular drive architecture, this Single Motor Module delivers deterministic torque response and closed-loop vector control that directly reduces unplanned downtime in mission-critical automation lines. Its ability to sustain rated output under fluctuating load conditions makes it indispensable for process optimization across continuous manufacturing workflows.

Engineered to IEC 61800 standards, the 6SL3120-1TE21-8AA3 demonstrates exceptional resilience in thermally demanding enclosures and electrically noisy industrial environments. Forced-air cooling maintains junction temperatures within safe operating thresholds even during sustained peak-load cycles. During installation, engineers should verify DC bus voltage compatibility with the Line Module, confirm DRIVE-CLiQ topology mapping, and apply correct shielding practices on motor cables to suppress EMI — all critical steps for achieving operational excellence from day one.

As production lines age and OEM support windows close, maintaining a certified spare of this module in your critical inventory is a non-negotiable reliability strategy. EOL risk mitigation through pre-positioned stock of the 6SL3120-1TE21-8AA3 ensures that a single component failure never becomes a multi-day production halt.

Key Operational Features

Seamless System Integration — Native DRIVE-CLiQ interface enables plug-and-play topology recognition within SINAMICS S120 architectures, minimizing commissioning time.
High Availability Design — Supports Safe Torque Off (STO) and Safe Stop 1 (SS1) safety functions for compliant, high-uptime operation.
Redundancy-Ready Architecture — Compatible with multi-axis configurations for coordinated motion control across parallel drive channels.
Dual Motor Control Modes — Operates in both vector control (induction motors) and servo control (synchronous motors) without hardware modification.
Integrated Diagnostics — Real-time fault logging and parameter monitoring via STARTER / TIA Portal for predictive maintenance workflows.
Energy-Optimized Operation — Dynamic energy recovery during deceleration phases reduces net power consumption across the drive system.

Maintenance & Performance Benchmarks

The 6SL3120-1TE21-8AA3 is architected to scale across diverse industrial network topologies — from compact standalone CNC cells to distributed multi-drive systems spanning large-format automotive or chemical processing plants. Its PROFINET and PROFIBUS DP communication stack allows transparent integration into both legacy SIMATIC S7-300/400 environments and modern TIA Portal-based S7-1500 control architectures.

In high-cycle applications such as packaging machinery or press lines, the module sustains dynamic torque accuracy within ±0.5% across the full speed range, supporting sub-millisecond current control loop execution. Thermal management benchmarks confirm stable operation at ambient temperatures up to 40°C (IP20 enclosure), with derating curves available for elevated-temperature cabinet installations. Firmware updates are applied non-disruptively via STARTER toolset, preserving parameter sets and minimizing maintenance windows.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 6SL3120-1TE21-8AA3 unit dispatched from our facility is sourced directly from authorized Siemens distribution channels and ships in Original Factory Packaging — complete with anti-static protection, factory labels, and traceability documentation. For urgent production recovery scenarios, same-day dispatch is available on confirmed in-stock units (order cutoff: 14:00 local time).

We maintain a dedicated global supply pipeline for EOL and legacy SINAMICS S120 modules, ensuring availability long after standard distribution channels have exhausted stock. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to North America, Europe, Southeast Asia, and the Middle East within 3-7 business days. All shipments include commercial invoice, packing list, and certificate of conformity for customs clearance.

Engineering Support & FAQ

Q1: What are the key installation steps for the 6SL3120-1TE21-8AA3?
A: Mount the module in booksize format on the shared DC bus rail adjacent to the Line Module. Connect the DRIVE-CLiQ cable to the Control Unit (e.g., CU320-2). Wire motor phases U2/V2/W2 with shielded cable, connect the motor encoder via SMC if required, and power up in sequence: Line Module first, then Motor Module. Commission via STARTER or TIA Portal using the automatic topology detection wizard.

Q2: Which firmware versions are compatible with this module?
A: The 6SL3120-1TE21-8AA3 is compatible with SINAMICS S120 firmware V4.7 SP9 and above. For TIA Portal integration, firmware V5.1 or later is recommended to access full Safety Integrated functionality. Always verify firmware consistency across all modules in the drive line-up to prevent topology conflicts.

Q3: Can this module replace an older 6SL3120-1TE21-8AA0 or AA1 revision?
A: Yes. The AA3 hardware revision is backward-compatible with earlier AA0 and AA1 variants in terms of electrical interface and DRIVE-CLiQ topology. A firmware update may be required on the Control Unit to recognize the newer hardware revision. Consult the Siemens compatibility matrix or contact our engineering team for revision-specific guidance.

Q4: How is the warranty claim process handled?
A: In the event of a confirmed manufacturing defect within the 12-month warranty period, contact our technical support team with the unit serial number and fault description. We initiate an advance replacement shipment within 48 hours upon fault verification, minimizing production exposure. Defective units are returned via prepaid logistics label.

Q5: Is this module suitable for multi-axis synchronized motion applications?
A: Absolutely. The 6SL3120-1TE21-8AA3 integrates natively into SINAMICS S120 multi-axis configurations managed by a single CU320-2 or CX32-2 Control Unit. Isochronous PROFINET (IRT) enables cross-axis synchronization with cycle times down to 125 µs, making it suitable for coordinated gantry, winding, and printing line applications.

Q6: What documentation is included with the shipment?
A: Each unit ships with the Siemens factory test certificate, product datasheet, EU Declaration of Conformity (CE), and our 12-month warranty card. Full SINAMICS S120 hardware installation manuals are available digitally upon request.
