Bently Nevada 3500/50 Retrofit-Compatible Tachometer Module

Bently Nevada 3500/50 Retrofit-Compatible Tachometer Module: Legacy System Compatibility & Smooth Upgrade Path

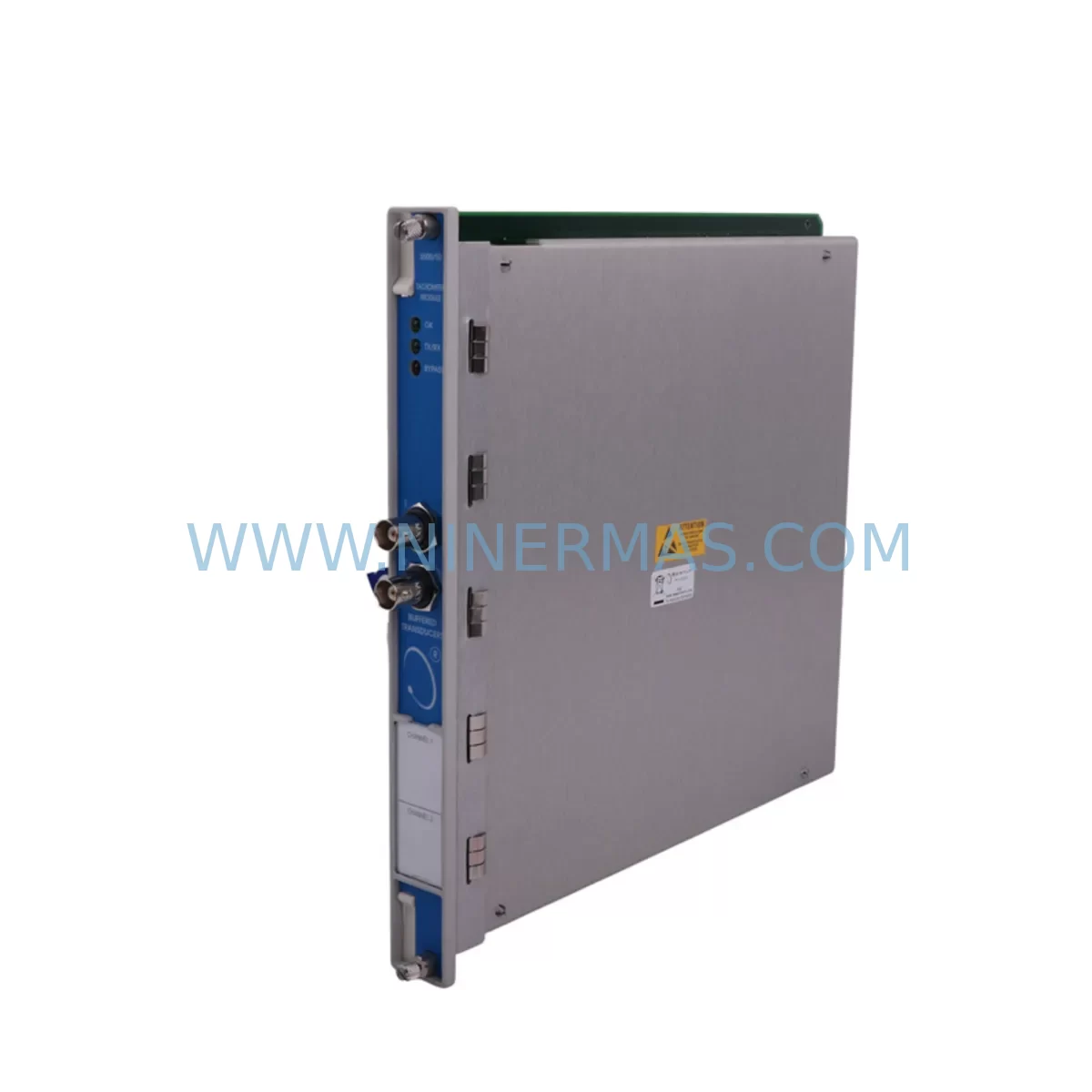

The Bently Nevada 3500/50 is a ruggedized tachometer module engineered for continuous speed and phase measurement in rotating machinery protection systems. As a core component of the Bently Nevada 3500 Series machinery protection platform, the 3500/50 has been widely deployed across turbines, compressors, pumps, and generators in oil & gas, power generation, petrochemical, and heavy industrial environments. With many legacy installations now facing end-of-life support challenges, the 3500/50 remains one of the most sought-after retrofit and replacement modules for engineers tasked with modernizing aging control infrastructure without full system overhauls.

Whether you are replacing a failed unit in an existing 3500 rack, upgrading a discontinued tachometer card from an earlier generation platform, or migrating from a third-party speed monitoring system, the 3500/50 offers a proven, drop-in compatible solution that minimizes engineering rework and reduces commissioning time on the plant floor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 3500/50 into an existing machinery protection cabinet requires a structured approach to avoid signal interruption and program logic conflicts. Before installation, engineers should audit the current rack configuration to confirm available slot positions within the 3500/20 Rack Interface Module backplane. If the rack is fully populated, a rack expansion or a secondary 3500 chassis may be required, and the 3500/15 Power Supply Module capacity must be recalculated to support the additional load.

Transducer wiring is a critical step. The 3500/50 accepts inputs from proximity probes (typically Bently Nevada 3300 XL 8mm or 11mm series), magnetic pickups, and passive speed sensors. Terminal block assignments must be verified against the existing field wiring schedule, and any legacy cable labeling should be cross-referenced with the updated I/O map before termination. Where field wiring uses older shielded twisted-pair runs with intermediate junction boxes, signal integrity should be validated using a portable oscilloscope or the System 1 diagnostic software prior to energizing the module.

For installations that include a 3500/92 Communication Gateway Module, the Modbus register map or Ethernet/IP tag table must be updated to include the new tachometer channel addresses. DCS or SCADA systems receiving speed data — whether through a Honeywell Experion PKS, Emerson DeltaV, or a legacy Allen-Bradley PLC via a ControlLogix gateway — will require tag remapping and HMI faceplate updates to reflect the new module’s channel assignments. Operators should verify that historian trending and alarm setpoint configurations in the connected monitoring platform are preserved during the cutover.

If the plant uses a Keyphasor module such as the 3500/25 to provide phase reference signals to the 3500/50, the Keyphasor assignment must be confirmed in the rack configuration software (Rack Configuration Software, RCS) before the module is brought online. Incorrect Keyphasor routing is one of the most common commissioning errors during tachometer module replacements and can result in erroneous phase readings or spurious trip events.

In applications where the 3500/50 is replacing a card from a discontinued platform — such as an older 3300 Series monitor or a Metrix ST5484E equivalent — the engineering team should prepare a signal conversion checklist covering output voltage levels, frequency range, and trip relay wiring. Signal isolators or conditioners may be required at the terminal strip to bridge any electrical incompatibilities between the legacy field devices and the new module’s input specifications.

Downtime Control During System Migration

Minimizing unplanned downtime during a tachometer module replacement is a primary concern for maintenance teams operating in continuous-process environments. A well-structured hot-swap or planned-outage procedure begins with a full backup of the existing rack configuration using the Bently Nevada Rack Configuration Software (RCS), ensuring that all channel parameters, trip setpoints, time delays, and relay assignments are documented before any hardware is disturbed.

Where the process permits a brief controlled shutdown, the preferred approach is to inhibit the affected tachometer channel at the DCS or safety system level, replace the 3500/50 module, restore the rack configuration from the saved file, and perform a bench-level functional verification before re-enabling the channel. This sequence typically requires 30 to 90 minutes of planned outage time, depending on the complexity of the Keyphasor and relay wiring.

For facilities that cannot tolerate any interruption to speed monitoring — such as those operating under API 670 continuous monitoring requirements — a parallel monitoring strategy using a portable vibration and speed analyzer can provide temporary coverage during the module swap. Once the replacement 3500/50 is installed and verified, the portable unit is removed and the permanent system is restored to service. This approach protects the original program logic, maintains field control continuity, and significantly reduces the risk of a process trip during the migration window.

Post-installation, a full functional test should be conducted covering speed signal simulation across the full operating range, trip relay actuation verification, Keyphasor phase signal confirmation, and communication link validation to the connected DCS or historian. All test results should be documented in the plant’s maintenance management system (CMMS) to support future audit and reliability reviews.

Retrofit Support FAQ

Q1: Is the 3500/50 a direct drop-in replacement for earlier Bently Nevada tachometer modules?
The 3500/50 is designed for the standard 3500 Series backplane and is compatible with all current 3500 rack configurations. Replacement of older 3300 Series tachometer cards requires a rack adapter or migration to a 3500 chassis, as the backplane connector and slot dimensions differ between generations. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on the 3500/50?
Each unit undergoes functional verification including power-on self-test, input channel response testing across the specified frequency range, and relay output actuation confirmation before dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the 3500/50 communicate directly with a DCS or SCADA system?
The 3500/50 itself does not include a standalone communication port. Integration with DCS, SCADA, or historian platforms is achieved through the 3500/92 Communication Gateway Module installed in the same rack. The gateway supports Modbus RTU, Modbus TCP, and Ethernet/IP protocols, enabling seamless data exchange with most modern control platforms.

Q4: What is your stock availability and lead time?
We maintain in-stock inventory of the 3500/50 to support urgent replacement and retrofit projects. Standard orders are dispatched within 1–3 business days. For large-quantity or project-based procurement, please contact our sales team to confirm availability and arrange expedited logistics if required.
