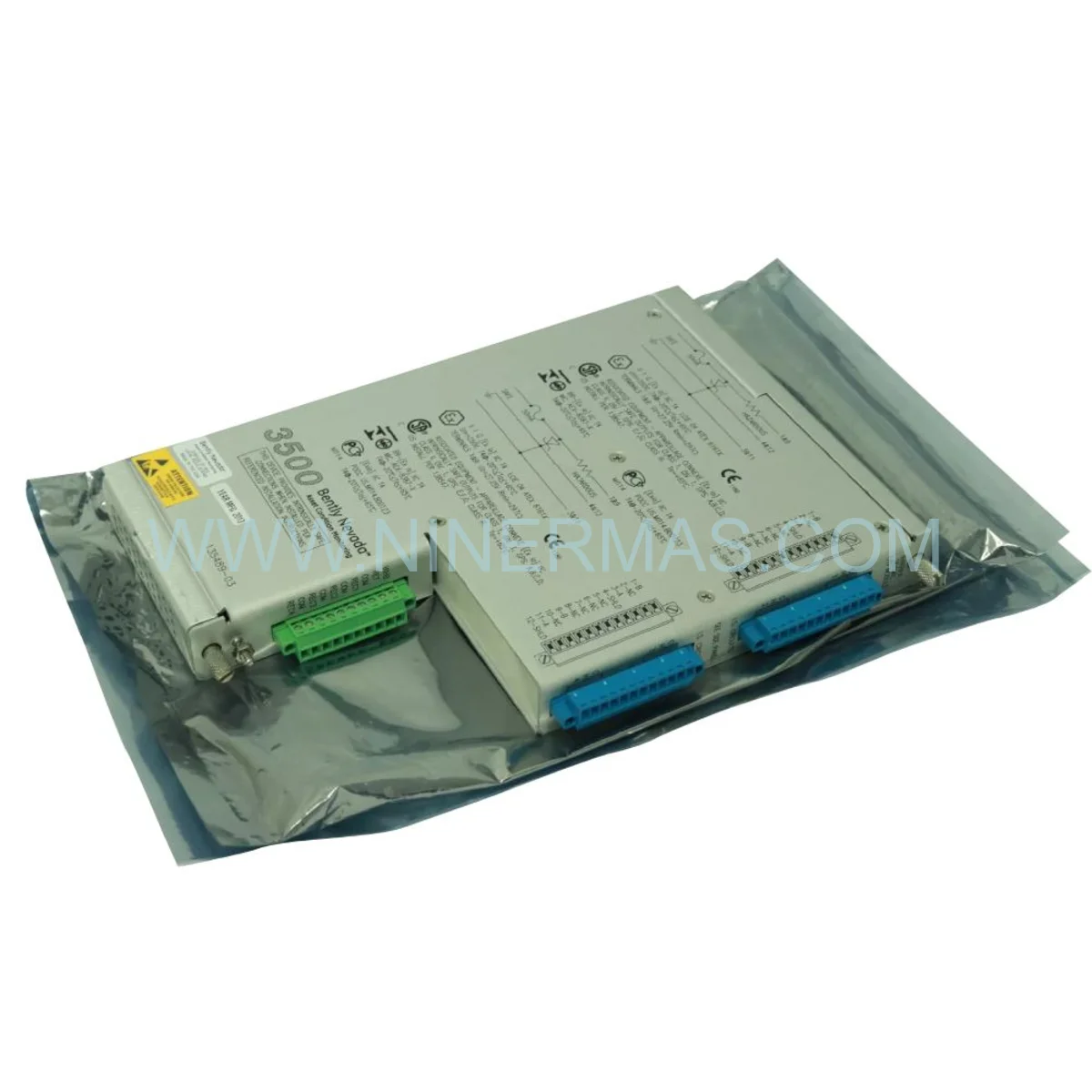

Bently Nevada 3500/04 135489-03 Intrinsic Safety Barrier I/O Module

Bently Nevada 3500/04 135489-03 | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing rotating machinery assets, the Bently Nevada 3500/04 135489-03 stands as a cornerstone I/O module within the 3500 Series condition monitoring architecture. Its primary function — delivering intrinsically safe galvanic barriers between hazardous-area transducers and safe-area monitoring electronics — directly elevates system availability by eliminating ground loop interference and preventing ignition risk in Zone 0/1 classified environments. The 3500/04 135489-03 is not merely a passive interface; it is an active reliability asset that sustains uninterrupted signal fidelity across vibration, proximity, and velocity measurement channels, enabling continuous Process Optimization without compromising personnel safety.

Durability under extreme industrial conditions is a defining characteristic of this module. Rated for operation across -30°C to +65°C (-22°F to +149°F), the 135489-03 withstands the thermal cycling, humidity fluctuations, and electromagnetic interference typical of offshore platforms, petrochemical refineries, and power generation turbine halls. During installation, engineers should verify rack slot compatibility within the 3500 Series chassis, confirm barrier terminal torque specifications per OEM documentation, and validate IS certification markings prior to energizing in classified areas. Proper cable segregation between hazardous-area and safe-area wiring is mandatory to preserve intrinsic safety integrity.

As production environments increasingly depend on legacy and end-of-life automation infrastructure, maintaining a certified spare inventory of the 3500/04 135489-03 is a non-negotiable element of any Operational Excellence strategy. Unplanned downtime caused by barrier module failure can cascade into full rack shutdowns, triggering costly production halts. Proactive sourcing of genuine OEM units ensures rapid swap-out capability and preserves system certification compliance.

Key Operational Features

Intrinsic Safety Certification — Approved for Class I, Division 1 / Zone 0 & 1 hazardous locations; maintains full IS integrity under continuous operation.
Galvanic Isolation Architecture — Eliminates ground loops and cross-channel interference, ensuring clean signal transmission for precision vibration analytics.
Hot-Swap Capability — Supports live rack insertion and removal, enabling zero-downtime module replacement during scheduled maintenance windows.
Seamless System Integration — Plug-and-play compatibility with all 3500 Series monitors; configurable via Bently Nevada Rack Configuration Software for rapid commissioning.
High Availability Design — Factory-calibrated prior to shipment; diagnostic LED indicators provide immediate fault visibility for accelerated troubleshooting.
Redundancy Support — Compatible with redundant rack configurations, reinforcing system uptime in mission-critical turbine and compressor protection applications.

Maintenance & Performance Benchmarks

The 3500/04 135489-03 is engineered to integrate across diverse industrial network architectures, from single-rack installations protecting a standalone compressor to multi-rack, plant-wide machinery health systems monitoring dozens of rotating assets simultaneously. Its standardized form factor and deterministic signal conditioning performance allow maintenance teams to establish consistent calibration baselines, simplifying periodic verification routines under API 670 and ISO 20816 frameworks.

In large-scale System Integration deployments, the module’s multi-channel barrier interface reduces wiring complexity by consolidating multiple transducer inputs within a single rack slot. This density advantage translates directly into lower installation labor costs and reduced panel footprint — a measurable contribution to Operational Excellence in greenfield and brownfield projects alike. Firmware compatibility is managed at the rack level; no module-specific firmware updates are required, eliminating version mismatch risks during system upgrades.

Benchmark data from field deployments confirms mean time between failures (MTBF) exceeding industry averages for comparable I/O Modules, attributable to Bently Nevada’s rigorous component selection and environmental stress screening protocols. Maintenance intervals align with annual machinery inspection cycles, minimizing scheduled intervention frequency.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Bently Nevada 3500/04 135489-03 unit dispatched from our facility is shipped in Original Factory Packaging, preserving OEM calibration integrity and ensuring the module arrives in field-ready condition. For time-critical plant shutdowns or emergency maintenance scenarios, same-day dispatch is available for orders confirmed before the daily cut-off, supported by express courier partnerships covering major industrial hubs across Asia, Europe, the Americas, and the Middle East.

As a specialist supplier of Automation Components for mission-critical infrastructure, we maintain dedicated inventory of EOL (End-of-Life) and legacy Bently Nevada modules — including the 135489-03 — to support plants operating long-lifecycle machinery protection systems where OEM direct supply has been discontinued. Each unit undergoes incoming inspection and documentation verification before release, providing procurement teams with full traceability for compliance audits.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 3500/04 135489-03 in a live rack?
A: Power down the transducer field circuits before inserting the module. Slide the 135489-03 into the designated rack slot until the ejector tabs engage. Reconnect field wiring to barrier terminals per the OEM wiring diagram, then verify IS barrier resistance values with a calibrated multimeter before re-energizing. Confirm LED status indicators show normal operation prior to returning the rack to service.

Q2: Does the 3500/04 135489-03 require firmware configuration?
A: No module-level firmware is required. All configuration — including barrier channel assignments, alarm setpoints, and transducer type selection — is performed at the rack level using Bently Nevada’s 3500 Rack Configuration Software (RCS). Ensure RCS version compatibility with your rack’s system software revision before making configuration changes.

Q3: Which transducer types are compatible with this barrier module?
A: The 135489-03 supports proximity probes (eddy-current), velocity sensors, and accelerometers commonly used in Bently Nevada 3500 Series vibration monitoring applications. Verify transducer impedance and drive voltage specifications against the module’s barrier parameters in the OEM technical manual before connecting non-standard sensors.

Q4: How is the 12-month warranty claim process initiated?
A: Contact our technical support team via email at sale@ninermas.com with your order reference, module serial number, and a description of the observed fault. Our engineers will conduct a remote diagnostic assessment and, where applicable, arrange advance replacement shipment to minimize your plant downtime exposure.

Q5: Can the 3500/04 135489-03 be used in non-hazardous (safe-area) installations?
A: Yes. While the module is certified and optimized for hazardous-area barrier applications, it operates fully within standard industrial environments. IS certification does not restrict deployment in non-classified zones, making it a versatile choice for mixed-classification plant architectures.

Q6: What is the typical lead time if the module is not in stock?
A: For in-stock units, same-day or next-business-day dispatch applies. For sourced or allocated units, lead times typically range from 3 to 10 business days depending on global supply chain availability. Contact our team for real-time inventory confirmation and expedited sourcing options.
