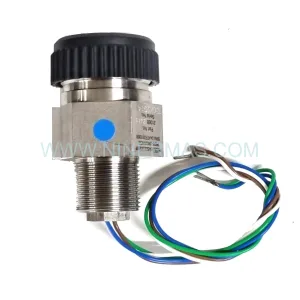

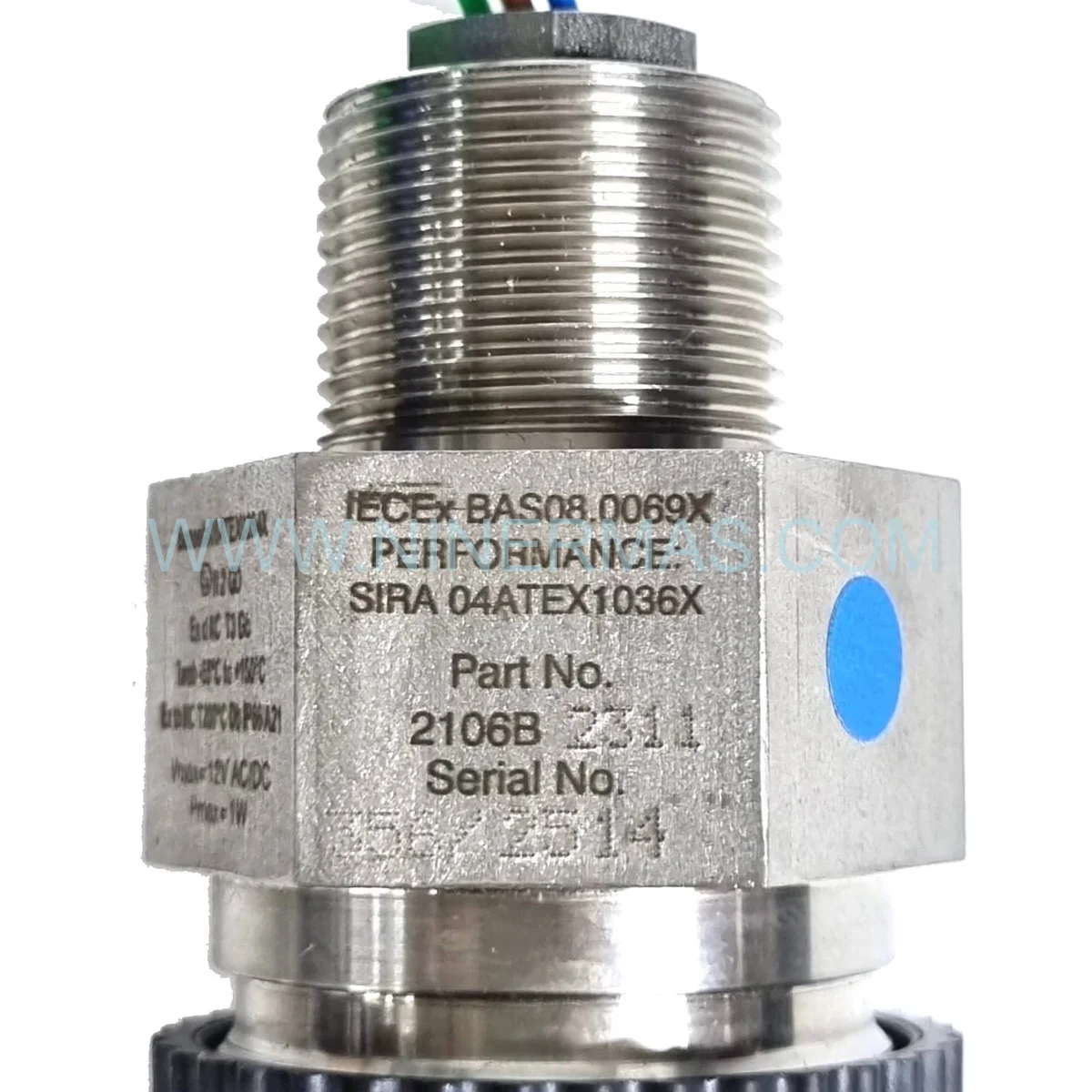

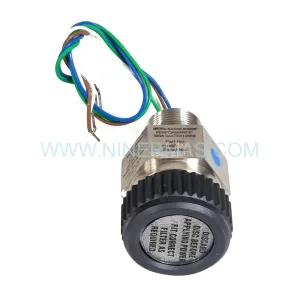

Honeywell 2106B2311 Catalytic Bead Gas Sensor (Honeywell) Original Spare Part RFQ

Honeywell 2106B2311 Catalytic Bead Gas Sensor (Honeywell) | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical process safety infrastructure, the Honeywell 2106B2311 represents a cornerstone component in maintaining system availability across hazardous industrial environments. The 2106B2311 delivers continuous 0-100% LEL flammable gas monitoring with a T90 response time under 20 seconds — a specification that directly reduces the window between leak onset and automated interlock activation, preserving both personnel safety and process uptime. Its 4-20 mA analog output integrates seamlessly into existing DCS and PLC architectures, enabling centralized alarm management without additional signal conditioning hardware.

Operational durability is a defining characteristic of the Honeywell 2106B2311. Rated for ambient temperatures from -40°C to +75°C and humidity up to 95% RH, this sensor sustains ±3% LEL accuracy across seasonal extremes that would degrade standard pellistor elements within months. Its poison-resistant catalyst formulation withstands silicone, sulfur, and halogen contamination — common in refinery and petrochemical environments — extending field service intervals to 3-5 years. During installation, ensure the sensor head faces downward at a 45° angle in heavier-than-air gas applications to optimize diffusion kinetics and minimize false-negative risk.

Maintaining a verified stock of the 2106B2311 as a critical spare is a non-negotiable element of any robust maintenance strategy. End-of-life and legacy module availability gaps routinely cause unplanned downtime exceeding 72 hours when replacement units are not pre-positioned. Sourcing original factory-packaged 2106B2311 units through a globally networked distributor eliminates this single point of failure and supports Operational Excellence across multi-site safety programs.

Key Operational Features

Mission-Critical Detection Reliability: Catalytic oxidation technology provides stable, drift-resistant measurement across the full 0-100% LEL range for methane, propane, hydrogen, butane, and pentane vapors.
High Availability Certification: ATEX II 2G Ex d IIC T6, IECEx, and CSA Class I Division 1 approvals enable direct deployment in Zone 1 hazardous locations without supplementary enclosures.
Seamless System Integration: Industry-standard 4-20 mA output interfaces directly with Honeywell Experion PKS, Siemens PCS 7, ABB 800xA, and third-party DCS/PLC platforms — zero protocol conversion required.
Redundancy-Ready Architecture: Low power draw ( 1W) supports daisy-chain multi-point loop configurations of up to 32 sensors, enabling two-out-of-three voting logic for SIL 2 safety instrumented systems.
Extended Environmental Tolerance: IP66/IP67 316 stainless steel housing resists dust ingress, water jets, and corrosive marine atmospheres — fully compliant with SOLAS and IMO offshore regulations.
Process Optimization Through Speed: Sub-20-second T90 response accelerates emergency ventilation triggering and automated shutdown sequences, reducing blast exposure risk during confined space operations.

Maintenance & Performance Benchmarks

The 2106B2311 is engineered to adapt across industrial network architectures ranging from small standalone safety panels to enterprise-scale distributed control systems with thousands of I/O points. In compact installations — such as single-building compressor stations or wastewater pump rooms — the sensor’s direct 4-20 mA output connects to a local controller without intermediate transmitters, minimizing component count and failure modes. For large-scale refinery or petrochemical complexes, the 2106B2311 integrates into addressable multi-drop loops, where up to 32 units share a single cable run, reducing field wiring costs by up to 60% versus point-to-point topologies.

Predictive maintenance integration is achievable through smart transmitter pairings that log catalyst resistance trends and temperature compensation coefficients over time. These datasets enable CMMS-driven replacement scheduling 90 days before projected performance degradation — converting reactive emergency callouts into planned, permit-controlled maintenance activities. Quarterly bump testing with NIST-traceable 50% LEL methane calibration gas, combined with annual full-span verification, maintains ±3% LEL accuracy and satisfies IEC 60079-29-2 functional safety audit requirements. The field-replaceable sensor cartridge design reduces swap time to under 5 minutes, eliminating hot-work permit requirements and minimizing production interruption during routine maintenance windows.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Honeywell 2106B2311 unit dispatched through our network ships in Original Factory Packaging with tamper-evident seals, NIST-traceable calibration certificates, and full OEM documentation — guaranteeing authenticity and eliminating counterfeit risk in safety-critical applications. For in-stock units, same-day dispatch is available on orders confirmed before 14:00 local time, with DHL Express and FedEx Priority routing to over 180 countries ensuring next-business-day delivery to major industrial hubs across North America, Europe, and Asia-Pacific.

Our global supply network specializes in EOL (End-of-Life) and Legacy Module sourcing — a critical capability for facilities operating aging Honeywell gas detection infrastructure where OEM direct supply has been discontinued. Verified stock of the 2106B2311 is maintained across regional warehouses in Asia, Europe, and the Americas, providing geographic redundancy that eliminates single-source supply chain risk. All units undergo incoming inspection including visual verification, packaging integrity check, and date-code validation before dispatch. Bulk procurement programs with volume pricing are available for MRO stocking agreements and multi-site safety system upgrades.

Engineering Support & FAQ

Q1: What are the recommended installation steps for the 2106B2311 in a Zone 1 hazardous area?
A: Mount the sensor head facing downward at 45° for heavier-than-air gases (propane, butane) or horizontally for lighter-than-air gases (methane, hydrogen). Use certified Ex d cable glands rated for the installation zone. Connect the 4-20 mA loop to the controller input card, verify 250-500Ω loop impedance, and perform a bump test with 50% LEL calibration gas before commissioning. Ensure all conduit entries are sealed with approved compound to maintain IP66/IP67 rating.

Q2: Which firmware versions and controller platforms are compatible with the 2106B2311?
A: The 2106B2311 uses universal 4-20 mA signaling and is firmware-agnostic — it is compatible with any controller platform accepting standard analog input signals, including Honeywell Searchline Excel, Sensepoint XCD, Midas, and third-party systems from MSA, Dräger, and Industrial Scientific. No firmware updates are required on the sensor itself; compatibility depends solely on the controller’s input impedance and mA range configuration.

Q3: How does the warranty claim process work for the 2106B2311?
A: The 2106B2311 carries a 12-month warranty covering manufacturing defects and catalyst performance degradation exceeding ±5% LEL drift under normal operating conditions. To initiate a claim, provide the purchase order number, installation date, site conditions summary, and calibration records. Replacement units ship within 48 hours of claim approval. Warranty excludes damage from catalyst poisoning (silicone, sulfur, halogen exposure), physical impact, or operation outside specified environmental limits.

Q4: Can the 2106B2311 be used in oxygen-deficient or inert gas purged environments?
A: No — catalytic bead sensors require a minimum of 10% ambient oxygen to sustain the oxidation reaction. In oxygen-deficient atmospheres (e.g., nitrogen-blanketed storage tanks or CO2-flooded fire suppression zones), the sensor will under-read or fail to respond. For these applications, infrared (IR) point detectors or open-path IR systems are the appropriate technology. Always verify ambient oxygen levels exceed 10% vol before relying on catalytic sensor readings.

Q5: What is the procedure for replacing the sensor cartridge in the field?
A: The 2106B2311 features a field-replaceable cartridge design. Isolate the sensor from the 24 VDC supply, unscrew the sensor head housing (no hot-work permit required for cartridge swap in most jurisdictions — verify local regulations), remove the spent cartridge, insert the pre-calibrated replacement cartridge, and reassemble. Apply power and perform a bump test to verify response. Total procedure time is under 5 minutes. Pre-calibrated replacement cartridges ship with NIST-traceable certificates, eliminating on-site calibration gas requirements.

Q6: How should the 2106B2311 be integrated into a two-out-of-three (2oo3) voting safety architecture?
A: Deploy three 2106B2311 sensors in a triangulated coverage pattern around the hazard source, each connected to independent analog input channels on the safety controller. Configure the SIS logic solver to trigger the safety function (e.g., ESD valve closure, ventilation activation) only when two of three sensors simultaneously exceed the alarm setpoint. This architecture eliminates single-sensor false trips while maintaining SIL 2 integrity per IEC 61511. Ensure each sensor loop uses dedicated cable runs to prevent common-cause wiring failures.
