Bently Nevada 330905-00-16-10-02-CN Safety-Reliable Proximity Transducer

Bently Nevada 330905-00-16-10-02-CN Safety-Reliable Proximity Transducer for Critical Control Sites

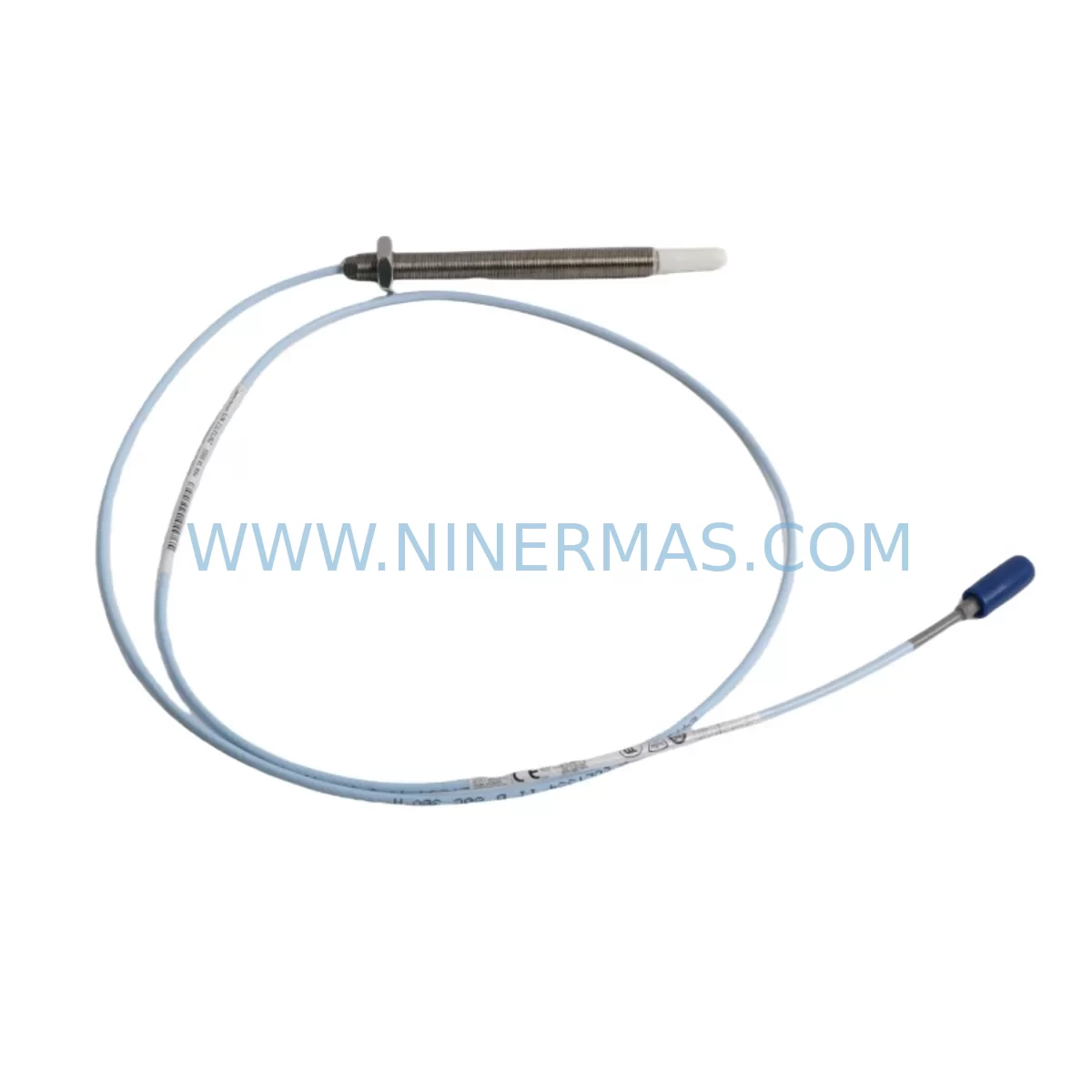

The Bently Nevada 330905-00-16-10-02-CN is a high-precision proximity transducer engineered for the most demanding industrial safety and vibration monitoring applications. As a core component of the Bently Nevada 3300 NSv Series, this transducer delivers uncompromising signal integrity and mechanical reliability in continuous production environments where control interruption is simply not an option. Whether deployed in rotating machinery protection systems, critical interlock circuits, or high-electromagnetic-interference control cabinets, the 330905-00-16-10-02-CN is built to perform where failure carries the highest consequence.

Designed for seamless integration into Bently Nevada’s 3300 Series monitoring architecture, this proximity transducer works in concert with the 3300 XL 8mm Extension Cable, the 3300 NSv Proximitor Sensor, and the 3500/42M Proximitor/Seismic Monitor module to form a complete, safety-rated vibration measurement chain. Its eddy-current sensing principle ensures non-contact, wear-free operation — eliminating mechanical degradation as a failure mode and dramatically reducing unplanned downtime risk in critical rotating equipment such as compressors, turbines, pumps, and fans.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets serving critical safety functions, every component in the measurement chain must be selected for its ability to suppress failure modes — not merely meet nominal specifications. The 330905-00-16-10-02-CN proximity transducer addresses this requirement directly by providing a stable, drift-free analog output that feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which in turn drives relay-based trip outputs and 4–20 mA process signals to the plant DCS or safety instrumented system (SIS).

Signal integrity begins at the sensor tip. The 330905-00-16-10-02-CN’s shielded coaxial construction rejects electromagnetic interference generated by variable frequency drives (VFDs), high-current bus bars, and adjacent relay coils — all common sources of signal drift and false trips in heavy industrial control panels. When paired with the 3300 XL 5-meter Extension Cable and the 3300 NSv Proximitor Sensor (mounted outside the high-temperature bearing housing), the system maintains measurement accuracy even as ambient temperatures fluctuate across the full operating range.

Power supply stability is equally critical. The 330905-00-16-10-02-CN operates from a regulated -24 VDC rail, and NINERMAS recommends pairing it with a Bently Nevada 3500/15 Power Supply module or an equivalent DIN-rail DC/DC converter with surge suppression to protect against voltage transients and power line surges common in petrochemical and mining substations. Upstream surge protection devices (SPDs) rated for the local fault current level should be installed on all field wiring entering the control cabinet to prevent transient overvoltage from propagating to the transducer’s sensitive electronics.

For applications requiring SIL-rated protection, the 330905-00-16-10-02-CN integrates naturally into a 1oo2 or 2oo3 voting architecture using dual or triple Bently Nevada 3500/42M monitor channels. This redundancy eliminates single-point-of-failure risk in the vibration protection loop, ensuring that a single sensor fault does not result in either a spurious trip or — more critically — a missed dangerous condition. The 3500/22M Transient Data Interface module can be added to the same rack to capture high-resolution waveform data during transient events, supporting root-cause analysis without interrupting the protection function.

In dusty, humid, or chemically aggressive environments such as cement plants, offshore platforms, and wastewater treatment facilities, the IP67-rated housing of the 330905-00-16-10-02-CN prevents ingress-related failures that are a leading cause of unplanned shutdowns in field-mounted instrumentation. The armored cable jacket resists mechanical abrasion from vibrating structures and rodent damage in underground cable trays, while the CN-standard connector ensures a secure, moisture-resistant termination at the Proximitor housing.

Critical Industrial Safety Applications

The Bently Nevada 330905-00-16-10-02-CN is deployed across the full spectrum of process industries where rotating machinery protection is a safety-critical function:

Petrochemical & Refining: Installed on centrifugal compressors, reactor charge pumps, and cooling tower fans in API 670-compliant machinery protection systems. The transducer’s high-temperature rating and chemical-resistant housing make it suitable for installation in classified hazardous areas where hydrocarbon vapors may be present. It works alongside the Bently Nevada 3500/40M Proximitor/Seismic Monitor to provide both radial vibration and axial position protection on critical compressor trains.

Electric Power Generation: Used on steam turbine shaft monitoring systems at thermal and combined-cycle power plants, where continuous operation is mandatory and any unplanned trip carries significant financial and grid-stability consequences. The 330905-00-16-10-02-CN provides the shaft eccentricity and differential expansion measurements that feed turbine supervisory control systems, complementing the 3500/45 Position Monitor for axial thrust protection.

Mining & Mineral Processing: Applied to SAG mill pinion bearings, slurry pump shafts, and conveyor drive gearboxes in environments characterized by extreme dust loading, high vibration, and wide temperature swings. The robust mechanical construction of the 330905-00-16-10-02-CN withstands the shock and vibration levels that rapidly degrade less ruggedized sensors, reducing the frequency of sensor replacement and the associated production interruptions.

Water & Wastewater Treatment: Monitors large vertical turbine pumps and blower shafts in municipal water infrastructure, where continuous availability is a public safety obligation. The IP67 rating ensures reliable operation in the wet, corrosive atmospheres typical of pump stations and aeration basins.

Metallurgy & Steel: Deployed on rolling mill drive motors, continuous caster pinch rolls, and blast furnace blower trains, where high ambient temperatures and intense electromagnetic fields from large DC drives challenge conventional instrumentation. The 330905-00-16-10-02-CN’s EMI rejection capability maintains measurement accuracy in these electrically hostile environments.

Port & Marine: Used on ship propulsion shaft monitoring systems and port crane hoist motor bearings, where saltwater corrosion and vessel motion create a uniquely challenging operating environment for precision instrumentation.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the 330905-00-16-10-02-CN?
All Bently Nevada 330905-00-16-10-02-CN units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement units dispatched from our in-stock inventory to minimize your equipment downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330905-00-16-10-02-CN transducer undergoes functional verification prior to shipment, including output voltage linearity checks across the full sensing range and insulation resistance testing on the coaxial cable assembly. Units that do not meet Bently Nevada’s original performance specifications are quarantined and not shipped. A test report is available upon request for critical spare applications.

Q3: Is the 330905-00-16-10-02-CN compatible with existing 3300 and 3500 Series installations?
Yes. The 330905-00-16-10-02-CN is fully compatible with the Bently Nevada 3300 NSv Proximitor Sensor and the complete 3500 Series rack-based monitoring system, including the 3500/42M, 3500/40M, and 3500/45 monitor modules. It is a direct replacement for worn or failed transducers in existing installations without requiring recalibration of the monitoring system, provided the gap voltage is set correctly during installation.

Q4: Can NINERMAS support long-term supply for ongoing maintenance programs?
NINERMAS maintains dedicated inventory of the 330905-00-16-10-02-CN and related 3300 NSv Series components to support planned maintenance schedules, annual turnaround spare kits, and emergency replacement requirements. We supply to petrochemical, power, mining, and manufacturing customers across Asia-Pacific and globally, with export documentation and customs support available for international shipments.
