Bently Nevada 330881-28-06-105-00-02 Service-Ready Spare Part

Bently Nevada 330881-28-06-105-00-02 Service-Ready Spare Part for Industrial Maintenance

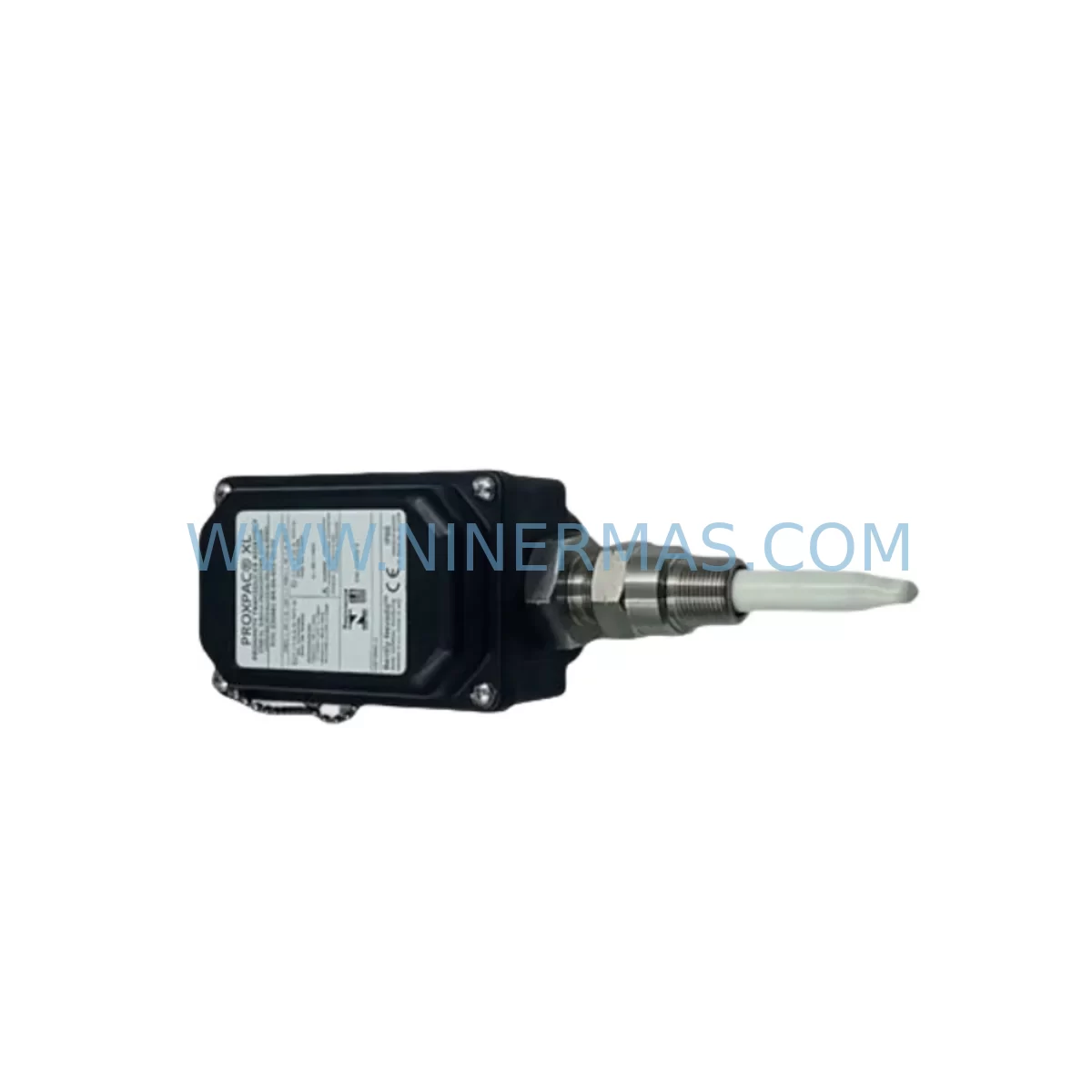

The Bently Nevada 330881-28-06-105-00-02 is a service-ready proximity transducer designed for continuous vibration monitoring in critical rotating machinery applications. As part of the PROXPAC XL series, this component delivers reliable non-contact measurement of shaft displacement, radial vibration, and axial position — making it an essential spare for any maintenance team responsible for turbines, compressors, pumps, and motors operating under API 670 protection standards.

For maintenance engineers managing aging control systems, sourcing a verified original replacement for the 330881-28-06-105-00-02 is a direct path to minimizing unplanned downtime. This unit ships tested and ready for immediate installation, backed by a 12-month warranty and long-term supply support from NINERMAS COMPANY LIMITED.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330881-28-06-105-00-02 proximity transducer in the field, a thorough inspection of the surrounding measurement chain is critical to restoring full system integrity and preventing repeat failures. Maintenance engineers should treat this replacement as an opportunity to audit the entire vibration monitoring loop.

Begin by verifying the condition of the 330130-080-00-05 extension cable — the matched cable between the probe and driver is a wear item that degrades with heat cycling and mechanical vibration. A mismatched or aged cable will introduce gap voltage errors even with a new probe installed. Next, inspect the 330180-X1-05 proximitor / driver module seated in the 3300 XL or 3500 rack; driver output drift is a common root cause of false vibration alarms that leads to unnecessary probe replacements.

Within the 3500 rack system, check the 3500/42M Proximitor / Seismic Monitor card for firmware version compatibility and confirm that channel configuration matches the new probe’s sensitivity (typically 7.87 V/mm or 200 mV/mil). If the rack includes a 3500/20 Rack Interface Module (RIM), verify that Modbus or Ethernet communication to the DCS or SCADA layer is intact after the card swap.

For plants running older 3300 Series infrastructure, the 3300/16 Dual Proximitor Monitor should be inspected for relay output integrity — particularly the danger and alert relay contacts that feed into the emergency shutdown (ESD) logic. Faulty relay contacts in this module can mask a genuine high-vibration trip condition.

Procurement engineers building annual spare parts kits for rotating machinery should also stock the 3500/15 Power Supply Module as a fast-swap spare; power supply degradation is a leading cause of intermittent monitor faults that are often misdiagnosed as transducer failures. Similarly, the 3500/92 Communication Gateway Module supports plant-wide condition monitoring integration and should be included in any long-term spares strategy for 3500 Series racks.

For sites with mixed instrumentation, consider stocking the 330103-00-08-10-02-00 proximity probe as a cross-compatible spare alongside the 330881 series, covering a broader range of shaft diameters and gap ranges within the same API 670 framework. Terminal blocks, barrier strips, and IS (intrinsically safe) Zener barriers associated with the transducer wiring should also be inspected and replaced on a scheduled basis to maintain hazardous area certification compliance.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Notify the control room to bypass the vibration channel before probe removal to prevent a spurious trip during replacement.

Step 2 — Gap Measurement: Using a digital multimeter, measure the driver output voltage with the new 330881-28-06-105-00-02 probe installed. Adjust the probe gap to achieve the nominal -10.0 VDC output (±0.5 V) per Bently Nevada calibration procedure.

Step 3 — Cable Routing Inspection: Inspect the full cable run from probe tip to driver for chafing, connector corrosion, or heat damage. Replace the extension cable if resistance or insulation readings are outside specification.

Step 4 — Driver Reconfiguration: Confirm driver sensitivity setting matches the probe. For PROXPAC XL configurations, the driver and probe are factory-matched — always replace as a set when possible to maintain calibration traceability.

Step 5 — System Verification: After installation, perform a slow-roll vibration check and compare readings against the historical baseline. Confirm alarm and danger setpoints are active before returning the machine to service.

This workflow reduces mean time to repair (MTTR) and ensures the replacement does not introduce new measurement uncertainty into the protection system — a critical consideration for API 670-compliant machinery trains.

Spare Parts Support FAQ

Q: Is the 330881-28-06-105-00-02 compatible with both 3300 XL and 3500 Series monitors?
A: Yes. The PROXPAC XL series is designed for compatibility with Bently Nevada 3300 XL and 3500 Series rack monitors. Always verify the driver sensitivity setting (7.87 V/mm) matches your monitor card configuration before installation.

Q: How is the unit tested before shipment?
A: Each 330881-28-06-105-00-02 unit is bench-tested for output linearity, gap voltage, and insulation resistance prior to packaging. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q: Can NINERMAS supply this part on a long-term or blanket order basis?
A: Yes. NINERMAS COMPANY LIMITED supports long-term supply agreements for critical spare parts including the 330881 series. Contact our team to discuss inventory reservation, lead time commitments, and multi-unit pricing for annual maintenance programs.

Q: What should I do if the replacement probe does not resolve the vibration alarm?
A: If the alarm persists after installing a new 330881-28-06-105-00-02, the fault is likely upstream in the measurement chain — check the extension cable continuity, driver output voltage, and monitor card channel configuration. Also verify that the machine itself does not have a genuine mechanical fault masked by a previous transducer failure.
