Bently Nevada 330881-16-00-262-06-02 Retrofit Transducer

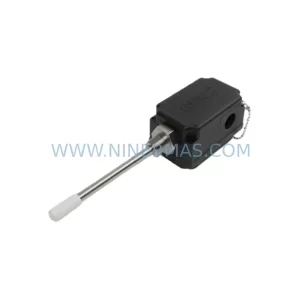

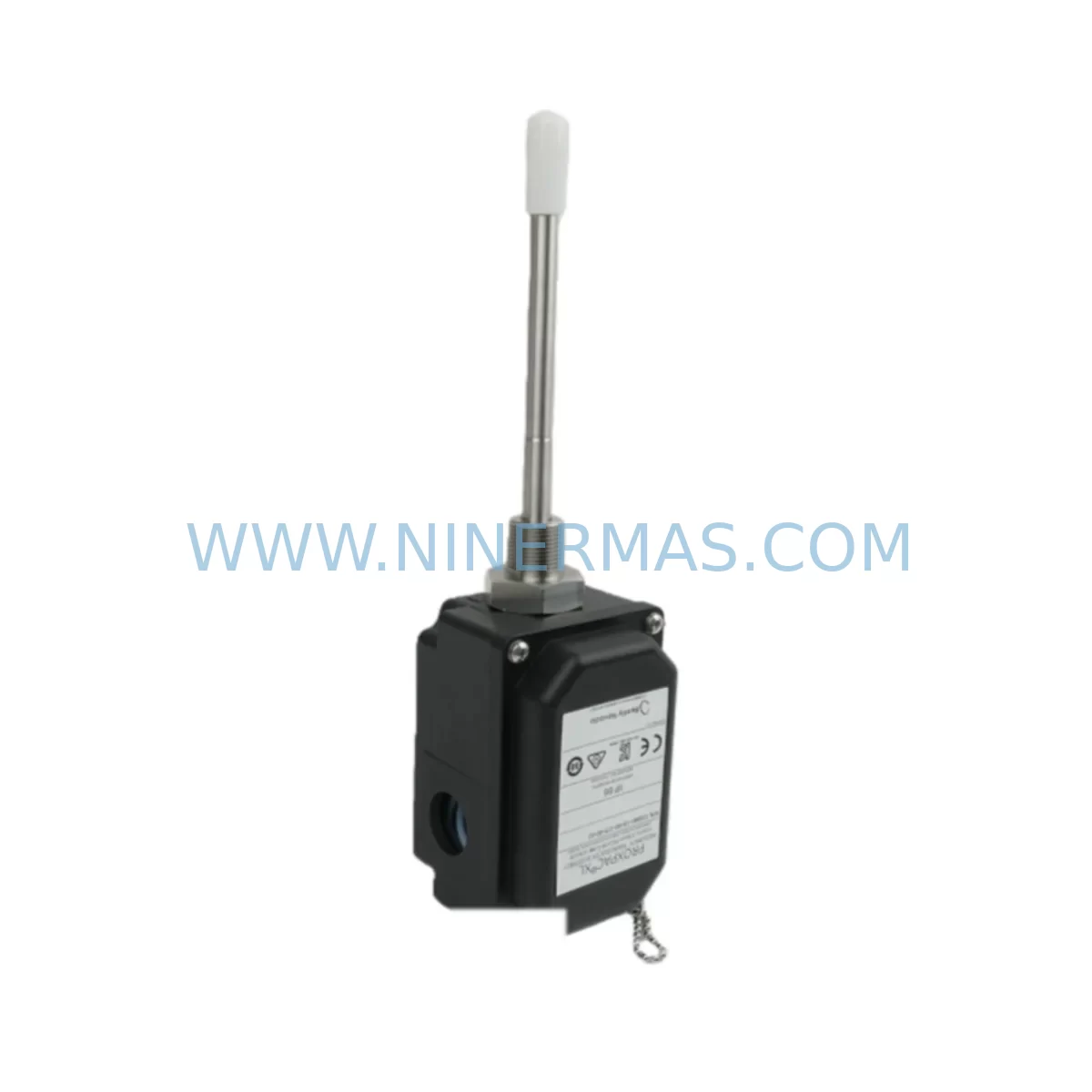

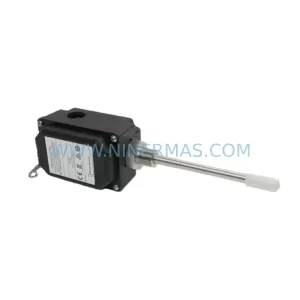

Bently Nevada 330881-16-00-262-06-02 Retrofit-Compatible Proximity Transducer for Legacy 3300 XL Systems

The Bently Nevada 330881-16-00-262-06-02 is a retrofit-compatible proximity transducer engineered for seamless integration into existing 3300 XL Series vibration monitoring platforms. As legacy Bently Nevada systems age and original spare parts become increasingly difficult to source, this unit provides a verified drop-in replacement path that preserves your existing wiring infrastructure, rack architecture, and monitoring logic — minimizing engineering rework and unplanned downtime during system migration or emergency spare replacement.

Whether you are managing a planned control cabinet upgrade, responding to a discontinued-part shortage, or executing a phased modernization of your rotating machinery protection system, the 330881-16-00-262-06-02 is designed to restore full monitoring capability without requiring a full platform overhaul. Its compatibility with the 3300 XL Series backplane and signal conditioning architecture makes it a preferred choice for maintenance engineers and reliability teams operating in petrochemical, power generation, compressor, and turbine monitoring environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330881-16-00-262-06-02 into a legacy vibration monitoring system requires a structured pre-installation review. Before removing the existing transducer assembly, maintenance teams should document the current gap voltage reading, proximitor output signal level, and the OK relay status on the associated 3300 XL monitor card — such as the 3300/16 or 3300/20 dual-channel monitor — to establish a baseline for post-installation verification.

The extension cable connecting the probe to the proximitor driver is a critical component in the signal chain. When replacing the 330881-16-00-262-06-02, it is strongly recommended to inspect or simultaneously replace the matched extension cable (e.g., 330130-series or 330140-series cables) and the proximitor driver (e.g., 3300 XL 8mm proximitor, part 330180-series) to ensure the entire eddy current system is calibrated as a matched set. Mismatched probe-cable-driver combinations are a leading cause of gap voltage drift and false OK relay trips after replacement.

Within the control cabinet, verify that the 3300 XL rack power supply — typically a 3300/05 or equivalent — is delivering stable voltage within specification before installing the new transducer assembly. Power supply degradation in aging racks is common and can mask transducer faults or cause intermittent monitor alarms. If the rack hosts additional I/O modules such as 3500/40M proximitor I/O modules or 3500/42M Proximitor/Seismic Monitor modules from the newer 3500 Series platform, confirm that the signal routing and rack addressing are not affected by the transducer swap.

For facilities that have partially migrated to the Bently Nevada 3500 Series platform, the 330881-16-00-262-06-02 can serve as a bridging component, maintaining 3300 XL monitoring on non-migrated machinery while the broader system upgrade proceeds in phases. This approach allows engineering teams to avoid a full cutover outage and instead execute a rolling replacement strategy machine by machine. During this period, ensure that the plant DCS or SCADA system — which may be receiving analog 4–20 mA or direct voltage signals from both 3300 XL and 3500 Series monitors — is configured to handle both signal types without alarming on range mismatches.

If the facility uses a System 1 condition monitoring software platform for data trending and alarm management, confirm that the transducer channel configuration in System 1 reflects the new probe sensitivity (typically 7.87 V/mm or 200 mV/mil for standard 8mm probes) after replacement. Incorrect sensitivity settings in the software will result in erroneous vibration amplitude readings even if the hardware installation is correct.

For installations involving hazardous area classification, verify that the replacement 330881-16-00-262-06-02 assembly carries the appropriate ATEX or IECEx certification for the installation zone, and that the associated zener barrier or galvanic isolator in the control cabinet is rated for the transducer’s input parameters. Signal isolators in the loop should be inspected for drift, as aged isolators can introduce offset errors that affect vibration baseline readings.

Downtime Control During System Migration

Minimizing production downtime during a proximity transducer replacement on a running machine train requires careful coordination between the maintenance, reliability, and operations teams. The 330881-16-00-262-06-02 replacement procedure should be planned during a scheduled maintenance window whenever possible, with a pre-staged spare unit that has been inspected and verified prior to the outage.

Before the cutover, back up the existing monitor card configuration using the Bently Nevada System 1 software or the 3300 XL rack configuration utility. This preserves alarm setpoints, danger levels, time delays, and OK relay logic so that the monitor can be restored to its previous state immediately after the transducer is replaced and the gap voltage is set. Avoid relying on paper records alone — configuration drift between documented setpoints and actual programmed values is common in systems that have been in service for more than five years.

During the physical swap, maintain continuity of the machine protection function by confirming with the operations team whether the monitor’s danger output should be inhibited during the replacement. On critical machinery such as compressors or steam turbines, the danger relay may be wired into the machine trip circuit, and an uninhibited transducer swap could trigger an unplanned shutdown. Use the monitor card’s front-panel inhibit function or the System 1 software inhibit command to temporarily suppress the danger output during the gap-setting procedure.

After installation, perform a systematic commissioning check: confirm gap voltage is within the linear range (typically -10 to -18 VDC for 8mm probes), verify the OK relay has energized, check the vibration signal for noise or DC offset anomalies, and confirm that the System 1 trend data is updating correctly. Document the as-left gap voltage and signal level for future reference. Total replacement time for a prepared team with a pre-staged 330881-16-00-262-06-02 unit is typically under two hours for a single transducer position, supporting tight maintenance window management.

Retrofit Support FAQ

Q1: Is the 330881-16-00-262-06-02 a direct replacement for the original Bently Nevada part, and will it work with my existing 3300 XL monitor card?
A: Yes. The 330881-16-00-262-06-02 is designed as a retrofit-compatible replacement for the original Bently Nevada part of the same SKU. It is compatible with standard 3300 XL Series monitor cards. As with any transducer replacement, gap voltage must be set and verified at commissioning to ensure the monitor card’s OK relay operates correctly.

Q2: Do I need to replace the extension cable and proximitor driver at the same time?
A: It is strongly recommended to replace the probe, extension cable, and proximitor driver as a matched set whenever possible, as the eddy current system is calibrated as an assembly. If only the probe is being replaced, verify that the existing extension cable and proximitor driver are within specification and have not degraded, as mismatched components can cause gap voltage errors and false alarms.

Q3: What wiring changes are required when installing the 330881-16-00-262-06-02 in an existing cabinet?
A: In most cases, no wiring changes are required. The 330881-16-00-262-06-02 uses the standard Bently Nevada terminal and connector configuration for the 3300 XL Series. Verify cable shield grounding continuity and inspect terminal connections for corrosion before reinstalling. If the installation is in a hazardous area, confirm that the existing zener barrier or galvanic isolator is rated for the transducer’s input parameters.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
A: All units are subject to pre-shipment functional testing to verify output signal integrity and OK relay operation before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units are available from stock for fast dispatch, supporting urgent spare part requirements and planned maintenance schedules alike. Contact our team for lead time confirmation and availability.
