Bently Nevada 330800-28-00-085-03-02 Service-Ready Spare Part

Bently Nevada 330800-28-00-085-03-02 Service-Ready Spare Part for Industrial Maintenance

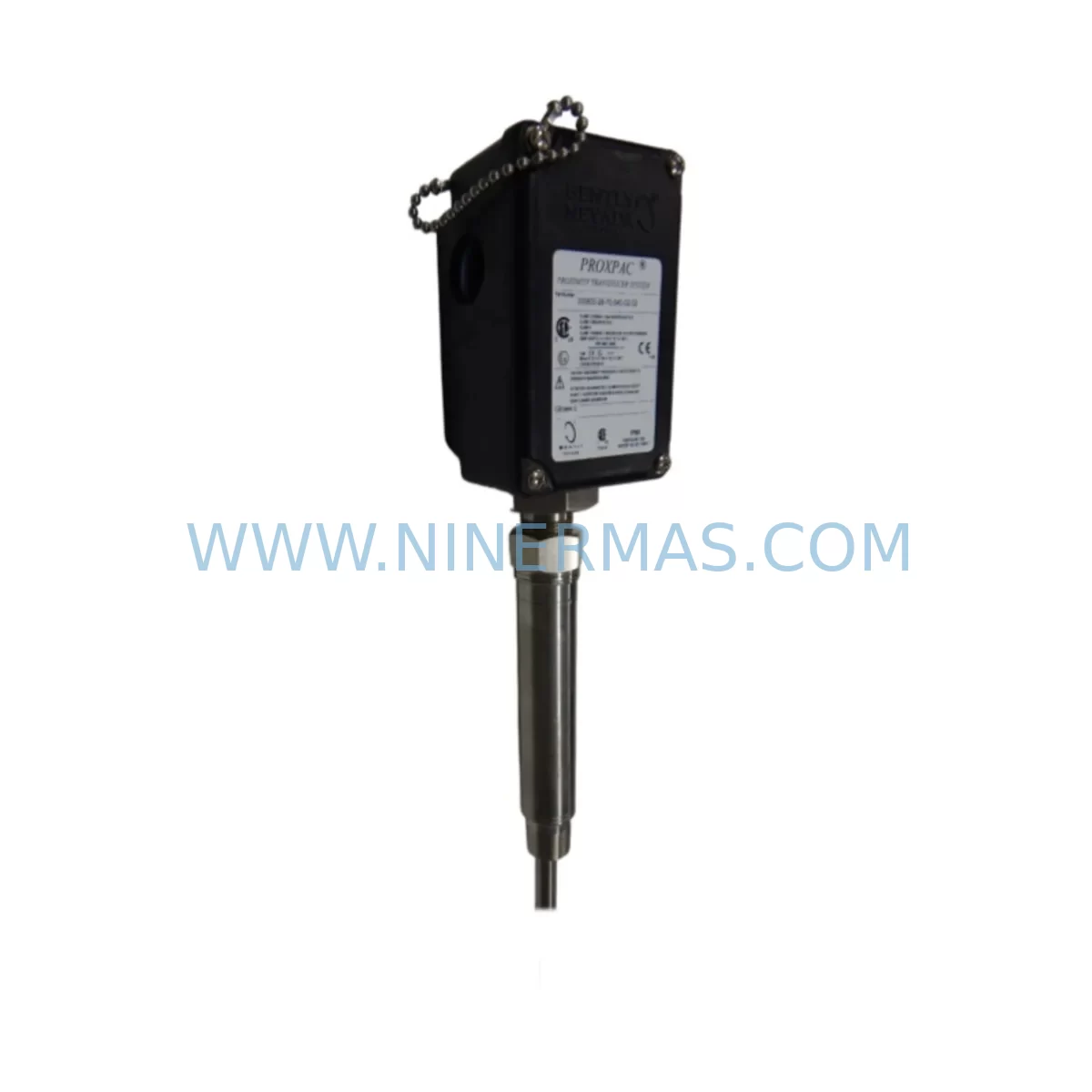

The Bently Nevada 330800-28-00-085-03-02 Ruggedized Proximity Module is a critical original spare part designed for continuous vibration monitoring in demanding industrial environments. Whether you are managing a scheduled annual overhaul, responding to an unplanned shutdown, or building a proactive spare parts inventory for your rotating machinery protection system, this module delivers the reliability and compatibility that maintenance engineers and procurement teams depend on. Sourced as an original Bently Nevada component, the 330800-28-00-085-03-02 integrates directly into the 3300 Series monitoring system architecture without requiring firmware reconfiguration or signal recalibration, minimizing downtime and restoring production continuity as quickly as possible.

For facilities operating turbines, compressors, pumps, or other critical rotating assets, the proximity module is the front-line sensing element that feeds real-time shaft displacement data to the monitoring rack. A failed or degraded 330800-28-00-085-03-02 can trigger false alarms, mask genuine fault conditions, or cause a complete loss of protection coverage — all scenarios that carry significant operational and safety risk. Keeping a verified, tested replacement unit on the shelf is not optional for high-availability plants; it is a fundamental element of any credible maintenance strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer replaces the 330800-28-00-085-03-02 in the field, the replacement procedure should never be treated in isolation. The proximity module operates as part of an integrated measurement chain, and the condition of every upstream and downstream component directly affects the accuracy and reliability of the restored system. Before returning the monitoring loop to service, technicians should inspect the companion Bently Nevada 330130-080-00-05 extension cable for insulation damage, connector corrosion, or impedance drift that could introduce signal error. The 330180-91-05 proximitor or equivalent driver electronics should be verified for correct bias voltage output, typically between -18 VDC and -24 VDC, to confirm the driver has not been damaged by the same fault event that caused the module failure.

At the rack level, the 3300/16 or 3500/42M monitor card that receives the proximity signal should be checked for alarm setpoint integrity and channel configuration. If the plant uses a 3500 Series protection rack, the 3500/20 rack interface module and the 3500/92 communication gateway should be confirmed operational, particularly if the fault event involved a power transient. The 3500/15 power supply module within the rack is a common wear item that should be included in any corrective maintenance checklist — an unstable rack power supply can cause intermittent proximity channel faults that are easily misdiagnosed as sensor failures.

For facilities with Keyphasor-based phase reference systems, the 330980-28-00-100-02-05 Keyphasor module installed in the same cabinet should be inspected alongside the proximity replacement to ensure phase reference signals remain synchronized. Terminal blocks, shielded signal cables, and cable gland seals within the junction box should be torqued to specification and checked for moisture ingress, especially in outdoor or coastal installations where the ruggedized rating of the 330800-28-00-085-03-02 is most critical. Procurement teams building annual spare parts lists for 3300 or 3500 Series installations should consider stocking at least one spare proximitor driver, one rack power supply module, and one communication interface card alongside each proximity module to cover the most statistically likely failure combinations in a single shutdown event.

Site Replacement Workflow

Replacing the 330800-28-00-085-03-02 on an operating plant follows a structured sequence to minimize exposure time and avoid introducing new faults during the intervention. Begin by placing the affected monitoring channel in bypass mode at the 3500 or 3300 rack to prevent spurious trips during disconnection. Document the existing gap voltage reading before removing the old module — this baseline value, typically between -10 VDC and -18 VDC depending on probe-to-target gap, will serve as the acceptance criterion for the replacement unit after installation.

Remove the old 330800-28-00-085-03-02 by disconnecting the extension cable at the proximitor end and unscrewing the module from its mounting. Inspect the probe tip for wear, pitting, or contamination, and clean the target area on the shaft if accessible. Install the replacement module, reconnect the extension cable, and verify the gap voltage falls within the original documented range. If the gap voltage is outside tolerance, adjust the probe gap mechanically before proceeding. Once gap voltage is confirmed, remove the channel bypass, verify alarm and danger setpoints are active, and document the completed replacement in the equipment maintenance record. This workflow applies equally to emergency replacements during unplanned outages and to planned swap-outs during scheduled turnarounds, and it ensures that the restored monitoring channel meets the original design intent without requiring a full system recalibration.

Spare Parts Support FAQ

Q: Is the 330800-28-00-085-03-02 a direct drop-in replacement for earlier 330800 series variants?
A: Yes. The 330800-28-00-085-03-02 is designed as a direct mechanical and electrical replacement within the 330800 series family. The ruggedized designation indicates an extended environmental rating; the electrical interface, connector type, and signal output are compatible with standard 3300 and 3500 Series monitoring infrastructure. Always verify the gap voltage after installation to confirm correct operation in your specific installation geometry.

Q: What pre-shipment testing is performed on this spare part?
A: Every 330800-28-00-085-03-02 unit is functionally tested before shipment to verify bias voltage output, signal linearity, and connector integrity. Units are inspected for physical damage, corrosion, and labeling accuracy. A 12-month warranty covers defects in materials and workmanship from the date of shipment, providing procurement teams with confidence in long-term supply reliability.

Q: How should this module be stored if purchased for inventory rather than immediate installation?
A: Store the 330800-28-00-085-03-02 in its original packaging in a dry, temperature-controlled environment between -20°C and +70°C, away from strong electromagnetic fields and corrosive atmospheres. Inspect the unit annually for connector oxidation and packaging integrity. Properly stored proximity modules maintain full functional specification for five or more years, making them suitable for long-term critical spare inventories.

Q: Can NINERMAS support long-term supply of the 330800-28-00-085-03-02 for multi-year maintenance contracts?
A: Yes. NINERMAS maintains sourcing relationships that support ongoing supply of 330800 series components for facilities with multi-year maintenance agreements or large installed bases of Bently Nevada monitoring equipment. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, and lead time commitments tailored to your plant’s maintenance schedule.
