Bently Nevada 330709-000-080-10-02-00 Retrofit Proximity Probe

Bently Nevada 330709-000-080-10-02-00 Retrofit-Compatible Safety Proximity Probe for Legacy Systems

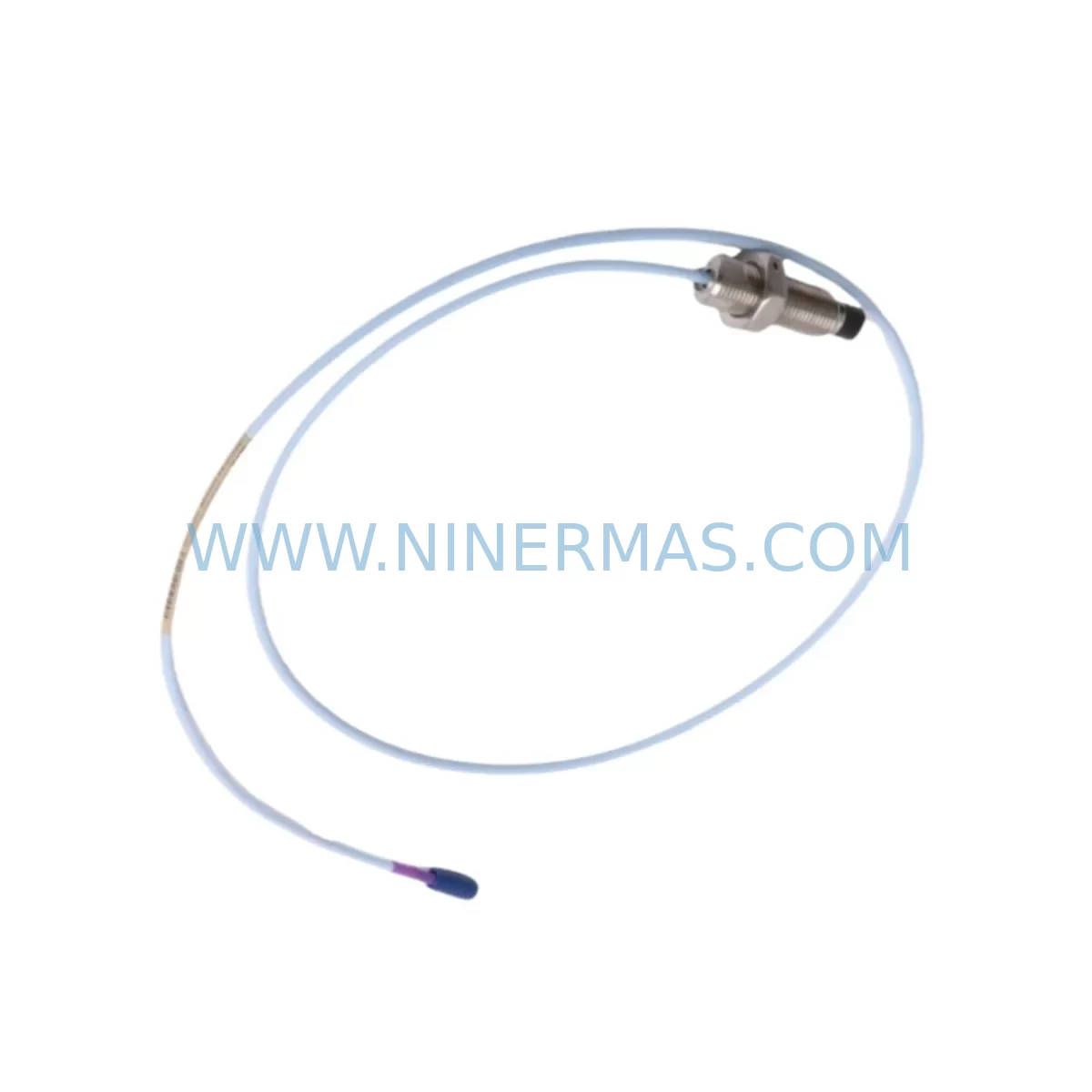

The Bently Nevada 330709-000-080-10-02-00 is a safety-rated eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy Bently Nevada 3300 series installations approach end-of-service milestones, this SKU has become a critical retrofit and replacement component for plant engineers managing aging turbine control panels, compressor monitoring racks, and generator protection systems. Whether you are executing a like-for-like spare-part replacement or planning a phased migration to a newer monitoring platform, the 330709-000-080-10-02-00 provides a proven, drop-in-compatible solution that minimises engineering rework and unplanned downtime.

Designed to interface directly with Bently Nevada 3300 XL series proximitor/seismic monitors, this probe maintains the standard 8 mm tip diameter, 5-metre integral cable, and –24 VDC bias voltage specification that field technicians have relied upon for decades. Its stainless-steel housing and oil-mist-resistant connector make it suitable for installation in bearing housings, thrust-collar measurement points, and differential-expansion measurement brackets across petrochemical, power generation, and heavy industrial environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the probe arrives on site. When integrating the 330709-000-080-10-02-00 into an existing machinery protection system, engineers should start by auditing the full monitoring loop: from the probe tip, through the Bently Nevada 330130-080-00-00 extension cable, into the 3300 XL proximitor monitor housed in the rack, and finally to the analogue input card of the plant DCS or safety PLC. Each link in this chain must be verified for continuity, correct bias voltage, and signal scaling before the machine is returned to service.

Power supply integrity is a frequent oversight during probe replacement. The Bently Nevada 3300 series power supply module must deliver a stable –24 VDC rail; a degraded supply will shift the probe’s operating point and trigger false alerts. If the power module is original equipment from the 1990s or early 2000s, this is an opportune moment to replace it alongside the probe. Similarly, inspect the 3300 XL I/O module terminal blocks for corrosion or loose ferrules — re-terminating field wiring with correctly sized bootlace ferrules eliminates a common source of intermittent faults after probe replacement.

For plants migrating from older Bently Nevada 7200 series or 9000 series monitors to the current 3500 series platform, the 330709-000-080-10-02-00 probe remains compatible when paired with the appropriate 3500/42M proximitor monitor and a recalibrated gap voltage. The Bently Nevada 3500 rack accepts the same probe and extension cable assembly, but the monitor card’s OK setpoint and gap voltage window must be re-entered via the Rack Configuration Software (RCS) before commissioning. If the plant HMI displays vibration trends from a System 1 Condition Monitoring server, the channel tag mapping should be confirmed so that historical baseline data is preserved after the hardware swap.

In control cabinet upgrades where space is constrained, confirm that the new probe’s integral cable routing does not create a bend radius tighter than 50 mm, as this can degrade the coaxial cable’s characteristic impedance and introduce measurement error. Where the original probe was mounted in a high-temperature zone adjacent to exhaust ducting, verify that the probe body temperature does not exceed the rated 177 °C (350 °F) limit. If thermal exposure is a concern, a high-temperature proximity probe extension or ceramic-sleeved cable assembly should be considered as part of the retrofit bill of materials.

Plants operating Modbus RTU or PROFIBUS DP communication links between the 3500 rack and the control room DCS should audit the gateway configuration after any monitor card replacement. The Bently Nevada 3500/92 communication gateway retains its node address and baud-rate settings through a power cycle, but a firmware update performed during the retrofit window may reset these parameters. Coordinate with the DCS team to confirm that the gateway’s register map still aligns with the historian and alarm management system before re-energising the rack.

Downtime Control During System Migration

Minimising production loss during a proximity probe replacement requires a structured pre-outage preparation plan. Begin by staging all replacement components — probe, extension cable, and any terminal block hardware — at least 48 hours before the planned outage window. Confirm that the replacement 330709-000-080-10-02-00 has passed outgoing functional testing (bias voltage, sensitivity, and OK status verification) before it leaves the warehouse.

During the outage, follow a defined sequence: isolate the monitor channel, remove the old probe, clean the probe boss threads, install the new probe to the correct gap (typically 1.0 mm ± 0.1 mm for most shaft materials), re-terminate the extension cable at the junction box, and restore power to the monitor. Use a calibrated gap-setting tool or a digital depth gauge rather than relying on the technician’s tactile judgement — an incorrect gap is the single most common cause of a failed post-installation OK check.

Before restarting the machine, perform a static OK verification: with the shaft stationary, confirm that the monitor channel displays a gap voltage within the OK window (typically –10 VDC to –18 VDC for a 3300 XL system). Document the as-left gap voltage and compare it against the as-found value from the previous probe. If the values differ by more than 0.5 VDC, investigate the cause before proceeding. Once the machine is at running speed, verify that the vibration reading is within the expected baseline range and that no spurious alerts are active on the 3500 rack or the plant DCS. This structured commissioning sequence protects the original program logic, preserves alarm setpoints, and ensures that the control room team retains full visibility of machine condition throughout the migration.

Retrofit Support FAQ

Q1: Is the 330709-000-080-10-02-00 a direct replacement for discontinued Bently Nevada proximity probe variants?
Yes. The 330709-000-080-10-02-00 is a current-production replacement for several discontinued 330709 sub-variants. It maintains the same tip diameter, sensitivity, and connector specification, making it a drop-in replacement in most 3300 XL and 3500 series monitoring loops. Cross-reference the original probe’s cable length and thread specification before ordering to confirm suitability.

Q2: What wiring and termination checks are required before commissioning?
Verify continuity and insulation resistance on the extension cable, confirm correct polarity at the proximitor terminal block, and check that the shield drain wire is grounded at one end only (typically at the monitor end). Re-torque all terminal screws to the manufacturer’s specification and inspect for any signs of moisture ingress at the junction box before restoring power.

Q3: How do I confirm compatibility with my existing 3300 or 3500 series monitor?
The 330709-000-080-10-02-00 is compatible with all standard Bently Nevada 3300 XL proximitor monitors and 3500/42M proximitor monitor cards. For 3500 series installations, confirm the monitor card’s configured gap voltage window and OK setpoint in the Rack Configuration Software. If migrating from a 7200 or 9000 series system, a full recalibration of the monitor channel is required.
