Bently Nevada 330701-00-30-10-02-05 3300 XL Retrofit

Bently Nevada 330701-00-30-10-02-05 3300 XL Retrofit: Legacy-Compatible Proximity Transducer Upgrade

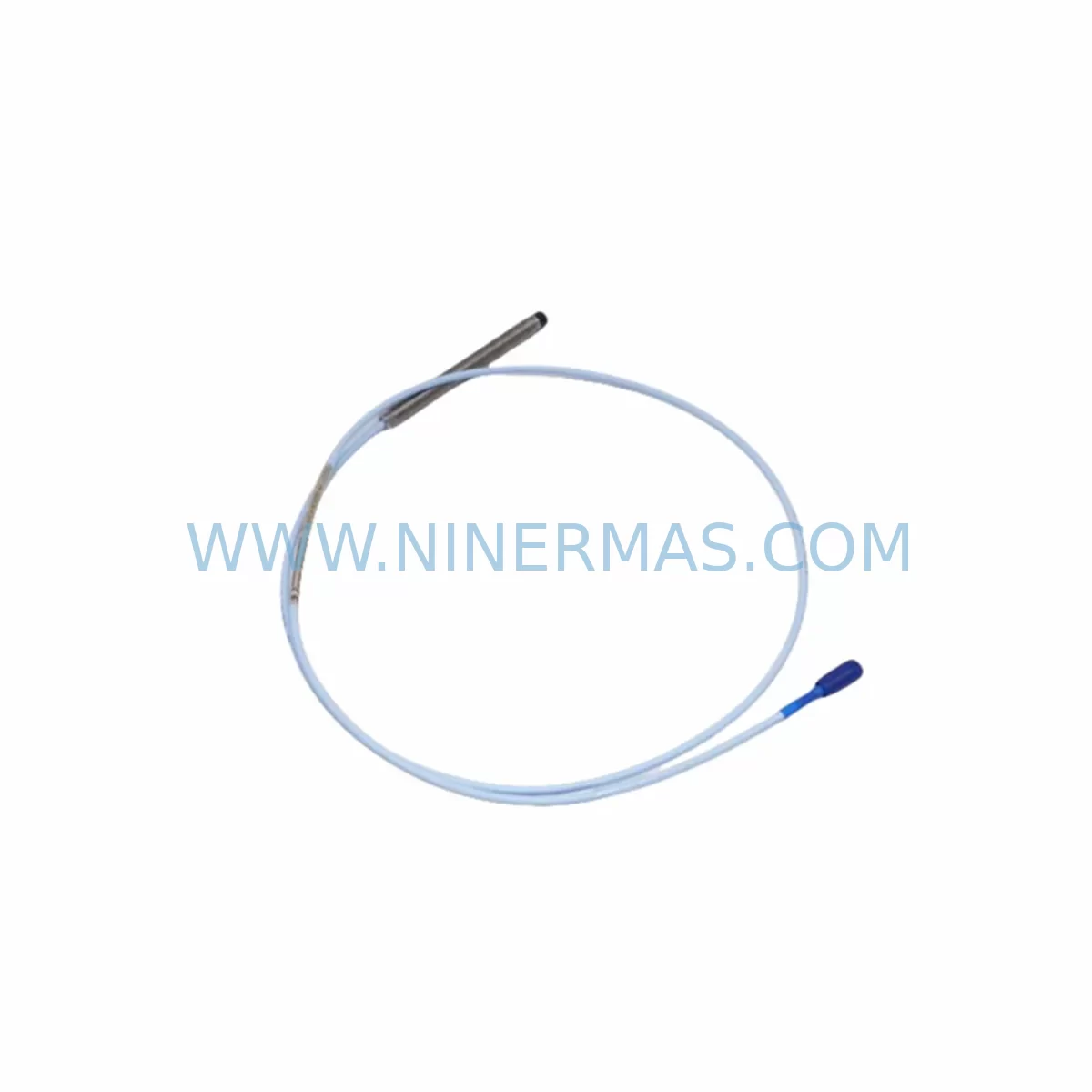

The Bently Nevada 330701-00-30-10-02-05 is a retrofit-compatible proximity transducer system module engineered for seamless integration into existing Bently Nevada 3300 XL Series machinery protection platforms. As legacy 3300 XL components reach end-of-life and OEM support is discontinued, plant engineers and reliability teams face mounting pressure to source verified drop-in replacements that preserve original system architecture without triggering full-platform migrations. This unit addresses that challenge directly — delivering electrical and mechanical compatibility with the 3300 XL rack infrastructure, validated signal output characteristics, and a 12-month warranty backed by NINERMAS COMPANY LIMITED.

Whether you are managing a turbine protection panel, compressor monitoring rack, or rotating machinery surveillance system, the 330701-00-30-10-02-05 slots into your existing 3300 XL chassis without requiring backplane redesign, PLC reprogramming, or HMI screen reconfiguration. This makes it an ideal solution for facilities operating under tight maintenance windows, where minimizing downtime and preserving proven control logic are non-negotiable priorities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330701-00-30-10-02-05 into a legacy protection system begins well before the physical swap. Retrofit planning must account for the full signal chain: from the probe tip through the extension cable, into the driver/proximitor, and ultimately to the monitoring rack. In a typical 3300 XL installation, the proximitor — often a Bently Nevada 3300 XL 8mm Proximitor — conditions the raw eddy-current signal before it reaches the monitor card. Confirming that the replacement transducer’s sensitivity rating (typically 7.87 V/mm or 200 mV/mil) matches the existing proximitor calibration is the first critical checkpoint.

Terminal wiring must be verified against the original loop drawing. The three-wire configuration (power, common, output) should be traced back to the 3300 XL I/O terminal block or junction box, and insulation resistance tested before reconnection. If the facility uses a Bently Nevada 3500/42M Proximitor I/O Module or a 3500/25 keyphasor module in the same rack, those modules’ channel assignments and OK relay logic must be reviewed to ensure the replacement transducer’s OK window aligns with the monitor’s configured gap range.

For plants that have partially migrated to the Bently Nevada 3500 Series platform, the 330701-00-30-10-02-05 can serve as a bridging component — maintaining legacy 3300 XL probe positions while the monitoring infrastructure is upgraded incrementally. This avoids the cost and risk of simultaneous full-system cutover. In such hybrid architectures, signal isolation between the 3300 XL and 3500 rack segments may require a signal isolator or barrier module to prevent ground loop interference, particularly in hazardous area installations where intrinsic safety barriers are mandated.

Backplane slot addressing should be documented prior to removal of the original module. In multi-channel 3300 XL racks, channel numbering is physically determined by slot position, and any deviation during reinstallation will cause misalignment between the physical measurement point and the DCS or SCADA tag assignment. Cross-reference the rack layout drawing with the System 1 Evolution or legacy System 1 software configuration to confirm tag-to-channel mapping before the replacement module is powered up.

Where the control system interfaces with a DeltaV, Honeywell Experion, or third-party DCS via 4–20 mA analog output or Modbus RTU, the output scaling of the replacement transducer must be validated against the DCS input card’s configured engineering unit range. A mismatch here will produce erroneous vibration readings on the HMI without triggering any hardware fault — a silent failure mode that can persist undetected through multiple shift changes. Always perform a static gap calibration check using a Bently Nevada calibration fixture or equivalent gap-setting tool after installation.

Downtime Control During System Migration

Minimizing production downtime during a proximity transducer replacement requires a structured pre-outage preparation protocol. Begin by staging the 330701-00-30-10-02-05 replacement unit alongside all ancillary materials: extension cable (matched length), connector tools, gap-setting shims, and a calibrated multimeter or Bently Nevada field calibrator. Confirm that the replacement unit has been bench-tested for output voltage at a known gap distance before it reaches the field.

During the outage window, follow a lock-out/tag-out (LOTO) procedure on the affected monitoring channel. Bypass the OK relay output at the monitor card — typically via the 3300 XL monitor’s front-panel bypass switch or a software bypass in System 1 — to prevent a spurious machine trip during the swap. Document the original gap voltage reading from the monitor display or historian trend before disconnecting the old transducer. This value serves as the target reference for post-installation gap adjustment.

After physical installation, restore power to the proximitor and allow a 30-second warm-up period before reading the output voltage. Adjust the probe gap mechanically until the output matches the documented pre-outage value, then verify the OK LED status on the monitor card. Re-enable the OK relay bypass only after confirming stable output and alarm setpoint clearance. Log the as-left gap voltage, sensitivity, and cable resistance in the maintenance management system (CMMS) for future reference.

For facilities with redundant measurement channels — common in API 670-compliant turbine protection systems — the replacement can be performed on one channel while the redundant channel remains active, eliminating the need for a full machine shutdown. Coordinate with the control room operator to confirm which channel is being taken out of service and ensure the redundant channel’s OK status is healthy before proceeding. This approach reduces effective downtime to near zero for non-trip-critical measurement points.

Retrofit Support FAQ

Q1: Is the 330701-00-30-10-02-05 a direct replacement for other 330701 series variants?
The 330701-00-30-10-02-05 is part of the Bently Nevada 330701 proximity transducer family. Variants within this family share the same eddy-current operating principle and 3300 XL system compatibility, but differ in probe length, cable length, and target material calibration. Confirm the probe length suffix and extension cable length against your original installation drawing before ordering. NINERMAS can assist with cross-referencing variant specifications upon request.

Q2: What commissioning checks are required after installation?
After physical installation, perform the following: (1) measure DC output voltage at the proximitor output terminals at the installed gap distance; (2) verify the reading falls within the monitor’s configured OK window; (3) confirm the OK LED is illuminated on the 3300 XL monitor card; (4) check alarm and danger setpoints against the as-found gap voltage; (5) document as-left readings in the CMMS. If the system uses System 1 software, verify that the channel trend resumes without data gaps after the bypass is removed.

Q3: Can this unit be used with Bently Nevada 3500 Series monitors?
Yes, with appropriate signal conditioning. The 330701-00-30-10-02-05 produces a standard Bently Nevada eddy-current output signal that is compatible with 3500 Series Proximitor I/O modules when the sensitivity and gap range are correctly configured. This makes it suitable for hybrid retrofit scenarios where 3300 XL probes are retained while the monitoring rack is upgraded to the 3500 platform.

Q4: What warranty and supply terms does NINERMAS offer?
All units supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional performance. Pre-shipment testing is performed on every unit. Global shipping is available with lead times confirmed at order placement. For long-term spare parts programs or blanket order arrangements for critical SKUs, contact our sales team directly to discuss inventory reservation and extended supply commitments.
