Bently Nevada 330500-03-00 Service-Ready Spare Part

Bently Nevada 330500-03-00 Service-Ready Spare Part for Industrial Maintenance

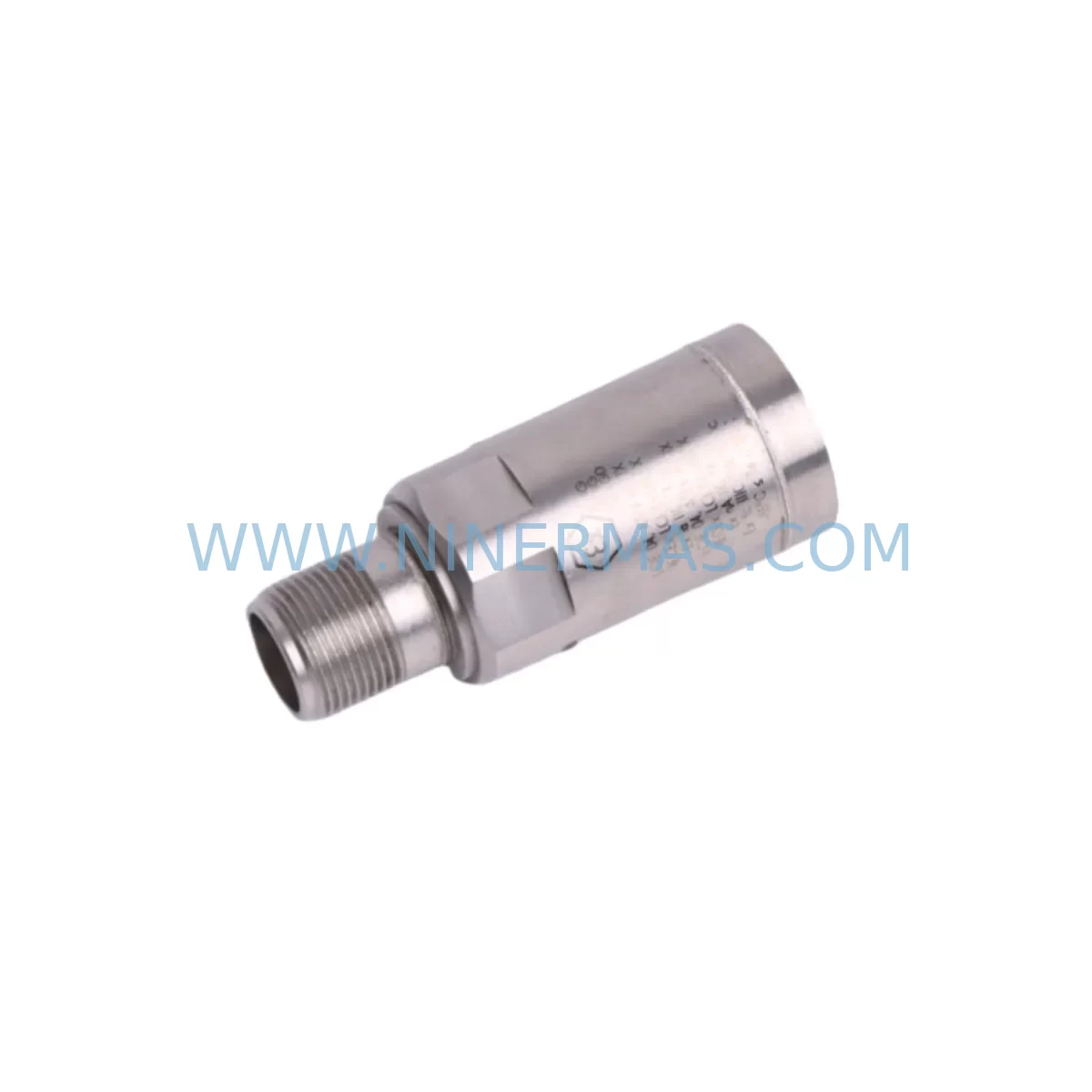

The Bently Nevada 330500-03-00 is a precision proximity transducer designed for the 3300 Series vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery applications worldwide. As legacy control systems continue to operate beyond their original design life, maintaining a reliable inventory of service-ready spare parts such as the 330500-03-00 is critical to preventing unplanned downtime, protecting rotating assets, and sustaining continuous plant operation.

This unit is sourced as an original spare part and undergoes pre-shipment functional verification to confirm signal output integrity, cable continuity, and connector condition before dispatch. Each unit is backed by a 12-month warranty, providing procurement engineers with the confidence needed for long-term maintenance planning and capital spares budgeting.

For maintenance engineers managing turbines, compressors, pumps, or gearboxes instrumented with Bently Nevada 3300 Series monitors, the 330500-03-00 transducer is a direct field replacement that restores full vibration sensing capability without requiring system reconfiguration or recalibration of the monitoring rack.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330500-03-00 proximity transducer in the field, a thorough inspection of the surrounding measurement chain is essential to ensure the restored signal path is fully reliable. Maintenance engineers should simultaneously verify the condition of the 330130-080-00-00 extension cable and the 330180-X1-05 driver, as cable degradation and driver drift are common co-failure modes in long-running installations. Connector corrosion, cable jacket cracking, and impedance mismatch between the transducer and driver are frequent causes of false vibration alarms or signal dropout.

At the monitoring rack level, the associated 3500/40M proximitor monitor or 3500/42M dual-channel monitor input card should be inspected for terminal block integrity and channel calibration status. If the installation includes a 3500/20 rack interface module or 3500/22M transient data interface, these should be checked for firmware currency and communication health, particularly in systems integrated with a DCS or safety instrumented system via Modbus or FOUNDATION Fieldbus.

For control cabinet inspections, engineers should also audit the 3500 power supply module (3500/15) supplying the –24 VDC bias voltage to the transducer loop, as power supply degradation directly affects transducer output linearity. Terminal blocks, cable trays, and grounding continuity within the junction box should be verified to eliminate common-mode noise that can mask real vibration events. Where signal isolation is required between the Bently Nevada rack and the plant DCS, a signal isolator or galvanic separator in the 4–20 mA output loop should be inspected for drift or failure.

In plants running extended maintenance intervals, it is advisable to maintain at least two units of the 330500-03-00 in the on-site capital spares inventory, alongside matched extension cables and a spare driver module, to support rapid swap-out during scheduled outages or emergency corrective maintenance without waiting on international lead times.

Site Replacement Workflow

The 330500-03-00 is a direct plug-in replacement for earlier Bently Nevada 3300 Series proximity transducers of the same thread size and cable length. Before installation, confirm the gap voltage at the driver output falls within the –10 to –18 VDC linear range using a calibrated digital multimeter. Remove the old transducer by disconnecting the coaxial connector at the junction box, unthreading the transducer body from the bearing housing bracket, and noting the original gap setting in millimeters.

Install the replacement 330500-03-00 to the same thread depth, reconnect the extension cable, and power up the driver. Verify the static gap voltage, then confirm dynamic vibration readings at the 3500/40M or 3500/42M monitor match expected baseline values for the machine at normal operating speed. Update the maintenance management system (CMMS) with the replacement date, new serial number, and gap setting to support future predictive maintenance trending.

This workflow eliminates the need for system-level reconfiguration, minimizes exposure time during the outage window, and restores full condition monitoring coverage to the asset within a single maintenance shift — reducing mean time to repair (MTTR) and protecting against secondary damage from undetected rotor anomalies.

Spare Parts Support FAQ

Q1: Is the 330500-03-00 compatible with both 3300 and 3500 Series Bently Nevada monitors?
Yes. The 330500-03-00 proximity transducer is compatible with the full range of Bently Nevada 3300 Series drivers and is also supported by 3500 Series monitor input cards including the 3500/40M and 3500/42M, provided the correct driver and extension cable are used to complete the measurement chain.

Q2: What pre-shipment testing is performed on each unit?
Each 330500-03-00 unit undergoes functional verification prior to dispatch, including coil impedance measurement, static output voltage check, and connector integrity inspection. A test report is available upon request. All units are shipped with protective packaging to prevent transit damage to the transducer tip and connector.

Q3: How should I manage long-term spare parts inventory for end-of-life Bently Nevada components?
For legacy 3300 Series installations, we recommend maintaining a minimum buffer stock of two transducers per critical machine train, paired with matched extension cables and at least one spare driver module. This strategy supports same-day corrective maintenance without dependency on spot-market availability, which can be unpredictable for discontinued part numbers.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, premature output failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation gap settings, mechanical impact, or chemical exposure beyond the rated environmental specification. Warranty claims are supported with return material authorization (RMA) and replacement dispatch within agreed lead times.
