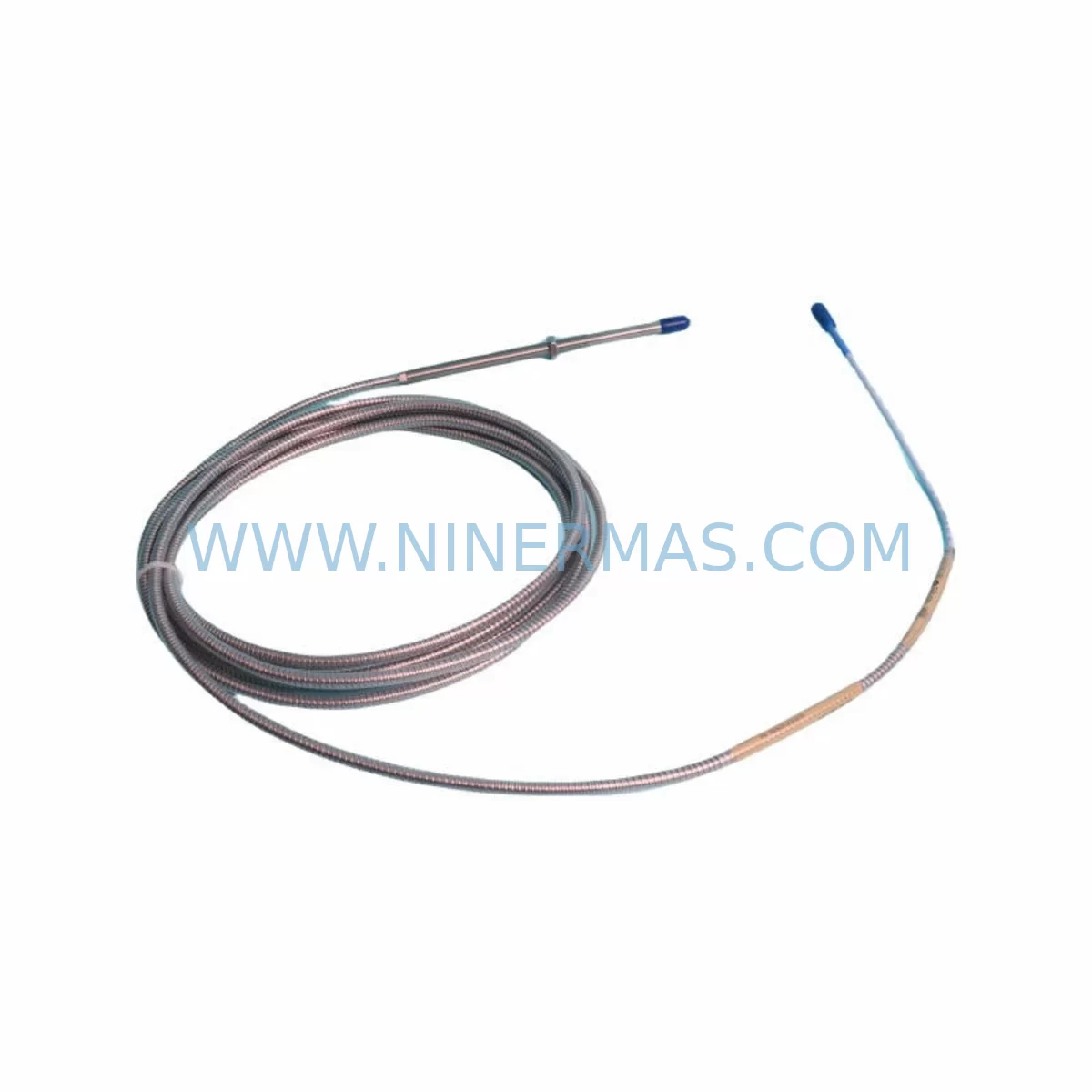

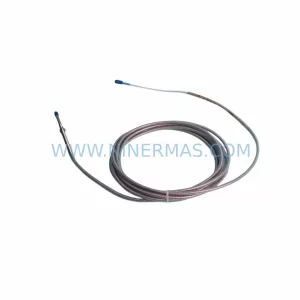

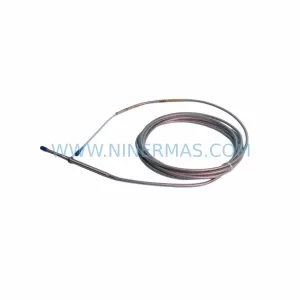

Bently Nevada 330104-05-16-10-02-CN Retrofit-Compatible Proximity Transducer

Bently Nevada 330104-05-16-10-02-CN Retrofit-Compatible Proximity Transducer for Legacy Systems

The Bently Nevada 330104-05-16-10-02-CN is a ruggedized proximity transducer module from the renowned 3300 Series, engineered to deliver reliable non-contact vibration and position measurement in rotating machinery applications. As legacy Bently Nevada 3300 Series installations age and original components reach end-of-life, the 330104-05-16-10-02-CN provides a proven, drop-in compatible replacement path that preserves existing wiring infrastructure, signal conditioning architecture, and monitoring system logic — minimizing retrofit risk and unplanned downtime across critical industrial sites.

Whether you are managing a turbine protection system in a petrochemical refinery, upgrading a compressor train monitoring rack in an LNG facility, or restoring a legacy vibration monitoring loop in a power generation plant, the 330104-05-16-10-02-CN delivers the dimensional accuracy, output linearity, and environmental resilience required for continuous, uninterrupted operation. Its -CN cable configuration ensures direct compatibility with standard Bently Nevada extension cable assemblies and junction boxes already installed in the field, eliminating the need for connector rework or signal re-termination during replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-05-16-10-02-CN begins well before the maintenance window opens. Engineers must first confirm that the existing Bently Nevada 3300 Series proximitor/driver — typically a 330180 or 330130 series signal conditioner — is still operational and correctly powered from the control cabinet’s -24 VDC supply rail. The proximitor converts the raw eddy-current signal from the probe into a calibrated voltage output, and any mismatch between probe sensitivity and driver gain will introduce measurement error that can trigger false alarms or mask real shaft excursions.

Before removing the legacy probe, technicians should document the existing gap voltage reading at the 3500/40M or 3500/42M monitor card input. This baseline reading — typically between -9.5 VDC and -10.5 VDC at mid-gap — serves as the acceptance criterion for the replacement unit after installation. If the plant uses a Bently Nevada 3500 Series rack with 3500/20 power supply modules, verify that the rack’s internal -24 VDC bus is within tolerance before energizing the new transducer, as voltage sag can shift the probe’s linear range and compromise calibration.

Wiring continuity is the next critical checkpoint. The -CN connector on the 330104-05-16-10-02-CN mates directly with standard Bently Nevada 330130 extension cables and 330180 proximitor housings already routed through the machine train’s conduit system. In most installations, the extension cable runs from the probe tip through a junction box — often a Bently Nevada 990 Series or equivalent field enclosure — and terminates at the monitor rack in the control room. Technicians should inspect the extension cable for insulation damage, moisture ingress, and connector corrosion before reusing it with the new probe, as a degraded cable will introduce noise and offset errors that are difficult to distinguish from genuine shaft movement.

For plants migrating from older 3300 NSv or 3300 RAM monitor architectures to a modern Bently Nevada 3500 Series platform, the 330104-05-16-10-02-CN provides a stable transducer foundation that does not require re-probing or re-machining of the bearing housing. The probe’s 5 mm tip geometry and standard thread engagement are identical across the 3300 and 3500 ecosystems, allowing the mechanical installation to remain unchanged while the signal conditioning and monitoring electronics are upgraded. During this migration, engineers should also review the 3500/15 Keyphasor module configuration, as phase reference signals from the Keyphasor probe directly influence vibration vector calculations in the new monitor firmware.

Additional components commonly addressed during a 330104-05-16-10-02-CN retrofit include 3500/22M transient data interface modules for waveform capture, 3500/32 four-channel relay modules for alarm and trip output wiring, and Bently Nevada TDXnet communication gateway units for Modbus or OPC-DA integration with the plant DCS. If the control cabinet also houses Bently Nevada 1900/65A general-purpose vibration monitors for auxiliary machinery, these should be inspected simultaneously to avoid a second maintenance window. Spare 330130-080-00-00 extension cables and 330180-X1-05 proximitor assemblies should be staged in advance to support rapid swap-out if field inspection reveals additional degraded components.

Downtime Control During System Migration

Minimizing production interruption during a proximity transducer replacement requires a structured pre-outage preparation protocol. At NINERMAS, we recommend the following approach for 330104-05-16-10-02-CN installations:

Pre-Outage Preparation: Stage the replacement 330104-05-16-10-02-CN alongside all required tools — gap-setting gauge, calibrated DC voltmeter, torque wrench, and connector cleaning kit — at the machine location before the maintenance window begins. Pre-verify the replacement unit’s output at a known gap distance using a bench test fixture or the existing proximitor, confirming sensitivity is within ±1% of the 200 mV/mil nominal. This eliminates troubleshooting time during the outage itself.

Program Logic Preservation: Because the 330104-05-16-10-02-CN is a direct analog replacement, no changes to the 3500 Series monitor configuration database or the plant DCS control logic are required. Alert and danger setpoints, time delays, and voting logic configured in the System 1 Evolution software remain valid. Engineers should export and archive the current monitor configuration file before the outage as a recovery baseline, ensuring that any accidental parameter change during the maintenance window can be reversed within minutes.

Field Control Continuity: Where process conditions permit, consider placing the affected monitor channel in bypass mode through the 3500/20 rack communication interface before removing the legacy probe. This prevents a spurious trip signal from propagating to the turbine or compressor shutdown logic during the brief period when the probe is disconnected. Coordinate with the control room operator to confirm bypass status before proceeding, and restore the channel to normal monitoring mode only after the new probe’s gap voltage has been verified and accepted.

Post-Installation Verification: After installation, record the gap voltage, probe temperature, and proximitor supply voltage in the maintenance log. Compare the new probe’s dynamic output — observed on the 3500/42M or 3500/40M monitor’s buffered output BNC connector using a portable spectrum analyzer — against the pre-outage baseline to confirm that shaft vibration amplitude and frequency content are consistent. Any significant deviation warrants further investigation before the machine is returned to service.

NINERMAS maintains ready stock of the 330104-05-16-10-02-CN and associated 3300/3500 Series components, with same-day shipping available for urgent maintenance requirements. Every unit undergoes pre-shipment functional verification, and all shipments are covered by a 12-month warranty from the date of delivery.

Retrofit Support FAQ

Q1: Is the 330104-05-16-10-02-CN a direct drop-in replacement for the original Bently Nevada part?
Yes. The 330104-05-16-10-02-CN is dimensionally and electrically identical to the original Bently Nevada factory part. The probe tip geometry, thread specification, cable length, connector type (-CN), and output sensitivity (200 mV/mil) are all preserved, allowing direct installation into existing probe holders without mechanical modification. No changes to monitor configuration or DCS logic are required.

Q2: What pre-shipment testing is performed on each unit?
Every 330104-05-16-10-02-CN unit shipped by NINERMAS undergoes functional output verification at a calibrated gap distance, insulation resistance testing of the integral cable, and connector integrity inspection. Test records are retained and available upon request. Units that do not meet Bently Nevada original specification tolerances are quarantined and not shipped.

Q3: Can this transducer be used with both 3300 Series and 3500 Series monitors?
Yes. The 330104-05-16-10-02-CN is compatible with the full range of Bently Nevada 3300 Series proximitor/driver assemblies as well as 3500 Series monitor inputs when used with the appropriate signal conditioner. It is also compatible with third-party vibration monitors that accept a -24 VDC powered eddy-current probe with 200 mV/mil sensitivity, subject to field verification of gap range and output linearity.

Q4: What is the warranty coverage and long-term supply commitment?
All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains a dedicated inventory of 3300 Series spare parts to support long-term procurement planning for plants with extended maintenance cycles. Customers with high-volume or scheduled replacement programs are encouraged to contact our team to discuss reserved stock arrangements and lead-time commitments.
