Bently Nevada 330104-05-15-05-02-00 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 330104-05-15-05-02-00 Service-Ready Spare Part for Industrial Maintenance

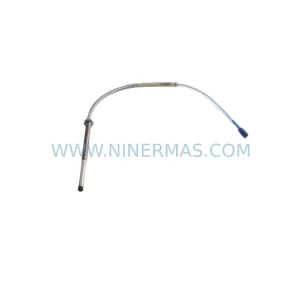

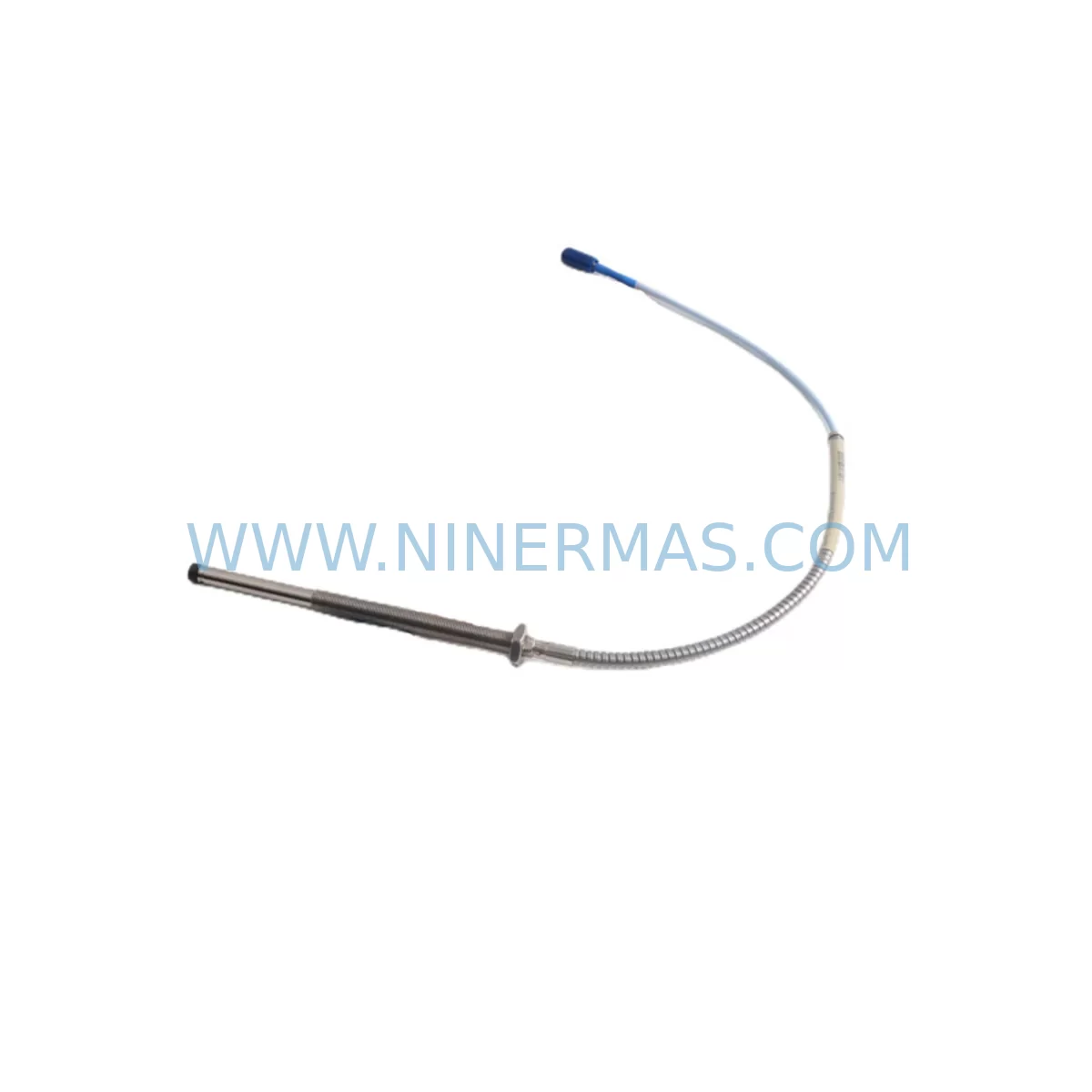

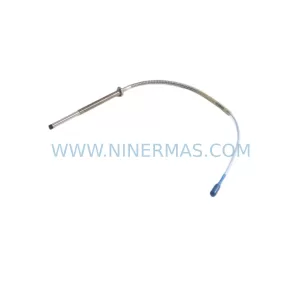

The Bently Nevada 330104-05-15-05-02-00 is a precision-engineered spare part designed for the 3300 XL Series condition monitoring system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection across global industrial facilities. Whether you are managing a planned annual overhaul, responding to an unplanned shutdown, or building a strategic spare parts inventory for a critical turbine or compressor train, this module delivers the original-specification performance your system demands.

For maintenance engineers and reliability teams operating gas turbines, steam turbines, centrifugal compressors, pumps, and fans, the 3300 XL Series represents a backbone of machine protection infrastructure. The 330104-05-15-05-02-00 is a proximity transducer system component — part of the Bently Nevada Proximitor/Velomitor signal conditioning chain — and its correct operation is essential to accurate radial vibration, axial position, and differential expansion measurement. A failed or degraded unit in this chain can trigger false trips, mask real faults, or cause undetected machinery damage, all of which carry significant production and safety consequences.

At NINERMAS, every 330104-05-15-05-02-00 unit is sourced from verified supply channels, inspected upon receipt, and tested prior to shipment. We maintain ready stock to support emergency replacement scenarios where lead time from the OEM is not acceptable. Our 12-month warranty covers manufacturing defects and functional performance, giving procurement engineers the confidence to approve this part for critical asset applications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330104-05-15-05-02-00 in a live plant environment is rarely an isolated task. Experienced maintenance engineers understand that a vibration monitoring channel failure often signals broader wear or environmental stress across the entire measurement loop. When this Proximitor/transducer component is replaced, a disciplined site team will simultaneously inspect and — where condition warrants — replace or verify the following associated components to prevent repeat failures and ensure the restored channel meets full system accuracy requirements.

Extension Cable (330130 Series): The extension cable connecting the probe to the Proximitor is subject to mechanical fatigue, connector corrosion, and insulation degradation over time. A worn extension cable will introduce signal noise or DC bias errors even with a new probe installed. Always inspect the 330130-Series extension cable for jacket integrity, connector pin condition, and continuity before closing out the work order.

Proximitor Sensor (3300 XL Proximitor): The Proximitor converts the probe’s eddy-current signal into a usable DC voltage for the monitor rack. If the 330104-05-15-05-02-00 probe is being replaced due to a channel fault, the Proximitor itself should be bench-tested or swapped with a known-good unit to confirm the fault is isolated to the probe assembly and not shared across the signal conditioning stage.

3300 XL Monitor Card / Rack Module: Within the 3300 XL rack, the monitor card processes the Proximitor output and applies alarm and trip setpoints. Inspect the monitor card for blown fuses, relay contact wear, and firmware version compatibility when performing a channel restoration. Cards such as the 3300/16 or 3300/20 series should be verified against the current system configuration file.

Power Supply Module (3300 XL Rack PSU): The rack power supply provides regulated DC to all Proximitor circuits. A marginal power supply can cause intermittent channel faults that mimic probe failures. Verify output voltage stability and ripple on the rack PSU — particularly on older installations where capacitor aging is a known failure mode.

I/O Terminal Blocks and Field Wiring: Corroded or loose terminal connections at the field junction box or rack I/O terminals are a common root cause of vibration channel faults in humid or high-vibration environments. Clean and re-torque all terminals in the affected channel loop during the replacement procedure.

Relay Output Modules: Trip and alarm relay outputs associated with the replaced channel should be exercised and verified after restoration. Relay contacts in 3300 XL systems can develop high contact resistance over years of service, particularly in dusty or chemically aggressive environments.

Communication Interface (System 1 / Modbus Gateway): If the 3300 XL rack communicates with a plant DCS or condition monitoring software via a Modbus or System 1 interface, confirm that the channel data is correctly mapped and that the restored channel is visible and correctly scaled in the supervisory system after replacement.

HMI / Operator Panel: Verify that the alarm and trip status for the restored channel is correctly displayed on the local HMI or control room panel. A channel that reads correctly at the rack but shows a fault at the HMI indicates a configuration or communication issue that must be resolved before returning the machine to service.

Signal Isolators and Barriers: In hazardous area installations, Zener barriers or galvanic isolators in the Proximitor signal loop should be inspected for correct voltage clamping and continuity. A degraded barrier can attenuate the Proximitor output and cause the monitor to read low vibration even under real fault conditions.

Spare Parts Inventory Recommendation: For facilities operating multiple machines on 3300 XL monitoring, NINERMAS recommends maintaining at least one 330104-series transducer assembly, one matched extension cable, and one spare Proximitor per critical machine train. This inventory posture supports same-shift replacement on any single channel fault without waiting for international freight.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit for the affected machine. Confirm with operations that the machine is in a safe state for maintenance access. Do not remove the probe from a running machine without confirming that the monitor is in bypass or that the trip function for the affected channel has been inhibited per site procedure.

Step 2 — Document As-Found Condition: Record the as-found DC gap voltage, vibration reading, and any active alarms on the affected channel before disconnecting any wiring. This baseline is essential for post-replacement verification and for root cause analysis if the failure mode is not immediately obvious.

Step 3 — Remove and Inspect: Disconnect the extension cable at the junction box. Remove the probe from the machinery bearing housing, noting the installed gap (number of turns from flush). Inspect the probe tip for physical damage, contamination, or corrosion. Inspect the probe cable for jacket damage near the machinery casing exit point — this is the highest-stress location on the cable.

Step 4 — Install 330104-05-15-05-02-00 Replacement: Install the new probe to the same gap setting as the as-found condition, or to the OEM-specified gap if the as-found gap was outside specification. Connect the extension cable and verify all connector locks are fully engaged. Route the cable to avoid contact with hot surfaces, rotating components, or sharp edges.

Step 5 — Verify Gap Voltage: With the Proximitor powered, measure the DC gap voltage at the monitor rack or at the Proximitor output terminals. Confirm the gap voltage is within the linear range specified for the target material and probe model — typically -10 VDC ±1 VDC for a correctly gapped 3300 XL probe on steel.

Step 6 — Functional Test and Return to Service: Remove the channel bypass or trip inhibit. Confirm that the vibration reading is stable and consistent with adjacent channels on the same machine. Verify alarm and trip setpoints are active. Document the as-left gap voltage and vibration reading. Update the maintenance management system with the replacement record, including the new part serial number and warranty expiry date.

This workflow applies equally to planned replacement during annual overhaul and to emergency replacement during an unplanned shutdown. The key difference in emergency scenarios is pre-staging: having the 330104-05-15-05-02-00 already in your on-site spare parts store eliminates the procurement delay that is otherwise the longest single element of the recovery timeline.

Spare Parts Support FAQ

Q1: Is the 330104-05-15-05-02-00 a direct drop-in replacement for older 330104-series probes?
A: The 330104-05-15-05-02-00 is designed to be compatible with the 3300 XL Series monitoring system and is a service replacement for the same SKU. If you are replacing an older 330104-series variant with a different suffix, verify the cable length, thread size, and Proximitor compatibility before installation. NINERMAS technical support can assist with cross-reference confirmation prior to shipment.

Q2: How does NINERMAS verify the condition of this part before shipment?
A: Every 330104-05-15-05-02-00 unit undergoes a pre-shipment functional test that includes output voltage verification, insulation resistance check, and physical inspection of the probe tip, cable jacket, and connector. A test record is available upon request. Our 12-month warranty covers functional performance from the date of shipment.

Q3: What is the recommended spare parts holding strategy for 3300 XL systems?
A: For critical rotating machinery — turbines, compressors, and large pumps — we recommend holding a minimum of one complete transducer assembly (probe, extension cable, and Proximitor) per monitored machine train as on-site inventory. For facilities with multiple identical machines, a shared pool of two to three assemblies is typically sufficient to cover emergency replacement needs while a replenishment order is processed. NINERMAS supports long-term supply agreements to maintain your inventory at agreed levels.

Q4: Can NINERMAS supply the 330104-05-15-05-02-00 on an ongoing basis for multi-year maintenance contracts?
A: Yes. NINERMAS maintains stock of 3300 XL Series components and can support scheduled delivery programs aligned to your annual maintenance calendar or framework procurement agreements. Contact our sales team at sale@ninermas.com to discuss volume pricing, lead time commitments, and long-term supply arrangements. All units supplied under ongoing contracts carry the same 12-month warranty and pre-shipment testing standard as single-unit orders.
