Bently Nevada 330104-00-14-10-02-CN Retrofit Module

Bently Nevada 330104-00-14-10-02-CN Retrofit Module: Legacy-Compatible Upgrade for 3300 XL Proximity Systems

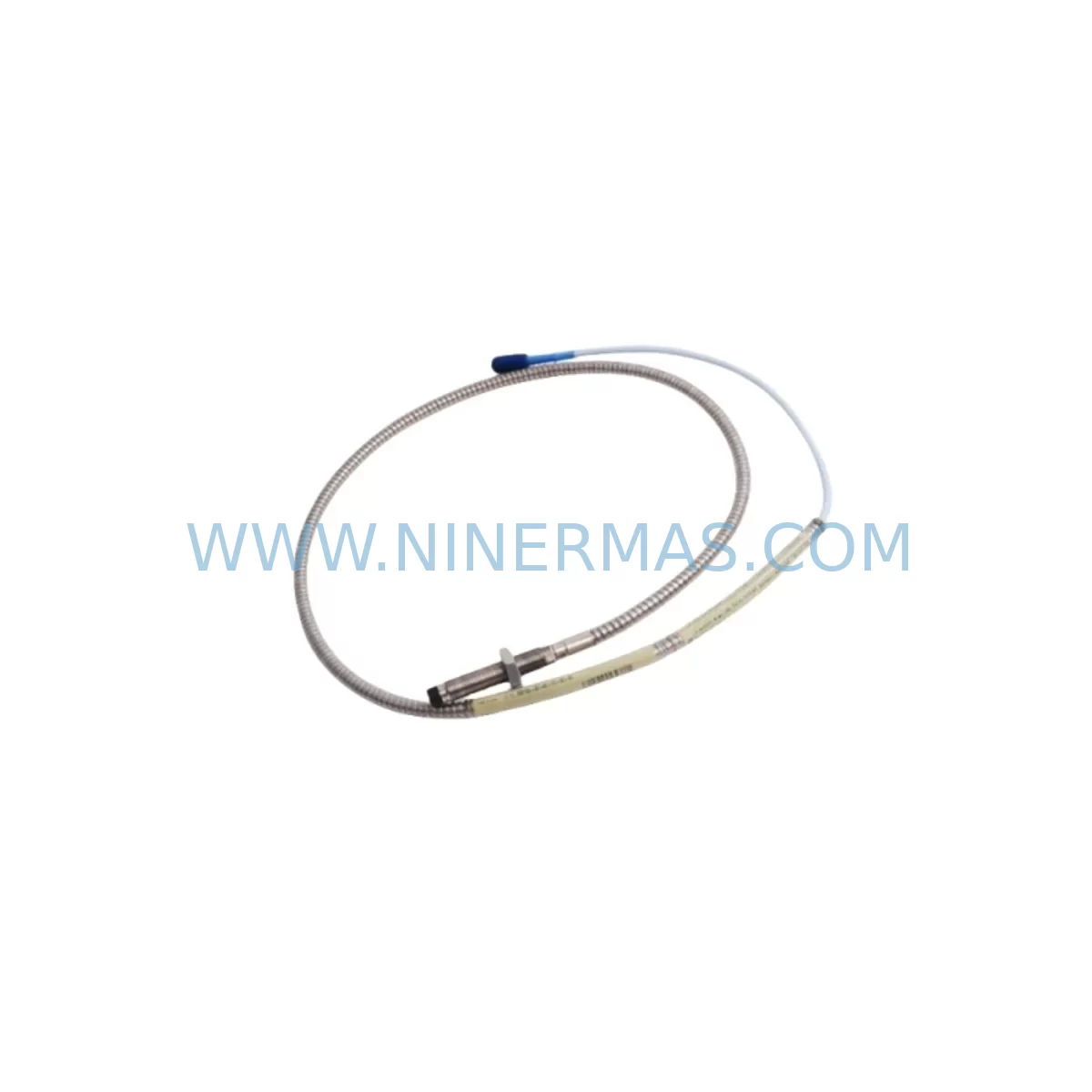

The Bently Nevada 330104-00-14-10-02-CN is a proximity transducer extension cable assembly designed for use within the 3300 XL Series vibration monitoring platform. As original Bently Nevada 3300 XL components approach end-of-life and factory discontinuation, maintenance engineers and reliability teams face increasing pressure to source verified retrofit-compatible replacements that preserve existing rack architecture, signal integrity, and program logic without requiring a full system overhaul.

This unit serves as a direct retrofit solution for plants operating legacy Bently Nevada 3300 XL monitor racks. It is engineered to maintain the original eddy-current proximity measurement chain — from probe tip through extension cable to the 3300 XL monitor input — ensuring that vibration, position, and speed signals remain within calibrated tolerances. For facilities managing rotating machinery such as steam turbines, compressors, pumps, and gearboxes, continuity of the proximity measurement loop is non-negotiable during any retrofit or upgrade campaign.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 330104-00-14-10-02-CN, the scope of work typically extends beyond the cable itself. A complete proximity measurement chain in a 3300 XL rack includes the probe (such as a 330103-00-08-10-02-CN or 330180-X1-05-CN Proximitor® Sensor), the extension cable (this unit), and the monitor module — for example, a 3300/16 16-channel monitor or a 3300/20 Radial Vibration Monitor. Each element must be verified for compatibility before the retrofit is approved for live commissioning.

In practice, many plants running legacy 3300 XL racks also operate adjacent Bently Nevada 3500 Series rack components in parallel — particularly where a phased migration from 3300 XL to 3500 architecture is underway. During such transitions, the 3500/42M Proximitor®/Seismic Monitor or the 3500/40M Proximitor®/Seismic Monitor may be installed in new rack slots while the 3300 XL monitors remain active on critical measurement points. The 330104-00-14-10-02-CN extension cable supports the 3300 XL side of this hybrid configuration, maintaining measurement continuity during the migration window.

Terminal wiring adaptation is a key step. The extension cable’s coaxial connectors must be routed through existing conduit paths to the Proximitor® driver, and the driver output wiring to the 3300 XL monitor terminal block must be confirmed against the original loop drawing. Where junction boxes or marshalling panels are involved, technicians should verify that shield grounding is maintained at one end only to prevent ground loops that could corrupt vibration readings.

Backplane and rack slot assignments in the 3300 XL chassis do not change with a cable replacement, but if the retrofit is part of a broader I/O expansion — for example, adding a 3300/55 Dual Voting Logic module or a 3300/65 Keyphasor® module — the rack power budget must be recalculated. The 3300 XL power supply module (such as the 3300/05 or 3300/10 power supply) has defined current limits per rack, and adding modules without a power audit risks nuisance trips or supply instability.

For plants also managing communication protocol migration — for instance, moving from hardwired relay outputs to Modbus RTU or FOUNDATION Fieldbus via a 3500/92 Communication Gateway — the proximity measurement data path remains analog through the 3300 XL monitor. The gateway integration does not affect the extension cable or probe system, but the HMI screen configurations in systems such as System 1 Evolution software must be updated to reflect any channel reassignments made during the retrofit.

Signal isolators are sometimes inserted between the Proximitor® output and the monitor input when long cable runs introduce noise. In such cases, a DIN-rail mounted signal conditioner compatible with the –24 VDC Proximitor® supply voltage should be selected to avoid loading the measurement circuit. This is particularly relevant in retrofit scenarios where the original cable routing is extended or rerouted through areas with high electromagnetic interference from variable frequency drives or large motor starters.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity system retrofit requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, the replacement 330104-00-14-10-02-CN cable should be bench-tested alongside the paired probe and Proximitor® sensor to confirm the gap voltage output falls within the –10 VDC to –18 VDC calibrated range specified for the target probe system. This pre-verification step eliminates the risk of discovering a calibration mismatch after the machine is taken offline.

During the outage, the original program logic in the 3300 XL monitor — including alert and danger setpoints, time delays, and OK relay configurations — must be documented before any hardware is disturbed. Many 3300 XL monitors do not retain configuration through a power cycle if the internal battery has degraded, so a full parameter printout or System 1 configuration export should be completed as part of the pre-outage checklist.

Cable replacement itself is typically a low-risk mechanical task, but the post-installation gap voltage check is the critical commissioning step. With the machine at rest and the Proximitor® powered, the gap voltage at the monitor input should be measured and compared against the probe system’s calibration curve. If the reading falls outside the linear range, the probe-to-target gap must be adjusted before the machine is returned to service. The 3300 XL monitor’s OK relay will not close — and the channel will remain in a fault state — until the gap voltage is within the valid measurement range.

For facilities with redundant measurement channels, the retrofit can be staged: replace one channel while the redundant channel remains active, verify commissioning, then proceed to the second channel. This approach keeps the protection system active throughout the retrofit and eliminates the need for a full machinery trip during the cable replacement. Total hands-on time for a single-channel cable replacement, including gap verification and OK relay confirmation, is typically under two hours for an experienced instrumentation technician.

Retrofit Support FAQ

Q1: Is the 330104-00-14-10-02-CN a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 330104-00-14-10-02-CN extension cable. It is compatible with the full range of 3300 XL proximity monitors and Proximitor® sensors. No rack modification, wiring change, or software update is required for a like-for-like cable replacement. Post-installation gap voltage verification is the only commissioning step required.

Q2: What pre-shipment testing is performed on this unit?
Each 330104-00-14-10-02-CN cable assembly undergoes continuity testing, insulation resistance verification, and connector integrity inspection prior to shipment. Units are packaged in anti-static, moisture-resistant packaging suitable for long-term storage in spare parts inventory. A test report is available upon request for quality-critical applications.

Q3: What is the lead time and warranty coverage?
In-stock units ship within 3–5 business days. A 12-month warranty from the date of shipment covers manufacturing defects and electrical performance. Warranty claims are supported by NINERMAS with direct technical assistance for installation and commissioning questions.

Q4: Can this cable be used in a mixed 3300 XL / 3500 Series rack environment?
Yes, in a hybrid rack configuration where 3300 XL and 3500 Series monitors coexist in separate rack slots, the 330104-00-14-10-02-CN serves the 3300 XL measurement channels without any interference with the 3500 Series modules. The two platforms operate independently on their respective backplanes, and the extension cable is specific to the 3300 XL proximity measurement chain.
