Bently Nevada 330104-00-06-05-01-00 Retrofit-Compatible Proximity Transducer for Legacy Systems

Bently Nevada 330104-00-06-05-01-00 Retrofit-Compatible Proximity Transducer for Legacy Systems

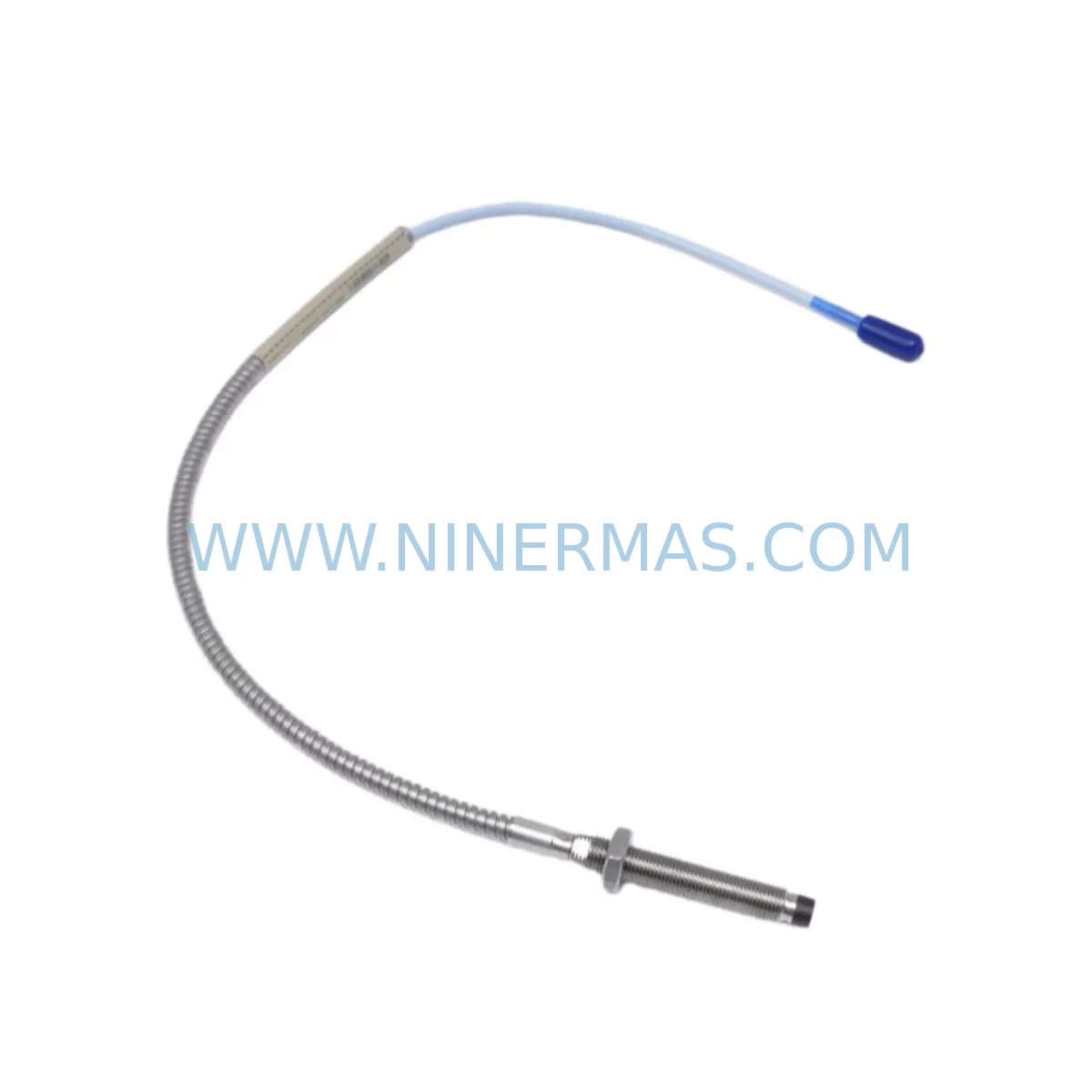

The Bently Nevada 330104-00-06-05-01-00 is a precision proximity transducer engineered for the 3300 XL Series vibration monitoring platform. As aging distributed control systems and condition monitoring networks reach end-of-life, this module serves as a critical retrofit-compatible replacement for facilities operating legacy Bently Nevada 3300 Series infrastructure. NINERMAS maintains verified inventory of this SKU to support planned maintenance shutdowns, emergency spare replacements, and phased system modernization programs across oil & gas, power generation, petrochemical, and rotating machinery industries.

When a plant’s existing 3300 XL proximity transducer system begins to show signal degradation, intermittent faults, or simply reaches the end of its service life, sourcing a direct replacement that preserves existing wiring, rack mounting, and signal conditioning infrastructure is the highest priority. The 330104-00-06-05-01-00 is designed to slot into existing installations without requiring changes to the 3300 XL Proximitor/Seismic Monitor rack, preserving the original terminal block wiring and minimizing downtime during the swap.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 330104-00-06-05-01-00 proximity transducer within a live plant environment requires careful pre-engineering to avoid unplanned outages and signal chain disruptions. The transducer operates as part of a three-component system: the probe itself, the extension cable (typically a 330130 series extension cable), and the Proximitor sensor (commonly the 330180-X1-05 or 330180-X1-00 Proximitor housing). All three components must be matched in terms of system length and scale factor to maintain calibrated output. Before ordering, maintenance engineers should confirm the total system length — typically 5 or 9 meters — and verify that the existing Proximitor housing is compatible with the replacement probe.

In facilities where the 3300 XL rack is being retained but individual transducer channels are being refreshed, it is common to simultaneously audit the 3300/16-24-01-01-00 I/O module and the 3300/55 Power Supply within the same rack. Power supply degradation is a frequent co-failure mode in aging 3300 XL racks, and replacing the transducer without verifying the rack power supply can result in repeat failures. The 3300/55 or its equivalent should be inspected for output voltage stability before the new transducer is commissioned.

For plants migrating from the legacy 3300 XL platform toward the modern Bently Nevada 3500 Series, the 330104-00-06-05-01-00 transducer remains compatible with 3500 Series monitor cards when used with appropriate signal conditioning. The 3500/42M Proximitor/Seismic Monitor and the 3500/22M Transient Data Interface are commonly deployed alongside this transducer during phased migration projects, allowing the plant to upgrade the monitoring rack while retaining existing field-installed probes and extension cables — significantly reducing field rewiring costs and installation time.

Control cabinet space is a recurring constraint in retrofit projects. When the existing 3300 XL rack occupies a 19-inch or DIN-rail enclosure, engineers must confirm that the replacement transducer’s Proximitor housing fits within the available panel depth. In cases where cabinet space is limited, signal isolators — such as the Bently Nevada 3300/20 or equivalent DIN-rail signal conditioners — can be used to relocate signal conditioning outside the primary rack, freeing space for additional I/O expansion modules.

Communication protocol migration is another key consideration. Legacy 3300 XL systems typically output analog vibration signals to a DCS or safety system via hardwired 4–20 mA loops. When the plant’s DCS is being upgraded — for example, from a legacy Honeywell TDC 3000 or Yokogawa CENTUM CS to a modern DCS platform — the vibration monitoring signals must be re-mapped to the new I/O termination assemblies. This process requires updating HMI faceplates, alarm setpoints, and historian tags to reflect the new signal source addresses. NINERMAS recommends that customers performing DCS migrations simultaneously audit all 3300 XL transducer channels to identify any units approaching end-of-life, consolidating replacement procurement into a single project phase to minimize future unplanned outages.

Downtime Control During System Migration

Minimizing production downtime during a proximity transducer replacement is achievable with proper pre-staging and a structured hot-swap or cold-swap protocol. For non-redundant monitoring channels, the replacement window is typically limited to a planned maintenance shutdown. NINERMAS recommends that customers pre-configure and bench-test the replacement 330104-00-06-05-01-00 transducer assembly — including the matched extension cable and Proximitor housing — before the maintenance window begins. This includes verifying the gap voltage output at the nominal air gap distance and confirming the scale factor matches the existing system calibration records.

During the physical swap, the original terminal block wiring should be photographed and documented before disconnection. The 3300 XL system uses a standard three-wire connection (PWR, COM, SIG) at the Proximitor output terminal, and polarity errors during reconnection are a common commissioning mistake. After reconnection, the OK relay output should be verified before the machine is returned to service, and the vibration alarm setpoints should be confirmed against the original engineering basis.

For facilities with redundant monitoring channels, a transducer replacement can sometimes be performed online by placing the affected channel in bypass mode within the 3500 Series or 3300 XL monitor configuration. This approach preserves the overall system’s protective function while the failed channel is being replaced, reducing the need for a full machine shutdown. However, this method requires that the plant’s safety management system approves the temporary bypass and that the bypass duration is strictly controlled.

NINERMAS maintains ready stock of the 330104-00-06-05-01-00 and associated components to support emergency replacement scenarios. All units are tested prior to shipment and covered by a 12-month warranty, providing assurance that the replacement unit will perform to specification from the moment it is installed. Expedited shipping is available for critical plant situations where machine protection must be restored within 24–72 hours.

Retrofit Support FAQ

Q1: Is the 330104-00-06-05-01-00 a direct drop-in replacement for my existing 3300 XL proximity transducer?
In most cases, yes — provided the total system length (probe + extension cable + Proximitor) matches the original configuration. Before ordering, confirm the system length (typically 5 m or 9 m), the Proximitor housing model, and the target material (steel or non-steel shaft). NINERMAS technical support can assist with compatibility verification based on your existing part numbers.

Q2: Has this unit been tested before shipment, and what warranty is provided?
All 330104-00-06-05-01-00 units supplied by NINERMAS are tested prior to shipment to verify output voltage, scale factor, and OK relay function. Each unit is covered by a 12-month warranty from the date of shipment. Test reports are available upon request for critical applications.

Q3: Can this transducer be used with the Bently Nevada 3500 Series monitoring system?
Yes. The 330104-00-06-05-01-00 is compatible with 3500 Series monitor cards, including the 3500/42M Proximitor/Seismic Monitor, when the system length and scale factor are correctly matched. This makes it suitable for phased migration projects where field-installed probes are retained while the monitoring rack is upgraded to the 3500 platform.

Q4: What is the typical lead time, and do you maintain stock for emergency orders?
NINERMAS maintains verified inventory of the 330104-00-06-05-01-00 to support both planned procurement and emergency replacement scenarios. Standard lead time for in-stock units is 3–7 business days. Expedited shipping options are available for urgent plant situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability.
